MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • San Rocco Mec
  • Model:
  • SAN ROCCO MEC 120 B 4 TABLE TYPE BORER
  • Condition:
  • Used
  • YOM:
  • 1980
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Spindle: 120mm.
Transversal travel: 2.100mm.
Vertical travel: 1.800mm.
Longitudinal travel: 1.500mm.
Spindle travel: 800mm.
Spindle taper: 50ISO

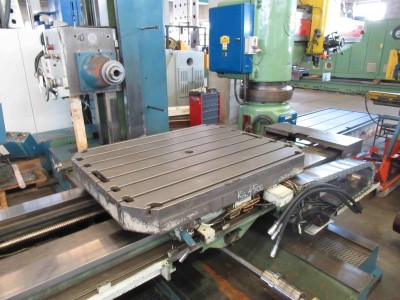

Table: 1.520 x 1.220mm.
Spindle power: 17,4Kw.
Spindle speeds: N. 18; 13 - 1.000Rpm.
Max. weight on table: 5.000kg.
Total weight: 20Tons.
Year: 1980

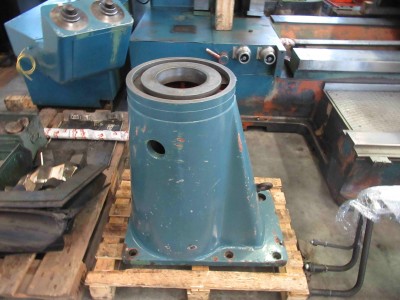

Notes: COMPLETE WITH:- D. R.O.- N. 2 BORING SUPPORTS
