MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • ROTARY
  • Model:

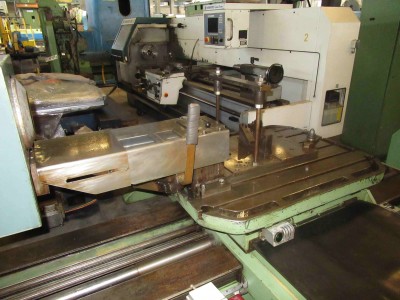

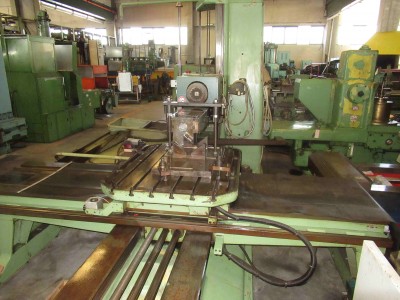

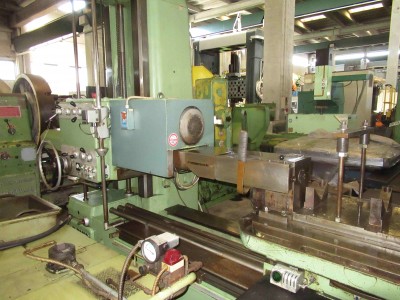

  • S. ROCCO AL 76 ROTARY TABLE TYPE DRILLING/BORING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Max. working ?: 76mm.
Max. working lenght: 600mm.
Spindle power: 6,6Kw.
Spindle speeds: N. 16; 8,5 - 1.500Rpm.
Spindle taper: 5C.M.
Spindle hole ?: 76mm.
Max. ? over the bed: 10mm.

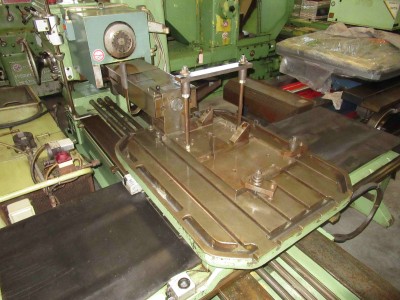

Table: 1.120 x 870mm.
Table travel: 2.030mm.
Head vertical travel: 1.000mm.

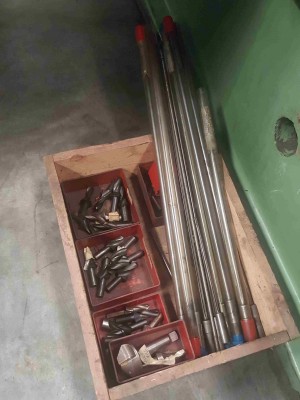

Notes: COMPLETE WITH:- DEEP HOLE DRILLING HEAD MAX. ? 10 MM. x 600 MM. LENGHT- WATER TANK WITH FILTER- DEEP HOLE DRILLING TOOLS
