GRAZIANO
07249
Distance between center mm 1500
Height of center mm 180
Turning diameter on the bed mm 360
Turning diameter on the carriage mm 240
EQUIPEED WITH:
Steady rest
Follow rest
Self-centering with 3 jaws 230 mm
Plateau with 4 independent jaws...
SASS
08883
Max drilling diameter on steel mm 80
Max drilling diameter on cast iron mm 100
Min. and max arm mm 685-2500
Base-spindle nose min. and max mm 485-2085
Vertical quill mm 500
Diameter mm 550
Spindle taper MORSE 6
Spindle diameter mm 110
Spee...

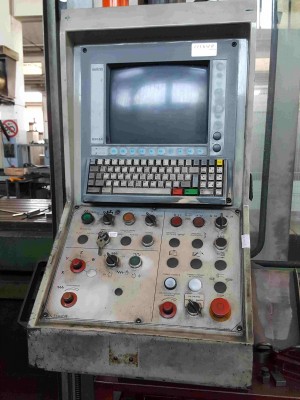

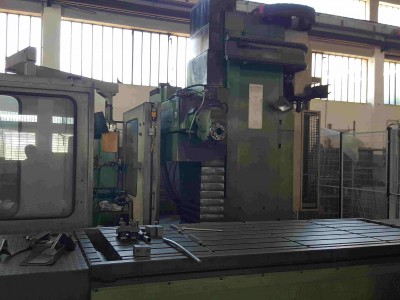

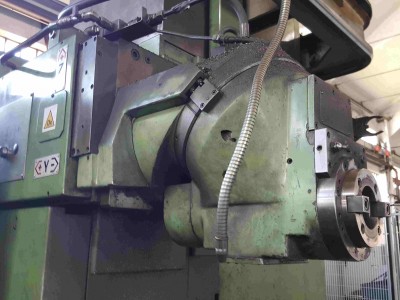

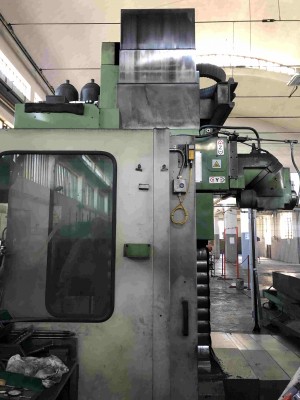

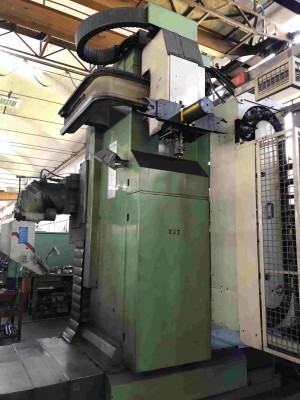

FRORIEP
06524
Spindle diameter mm 160
Column longitudinal travel X axis mm 16.000
Vertical headstock travel Y axis mm 4000/ 4200
Spindle travel axis Z mm 1500
Ram travel W axis mm 1400
Spindle taper ISO 50
Ram section mm 540x530
Spindle power kw 52
...
