MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Universal
  • Model:

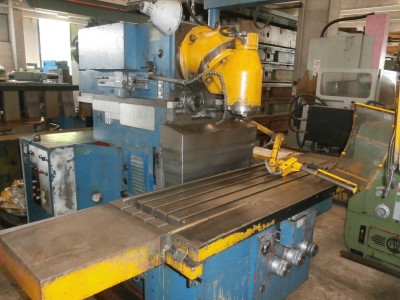

  • TOS FGS 32/40 T UNIVERSAL MILLING MACHINE
  • Condition:
  • Used
  • YOM:
  • 1995
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Transversal travel: 1.000mm.
Table: 1.400 x 400mm.
Vertical travel: 450mm.
Longitudinal travel: 400mm.
Spindle taper: 50ISO
Spindle power: 11Kw.
Spindle speeds: N.18; 35,5 - 1.800Rpm.
Total weight: 4,4Tons.
Year: 1995

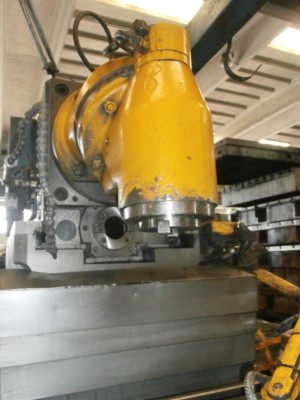

Notes: COMPLETE WITH:- HORIZONTAL SPINDLE + RAM WITH BIROTATIVE MILLING HEAD WITH AUTOMATIC CLAMPING- D.R.O.- SAFETY PROTECTIONS
+ request more information
