REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
TRIPET

Model:

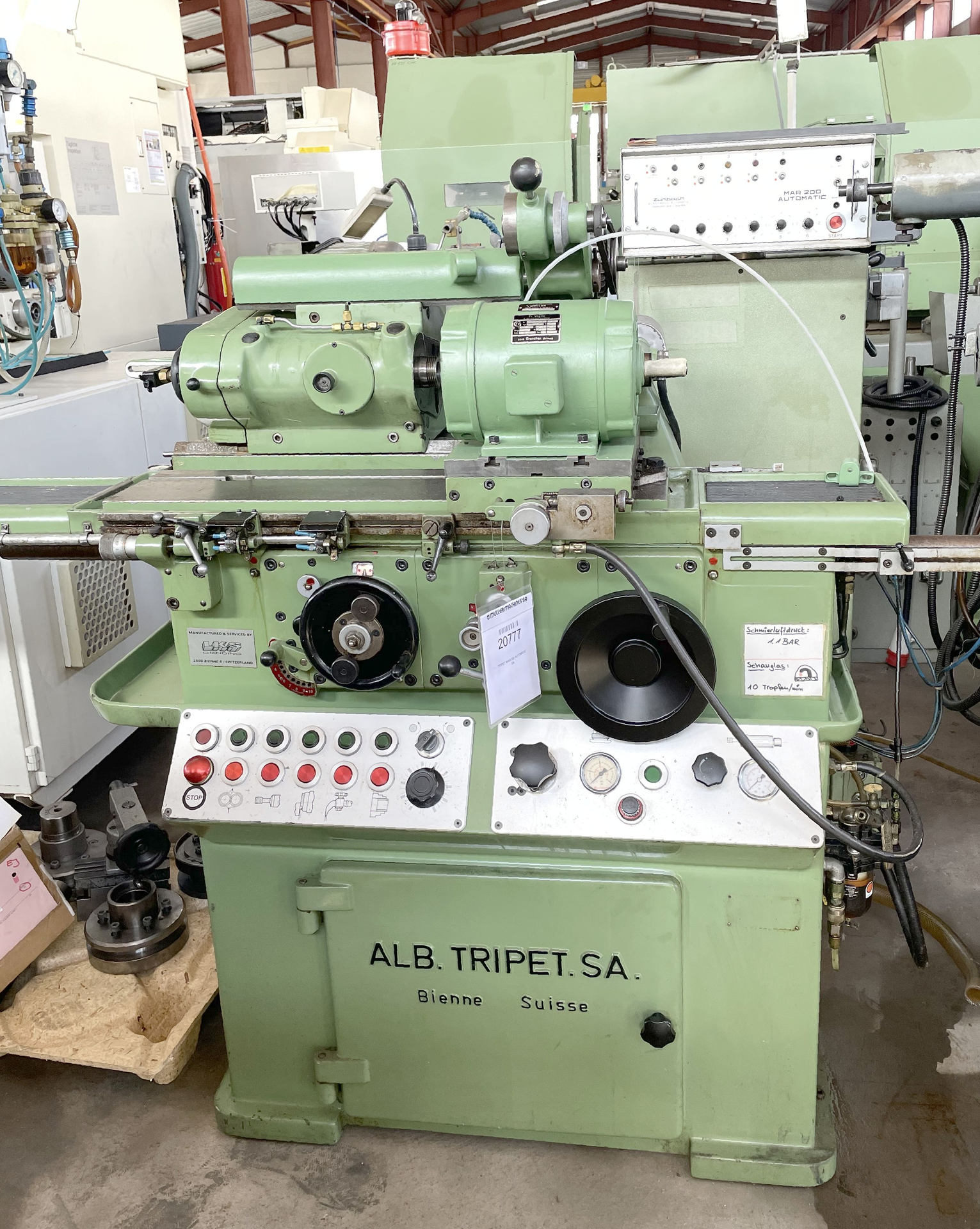

020777 - TRIPET MAR 200 AUTOMATIC

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Min. internal grinding diameter: 1 mm.
Max. internal grinding diameter: 50 mm.
Grinding depth: 200 mm.
Centre height: 132 mm.
from: 16500 t/min.
up to: 10 m/min.
Max. angle: 90 °.
Voltage 50 Hz 3x: 380 Volt.
Workpiece spindle motor: 0.8 kW.
Drive for internal grinding spindle: 3 kW.
Machine's weight about: 2000 kg.
Length: 1800 mm.
Width: 1000 mm.
Height: 1800 mm.
numbers: 1.
max. speed: 33000 t/min.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

Muller Machines SA

Contact Name
Laurent Muller
