MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

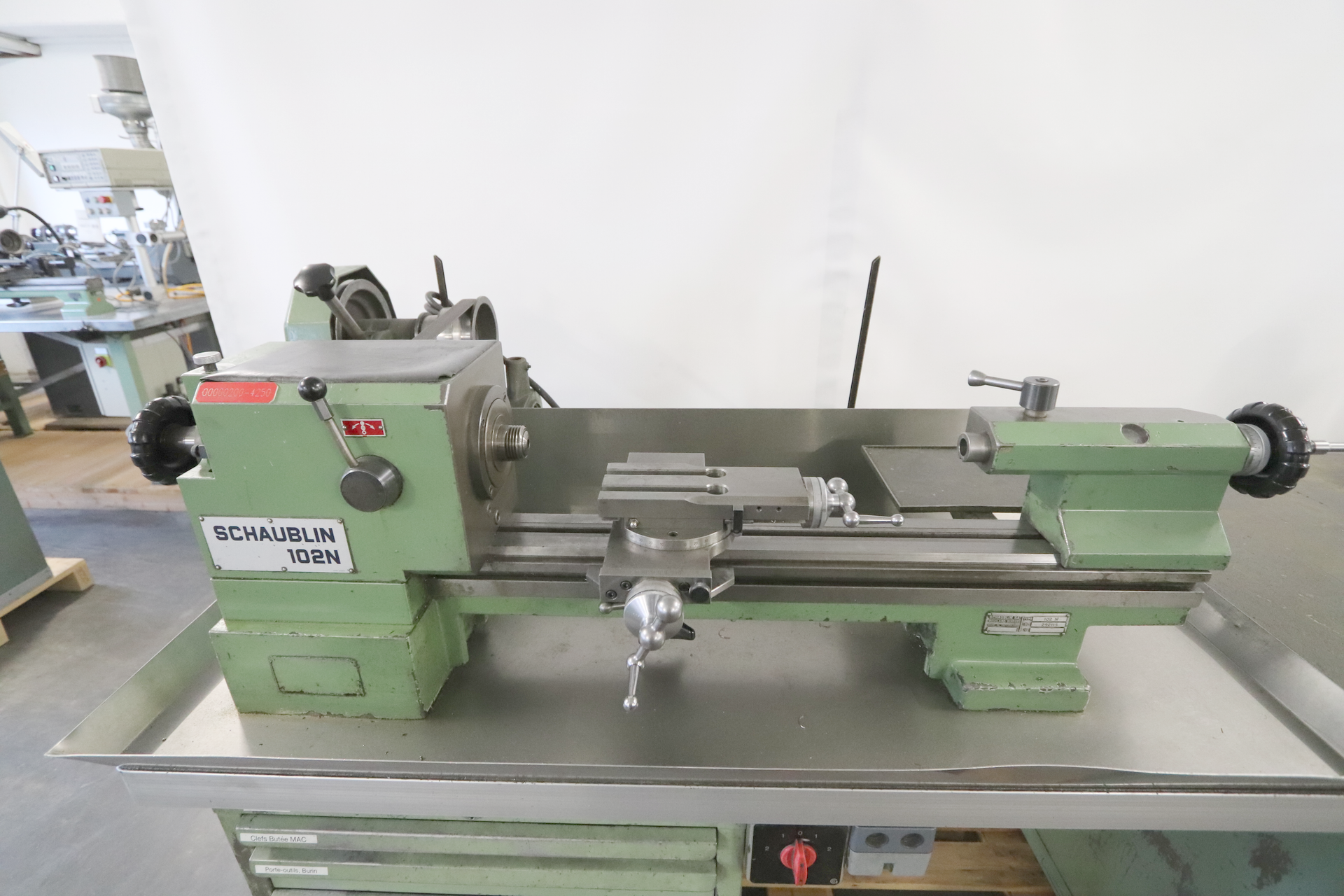

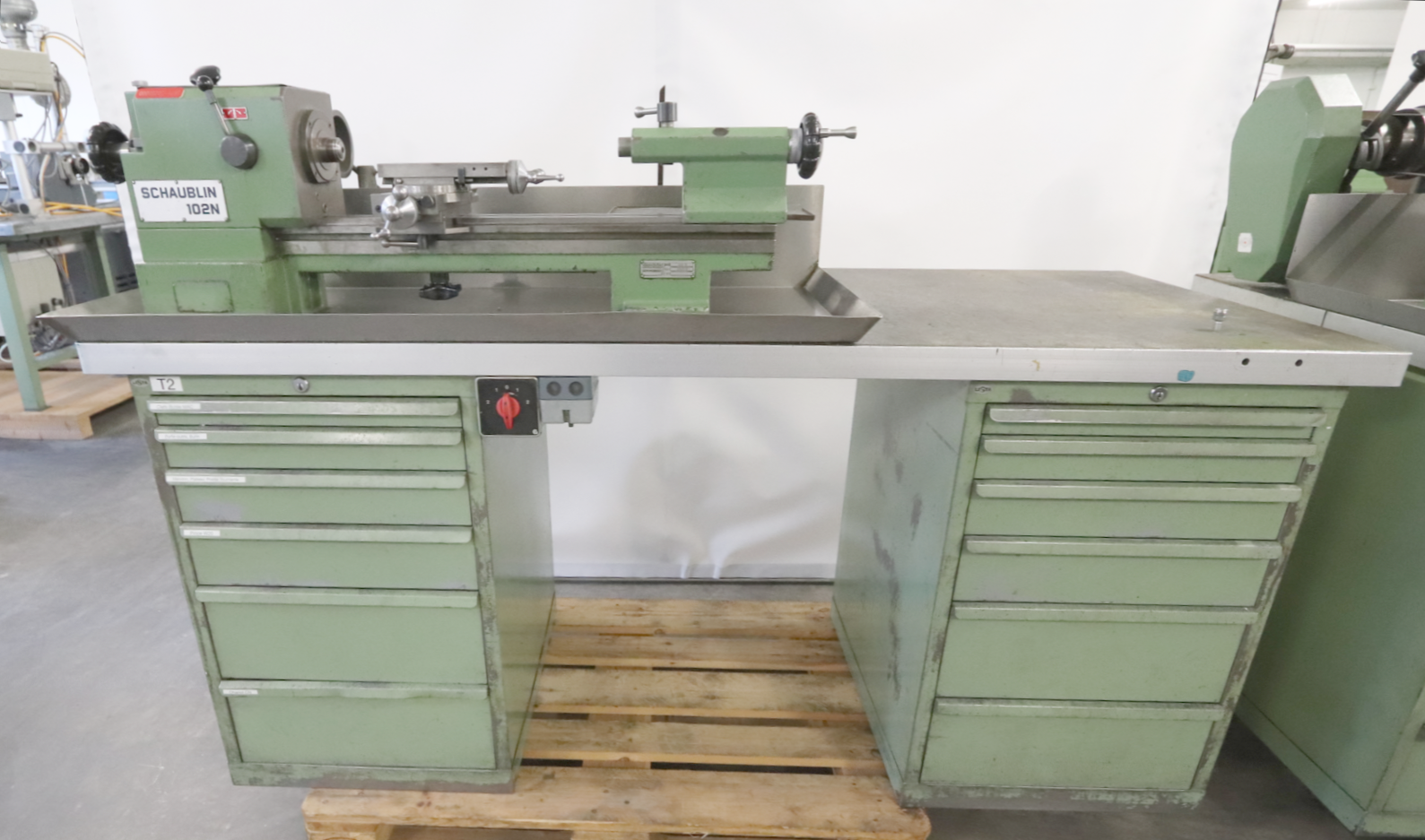

  • 020999 - SCHAUBLIN 102 N
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 375 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
from: 45 t/min.
up to: 3100 t/min.
Step-down gear: 1:5.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 0.5 / 0.9 kW.
Machine's weight about: 300 kg.
Length: 2000 mm.
Width: 800 mm.
Height: 900 mm.

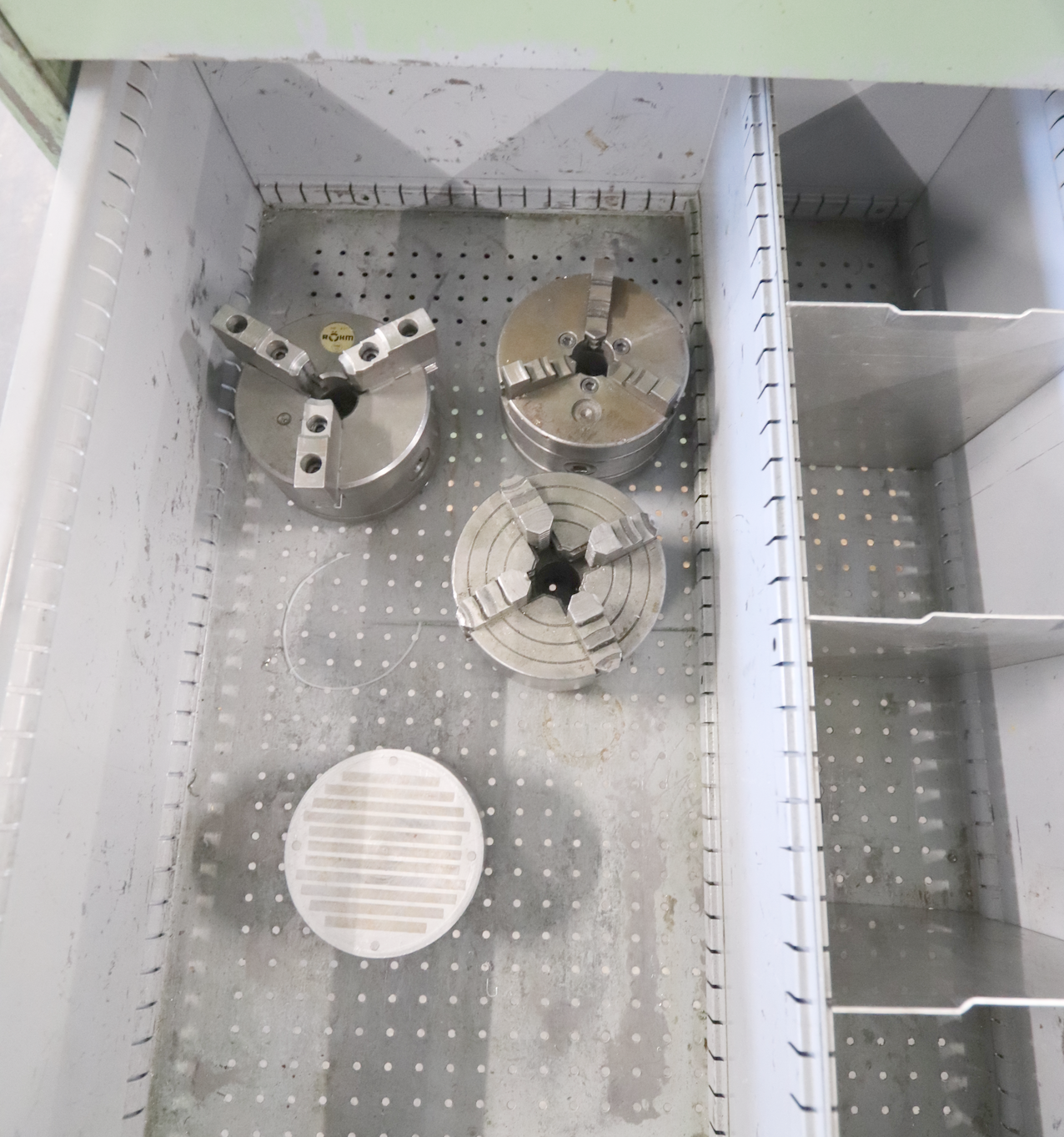

3-jaw chuck diameter: 110 mm.
4-jaw chuck diameter: 110 mm.
Macnetic chuck diameter: 100 mm.
+ request more information
