MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • INDEX
  • Model:
  • 021595 - INDEX G 200
  • Condition:
  • 1
  • YOM:
  • NA

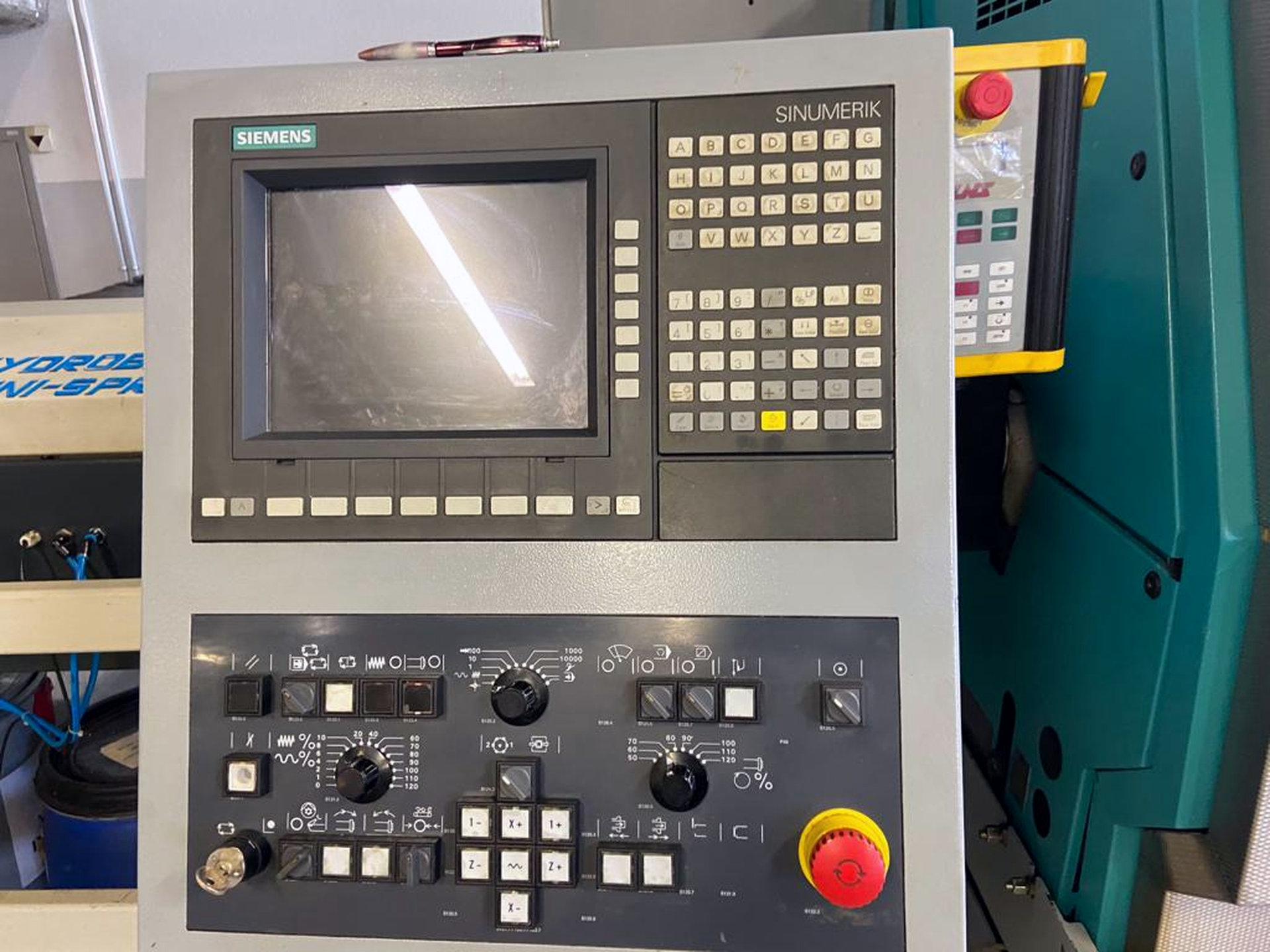

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 2.
Number of revolvers: 2.
Spindle hole: 42 mm.
Turning diameter: 200 mm.
Turning length: 400 mm.

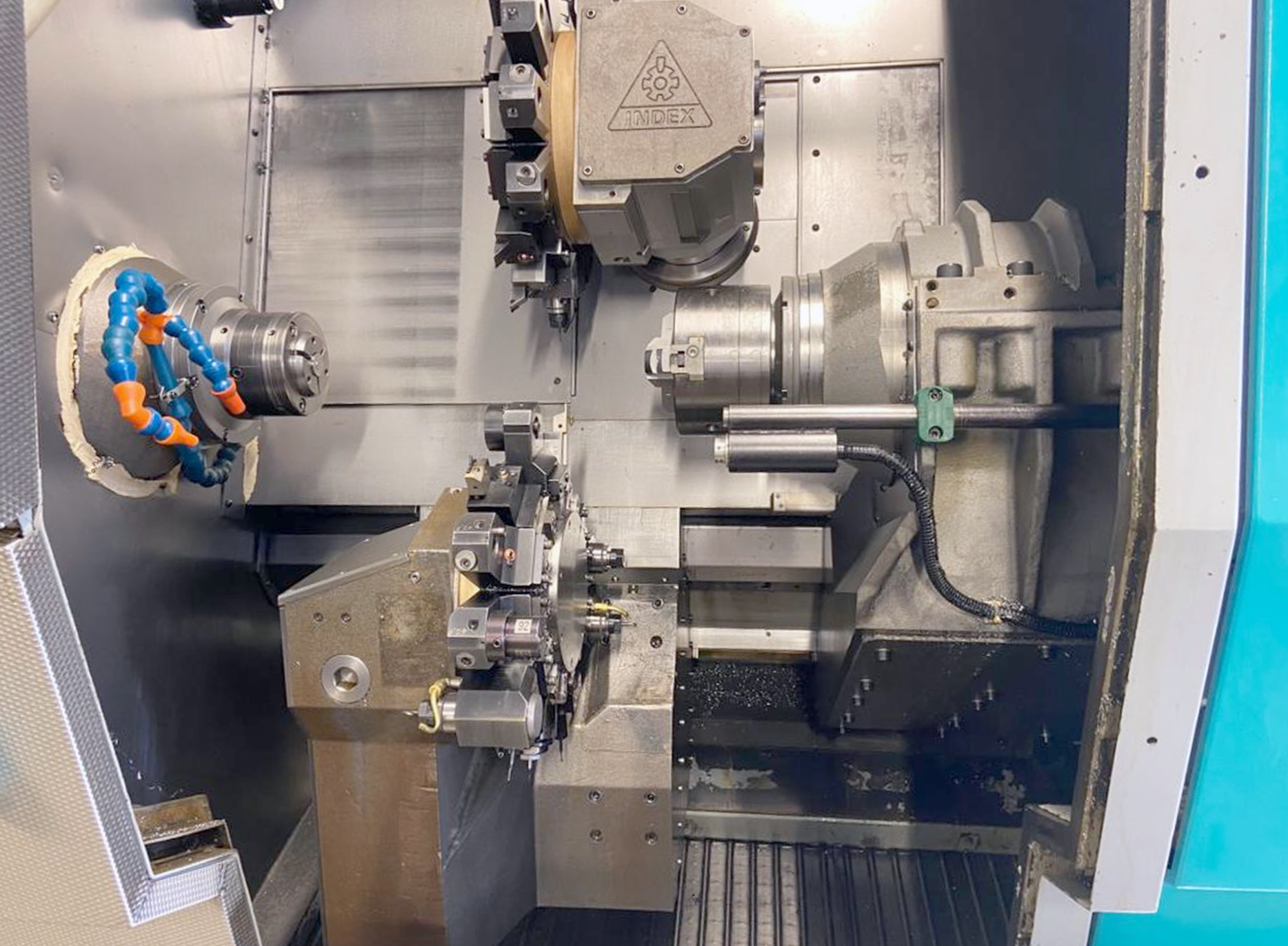

Number of positions turret 1: 14.
Number of positions turret 2: 14.

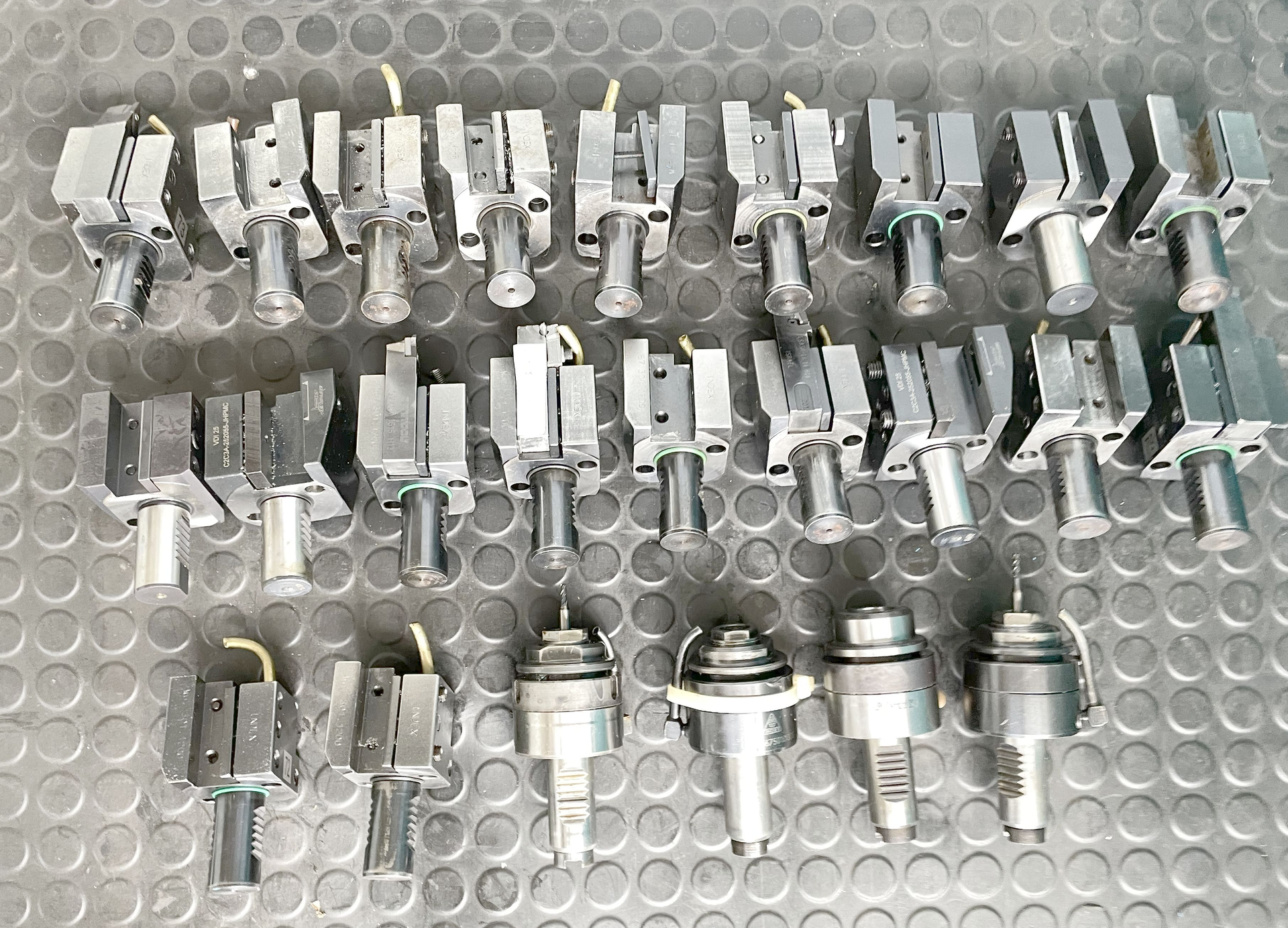

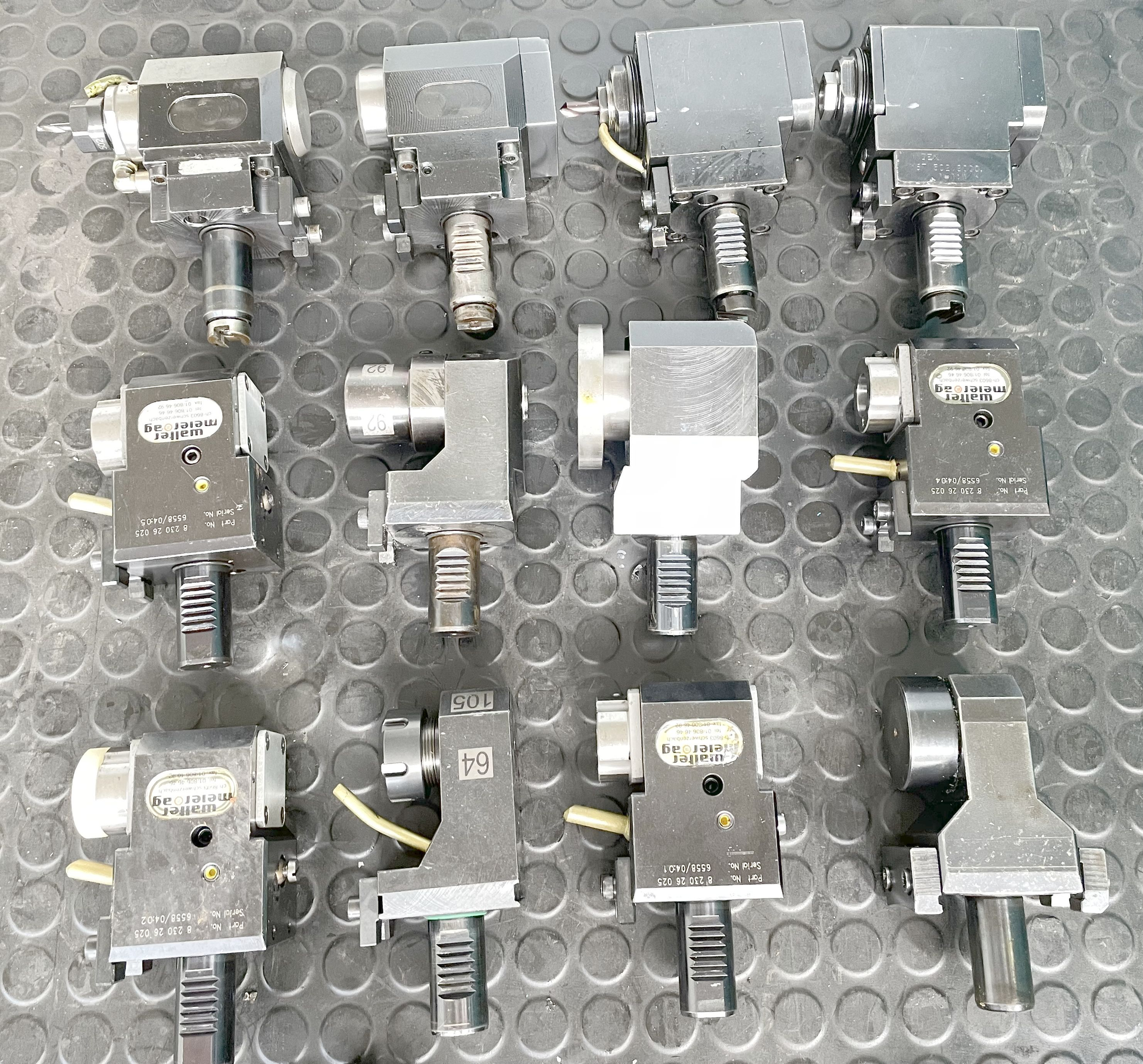

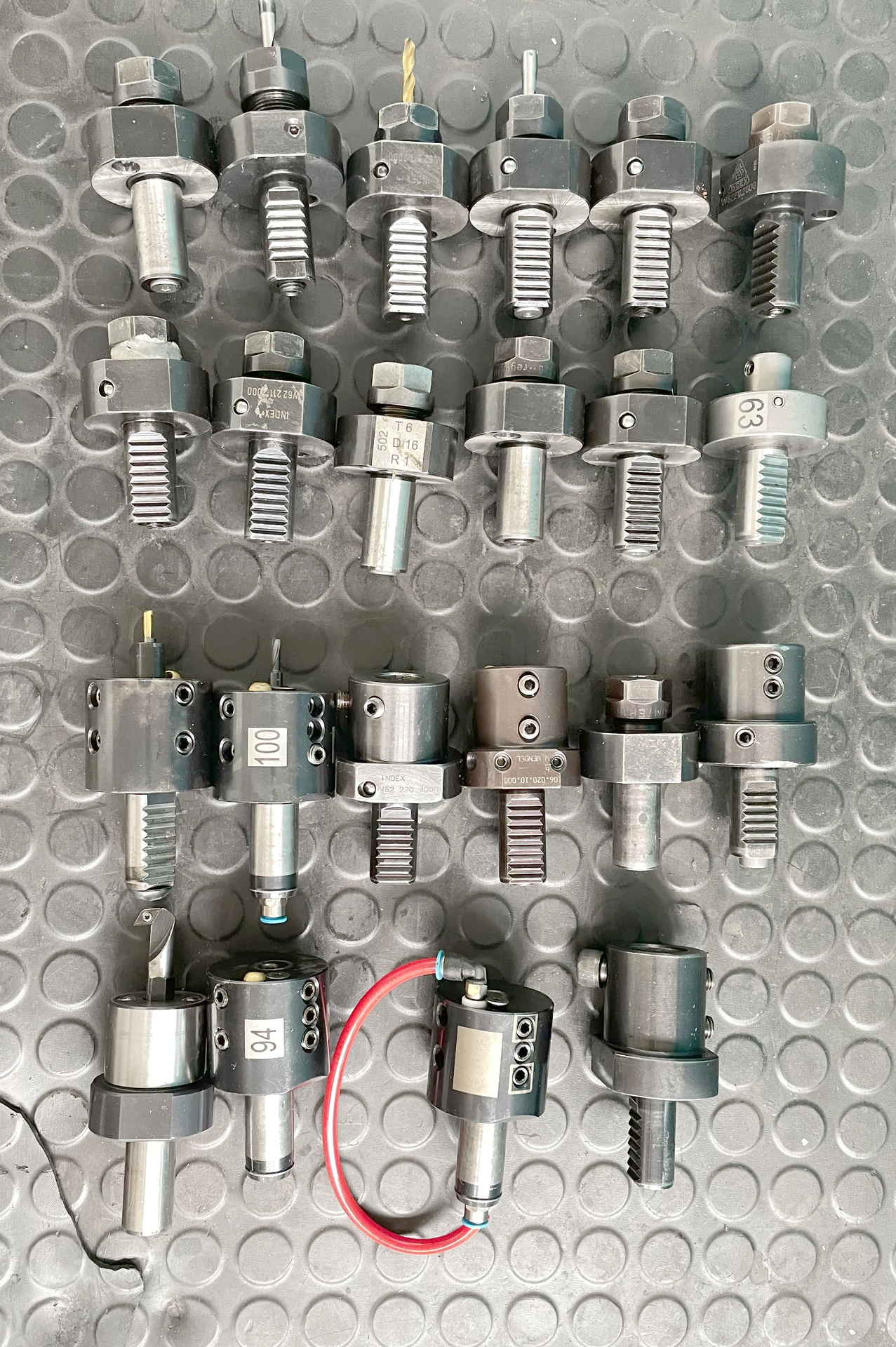

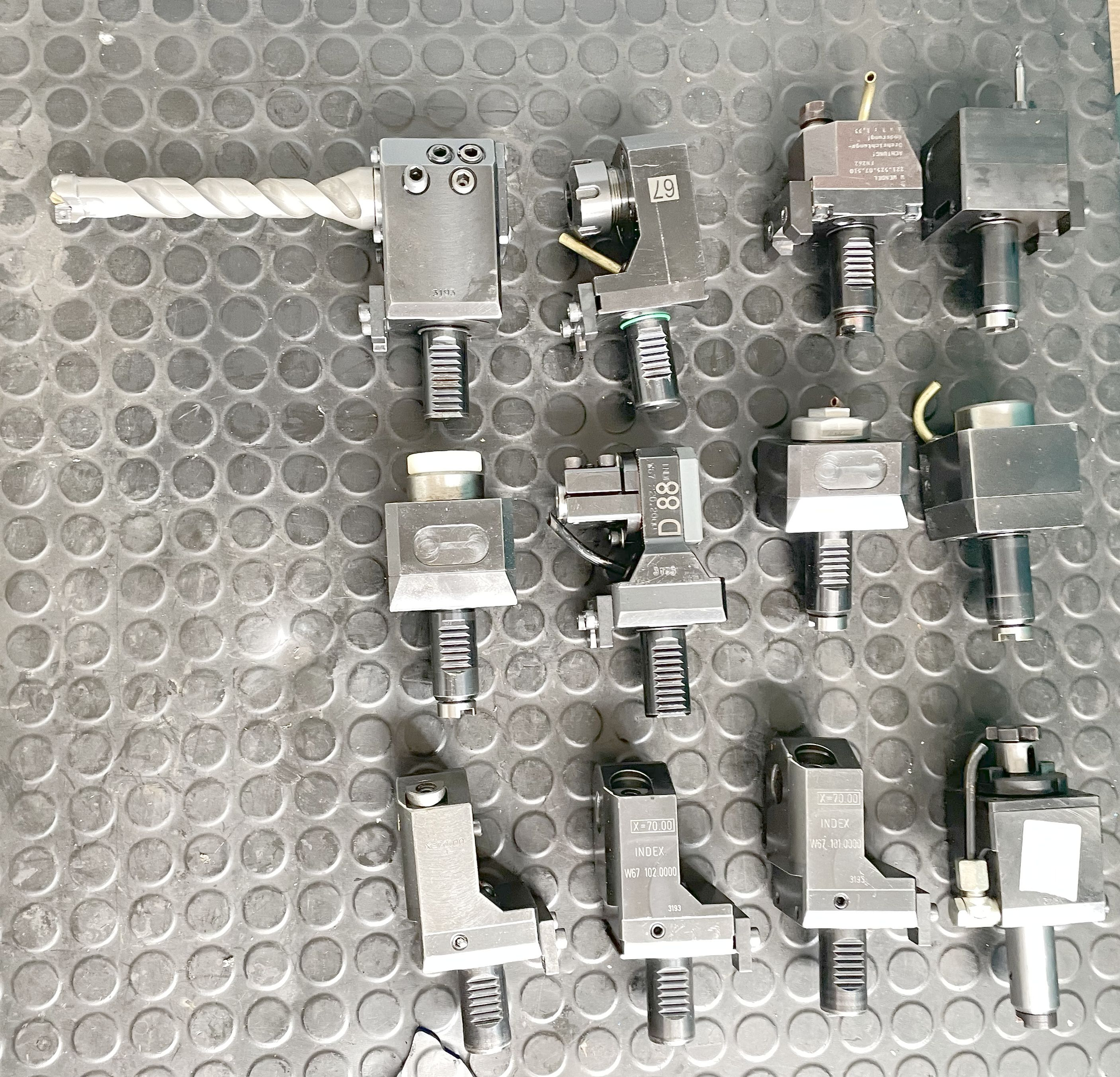

Driven tools turret 1: 14.
Driven tools turret 2: 14.
Spindle speeds: 6000 t/min.
Power of driven tools: 5.5 kW.
Inner cone DIN: 69 880.
Indexing time: 0.4 s.
X axis: 105 mm.
Y axis: +/- 60 mm.
Z axis: 400 mm.
Internal spindle diameter: 42 mm.
C axis (spindle,resolution): °.
from: 0 t/min.
up to: 6300 t/min.
Spindle power: 20 / 29 kW.
Torque max.: 95 / 140 Nm.
max. speed: 6300 t/min.
Spindle diameter: 160 mm.
Back spindle stroke: 445 mm.
Power of back spindle: 13 / 22 kW.
Rapid traverse X: 23 m/min.
Rapid traverse Z: 45 m/min.
Rapid traverse Y: 8 m/min.
Spindle motor: 39 kW.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 4800 kg.
Length: 2500 mm.
Width: 2400 mm.
Height: 2700 mm.

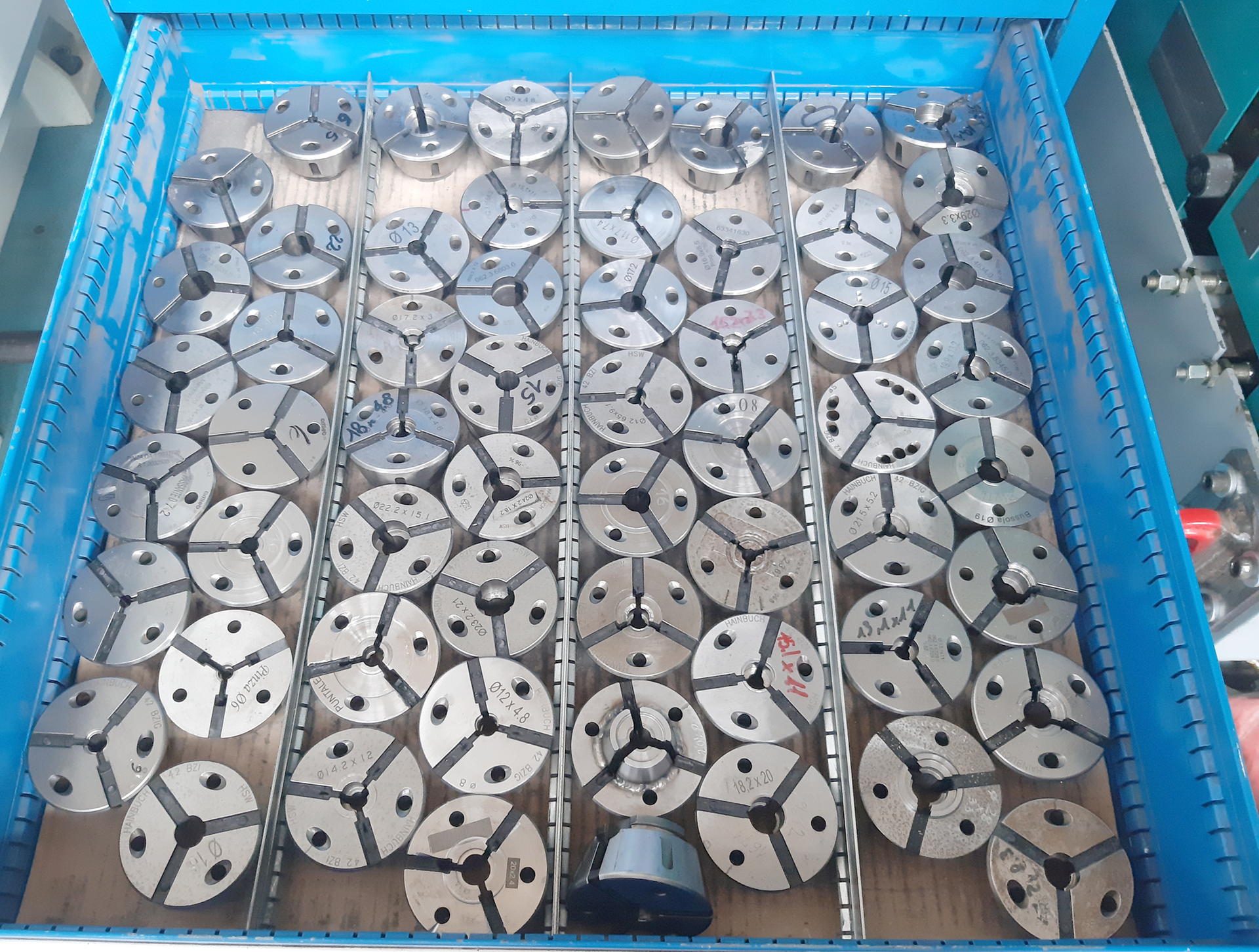

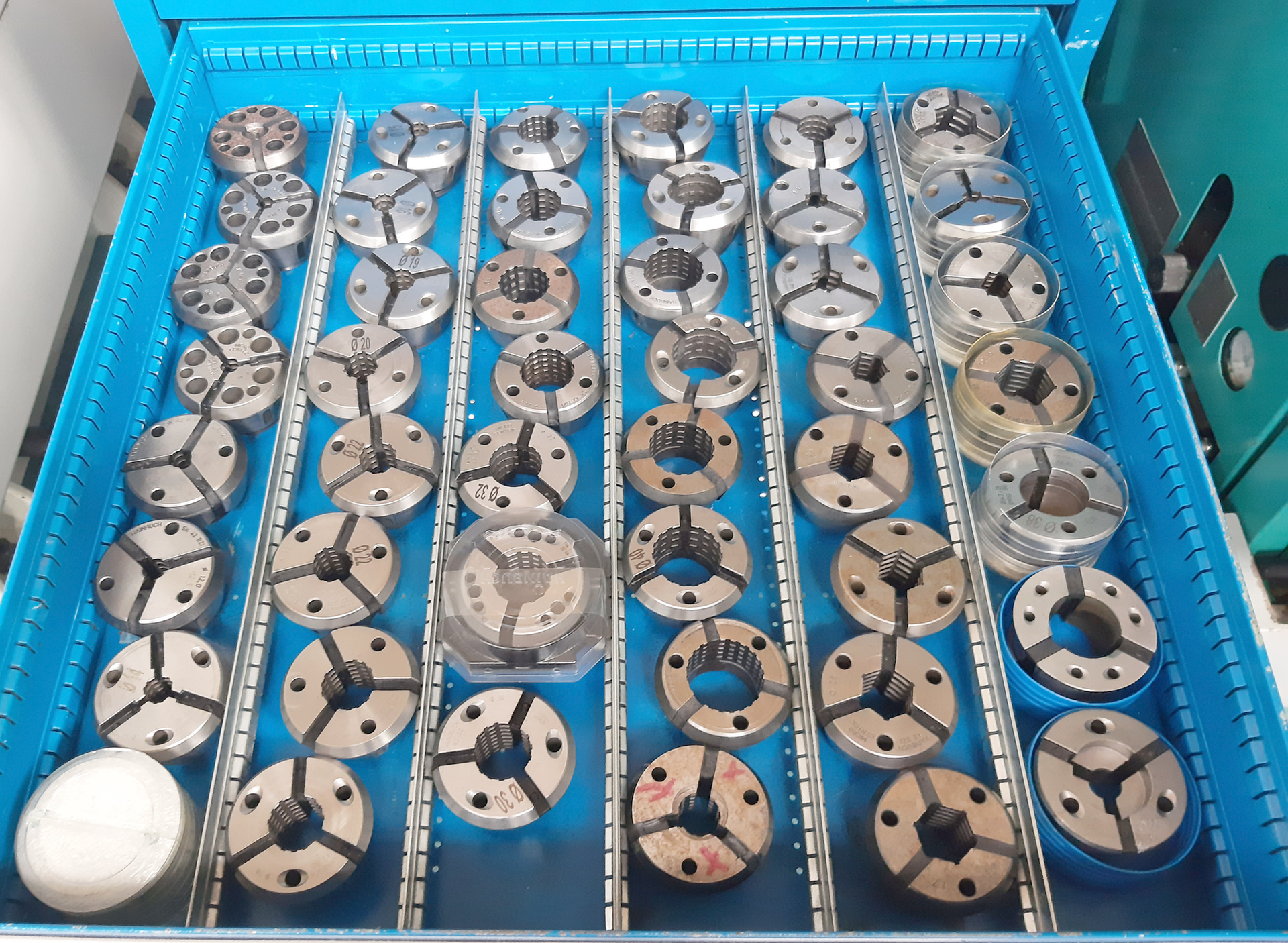

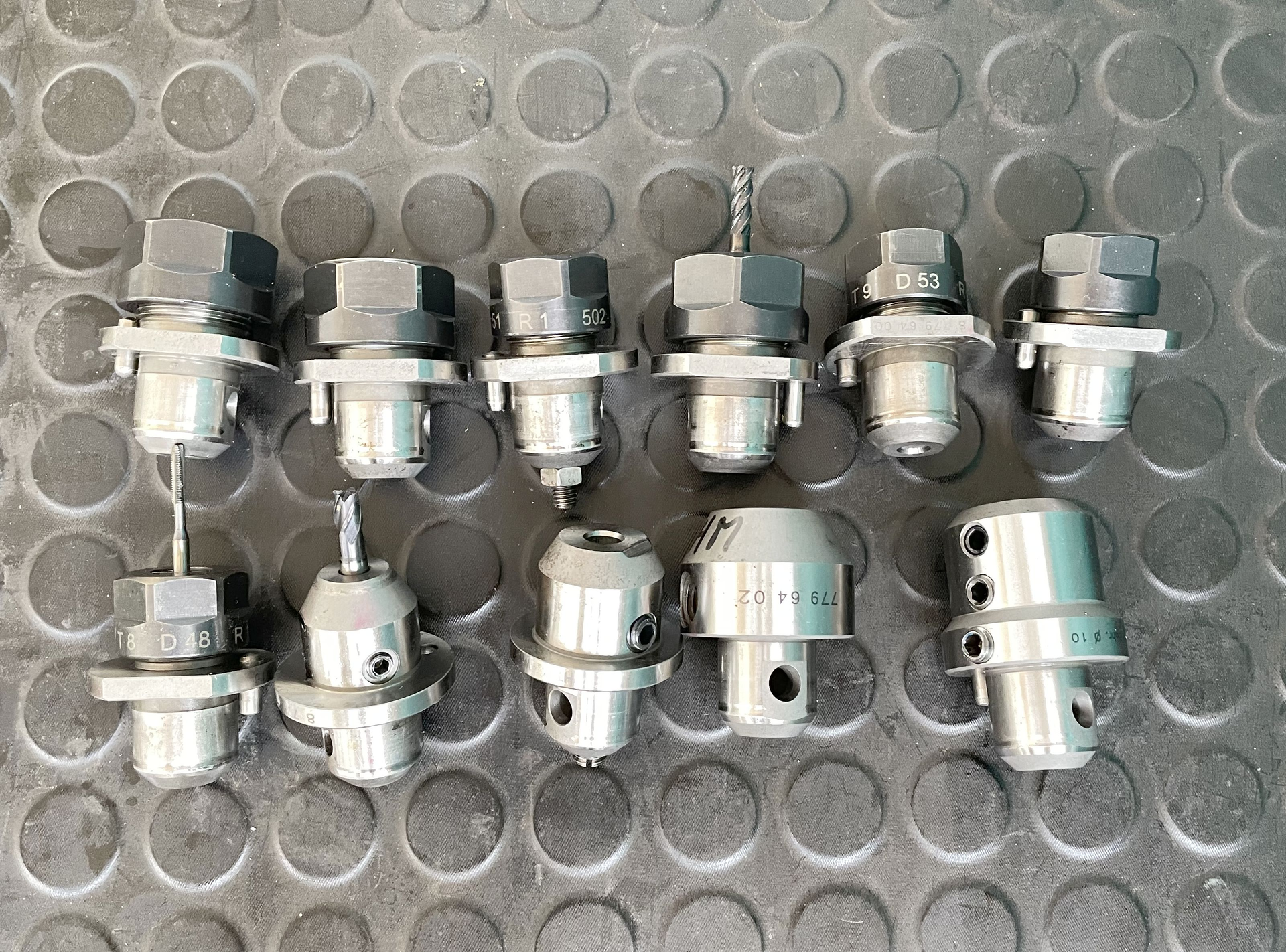

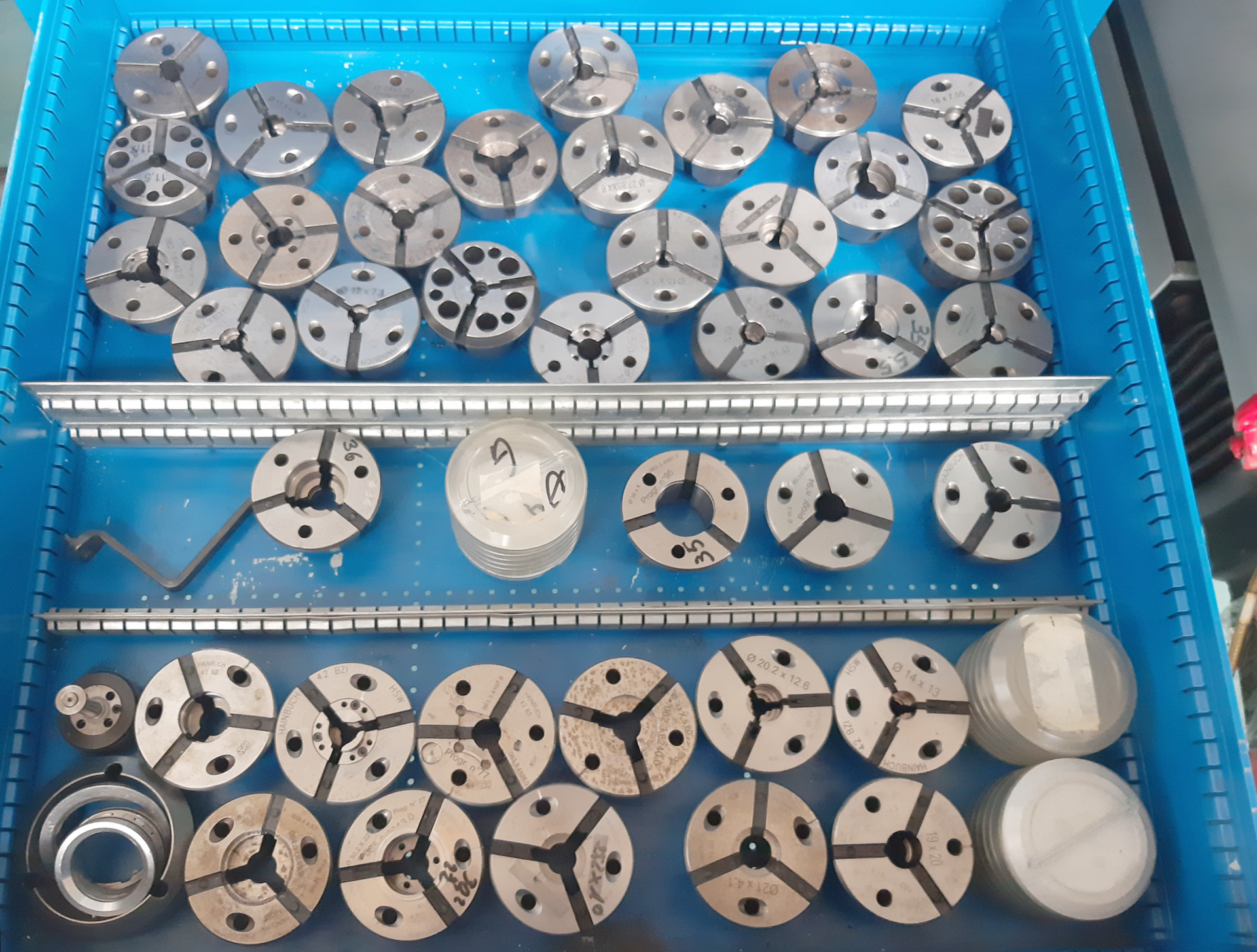

Collet chuck (number): 2.

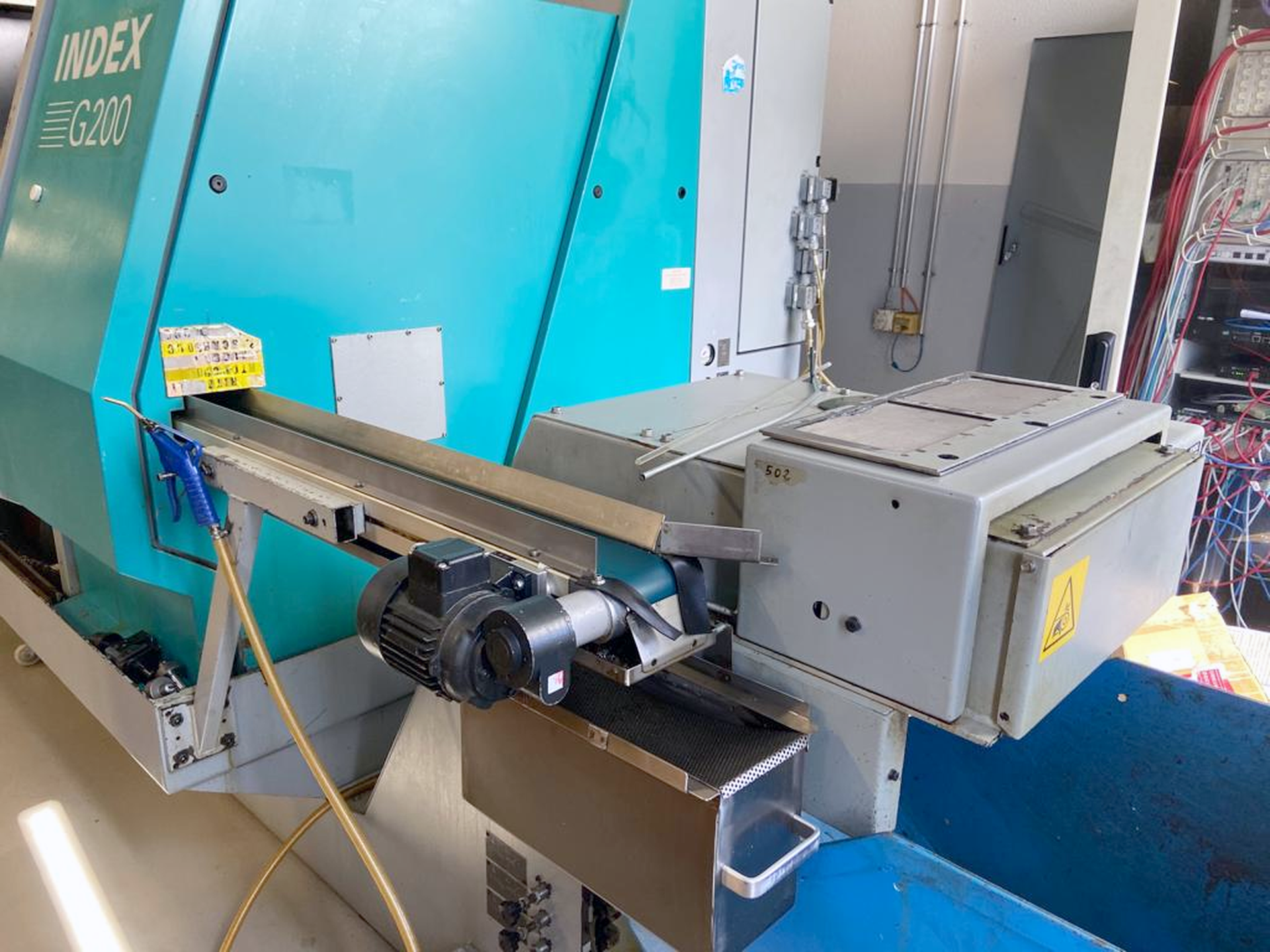

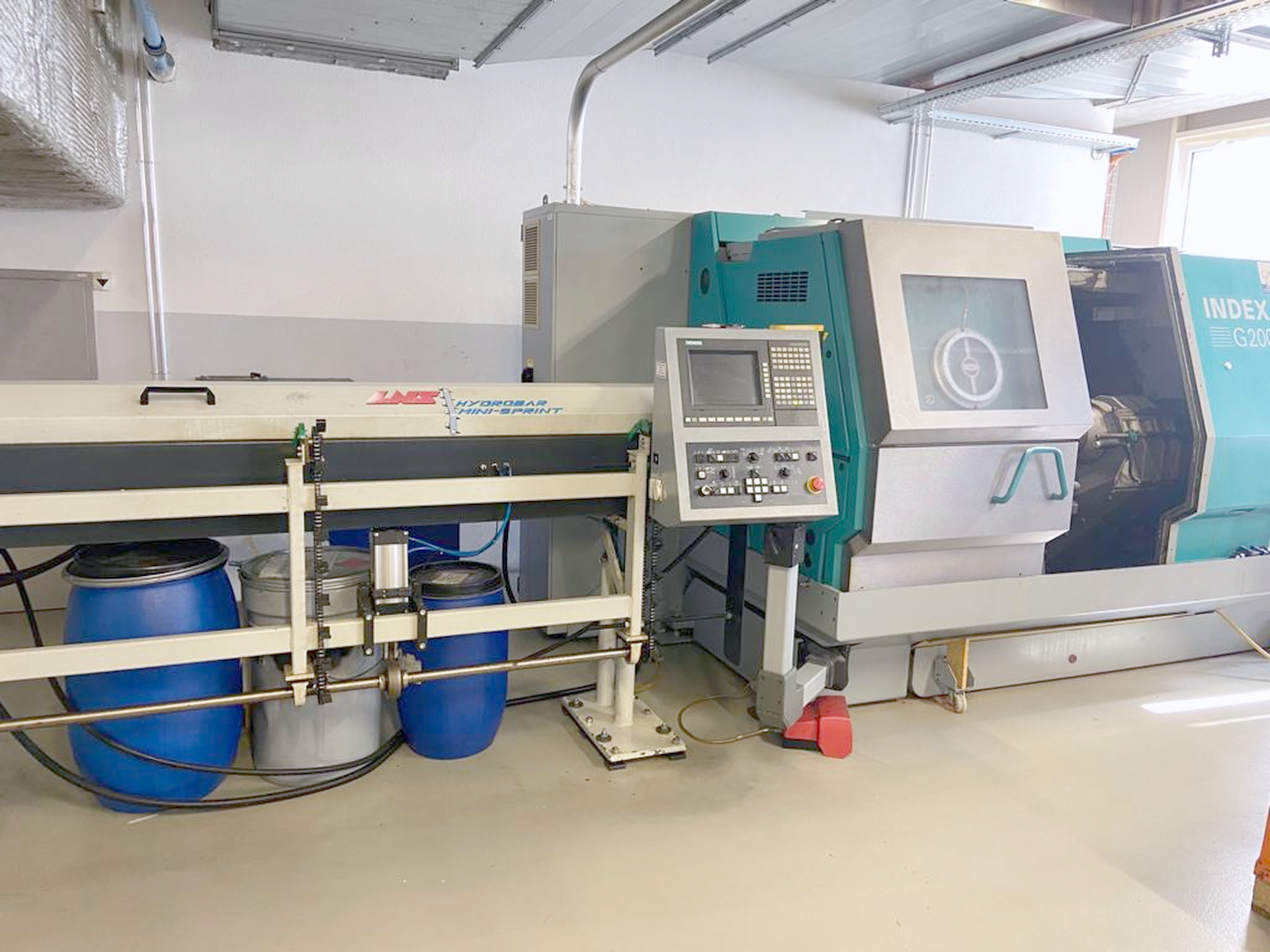

Bar feeder: LNS.
Type: MINI-SPRINT S2-42.
Length of bars max.: 4000 mm.
