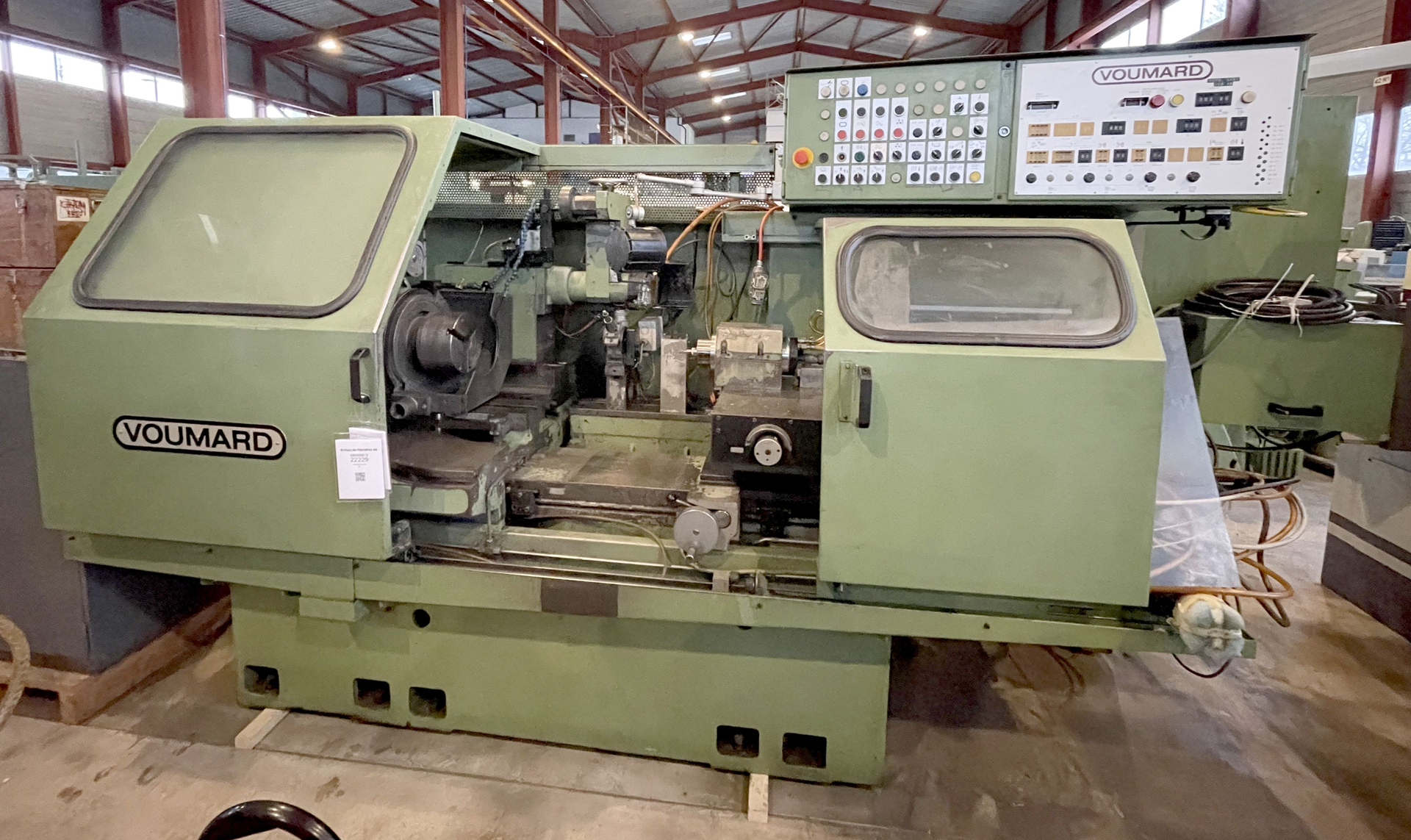

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Voumard
  • Model:
  • 022229 - VOUMARD 203 L6
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Min. internal grinding diameter: 5 mm.
Max. internal grinding diameter: 120 mm.
Grinding depth: 160 mm.
Centre height: 130 mm.
number (steps): 6.
from: m/min.
up to: 20 m/min.
Max. angle: 0 - 45 °.

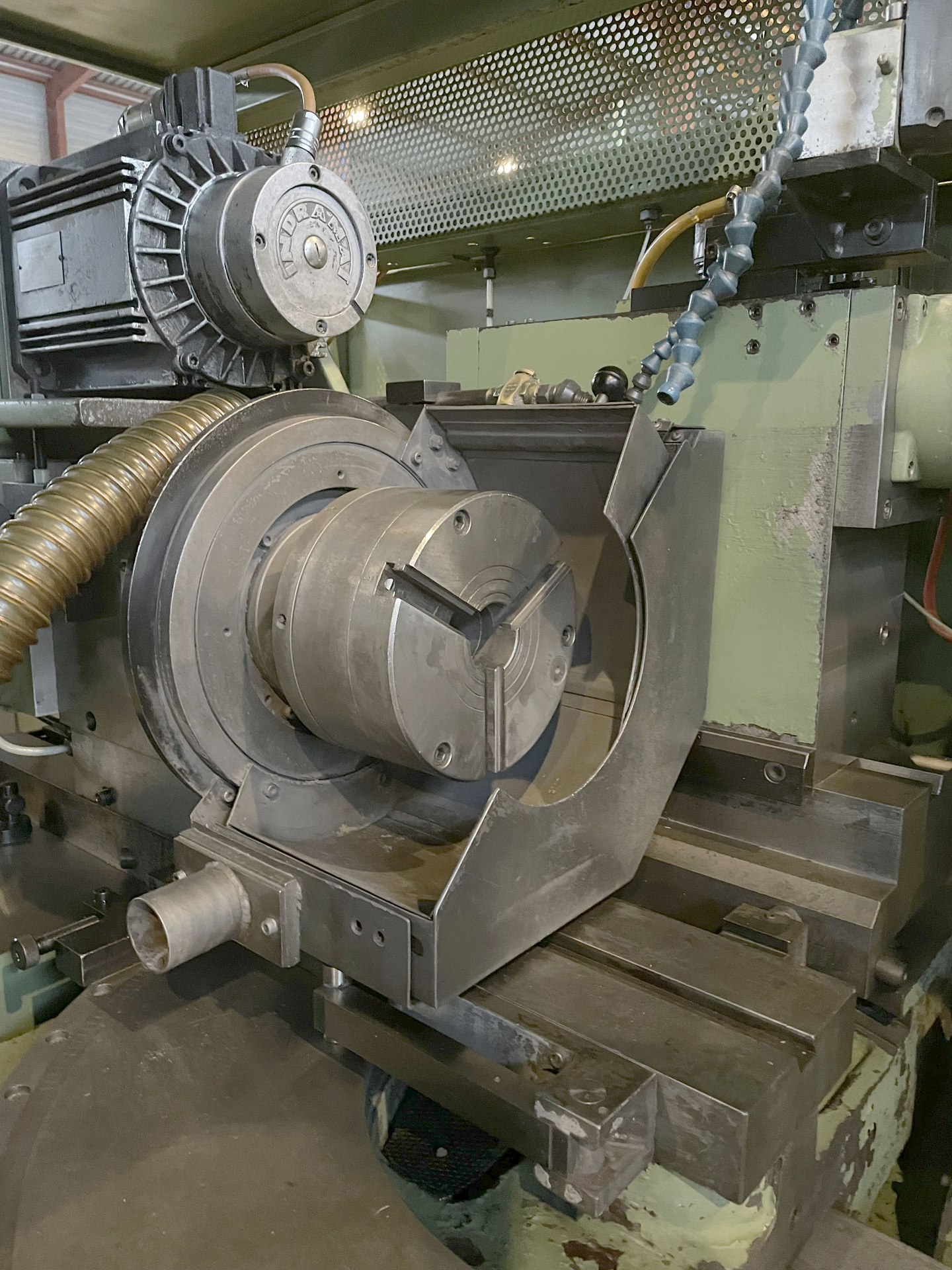

Spindle hole: 30 mm.
min.: 2 mm.
max: 550 mm.
Voltage 50 Hz 3x: 380 Volt.
Drive for internal grinding spindle: 9 kW.
Machine's weight about: 1500 kg.
Length: 2200 mm.
Width: 1700 mm.
Height: 1800 mm.
numbers: 2.
max. speed: 60000 t/min.
