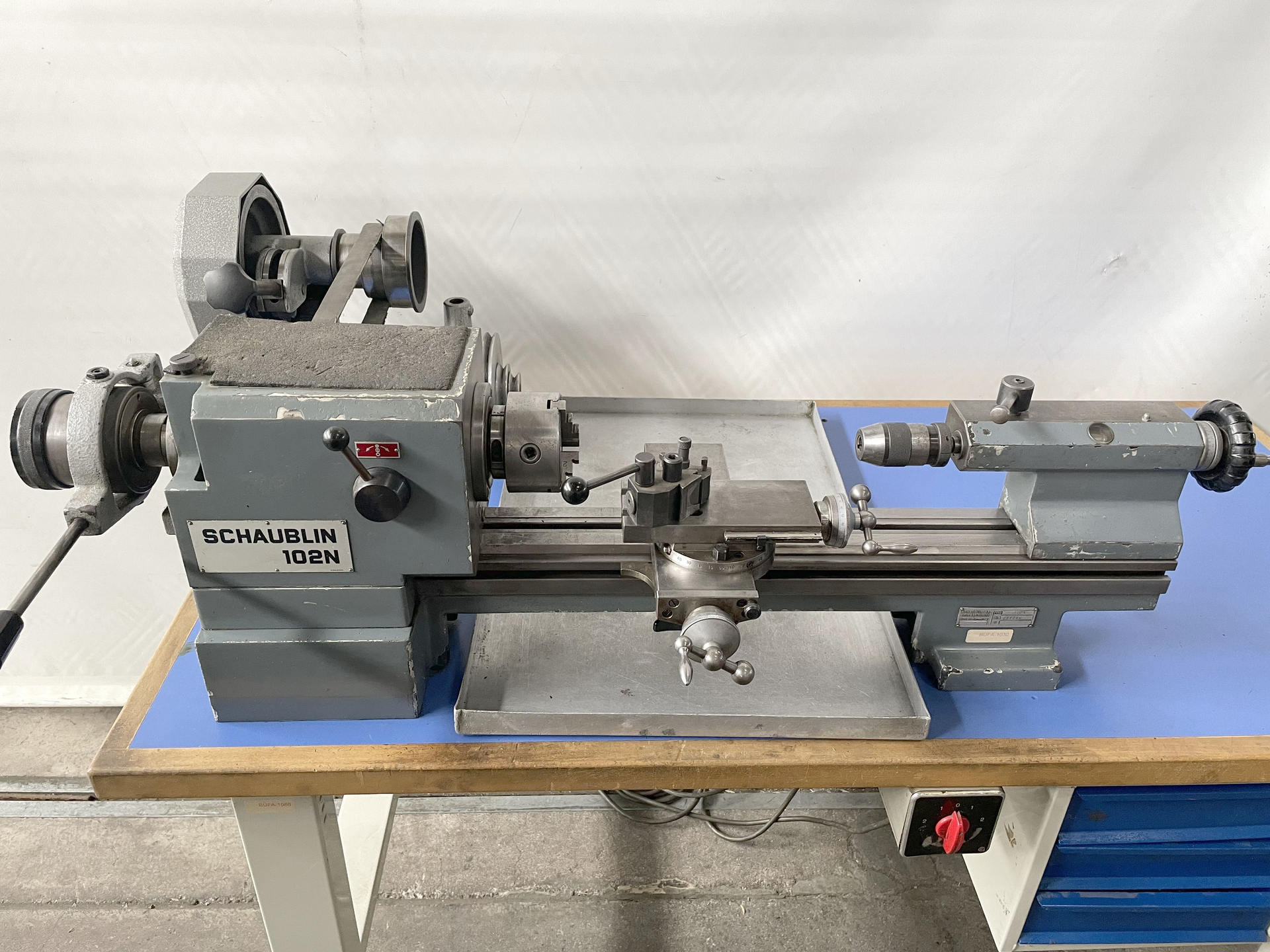

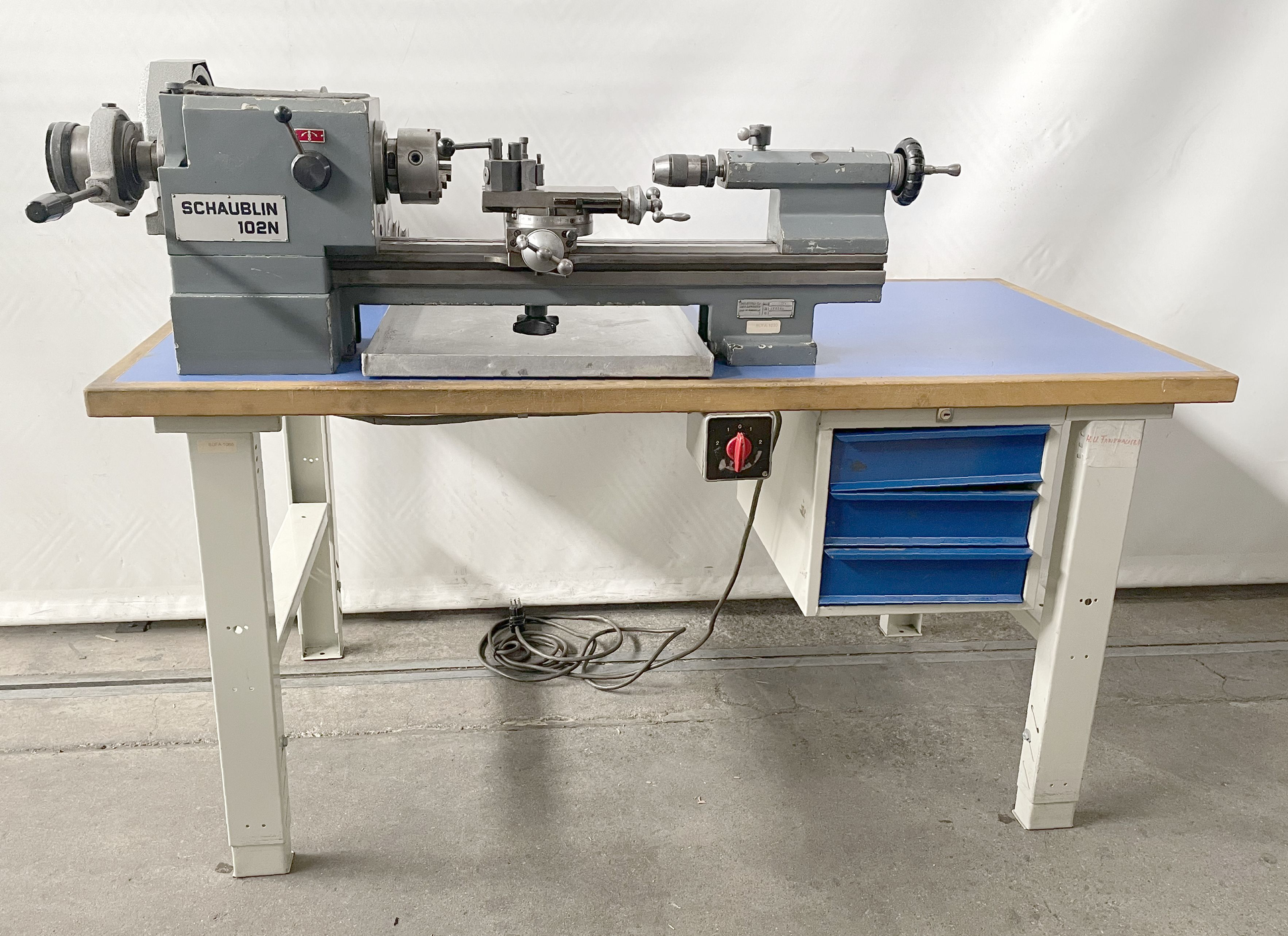

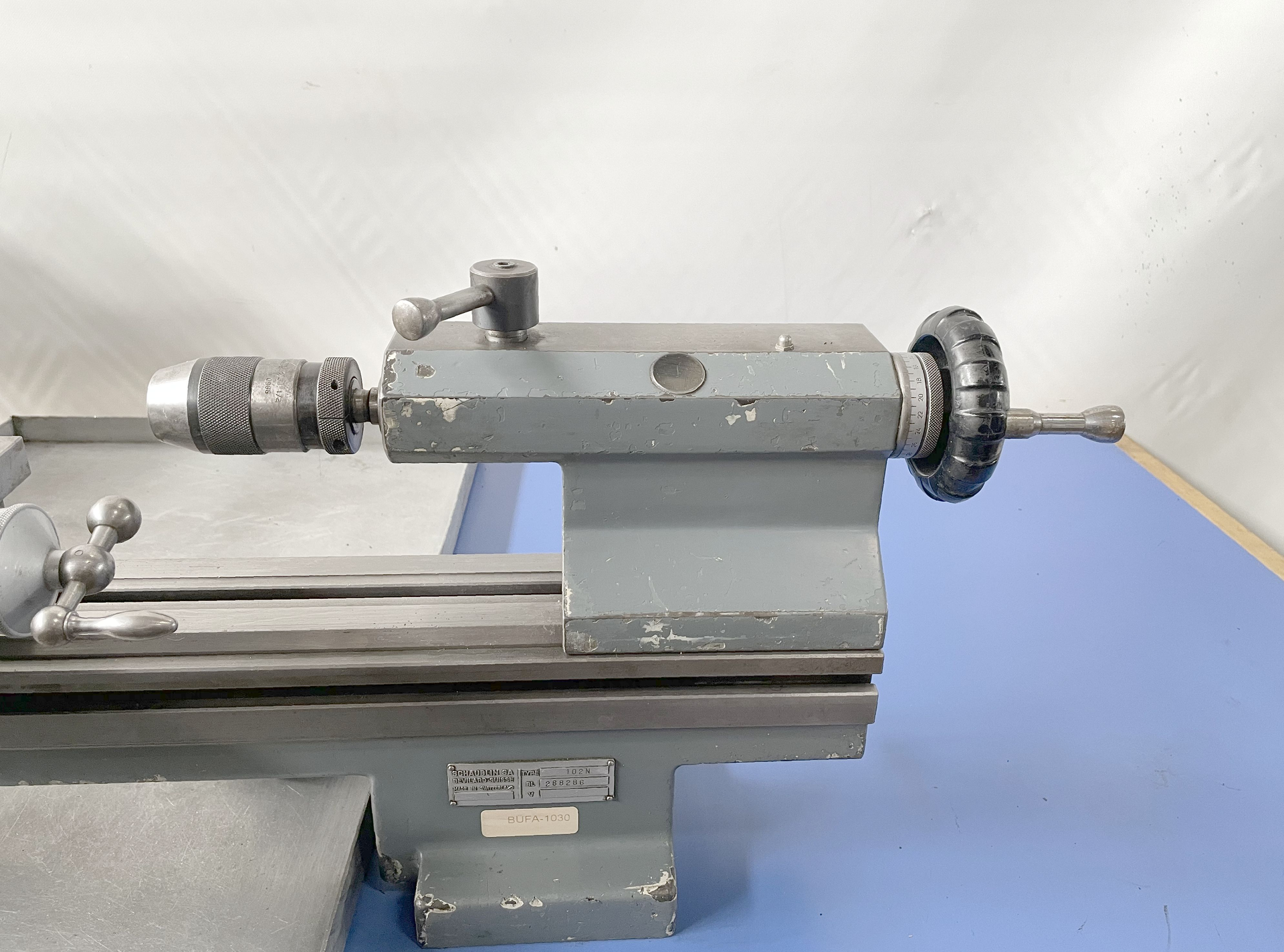

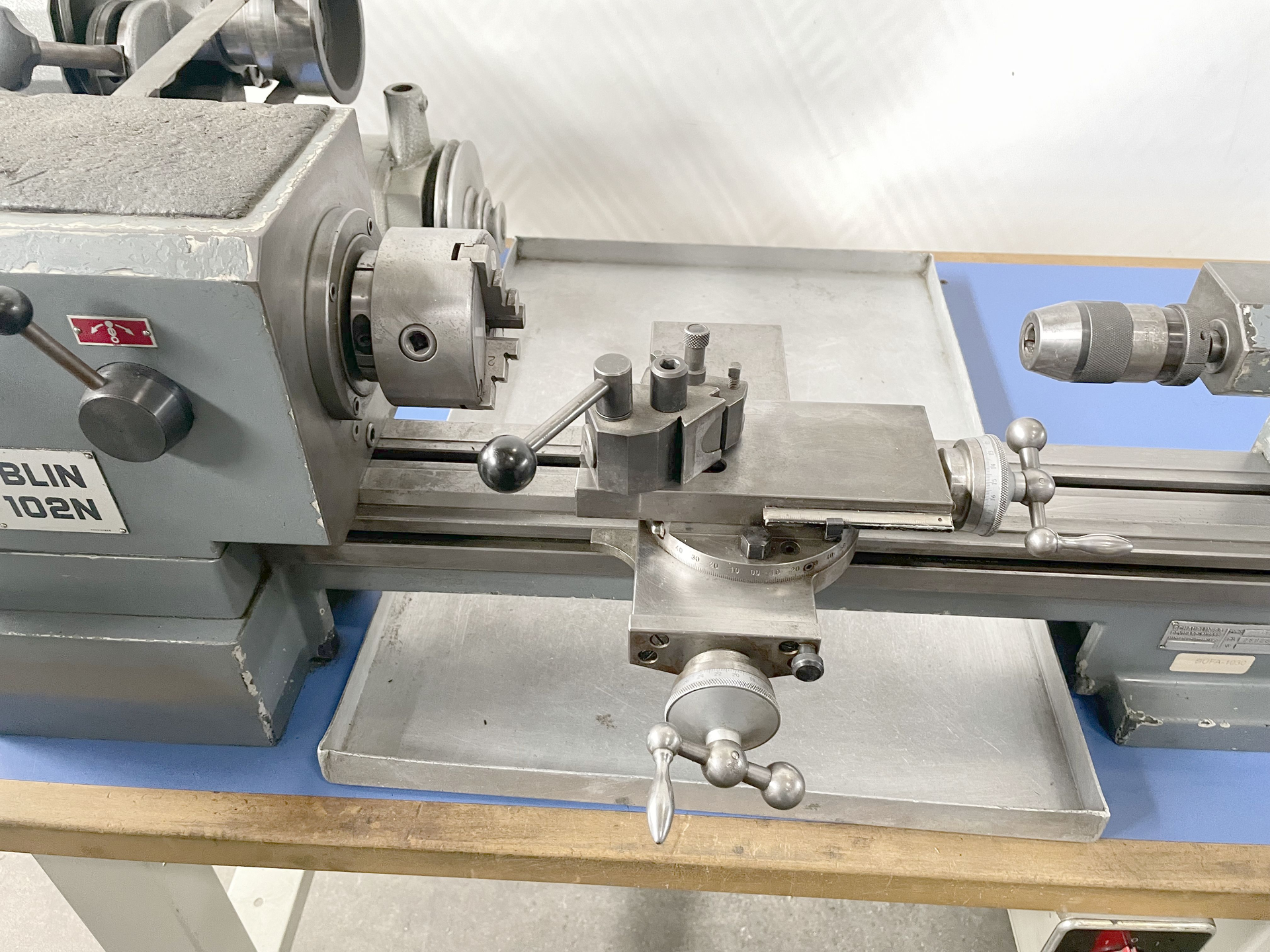

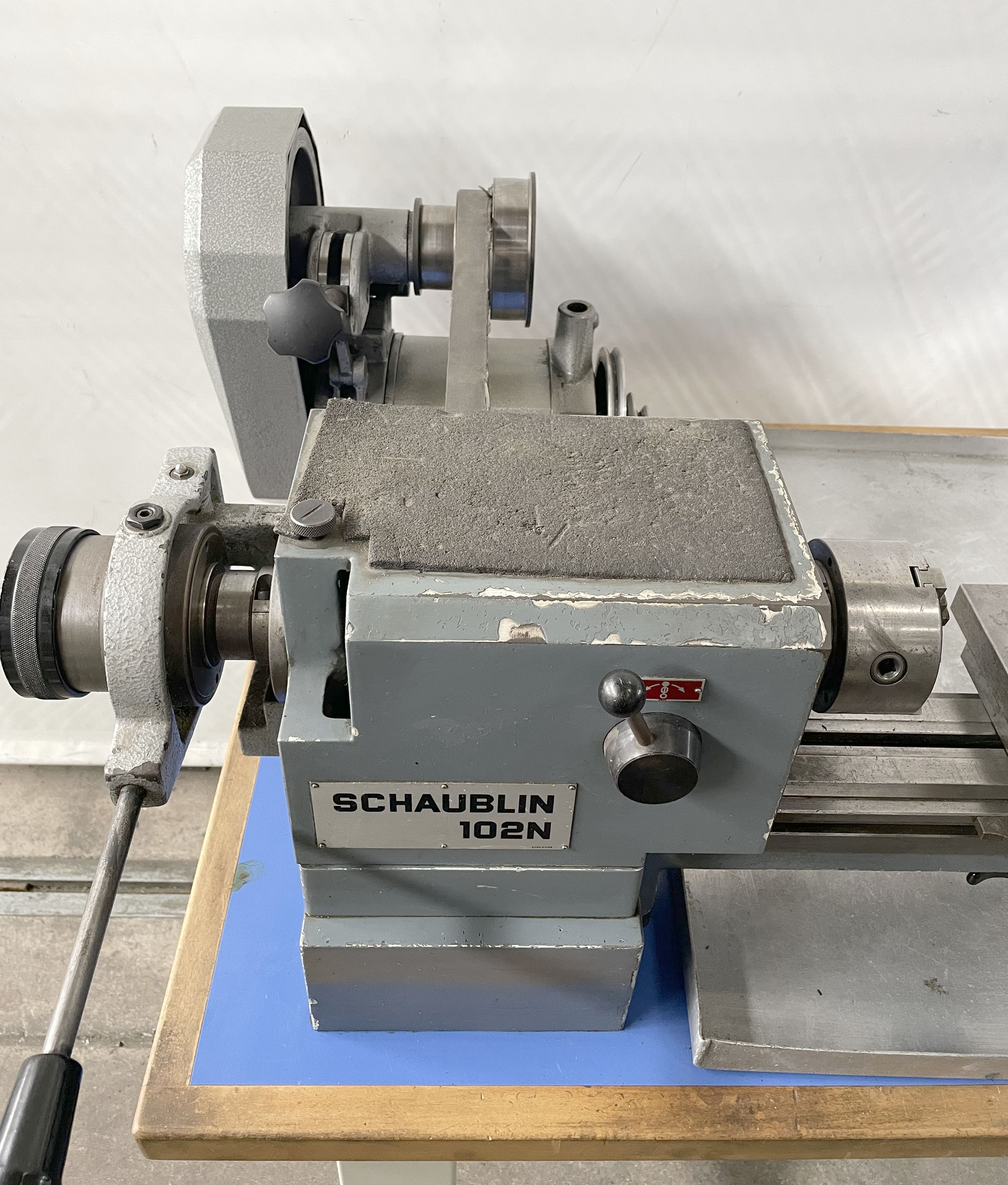

Centre height: 102 mm. Distance between centres: 375 mm. Swing over cross-slide: 120 mm. Swing over bed: 200 mm. Inner taper type: 20 W. from: 45 t/min. up to: 3100 t/min. Step-down gear: 1:5. Voltage 50 Hz 3x: 380 Volt. Spindle motor: 0.5 / 0.9 kW. Machine's weight about: 300 kg. Length: 1600 mm. Width: 800 mm. Height: 800 mm. Drawer(s): 3. 3-jaw chuck diameter: 100 mm.
