MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Mori Seiki
  • Model:

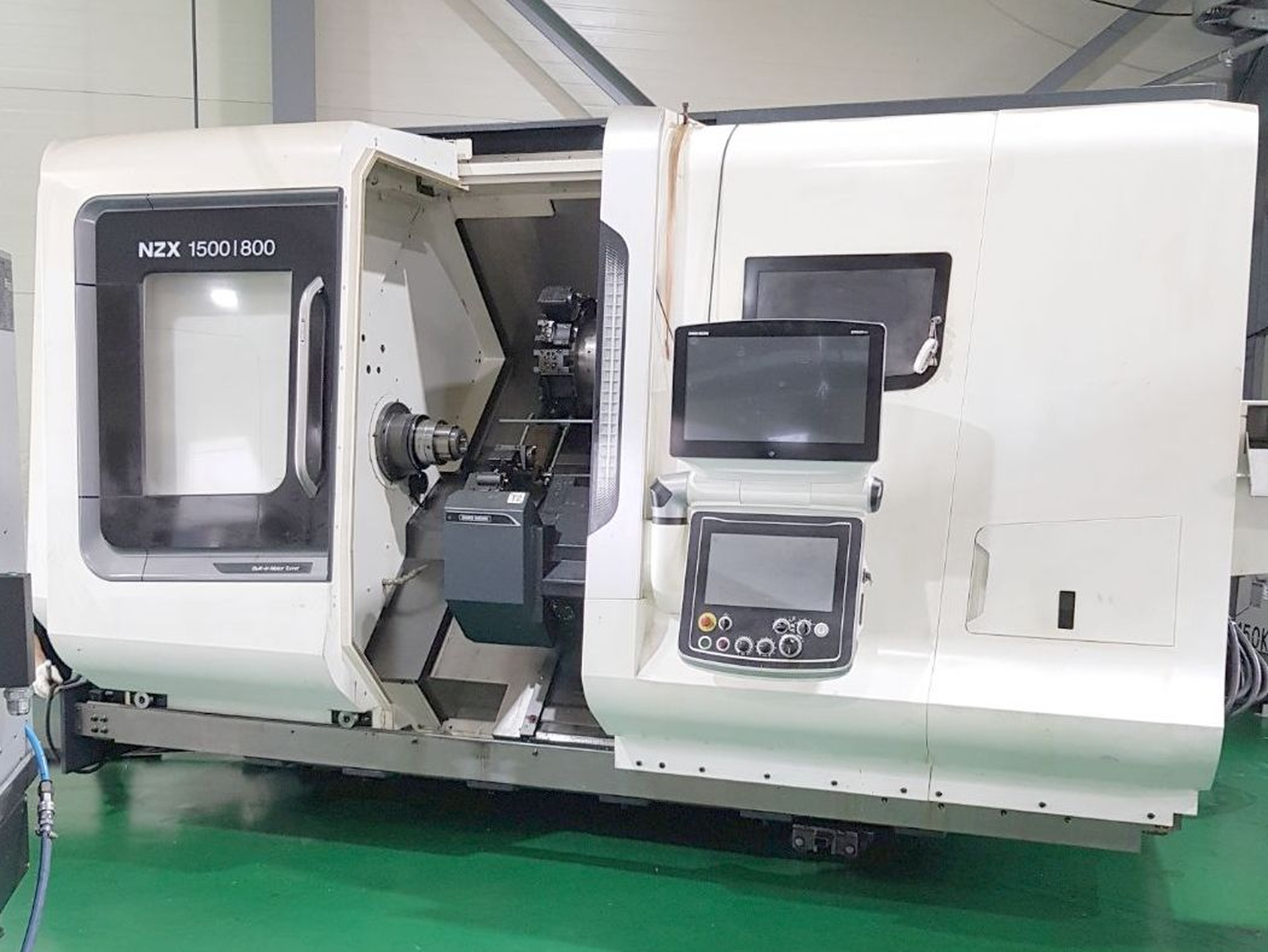

  • 022408 - MORI SEIKI NZX 1500/800SY
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

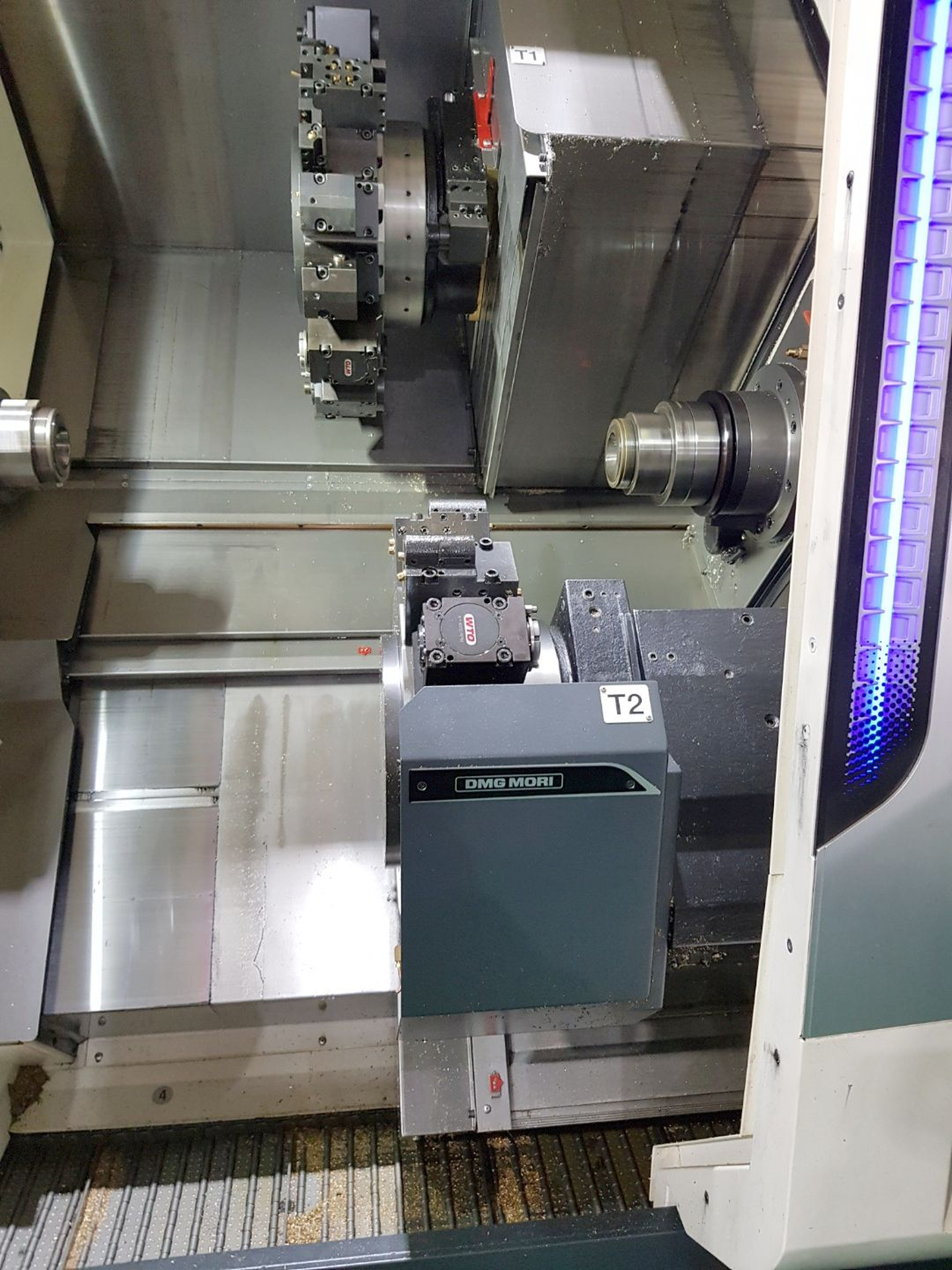

Number of turning spindles: 2.
Number of revolvers: 2.
Swing diameter over bed: 800 mm.
Max. turning diameter: 320 mm.
Max. bar diameter: 52 mm.
Longitudinal travel (Z-axis): 810 mm.
Longitudinal travel (X-axis): 210 mm.
Transversal travel (y-axis): 110 mm.
Transversal strocke (X axis): 210 mm.
Number of positions: 16 (2x).
Driven tools turret: 16.
Spindle speeds: 6000 t/min.
Tool shank cross section: 20 mm.
Power of driven tools: 7.5 / 5.5 kW.
Spindle nose: JIS A2-5.
Spindle hole: 61 mm.
from: 0 t/min.
up to: 6000 t/min.
Spindle power: 22 / 18.5 kW.
max. speed: 6000 t/min.
Rapid traverse X: 30 m/min.
Rapid traverse Z: 50 m/min.
Rapid traverse Y: 20 m/min.
Spindle motor: 22 / 18.5 kW.
Machine's weight about: 8100 kg.
Length: 4396 mm.
Width: 2835 mm.
Height: 2320 mm.
