MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Star
  • Model:

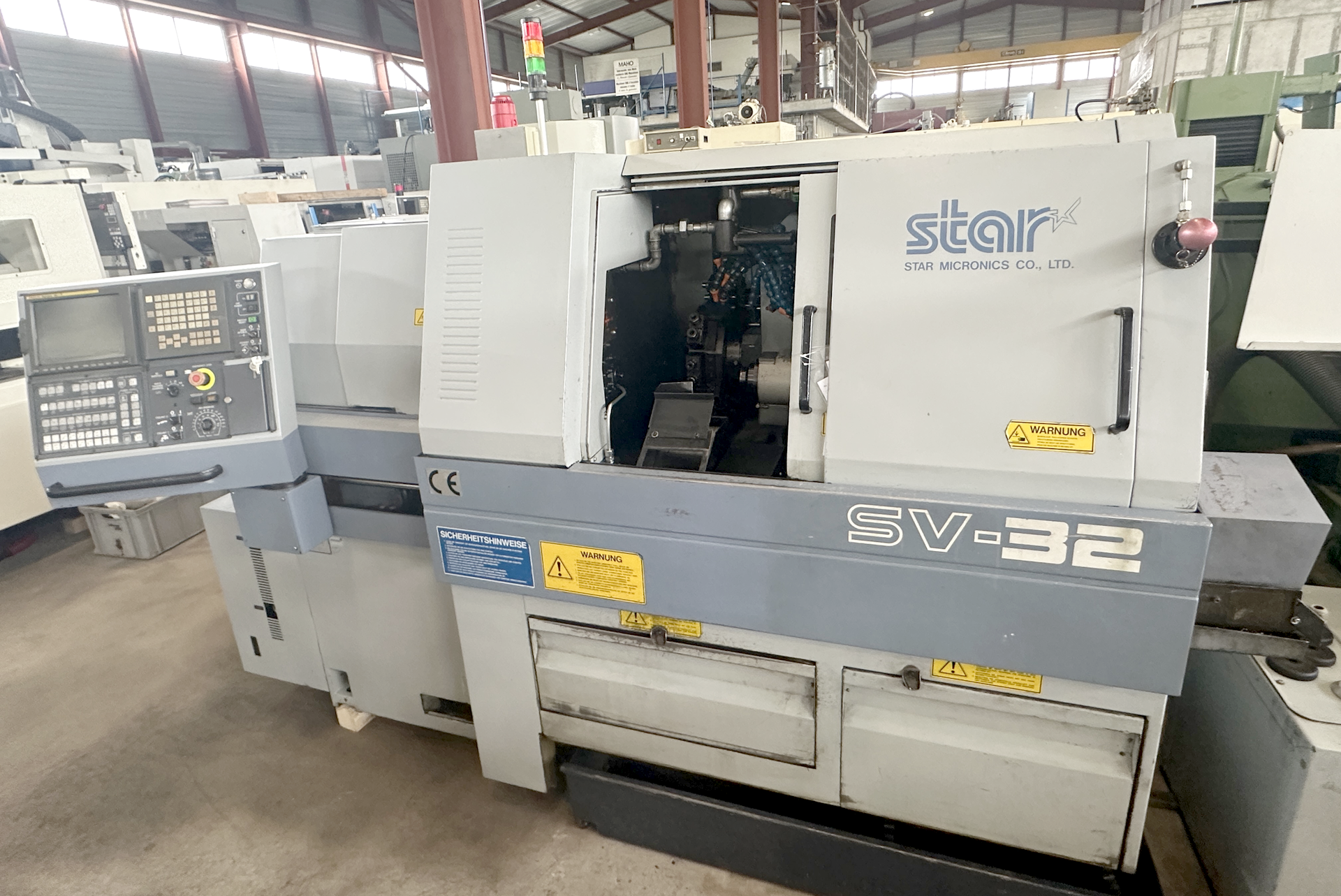

  • 022537 - STAR SV 32
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Max. turning diameter: 32 mm.
Maximum turning length: 300 mm.
Max. threading diameter: 12 M.
Thread drill diameter: 12 M.
Inner taper type: F37.
from: 280 t/min.
up to: 7000 t/min.
Spindle power: 5.5 / 7.5 kW.
C axis (spindle,resolution): °.
Number of positions: 10.
Max. tapping length: 150 mm.
numbers: 2.
Number of stations: 7.

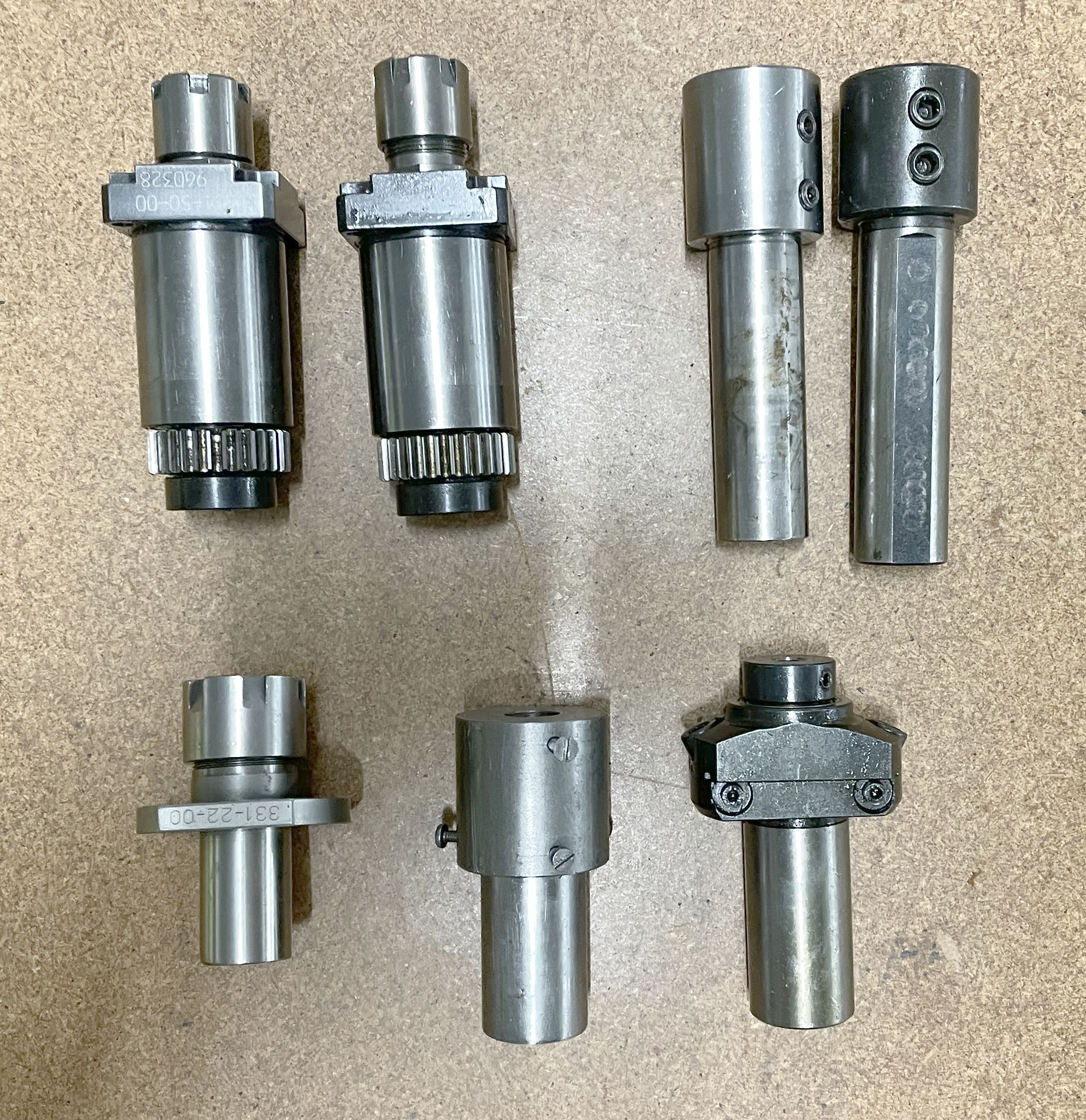

number of driven tools: 3.

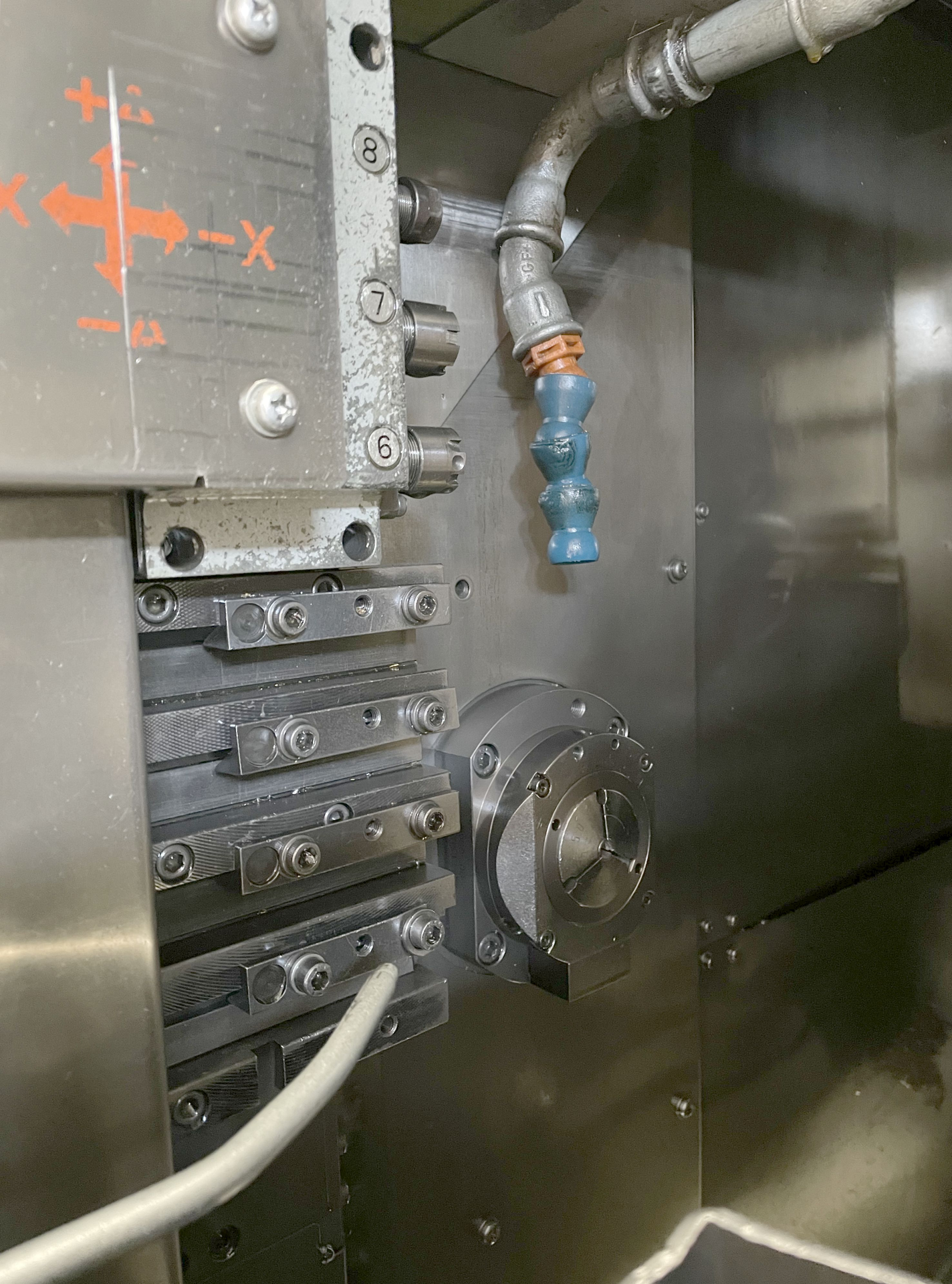

Turning tools: 4 pce.
Rapid traverse X: 15 m/min.
Rapid traverse Y: 15 m/min.
Rapid traverse Z: 18 m/min.
Voltage 50 Hz 3x: 380 Volt.

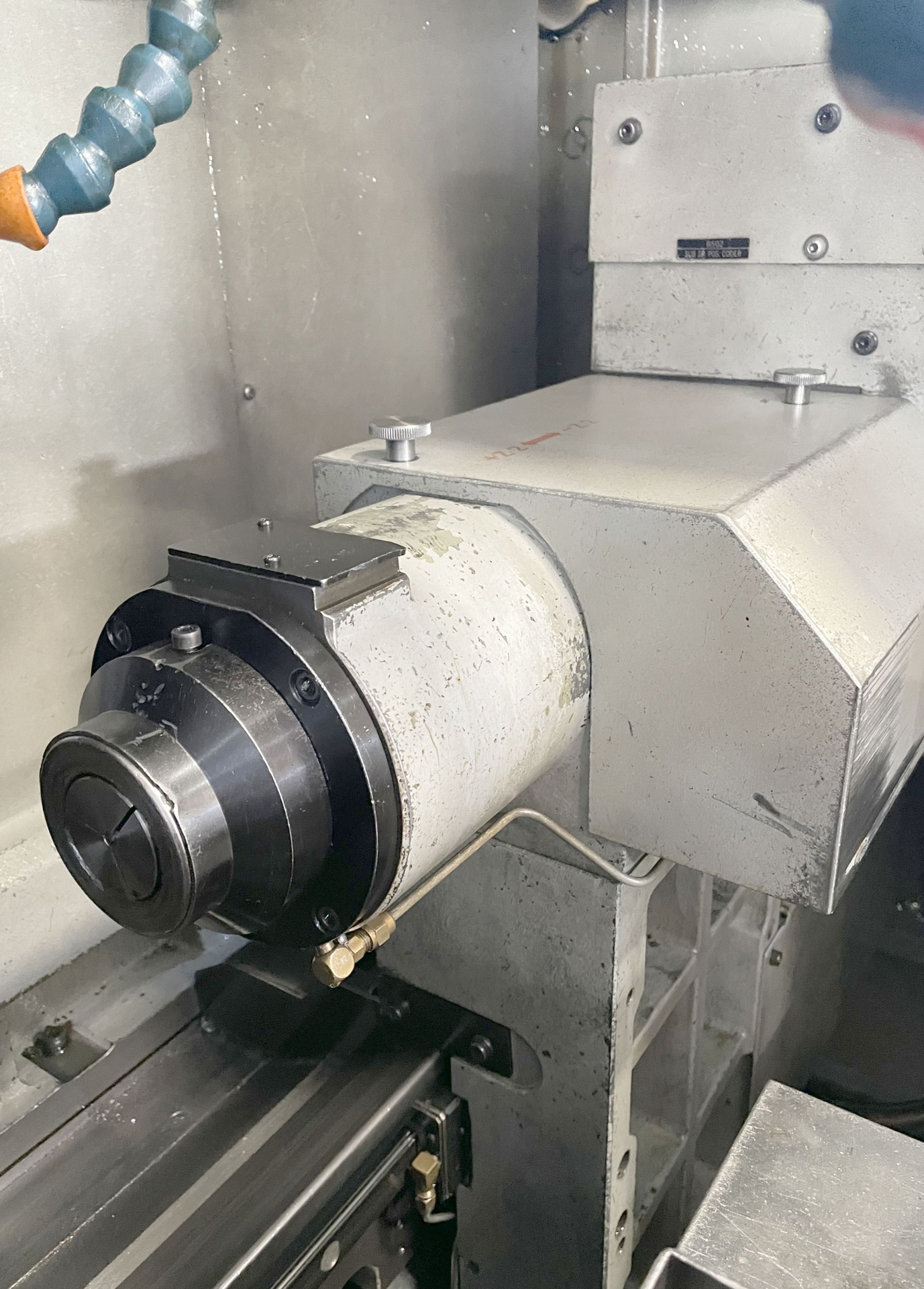

Power of back spindle: 2.2 / 3.7 kW.
Air connect: 5 bar.
Machine's weight about: 3800 kg.
Length: 2645 mm.
Width: 1405 mm.
Height: 1680 mm.

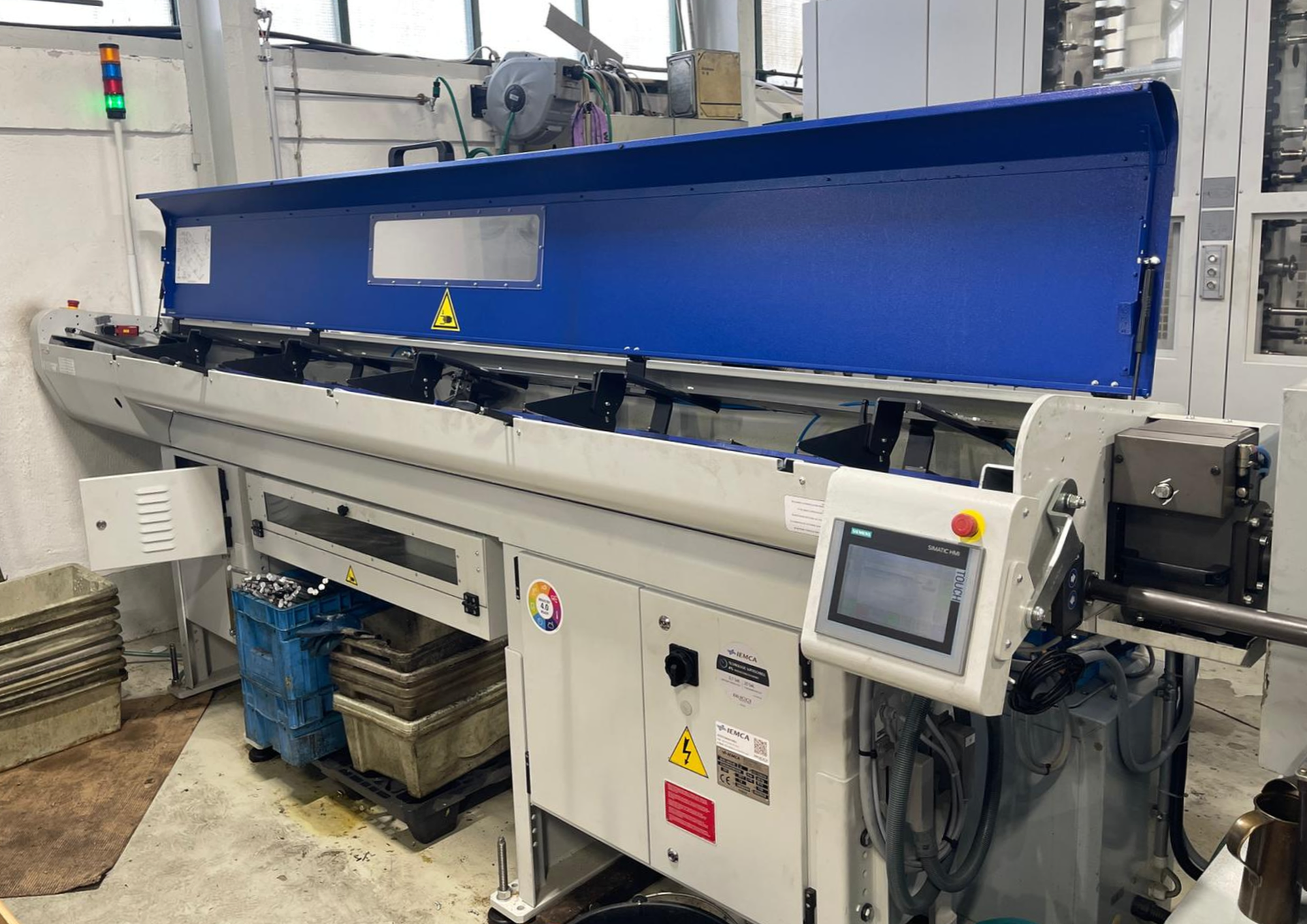

Bar feeder: IEMCA.
Type: BOSS 338/32.
Coolant system: 180 l.
