MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

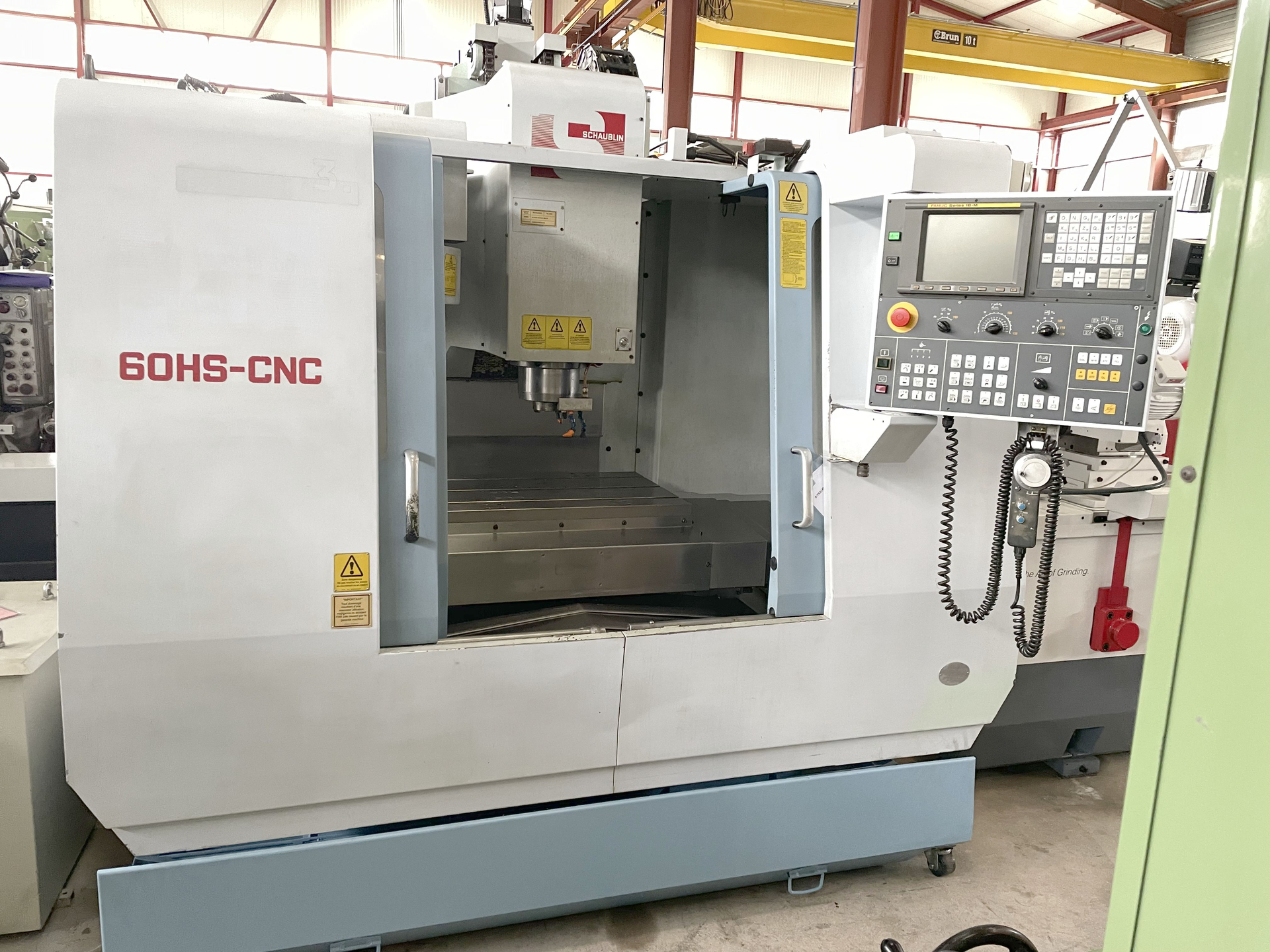

  • 022979 - SCHAUBLIN 60HS CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

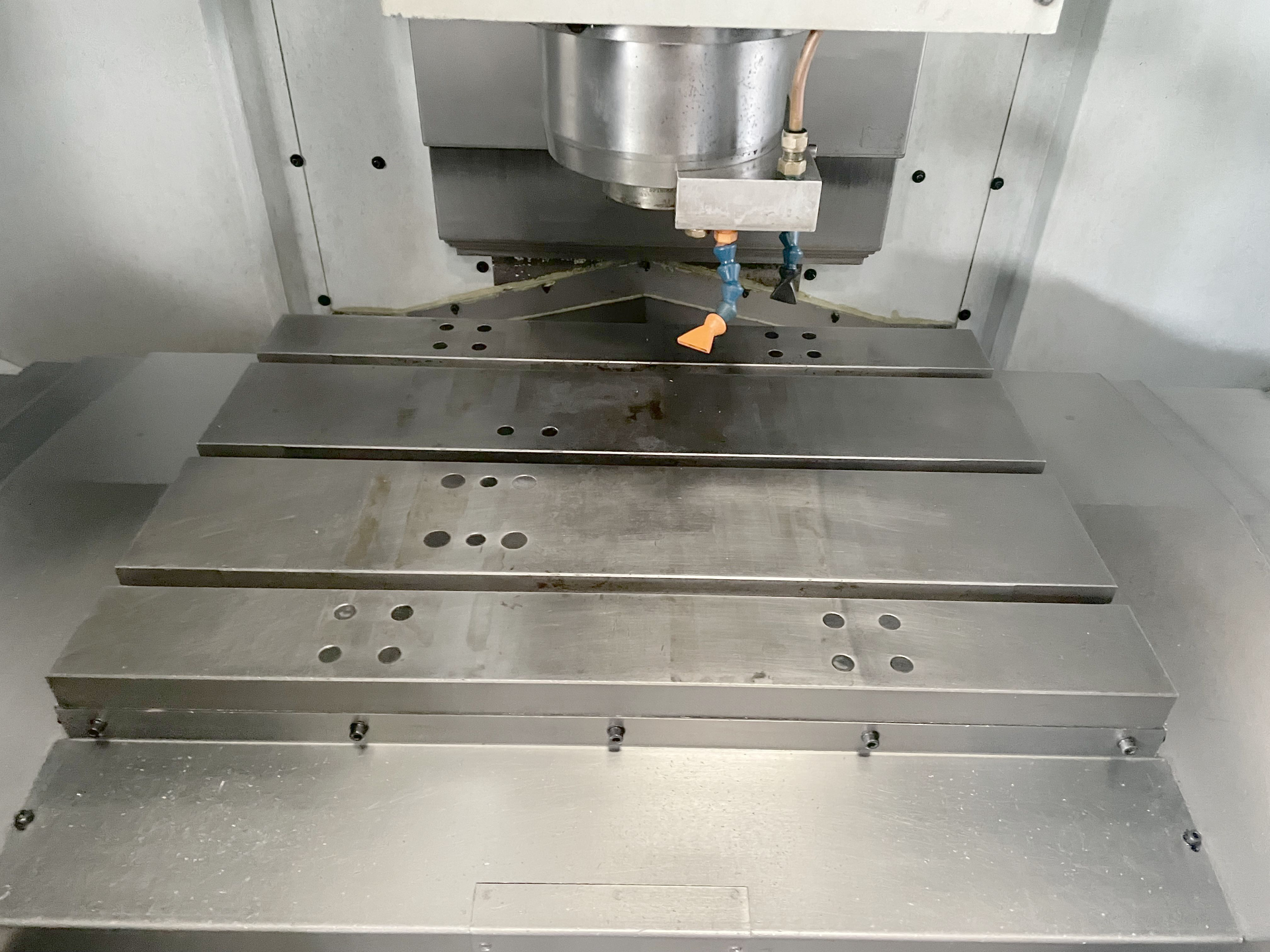

Table length: 750 mm.
Table width: 510 mm.
Table load max.: 700 kg.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 510 mm.
Vertical travel (z axis): 510 mm.
Length: 2500 mm.

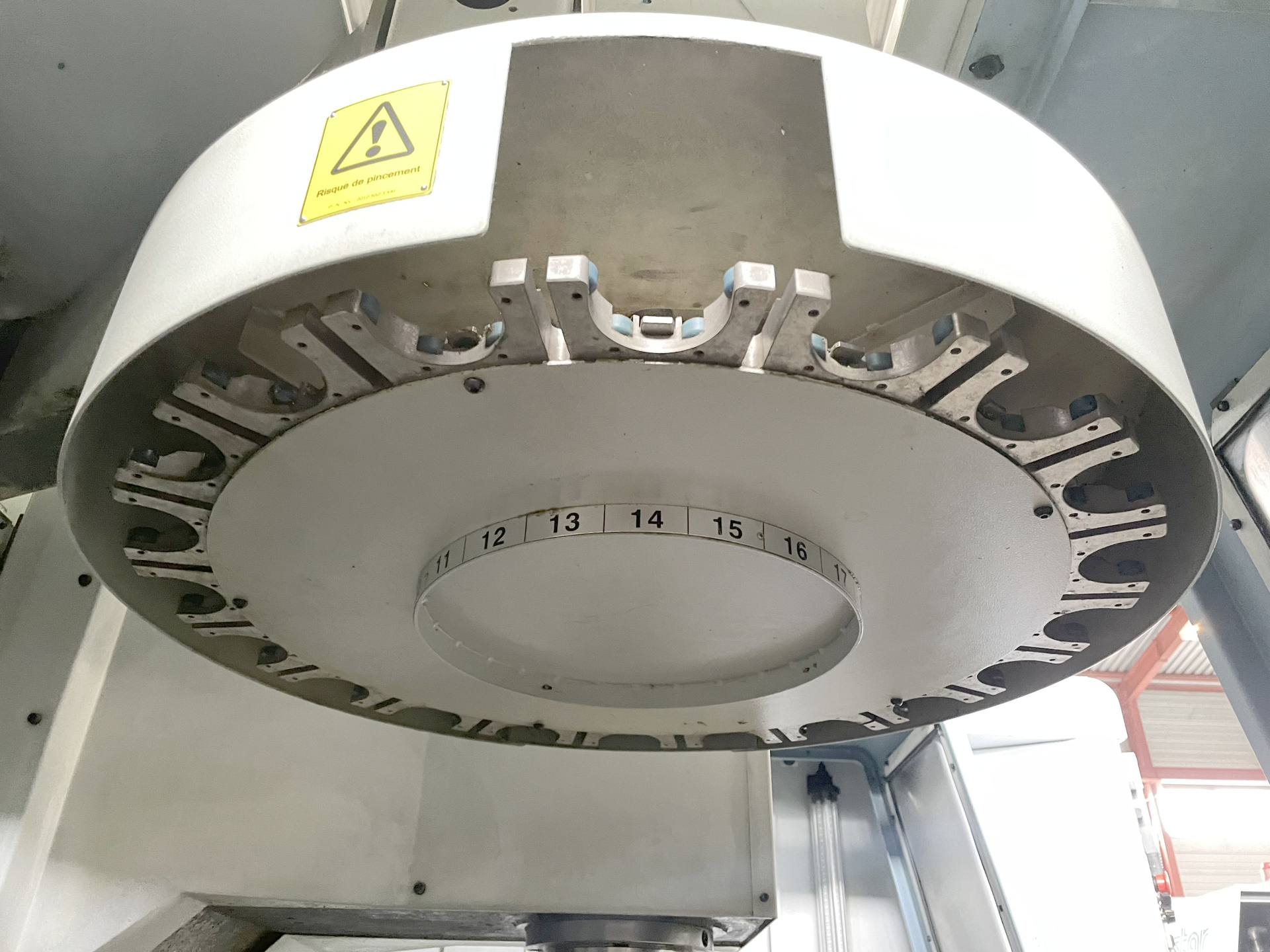

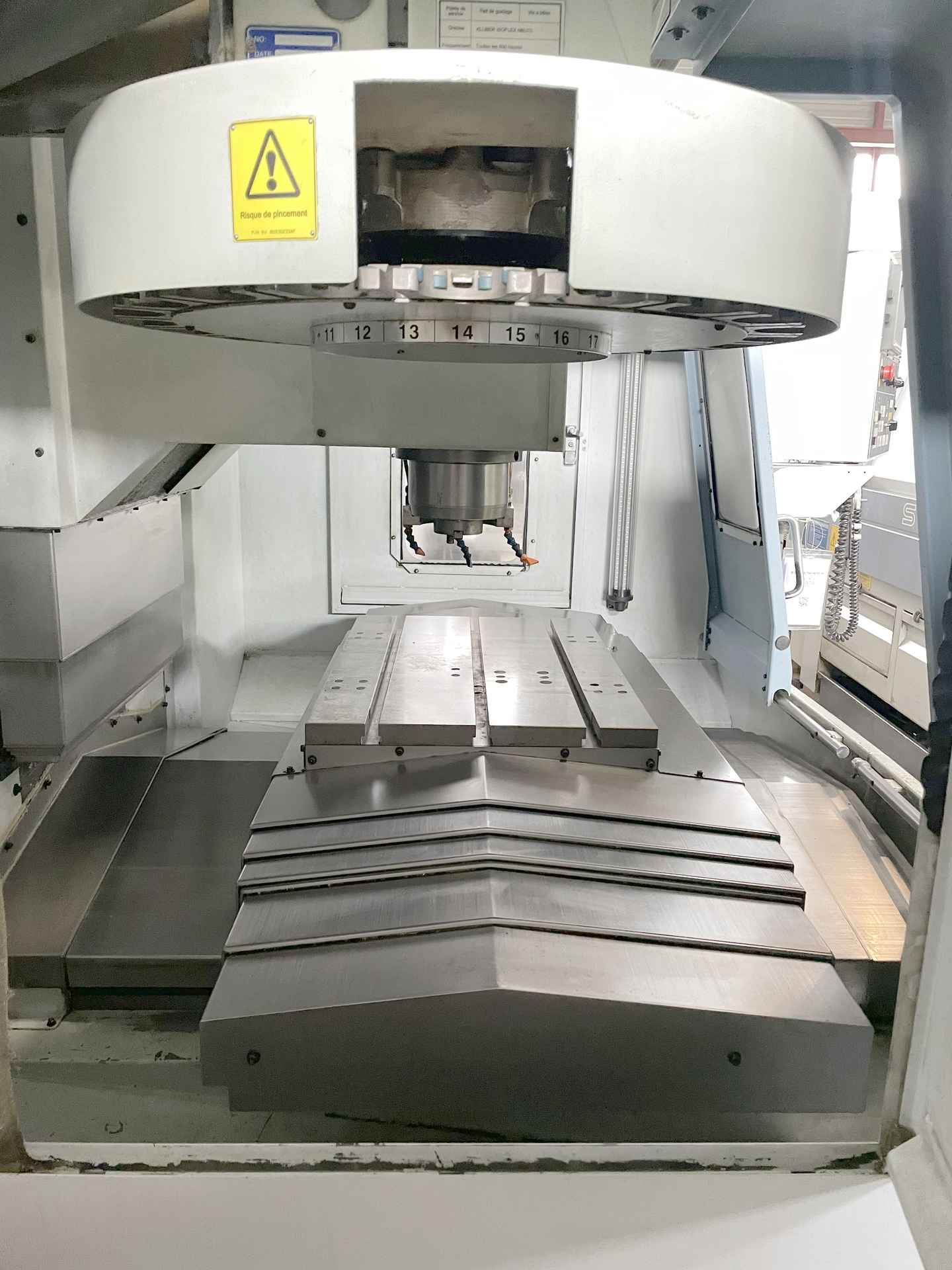

Number of tools: 20.

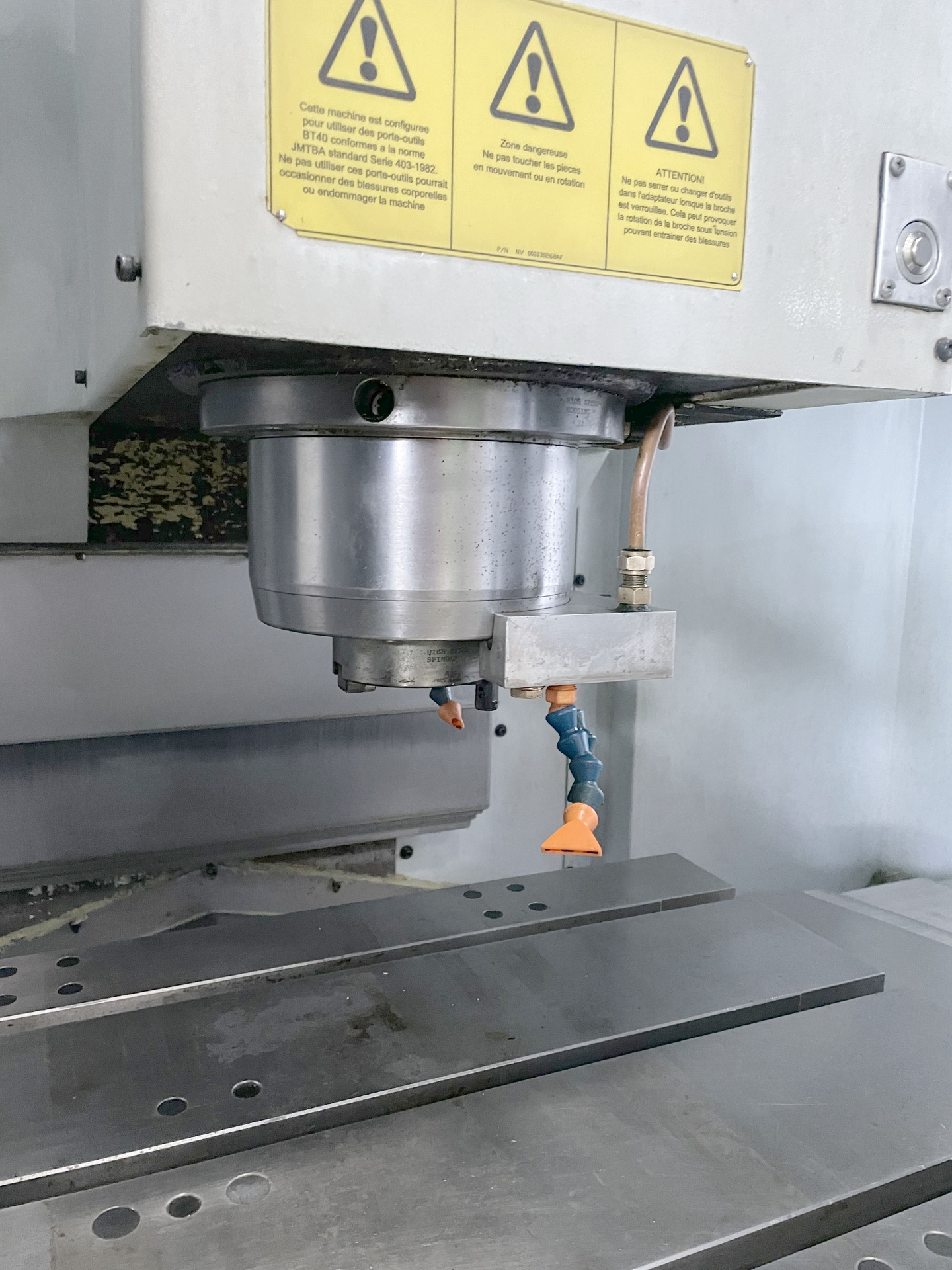

Spindle nose: BT: 40.
Distance spindle nose to table: 155 - 665 mm.
from: 0 t/min.
up to: 15000 t/min.
Feed range: 12000 mm/min.
Rapid traverse:: 30 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 13 kW.
Total power required: 19 kVA.
Machine's weight about: 4500 kg.
Width: 2200 mm.
Height: 2600 mm.
