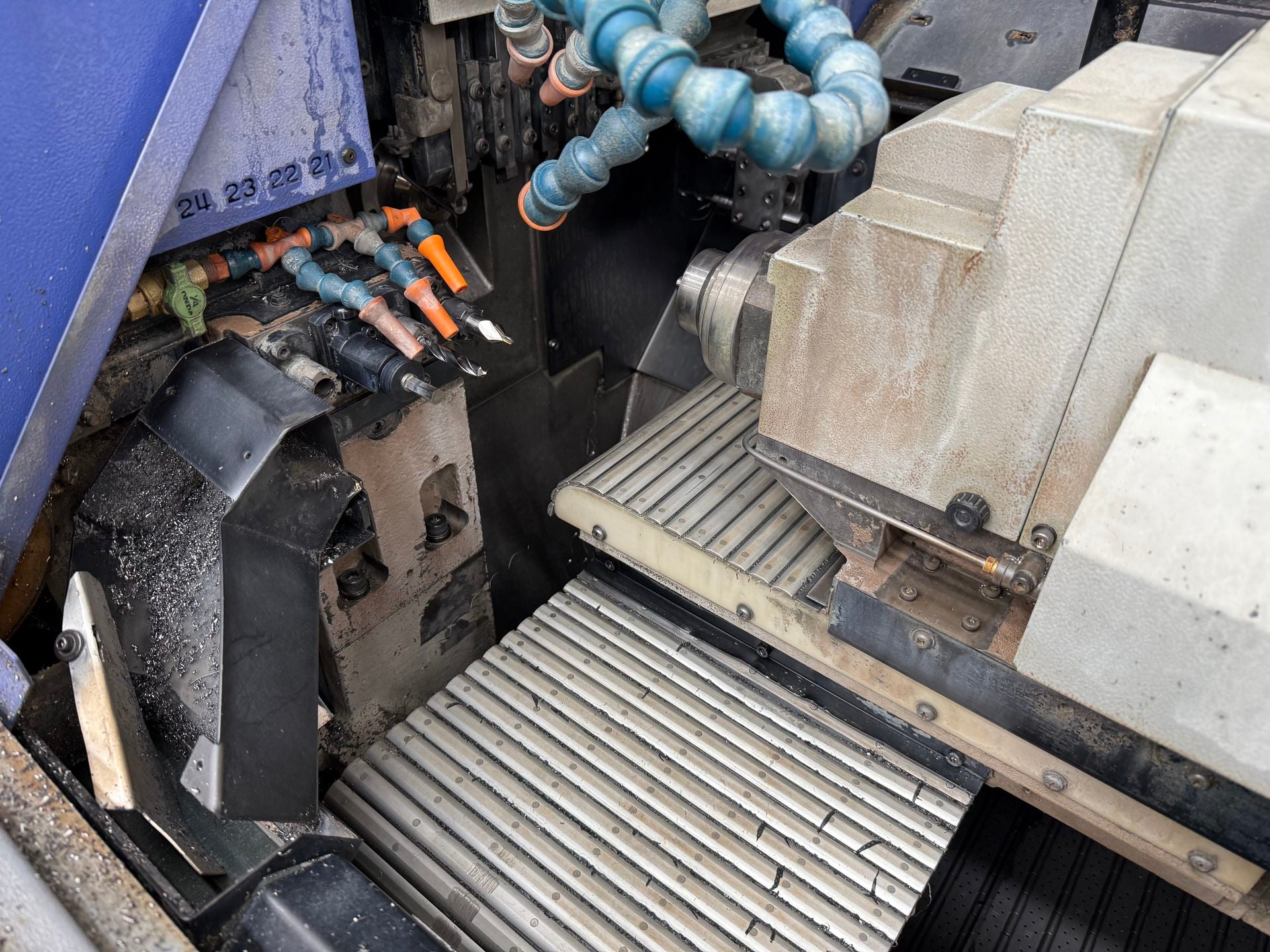

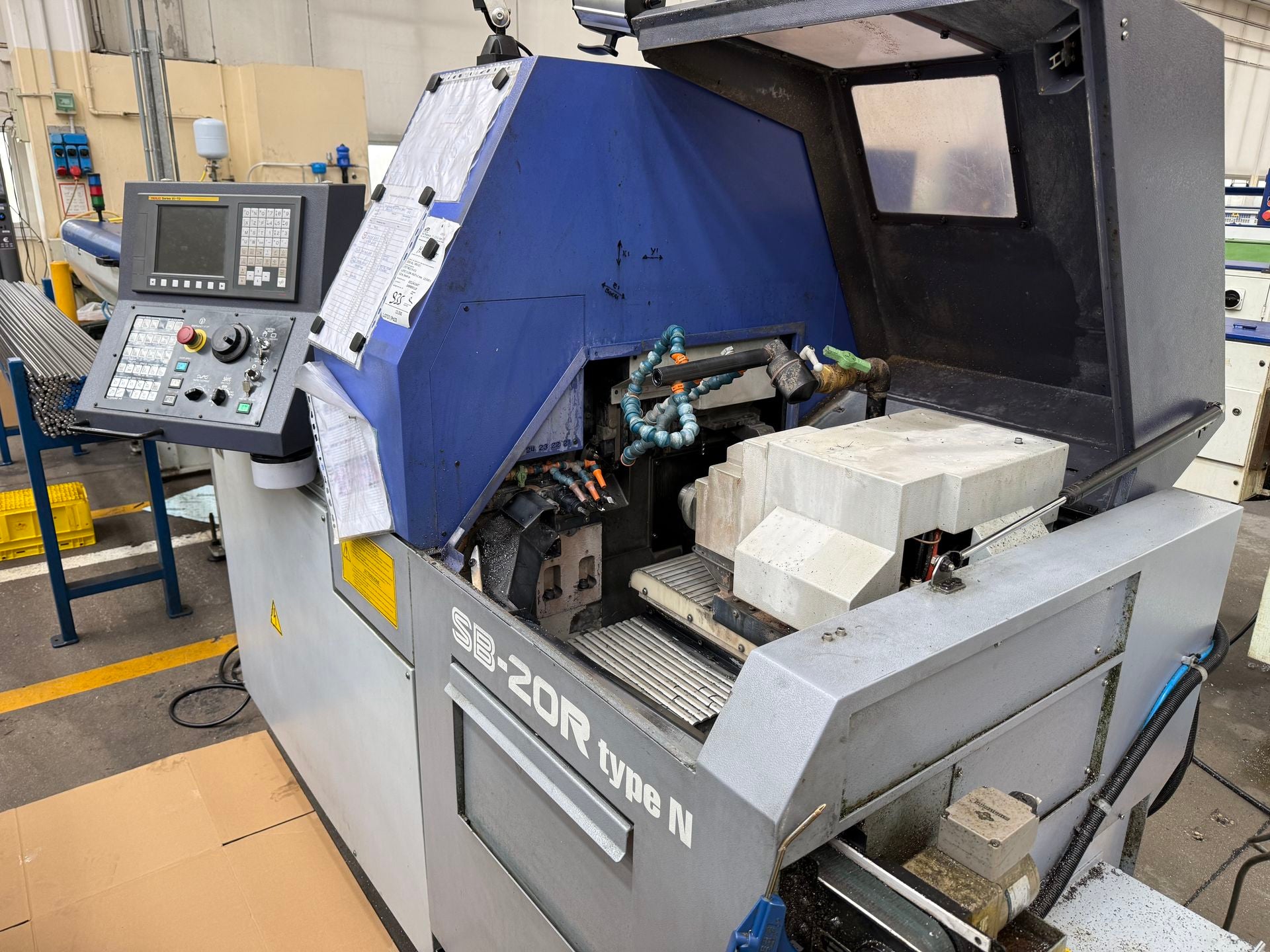

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Star
  • Model:
  • 023143 - STAR SB-20R type N
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Max. turning diameter: 20 mm.
Max. drilling diameter: 10 mm.
Max. threading diameter: 8 M.
from: 500 t/min.
up to: 10000 t/min.
C axis (spindle,resolution): 0.001 °.
numbers: 4.
number of tools: 4.
number of driven tools: 4.
Turning tools: 6 pce.
Transverse processing tools: 3 pce.
Drilling tools: 4 pce.
Rapid traverse:: 35 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 2.2 / 3.7 kW.
Total power required: 3.7 kVA.
Machine's weight about: 1800 kg.
Length: 2070 mm.
Width: 1770 mm.
Height: 1760 mm.
