MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 023259 - SCHAUBLIN 70
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 70 mm.
Distance between centres: 275 mm.
Swing over cross-slide: 85 mm.
Swing over bed: 155 mm.
Spindle hole: 12 mm.
Inner taper type: 12 W.
number (steps): 12.
from: 135 t/min.
up to: 2950 t/min.

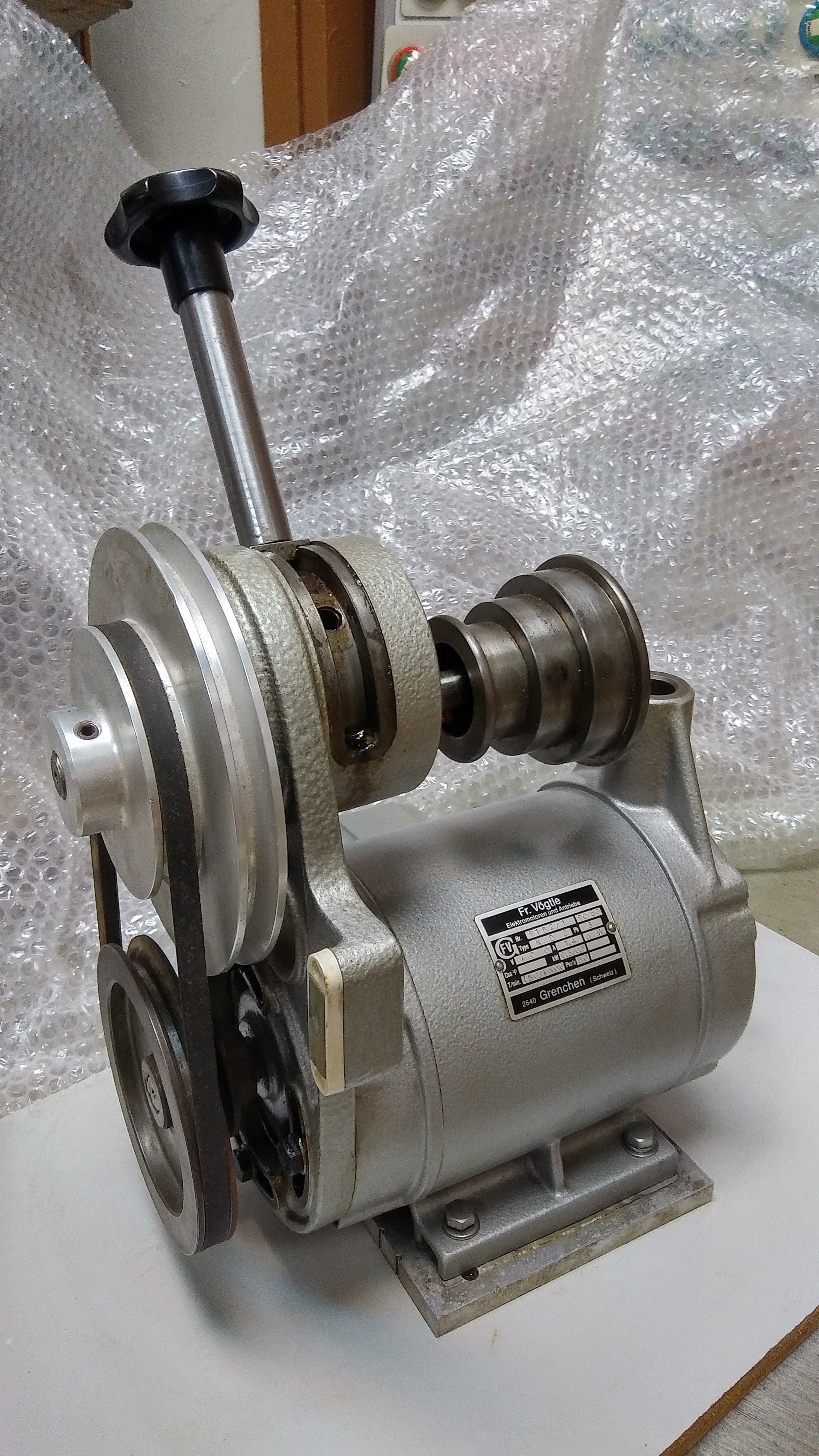

Spindle motor: 0.8 CV.
Machine's weight about: 300 kg.
Length: 1200 mm.
Width: 800 mm.
Height: 1500 mm.
