Reference: 2150043

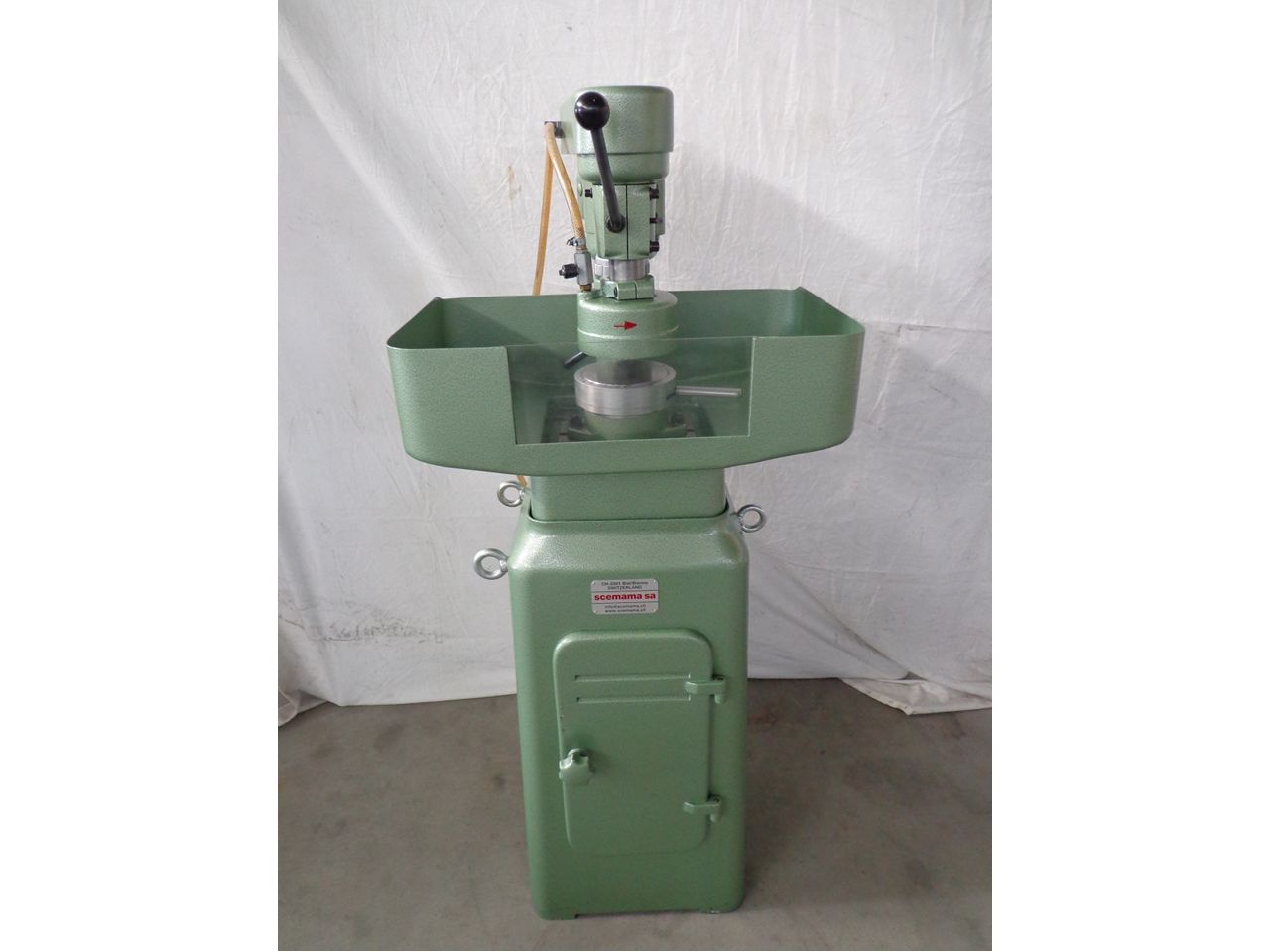

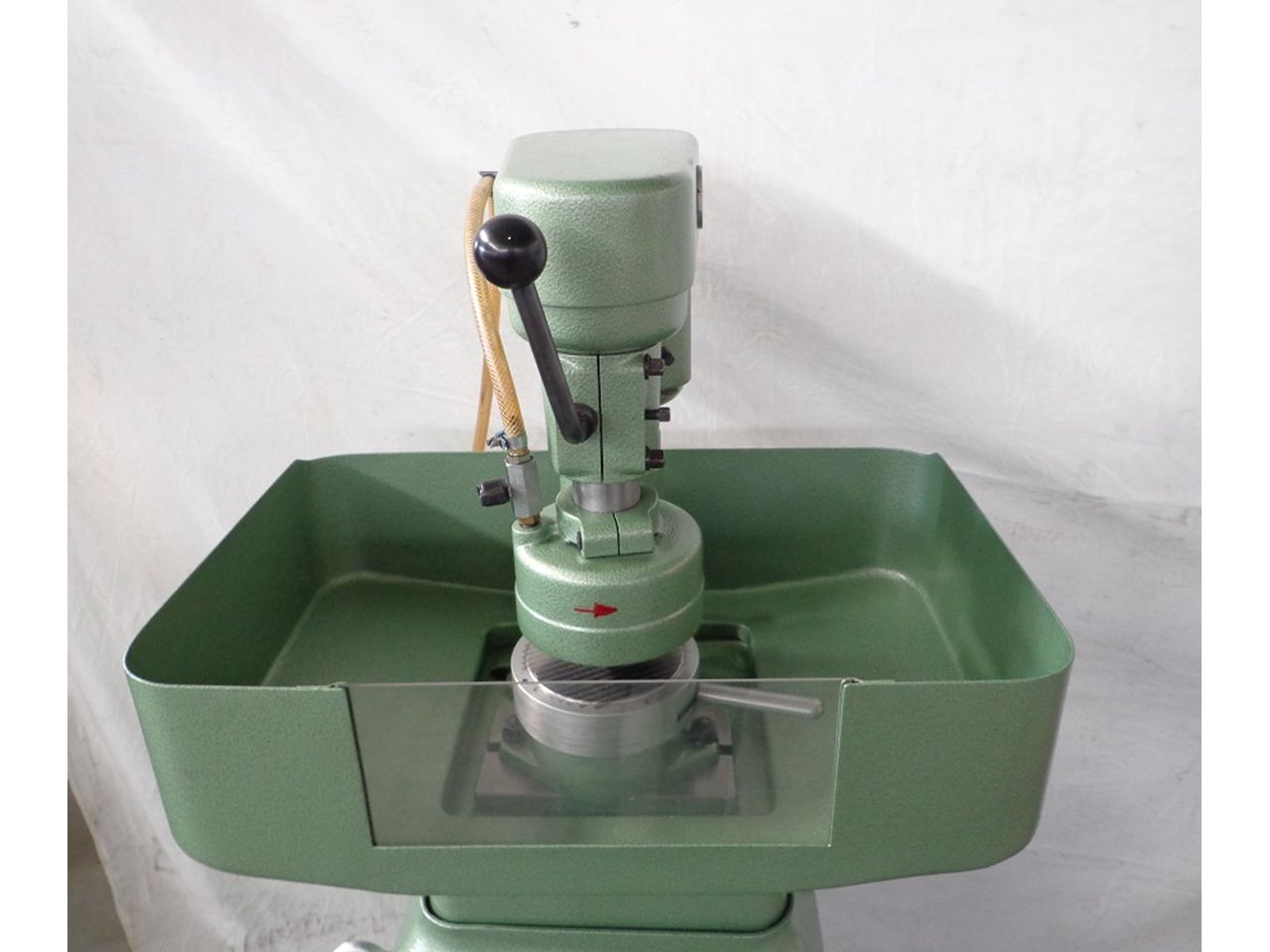

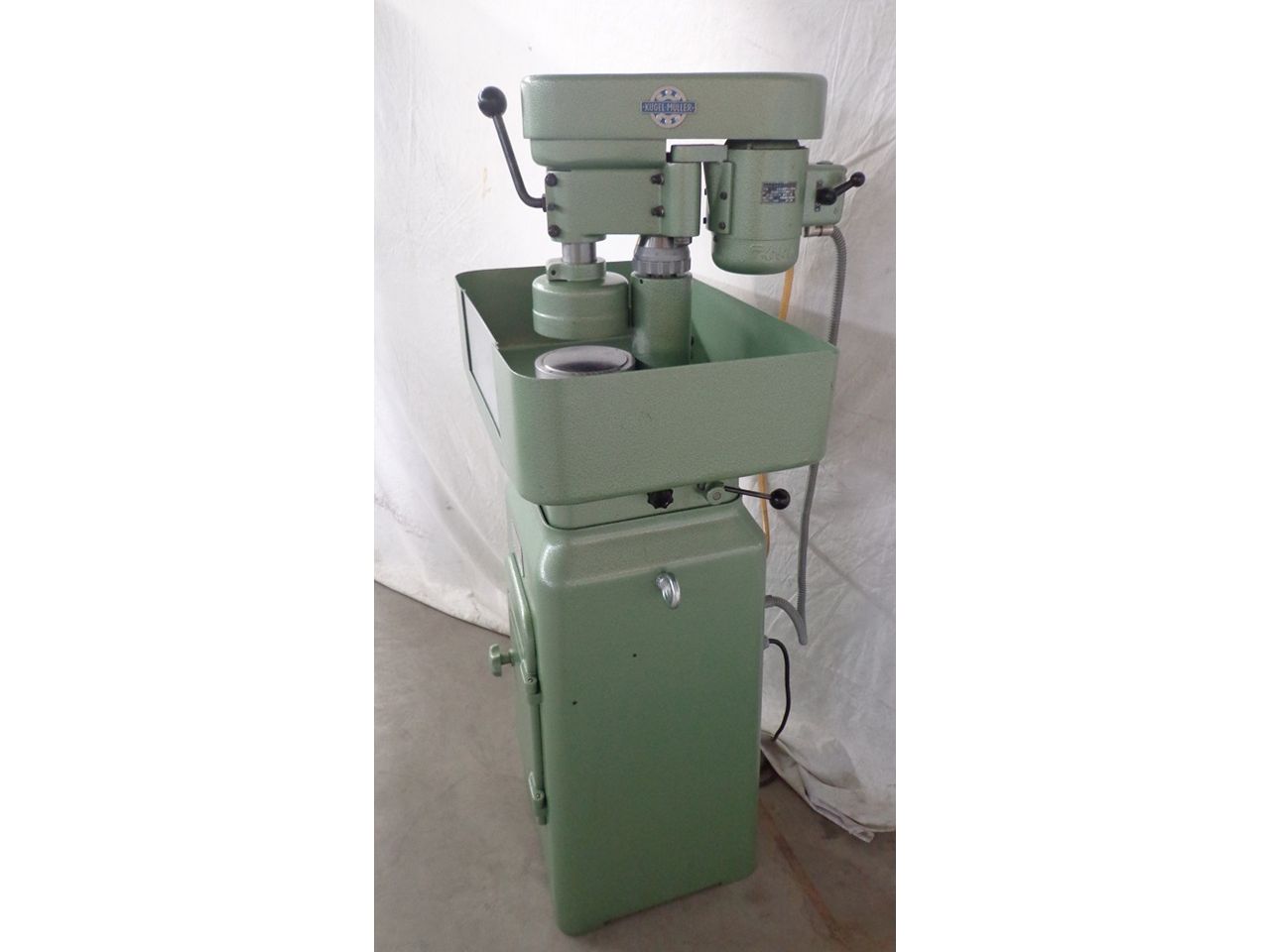

magnetic plate 200x100 mm, on base with cooling device
| Manufacturing origin | Swiss |
| Voltage | 380/50/3 |
| Netweight | 58 kg |
| Custom position | 8460.1930 |
| Dimensions | 50x60x170cm |
| Surfacing height upon table | |
| Surfacing height upon magnetic plate (with new wheel) 130 mm | |
| Grinding length for 80 mm width | 240 mm |
| Fixing surface of table | 120x206 mm |
| Approaching precision | 0,001 mm |
| Spindle speed | 3150 rpm |
| Grinding wheel | 125x60x20 mm |
| Quick vertical stroke | 140 mm |
| Slow vertical stroke | 10 mm |
| Driving motor | 2800 rpm |
| errors and omissions excepted data given without obligation | |
