MACHINE INFORMATION AND SPECIFICATION

Category:
Lathes (CNC and Manual)

Subcategory:
CNC Lathes

Manufacturer:
Doosan

Model:
Doosan Puma 700 L CNC Lathe

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Tayside Machinery Ltd.

Country:
N/A

DESCRIPTION

Code: ST3962

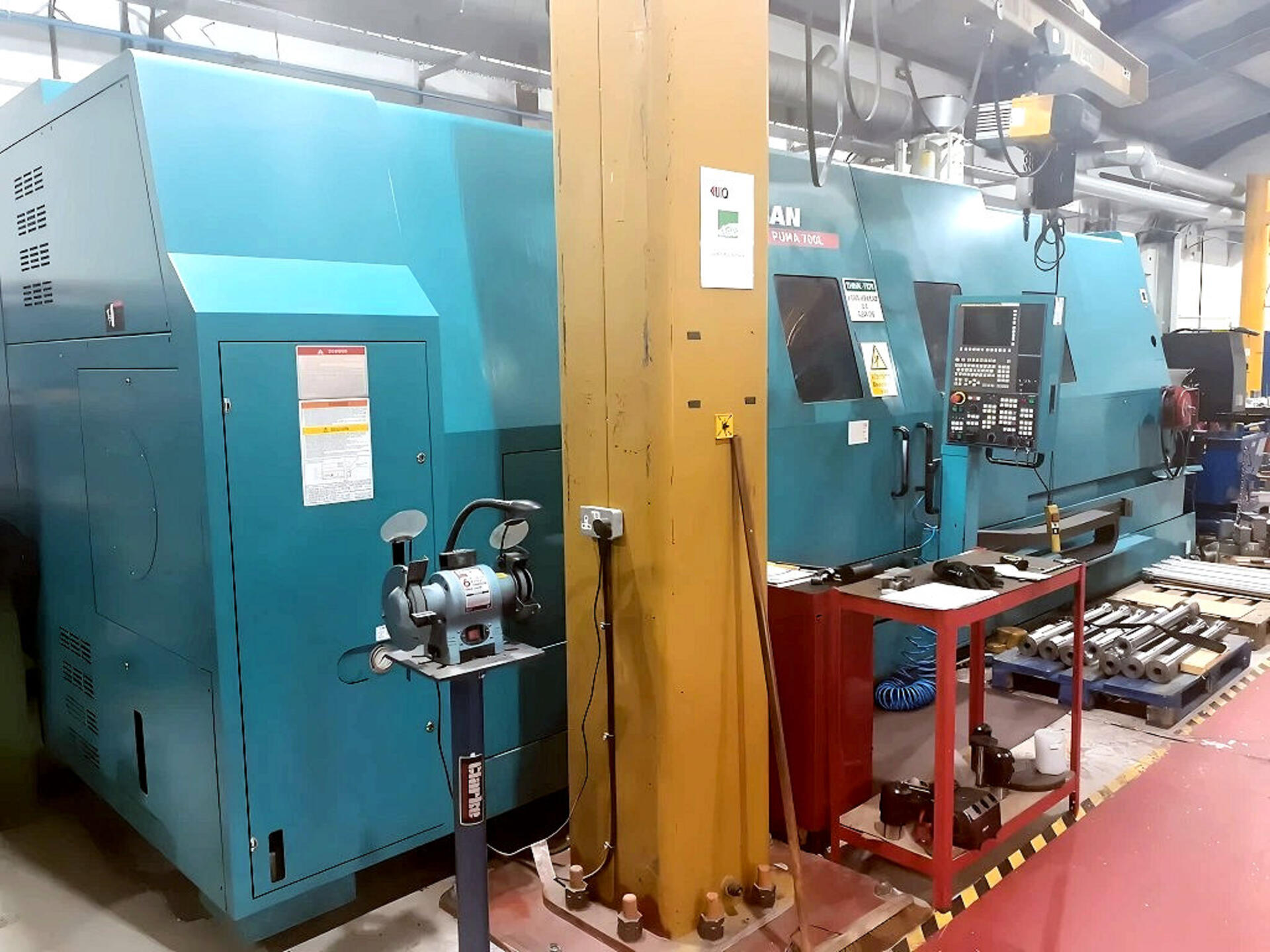

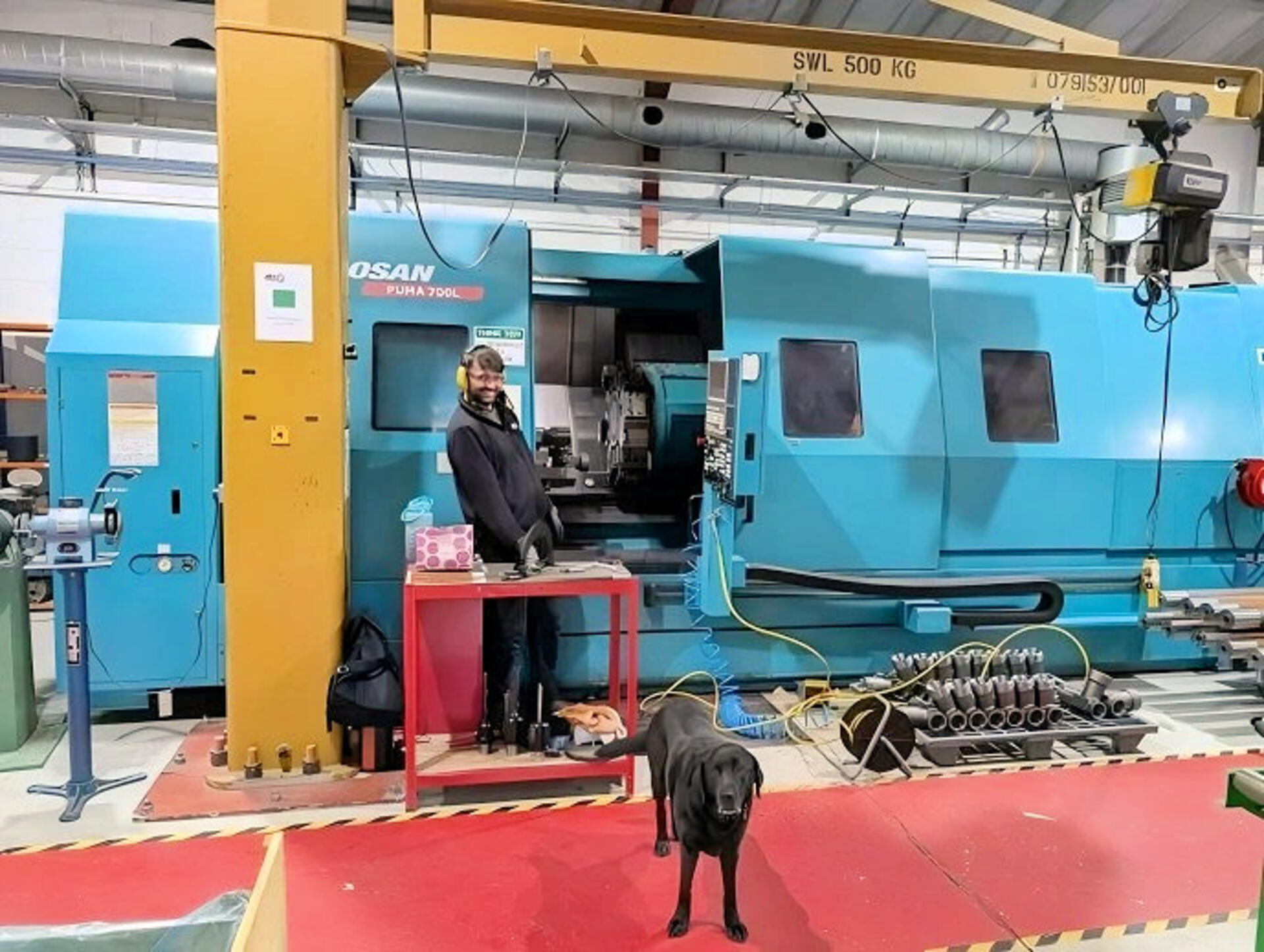

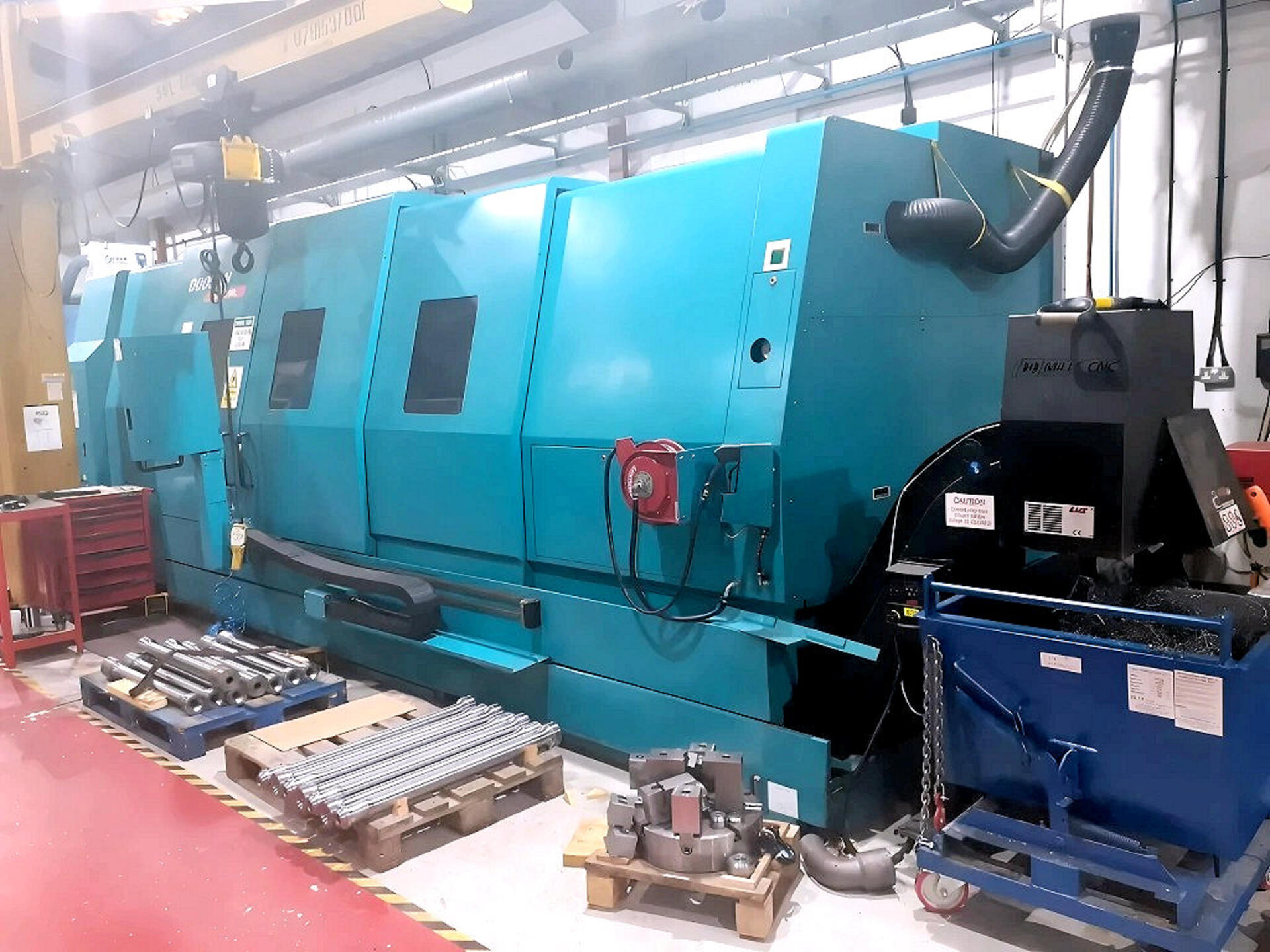

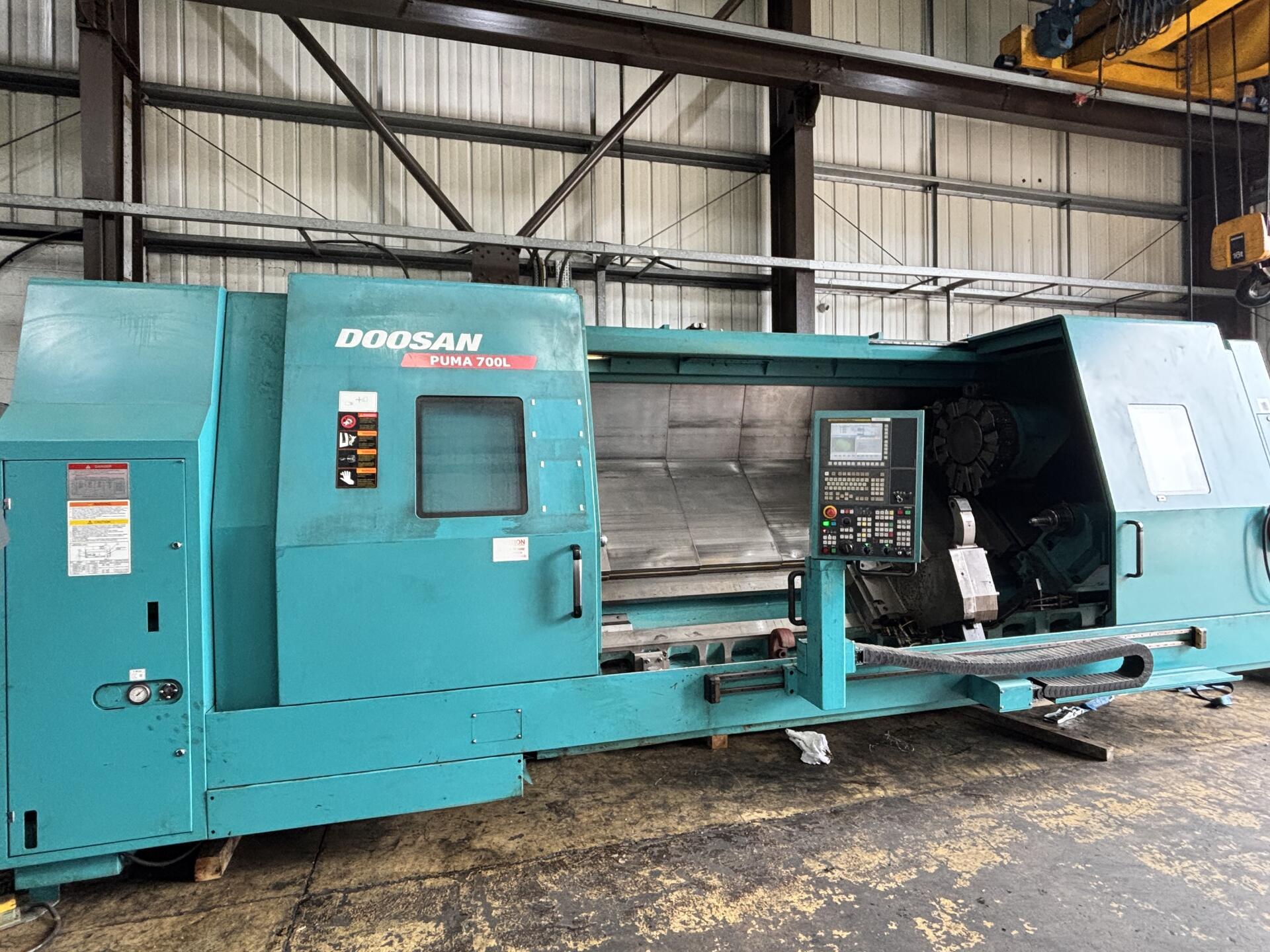

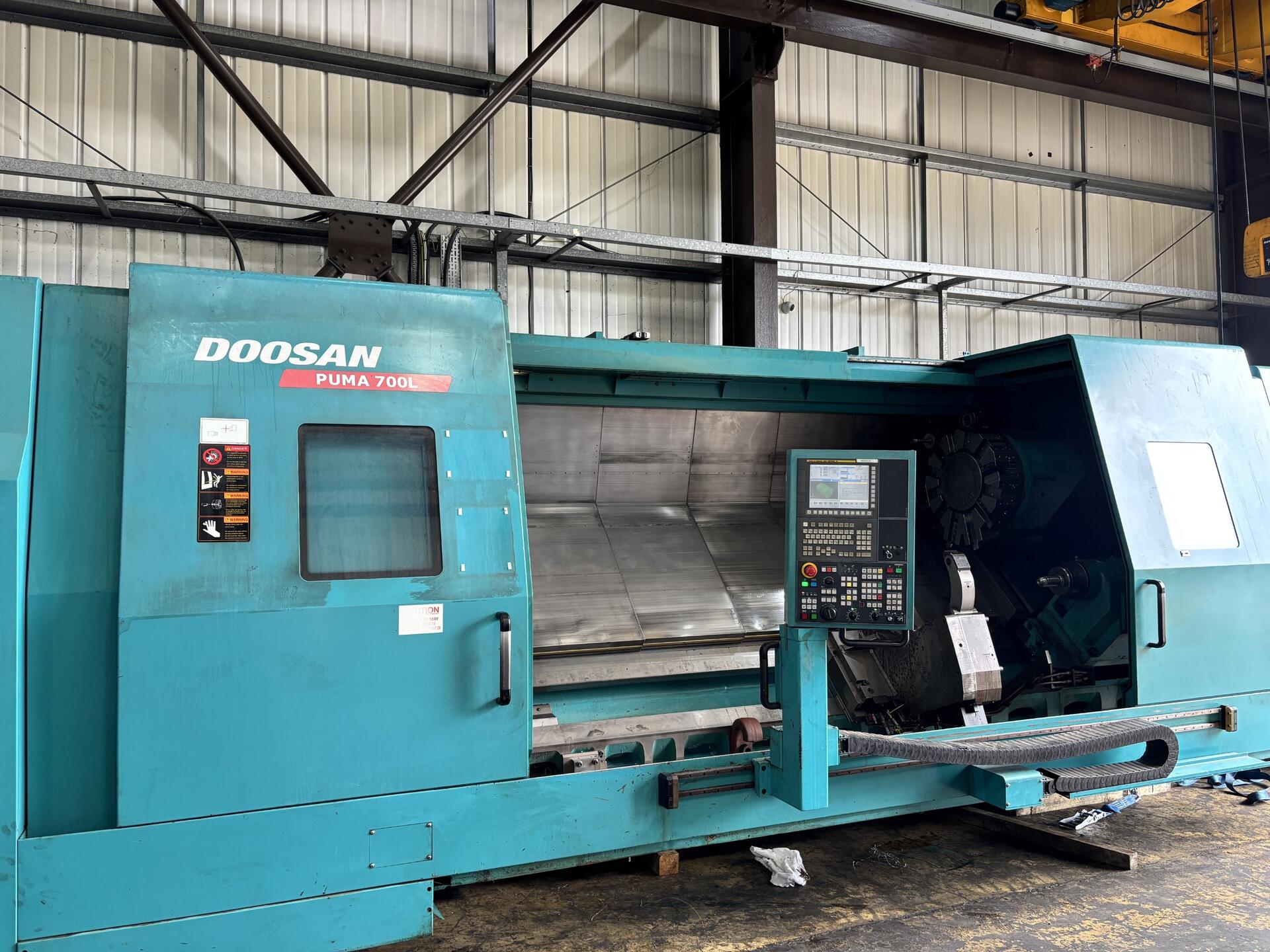

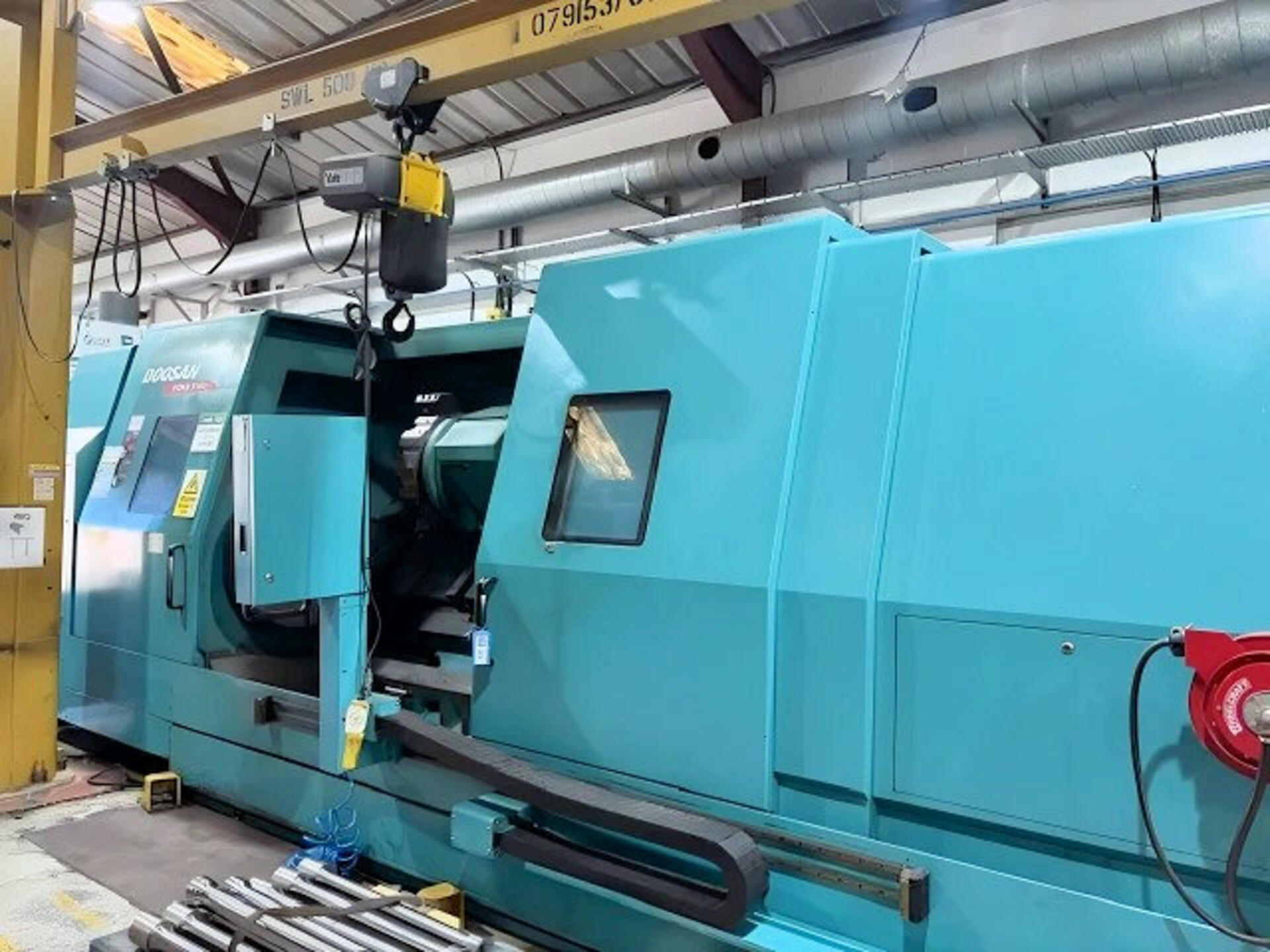

Doosan Puma Heavy Duty CNC Lathe

Model: 700 L
Year: 2014 - October

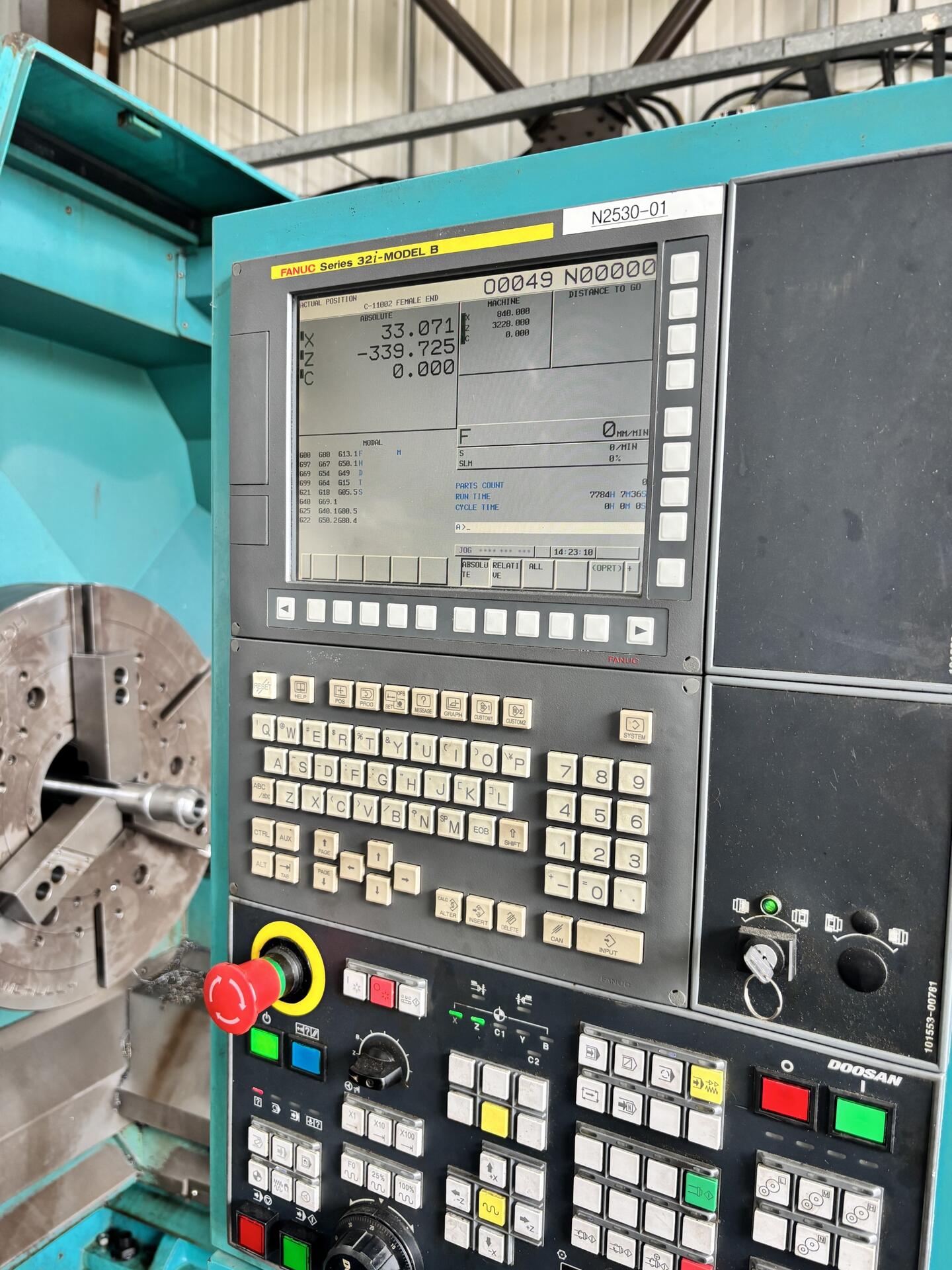

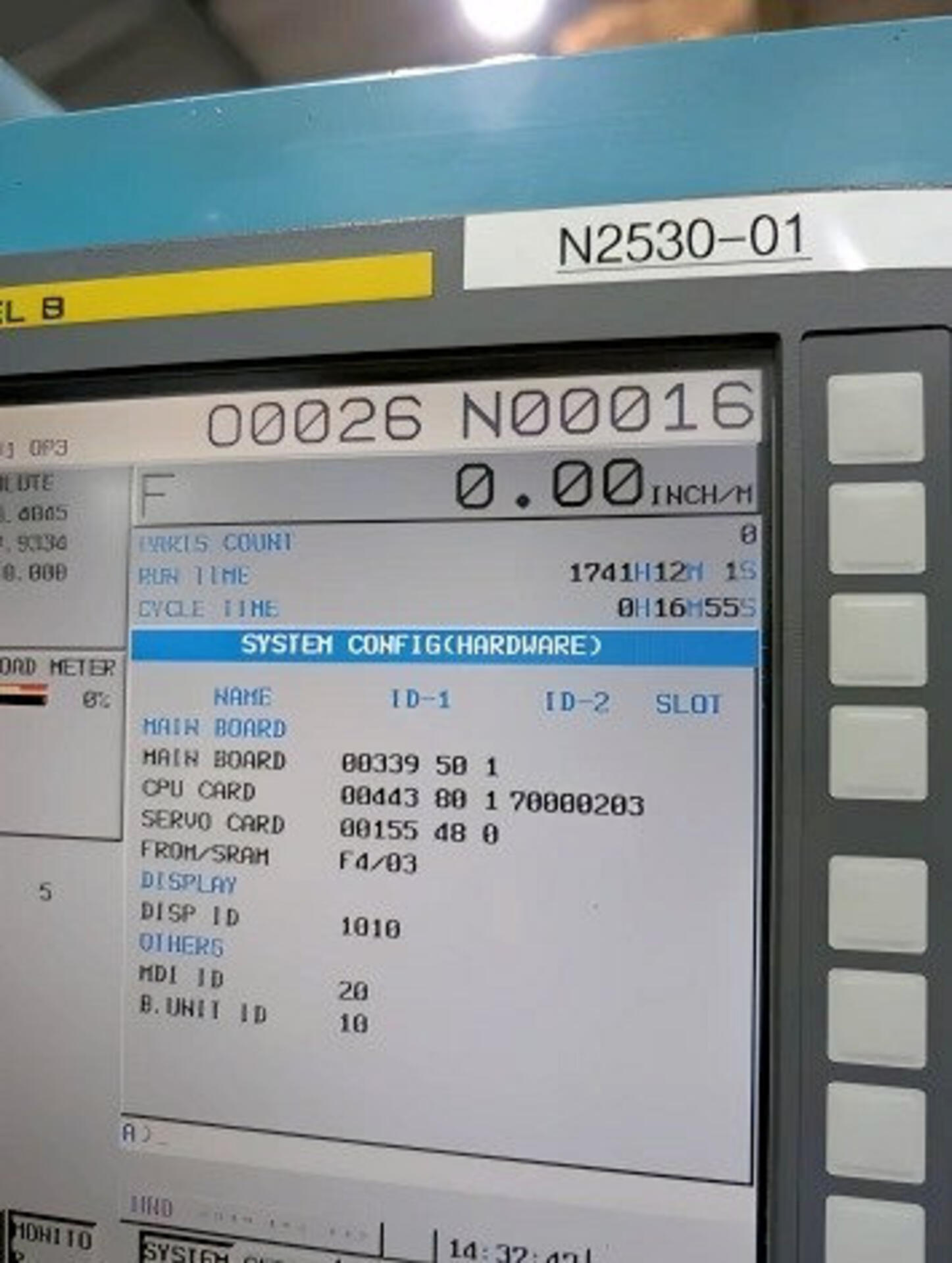

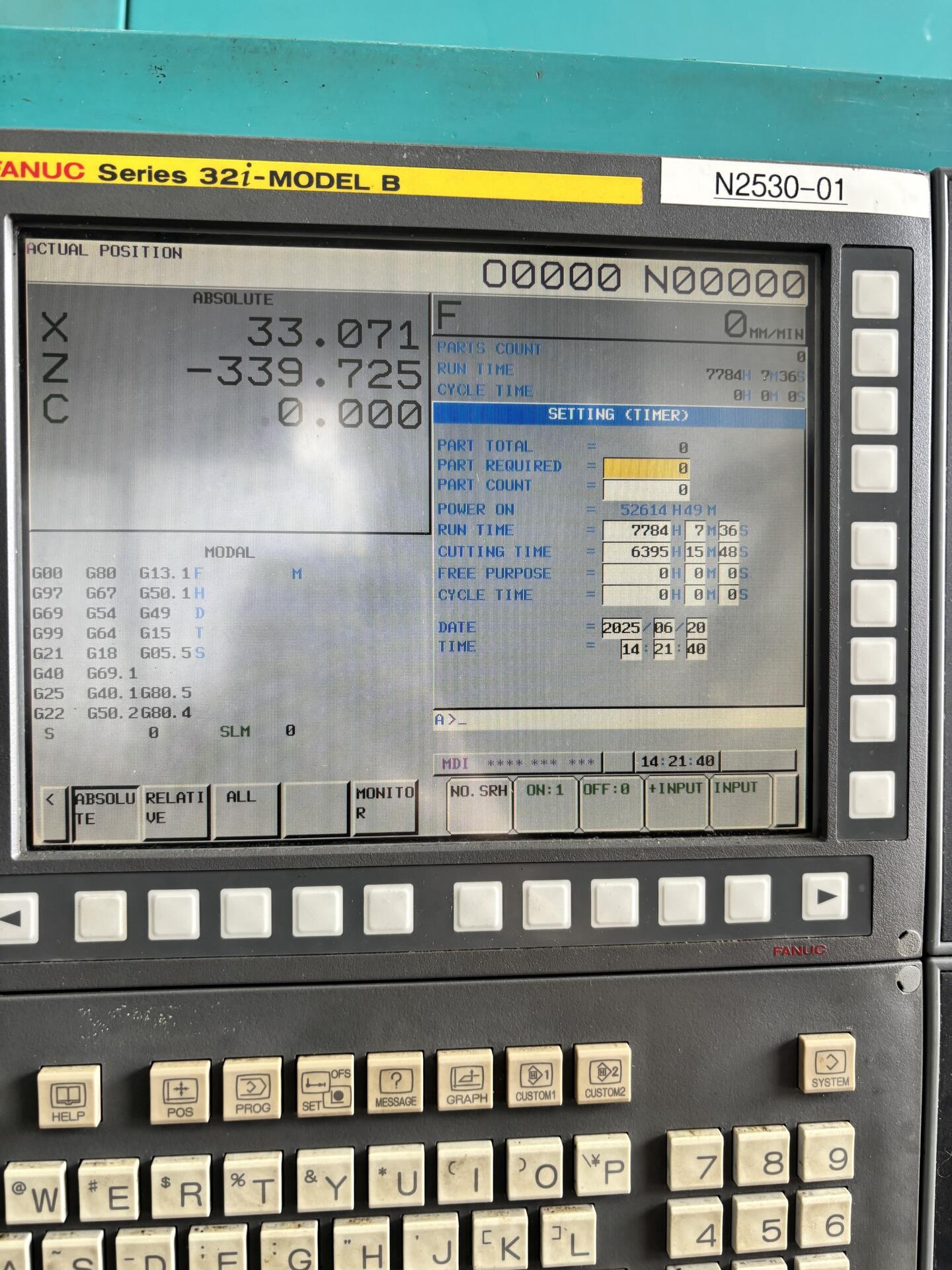

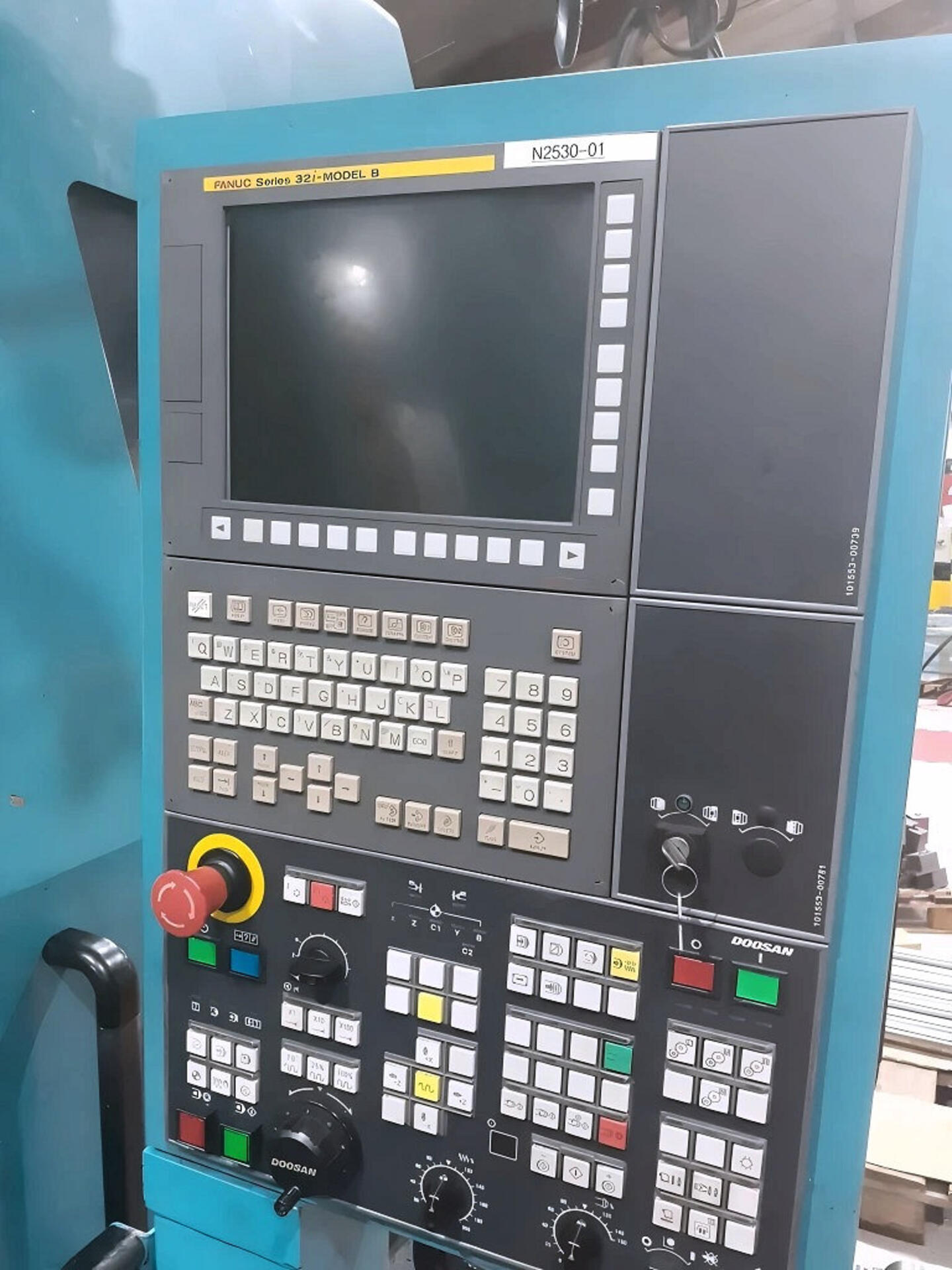

Control: Fanuc 31i Model B

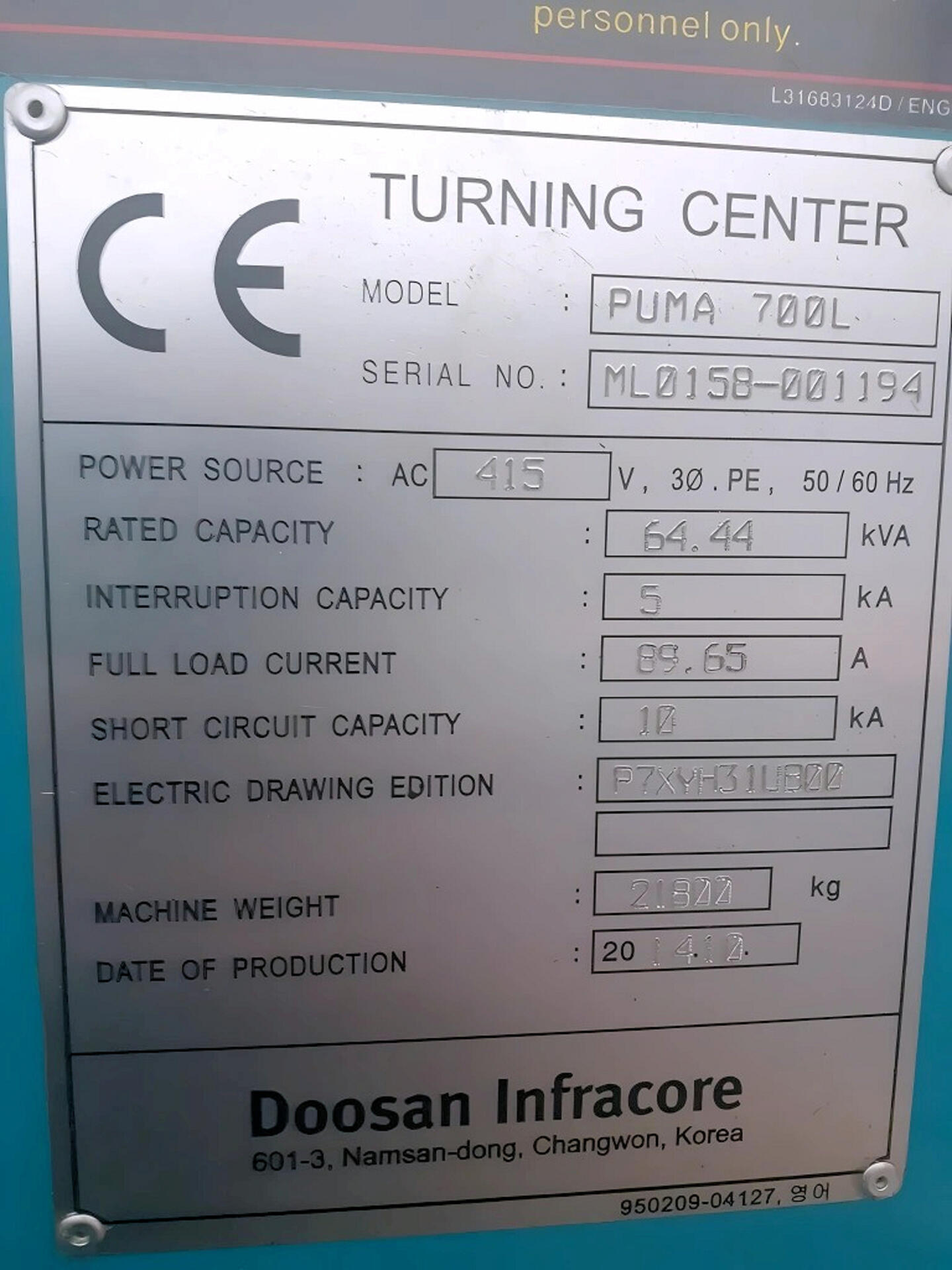

Serial No: ML015800194

Swing over bed: 1030mm
Swing over saddle: 800mm
Maximum turning diameter: 900mm
Maximum turning length: 3200mm
Bar Capacity: 164mm
Spindle speed: 1500 rpm
spindle power: 45/37KW
X axis Travel : 470mm
Z axis Travel : 3235mm
Spindle Nose: A1-15
OD tool size: 32 x 32mm

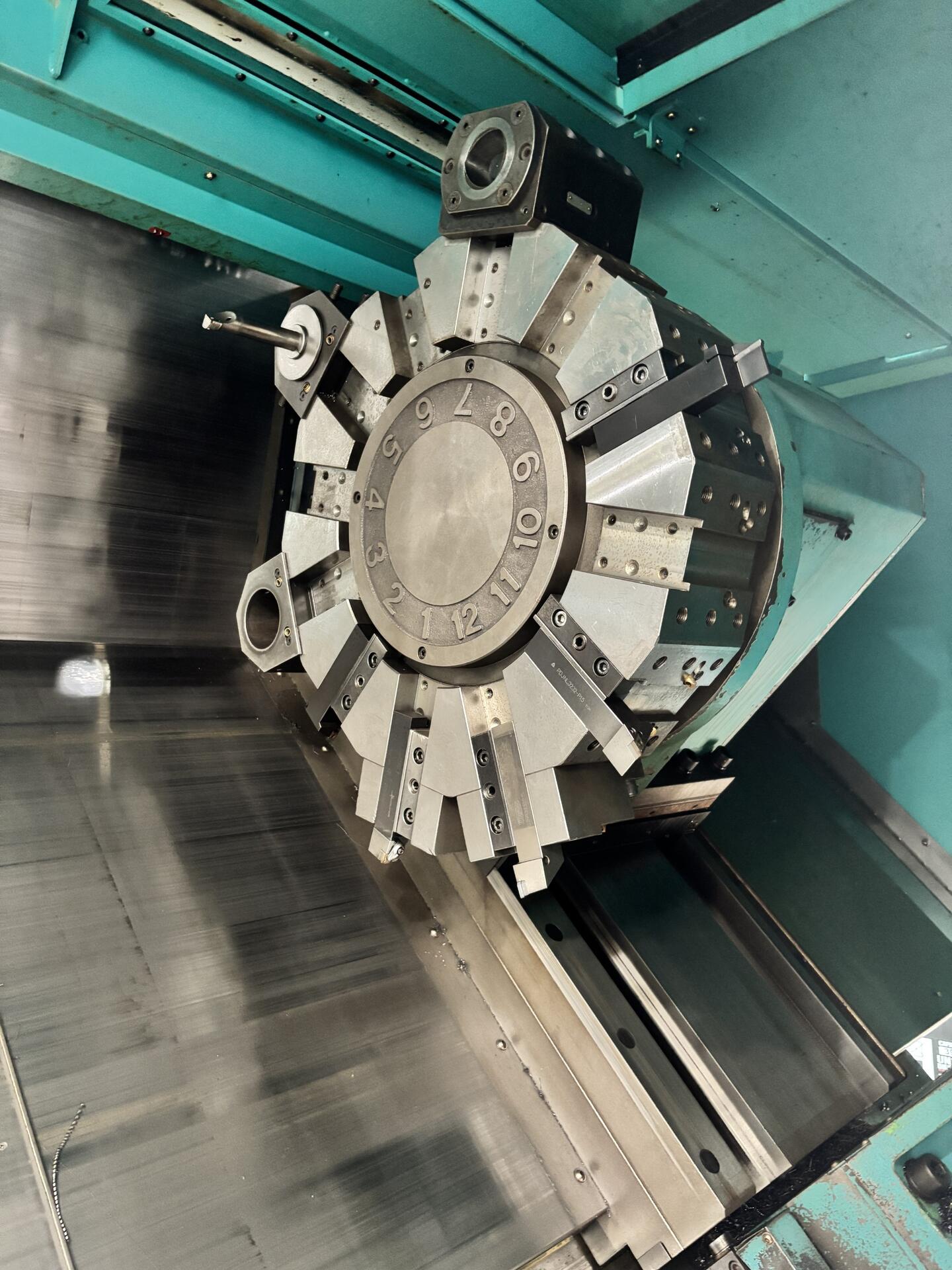

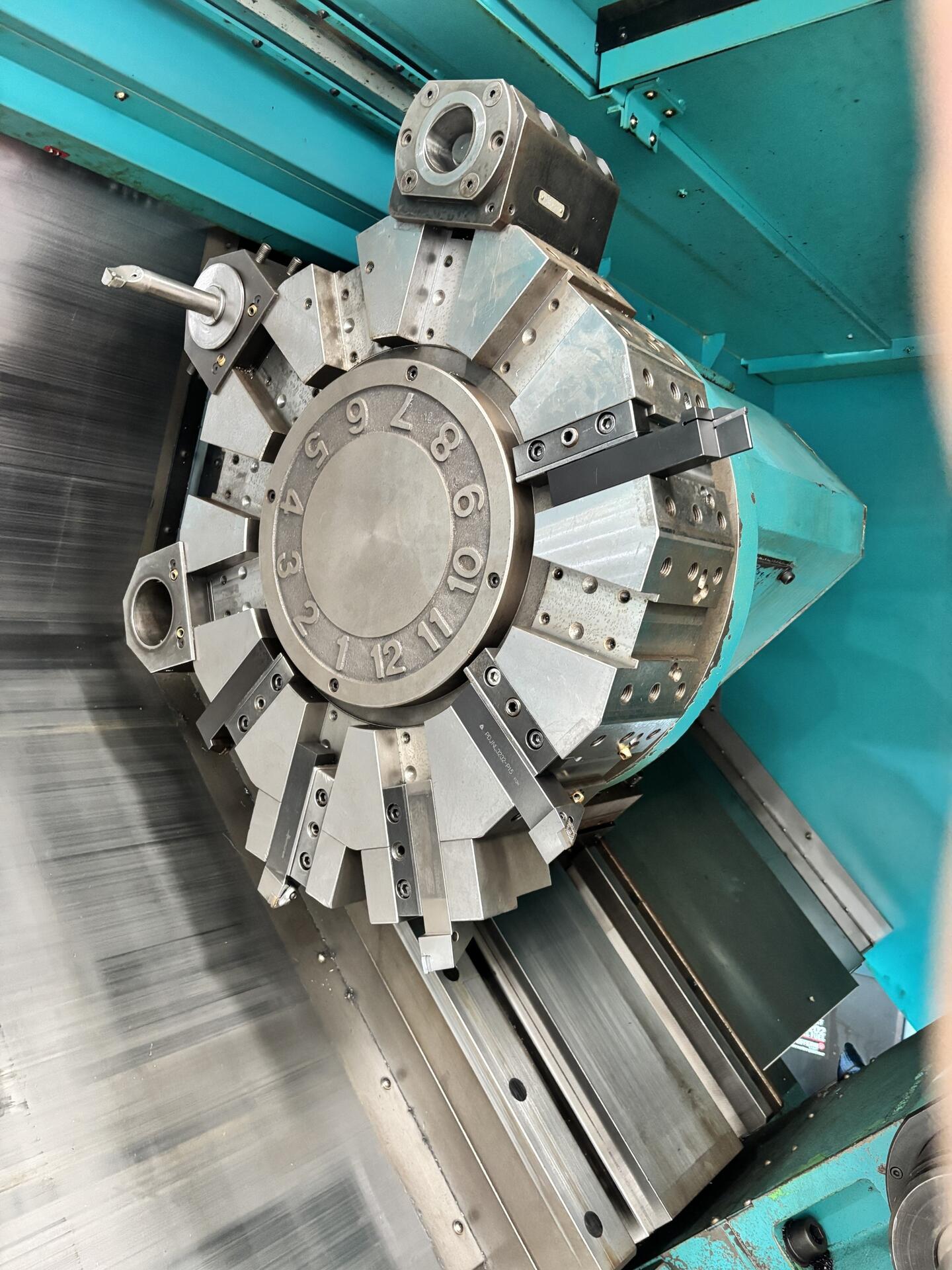

12 station turret
Fanuc 32i control

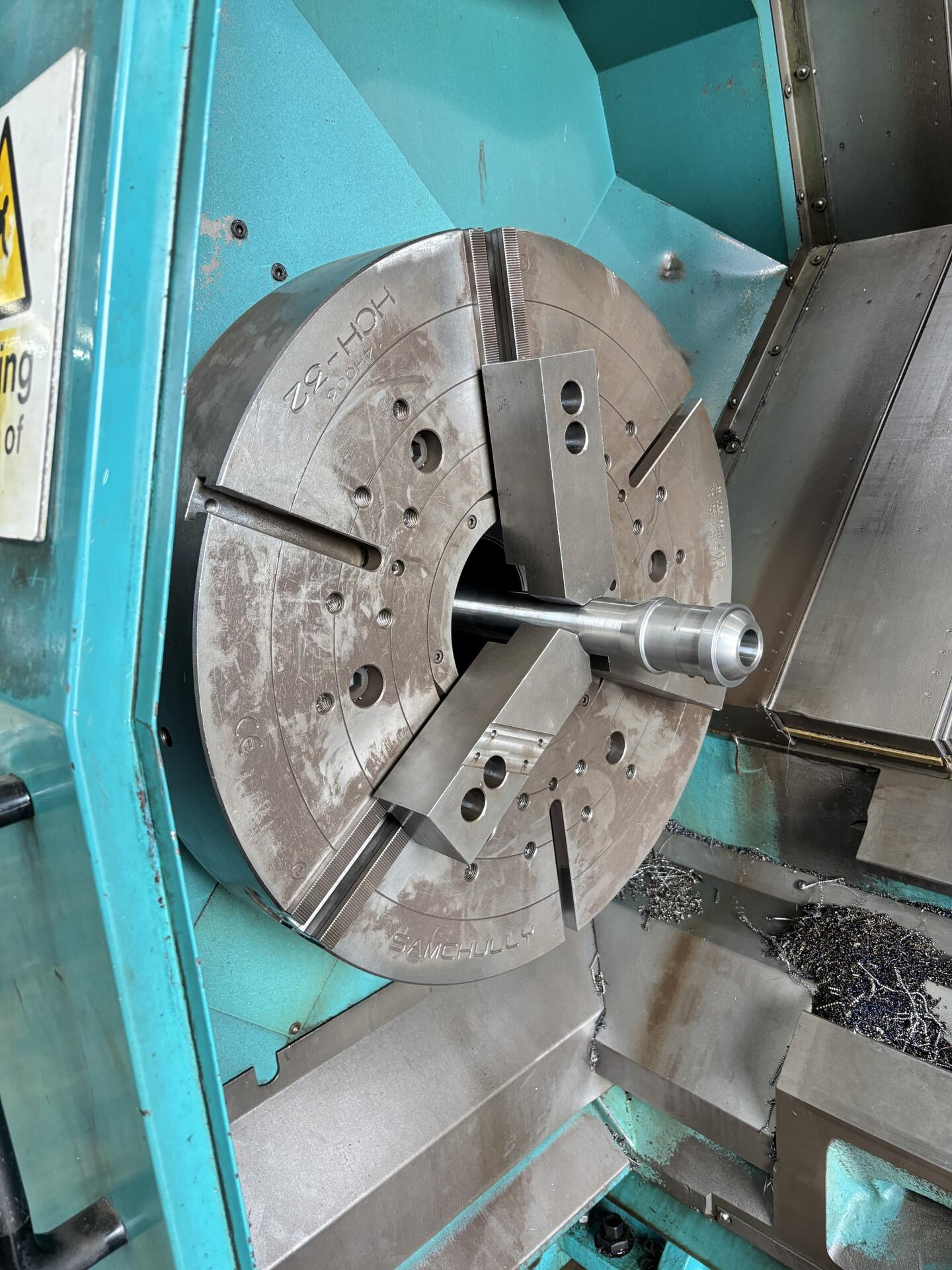

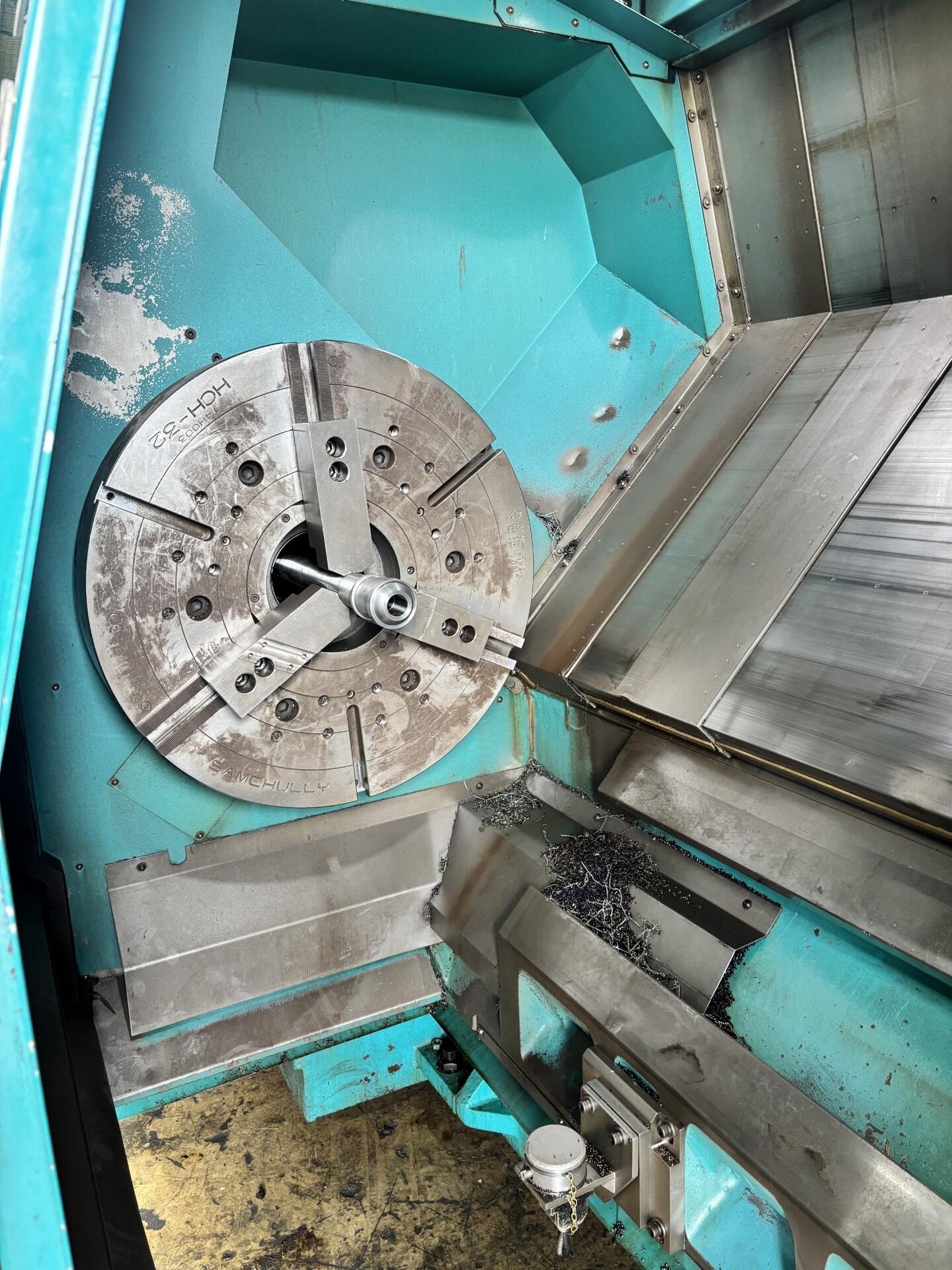

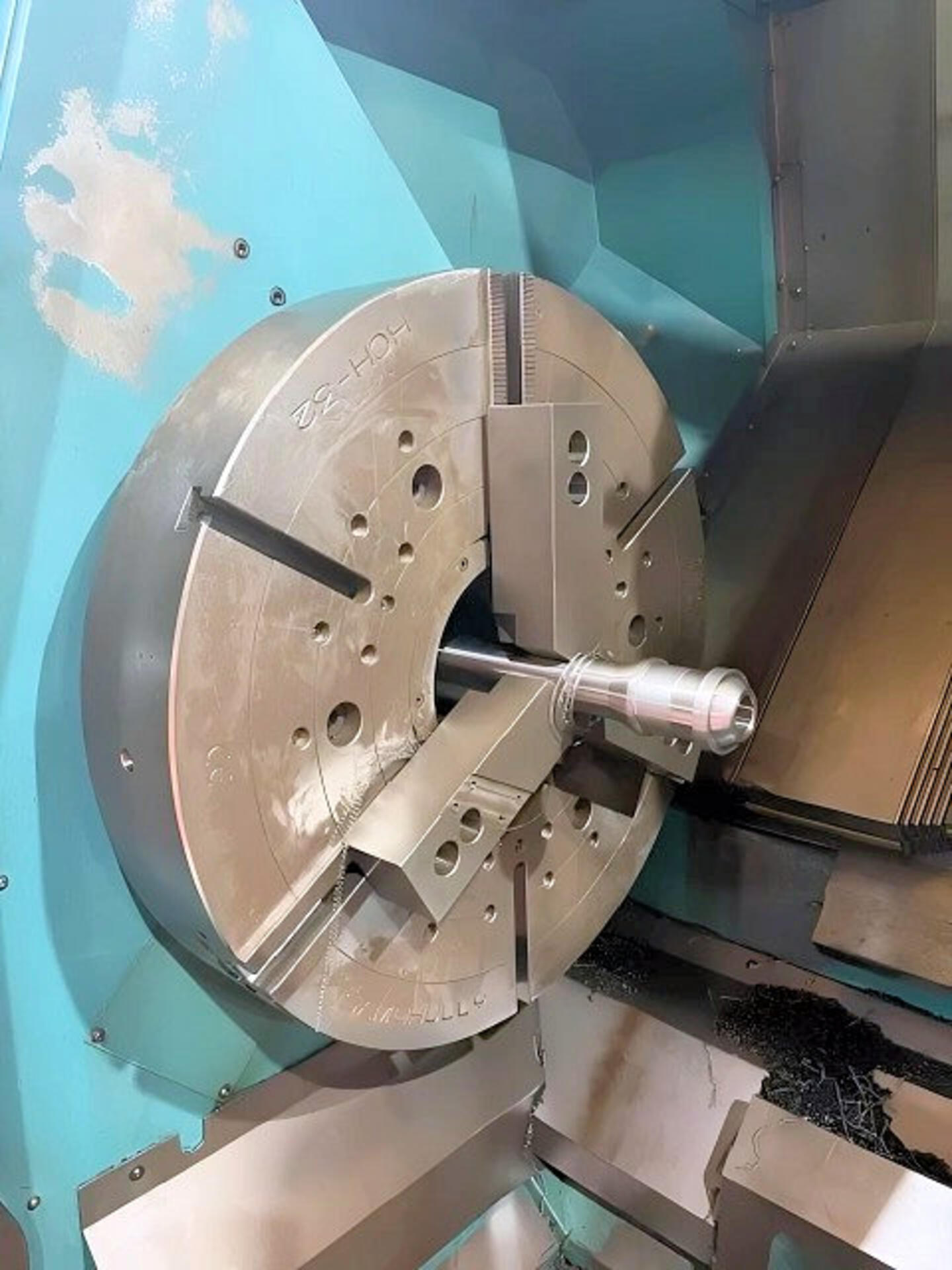

800mm 3 jaw chuck (32”)

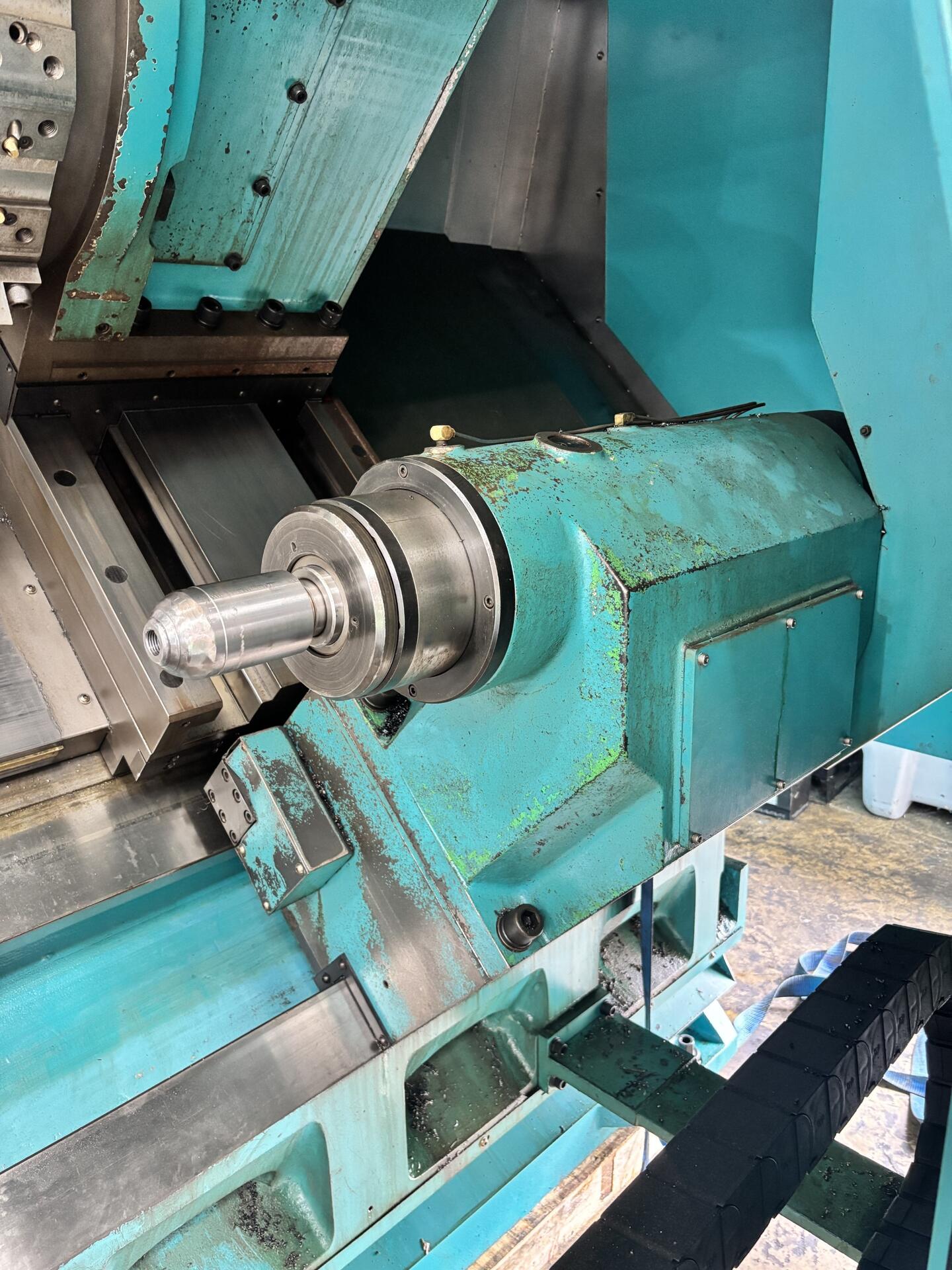

Tailstock Body 3135mm
Tailstock Quill Stroke 150mm
Tailstock Quill Diameter 160mm
Tailstock Taper MT #6
Tool setter

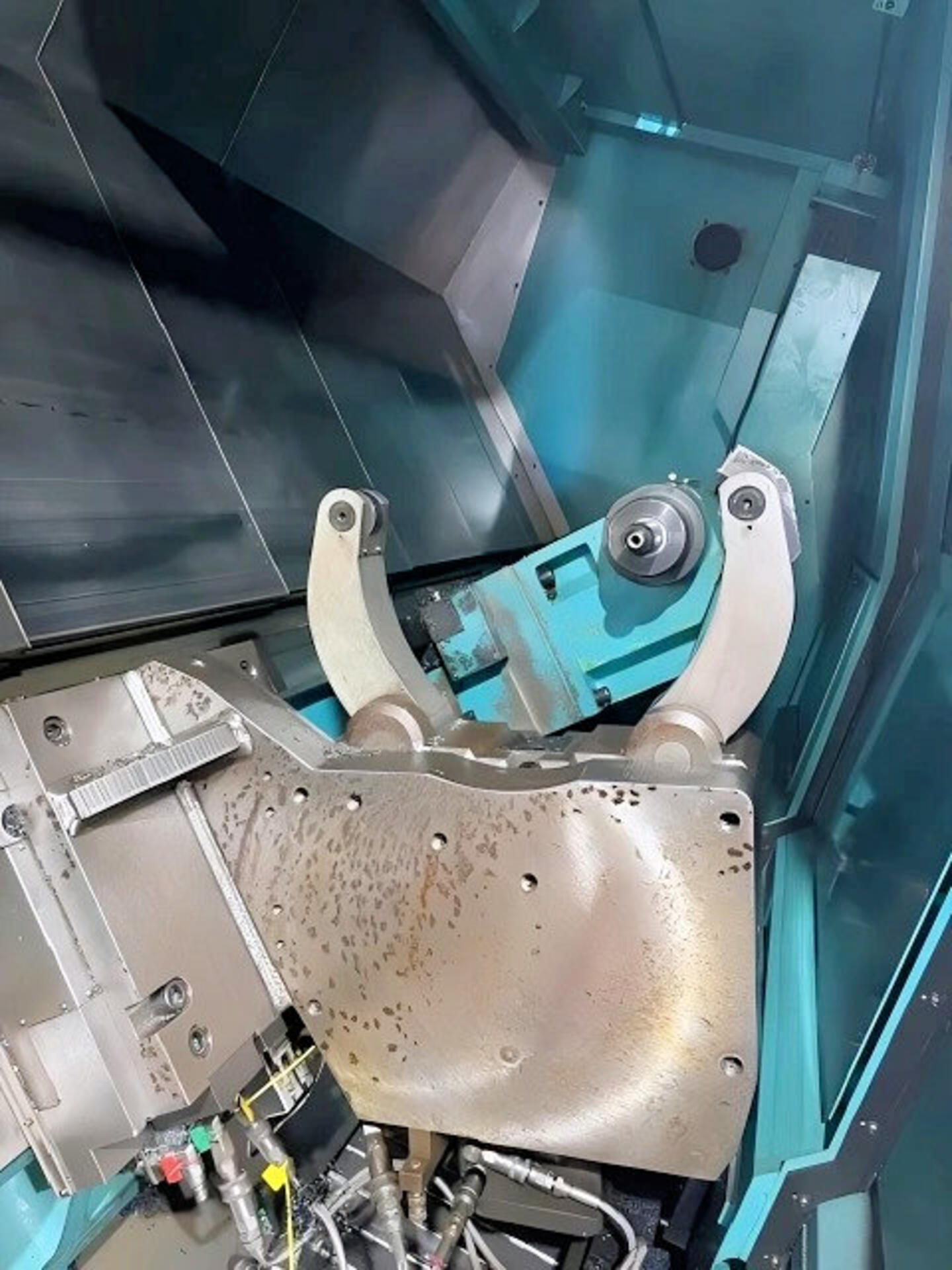

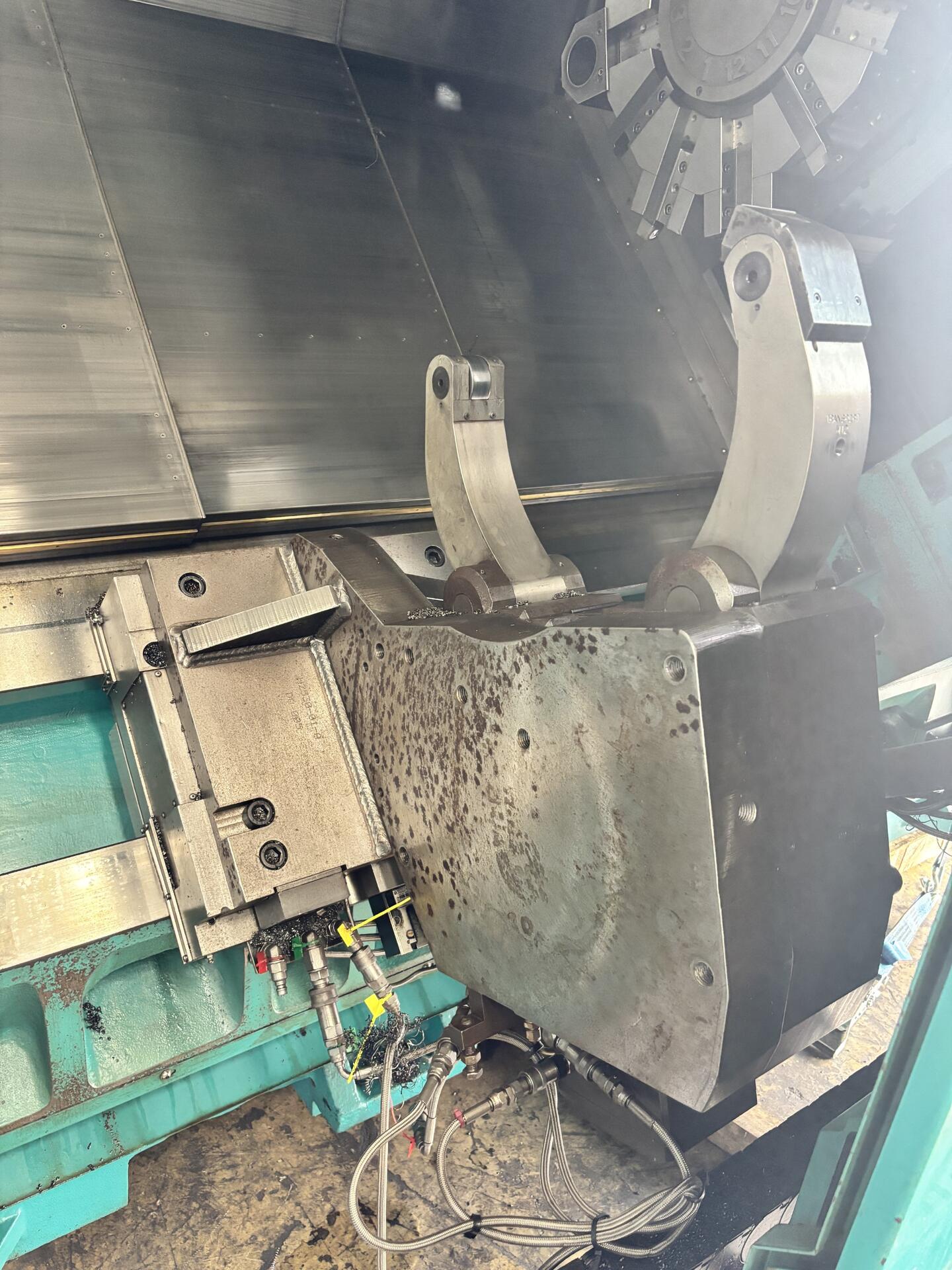

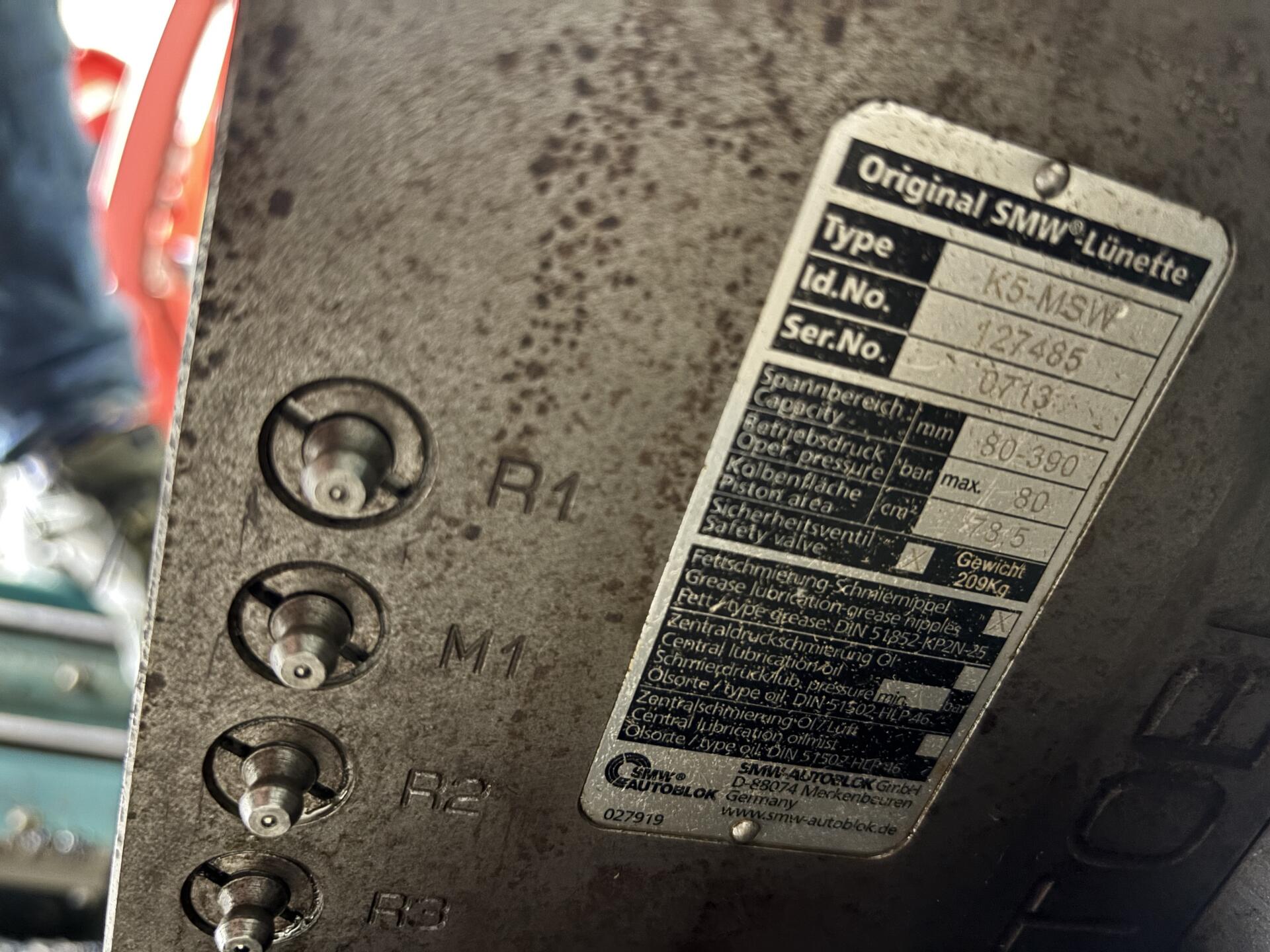

Hydraulic steady

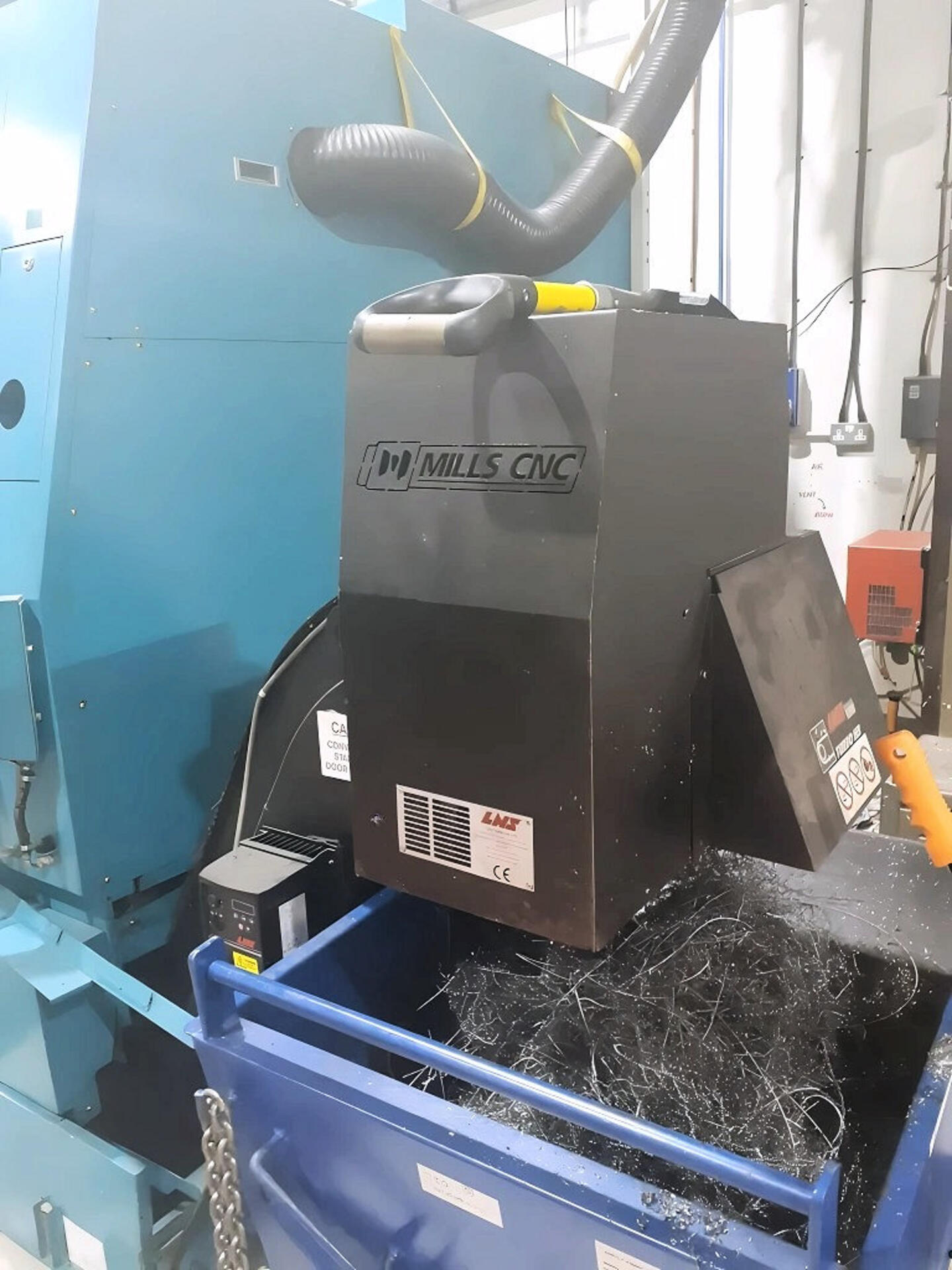

Swarf conveyor
Machine Dimension 7360 x 2770 x 2780mm
Machine Weight 21800kg
