Manufacturer
Qualters & Smith
Model

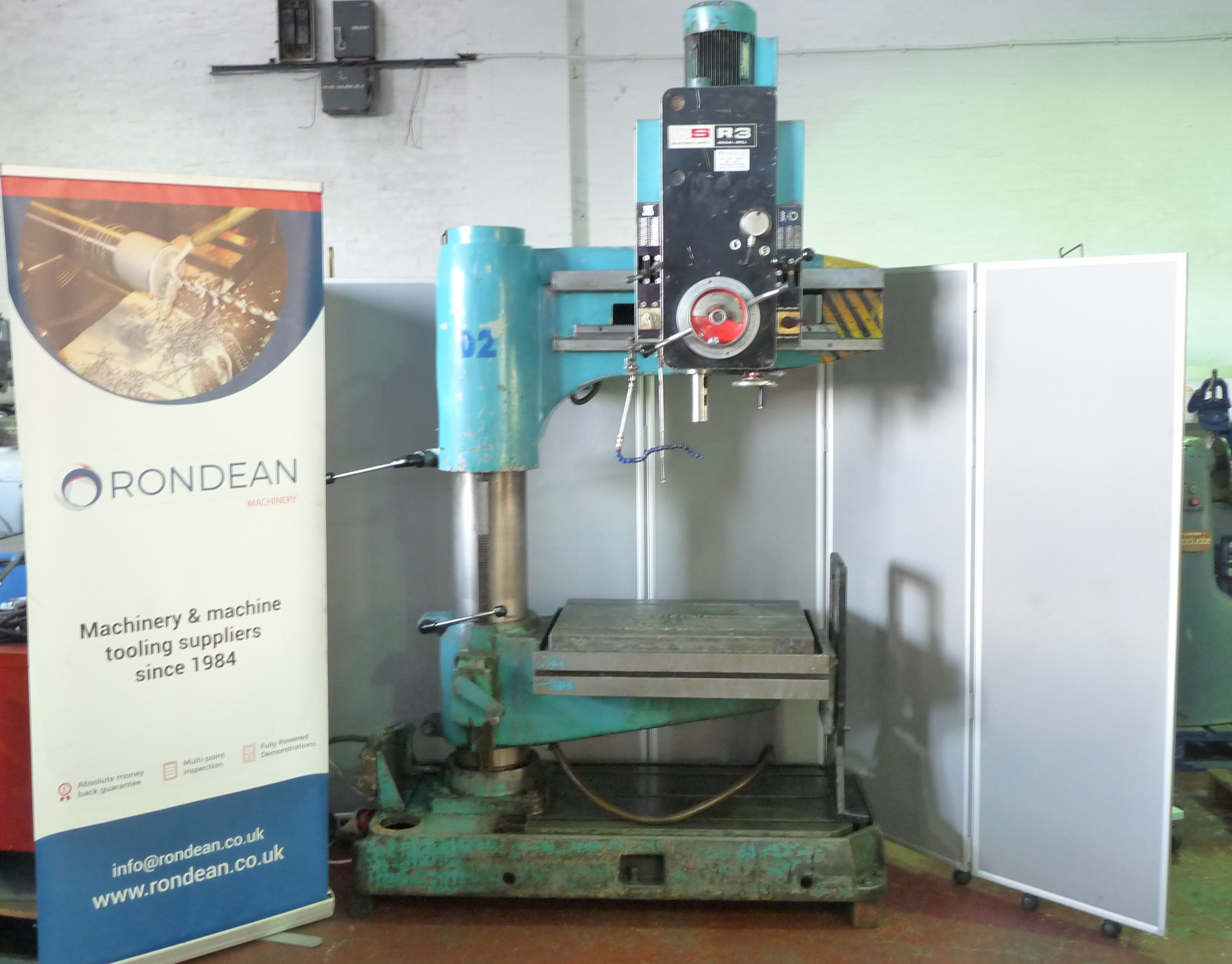

R3 Radial Arm Drill
Capacity
4 MT Spindle
33” (840mm) Maximum Spindle centre to column
8 ½” (216mm) Minimum Spindle centre to column
46” (1170mm) Length of arm (centre of column to end of arm)
10” (254mm) Travel of Spindle
28” (711mm) Maximum Spindle to table
5 ½” (140mm) Minimum Spindle to table
29 ½” x 21” (749 x 533mm) Table
12 ½” (318mm) Vertical table movement
45” (1144mm) Maximum Spindle to baseplate
35” (889mm) Minimum Spindle to baseplate
38 ¼” x 26” (970 x 660mm) Baseplate
Feeds
9: .003 -.036 in/rev (.076-.914 mm/rev
Speeds
12: 60-1750 rpm
Safety
Brake & telescopic trip
Main Motor
3HP (2.2 kW)
Power
Three Phase Electric's
Dimensions
1550 x 660 x 2590mmm high 1850kg
GIANA
07381
Height of center mm 510
Diameter on the carriage mm 700
Piece lenght mm 4500
Tool lenght mm 6000
Capacita' foratura dal pieno a distruggere 20:250
Capacita' foratura dal pieno a carotare 50:350
Spindle speed rpm 55-1004
Machine lenght mm ...
