MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRUMPF
  • Model:

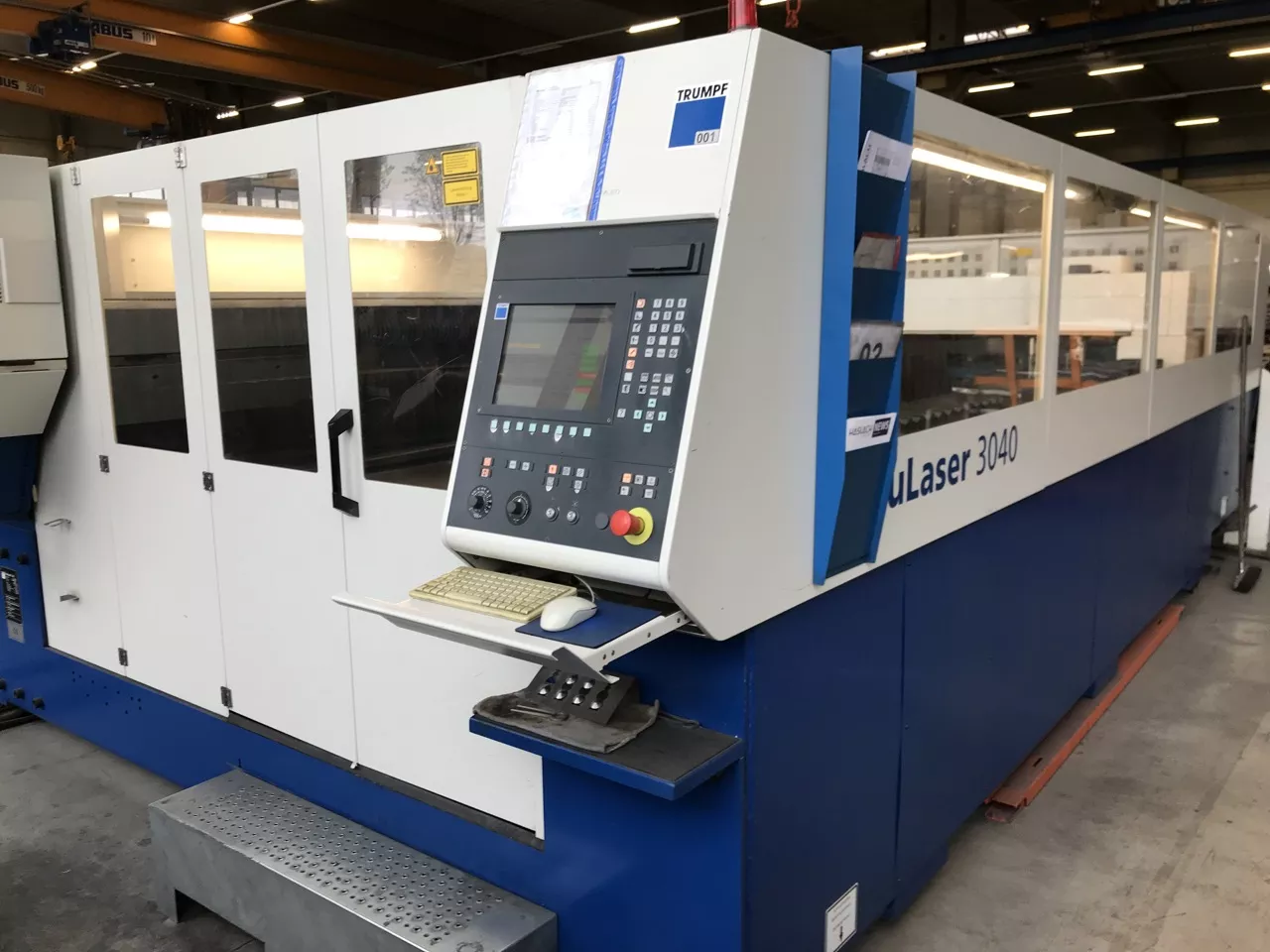

  • Trumpf - TruLaser 3040
  • Condition:
  • Used
  • YOM:
  • 2007
  • Control:
  •  Siemens Sinumerik 840 D
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Working hours laser on: 50921 h
  • Working hours beam on: 21717 h
  • Laser power: 3200 Watt
  • Working range laser: 4000 x 2000 x 115 mm
  • Max. steel: 20 mm
  • Max. stainless steel: 12 mm
  • Max. aluminium: 8 mm
  • Length: 11600 mm
  • Width: 5300 mm
  • Height: 2200 mm
  • Machine weight: 16000 kg
  • Electrical connected load: 73 kVA
  • Standard configuration:
  • Closed machine frame with integrated laser unit
  •  Maintenance-free three-phase AC servo motors
  •  Automatic pallet changer
  • Conveyor belt for small parts / slug
  •  Work area lighting
  •  Positioning laser diode
  •  Oil spray device
  •  AutoLas Plus
  •  Hi-Las
  • PMS TRUMPF Laser
  •  CO2 laser TLF 3200
  •  Cooling unit
  •  Radio-frequency
  •  Radio-frequency excitation
  •  Programmable cutting gas pressure
  •  Laser power control
  •  Logbook function Cutting head
  •  Universal quickchange device for cutting head Control Unit
  •  Siemens Sinumerik 840 D
  •  3,5" floppy drive
  • RJ45 network connection
  • Automatic shut down mechanism
  •  Dignostic function
  •  Maintenance logbook
  •  Technology data Safety
  • Light barriers
  •  Compact dust extractor
  •  Multi chamber exhaust system
  •  Beam delivery system Programming
  •  Workshop programming ToPs 100 lite
.
