MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRUMPF
  • Model:
  • Trumpf - TruLaser 5030 Classic
  • Condition:
  • Used
  • YOM:
  • 2008
  • Control:
  • Siemens 840 D
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

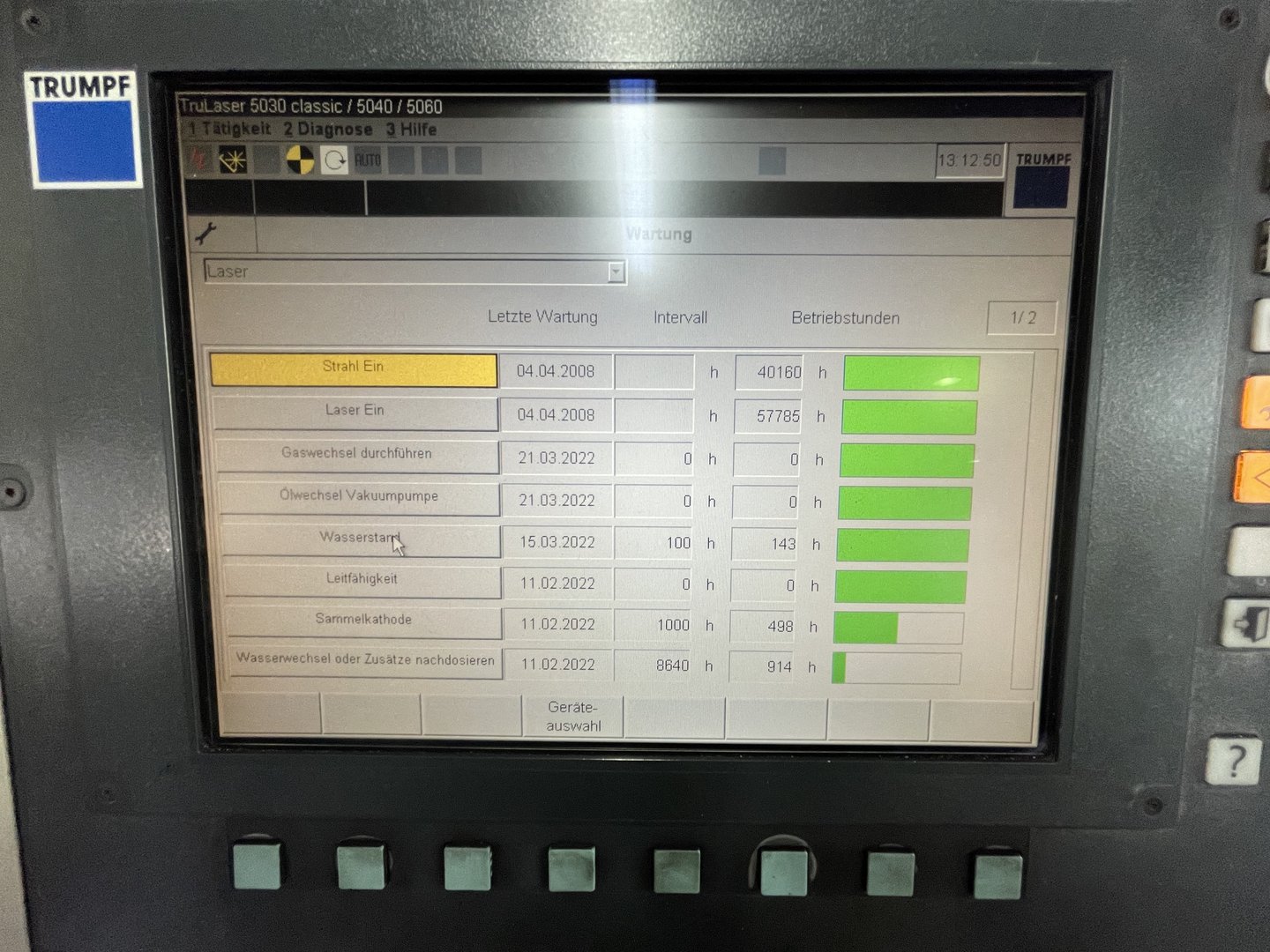

  • Working hours laser on: 57785 (23.03.2022) h
  • Working hours beam on: 40160 (23.03.2022) h
  • Laser power: 5000 Watt
  • Control: Siemens 840 D
  • Working range laser: 3000 x 1500 x 115 mm
  • Max. steel: 25 mm
  • Max. stainless steel: 20 mm
  • Max. aluminium: 12 mm
  • Length: 11100 mm
  • Width: 4600 mm
  • Height: 2400 mm
  • Machine weight: 12000 kg
  • Electrical connected load: 105 kVA
  • Standard configuration:
  • Closed machine frame with integrated laser unit
  •  Gantry drive in combination with direct linear drives
  • Automatic pallet changer
  • Conveyor belt for small parts / slug
  • Work area lighting
  • Positioning laser diode
  • Oil spray device
  •  HI-LAS
  • HI-LAS Plus
  • - AutoLas Plus
  • PMS Plasma sensor
  •  PCS TRUMPF Laser
  •  CO2 laser TLF 5000
  •  Cooling unit - Radio-frequency excitation
  •  Laser power control
  •  Programmable cutting gas pressure
  •  Logbook function laser Cutting head
  •  Universal quickchange device for cutting head Control Unit
  • Control Siemens Sinumerik 840 D
  • Automatic shut down mechanism
  •  DIAS III - ContourLas
  •  SprintLas
  •  RJ45 network connection
  •  Spray device for reliable thick plate machining Safety
  •  Light barriers Programming
  • Workshop programming ToPs 100 lite
.
