MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Gurutzpe
  • Model:
  • GURUTZPE A 1000/3G X 4000
  • Condition:
  • NA
  • YOM:
  • 2004
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

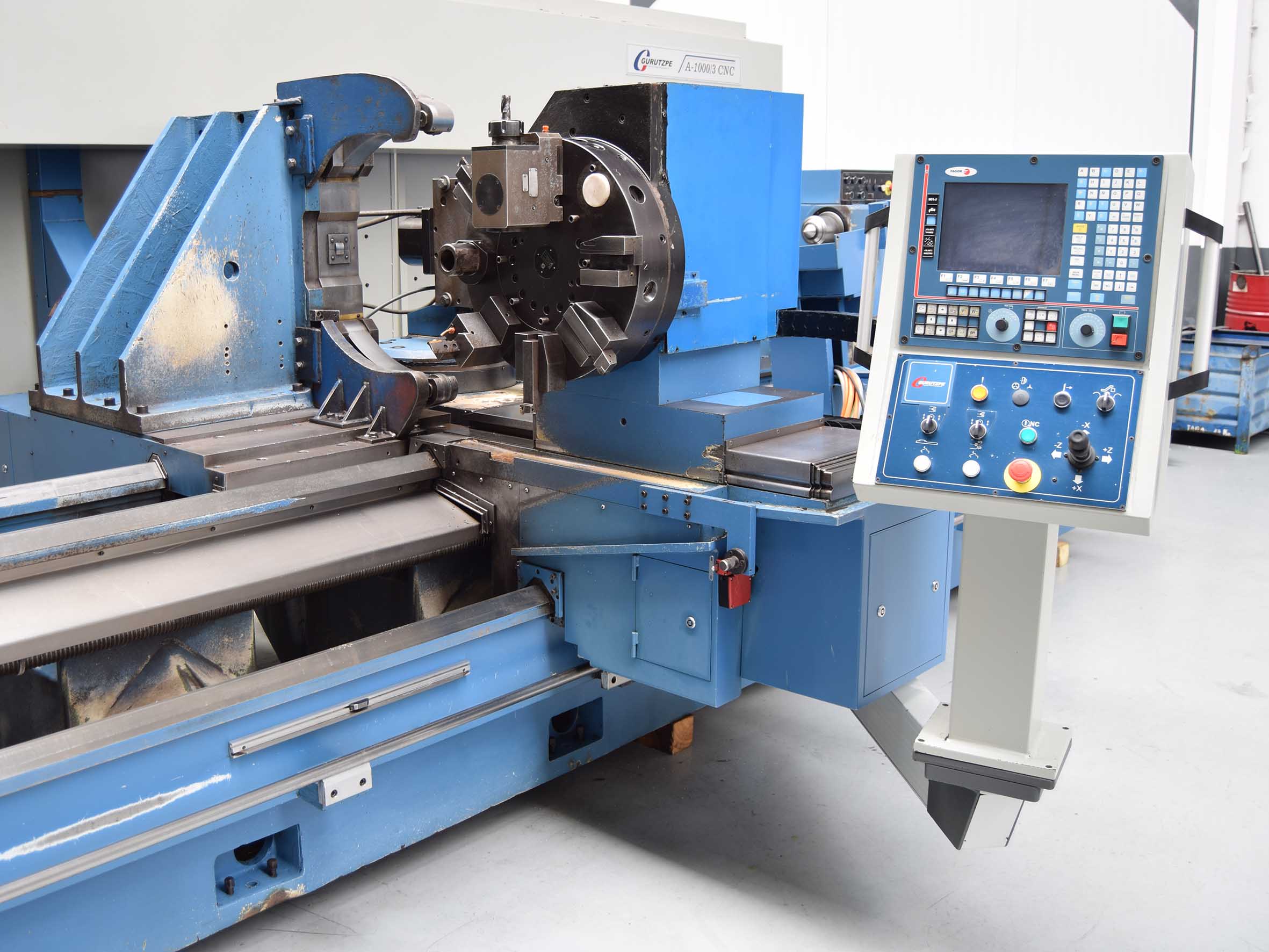

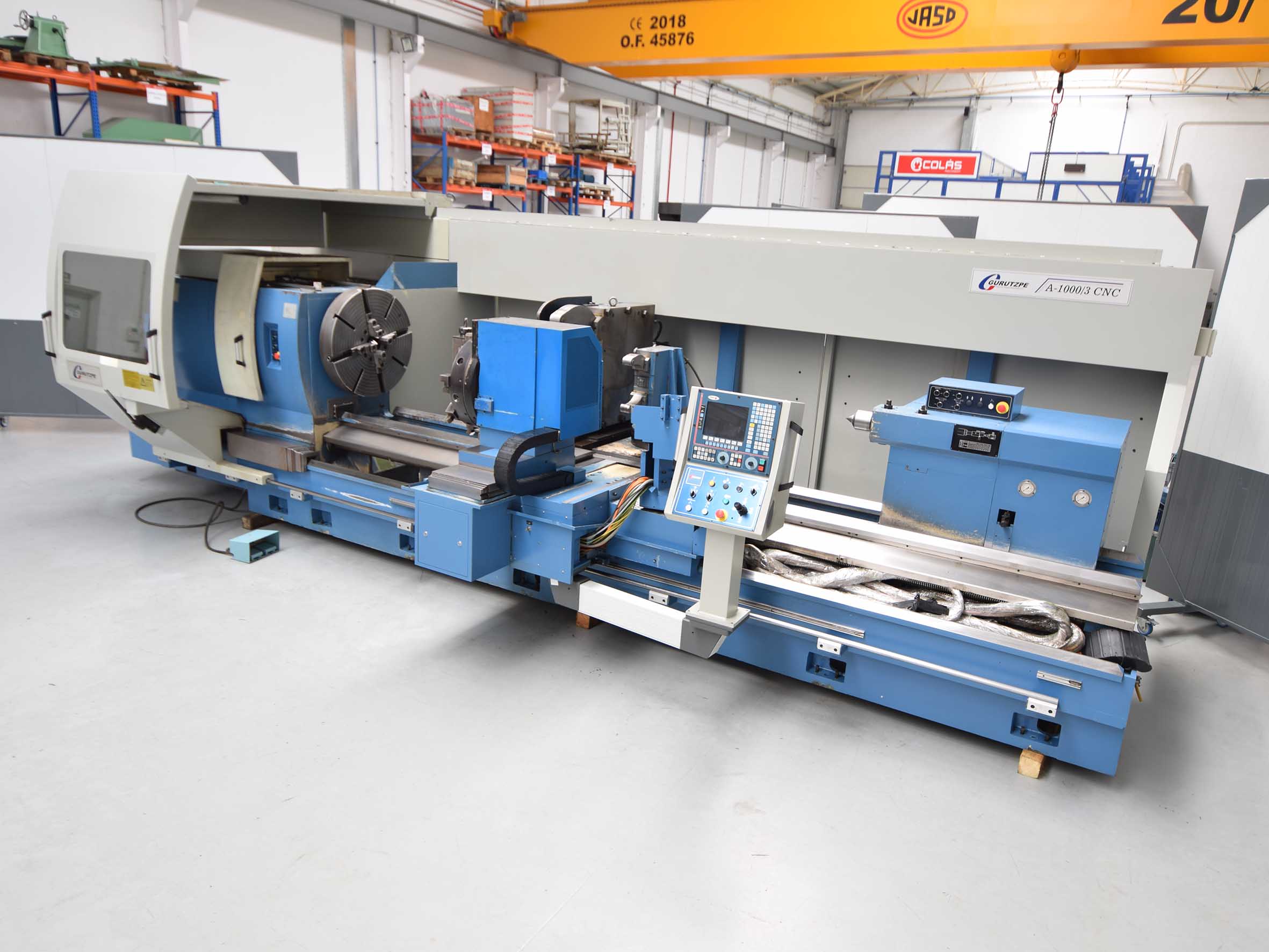

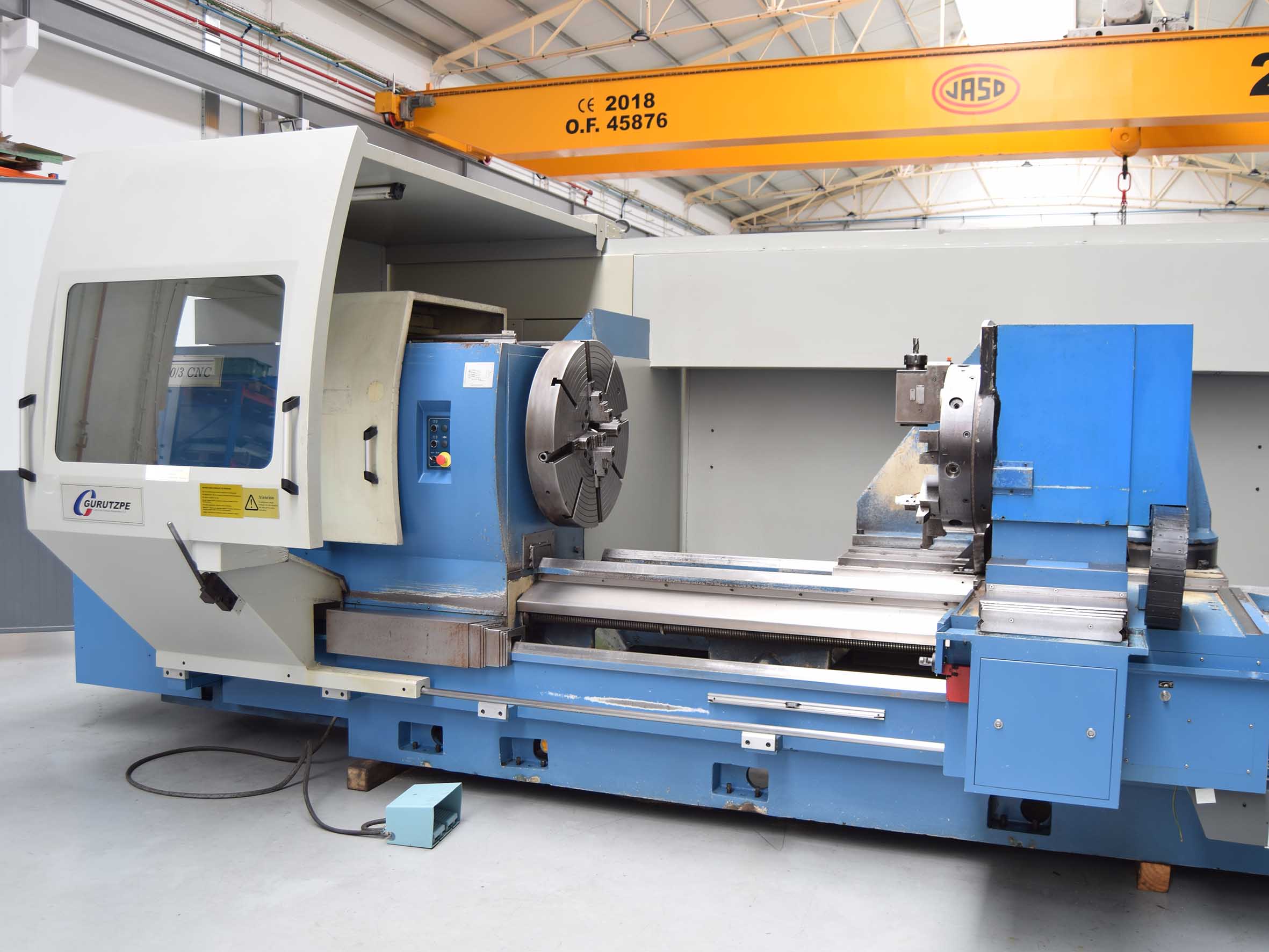

Manufacturer GURUTZPE Model A1000 / 3 CNC Year 2004 CNC FAGOR 8055 TC Distance Between Centres 4.000 mm. Support Guides Number 4 Max. Ø Swing Over Bed 1.000 mm. Rapid Traverse X Axis 10 m/min Rapid Traverse Z Axis 10 m/min Turning Speeds 20-1.000 rpm Head Automatic Range Number 2 Main Engine Power 39/48 kW Quill Spindle 105 mm. Driven tailstock (CNC Managed) INCLUDED Chuck Protection INCLUDED C Axis and Driven Tools INCLUDED Turret SAUTERVDI 50 8 Positions 1 axial driven tool holder INCLUDED 1 radial driven tool holder INCLUDED Complete Rear Protection INCLUDED Steady Rest SHW Autoblock 150/650 INCLUDED U axis longitudinal CNC movement Z axis for steady rest SHW Autoblock 150/650 INCLUDED Steady Rest SHW Autoblock 150/650 INCLUDED V axis longitudinal CNC movement Z axis for steady rest SHW Autoblock 30/295 INCLUDED Automatic Tur 0-180 for steady rest SHW Autoblock 30/295 INCLUDED Chuck with 3 Jaws Ø 500 mm INCLUDED Chuck with 4 Independent Hard Jaws Ø1.00 mm INCLUDED Chip Conveyor INCLUDED Portable Handwheel FAGOR INCLUDED Total power 60 kW Machine Weight 20.000 kg. Machine dimensions 9.775 x 3.100 mm
+ request more information
