MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TACCHI
  • Model:

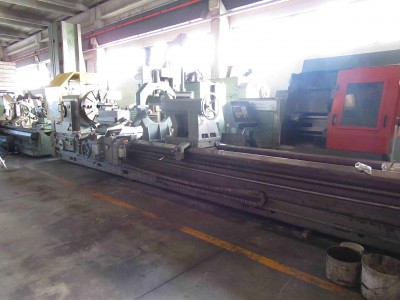

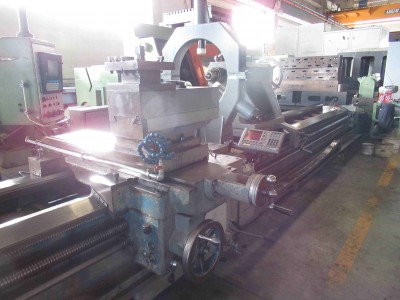

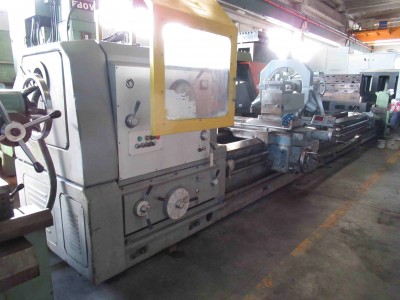

  • TACCHI FTC 71 LATHE - 710 x 6000
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Centres height: 710mm.
Centres distance: 6.000mm.
Max. ? over saddle: 1.060mm.
Max. ? over bed: 1.420mm.
? Spindle: 150mm.
Bed width: 850mm.
Max. weight on centres: 12Tons.
Spindle power: 29,4Kw.
Spindle speeds: N. 24; 5- 485Rpm.
Tailstock nose: 160mm.
Tailstock nose travel: 350mm.
Total Weight: 21Tons.

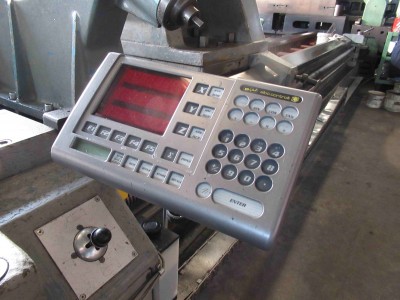

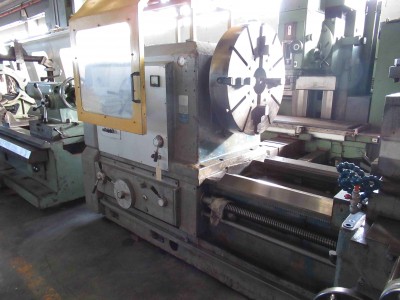

Notes: COMPLETE WITH:- D.R.O.- N. 1 FOUR JAWS TABLE ? 800 MM.- N. 1 CLOSED STEADY REST
