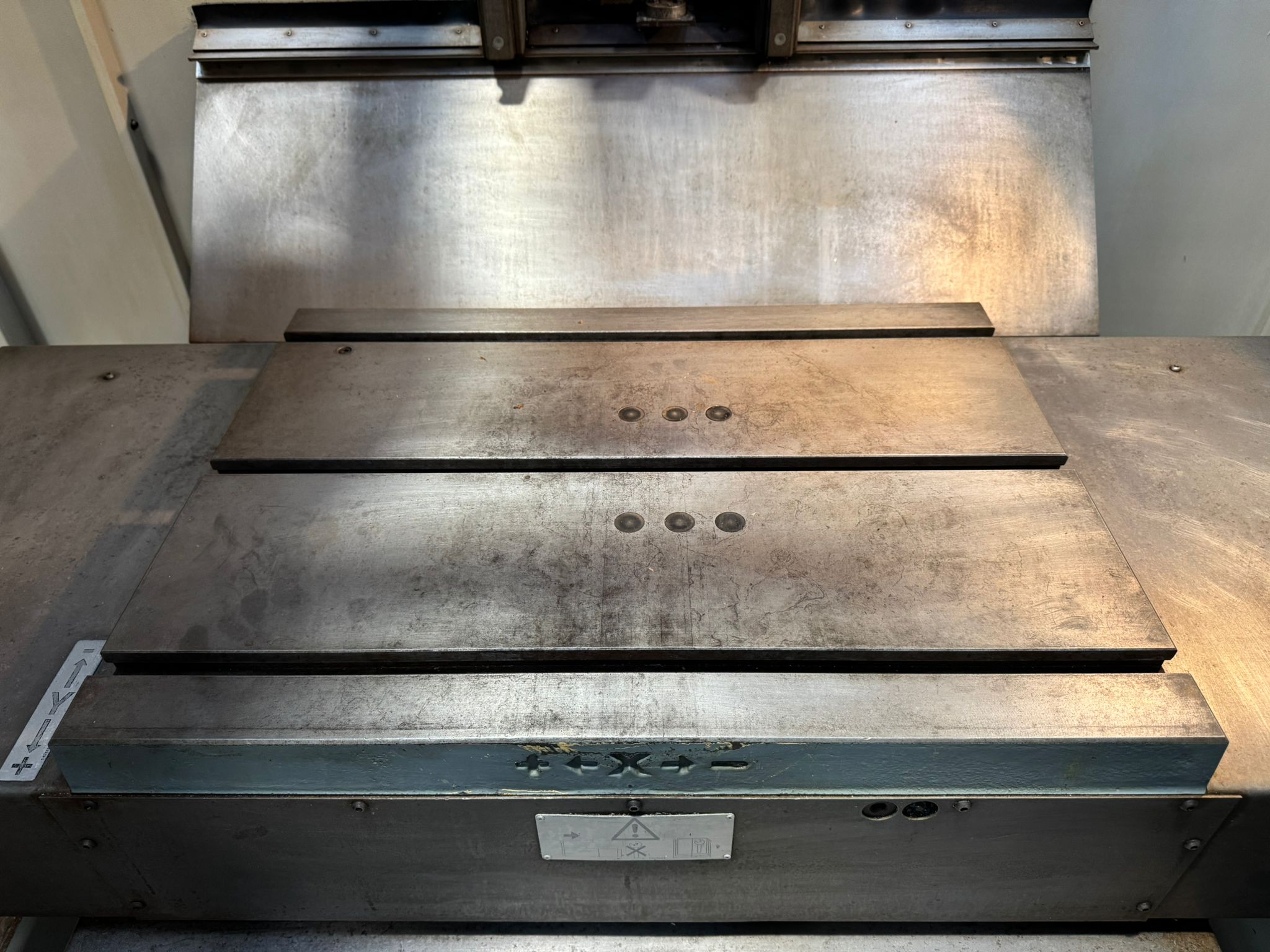

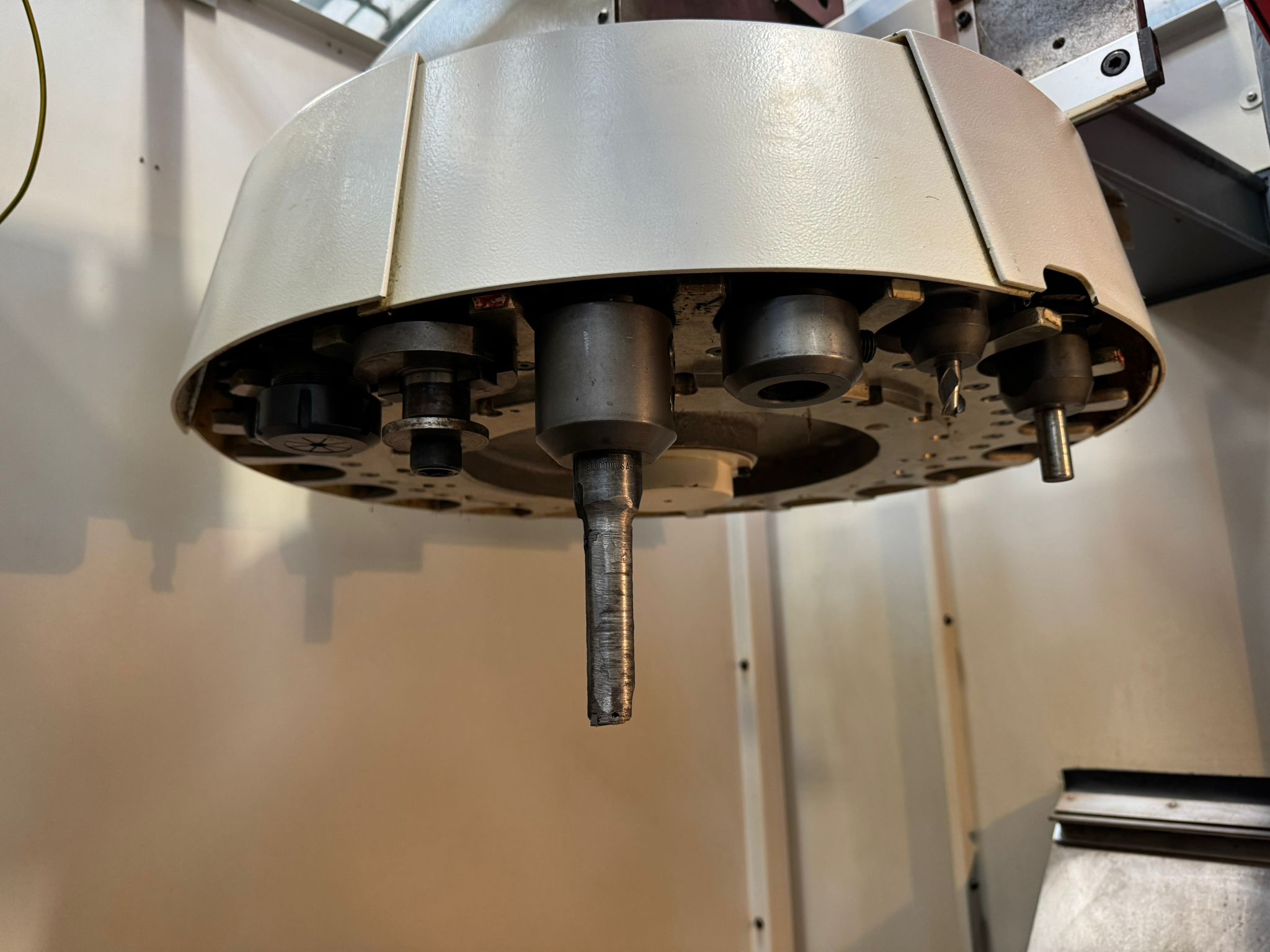

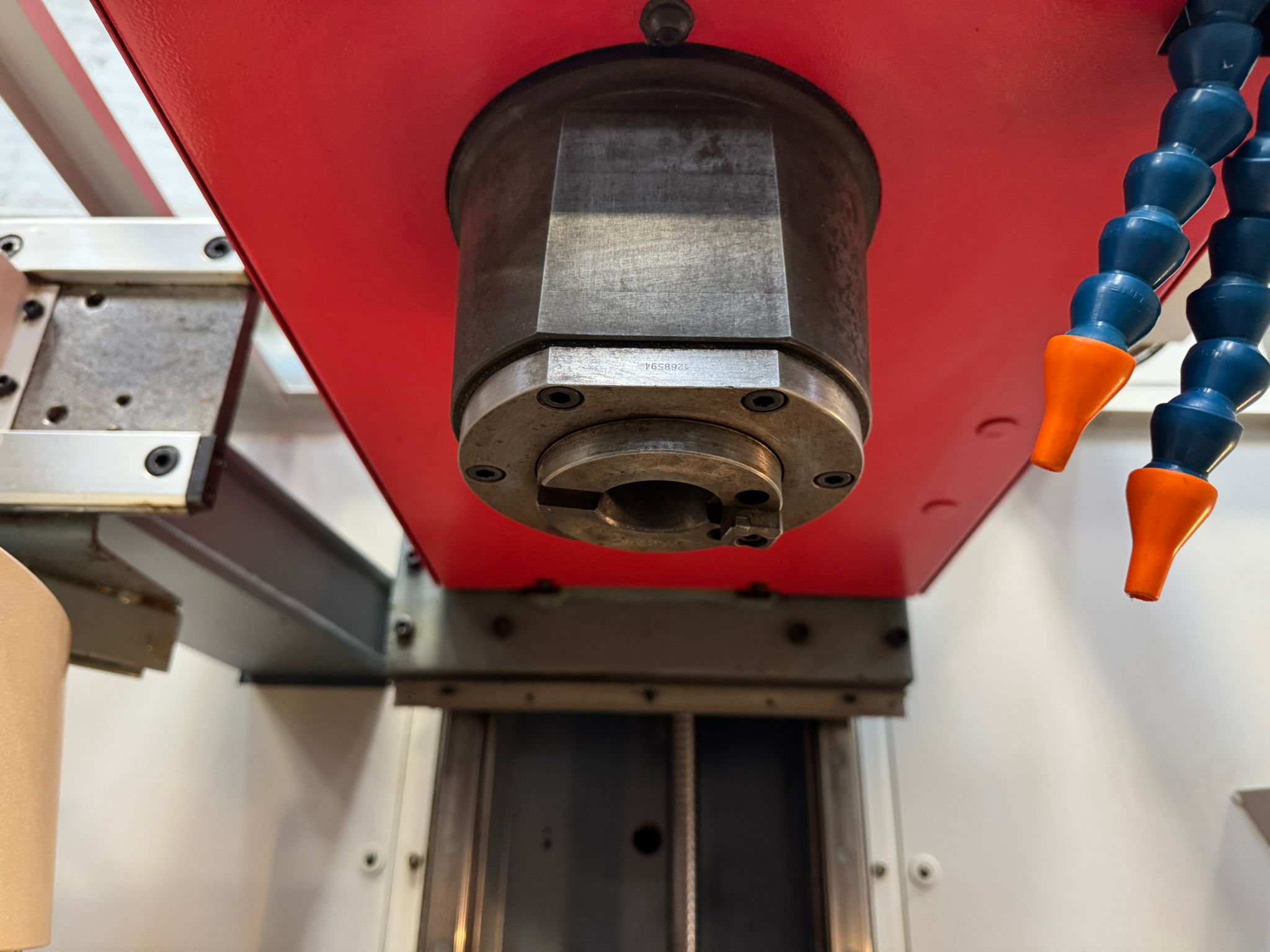

Table size 700mm x 520mm. X/Y/Z travels 510 mm/510mm/510mm. Maximum weight on table 350 kg. 21 station ATC. Spindle taper BT40. Spindle power 5.5 kW. Maximum spindle speed 6000 rpm. Machine dimensions L x W x H 2300mm x 2100mm x 2700mm. Approximate weight 3050 kg.
Arumatik-Mi control, X axis 610mm, Y axis 610mm, Z axis 610mm, 400 x 400mm table size, Ø630mm workpiece diameter, direct drive, 50 tools (up to 200 opt).
ANNO: 2001
C.N. FANUC
Tavola: 3450 x 600 mm
Corse:
Asse X 3000 mm rapido 24 m/min
Asse Y 600 mm rapido 24 m/min
Asse Z 500 mm rapido 24 m/min
Avanzamenti lavoro:
Asse X 10 m/min
Asse Y 10 m/min
Asse Z 10 m/min
Mandrino: ISO 40
Velocità 40-8000 giri/...
