MACHINE INFORMATION AND SPECIFICATION

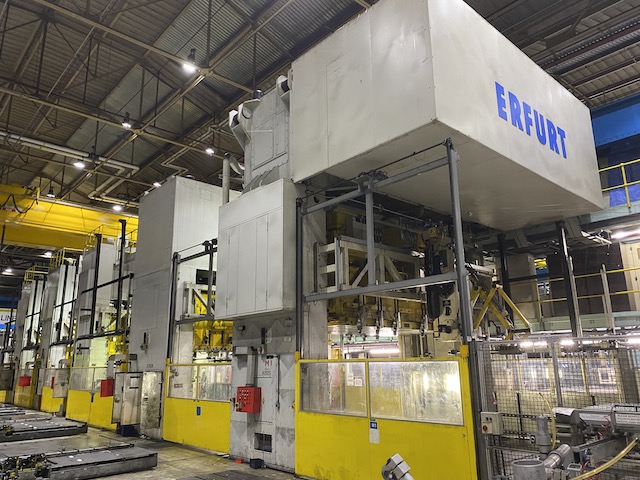

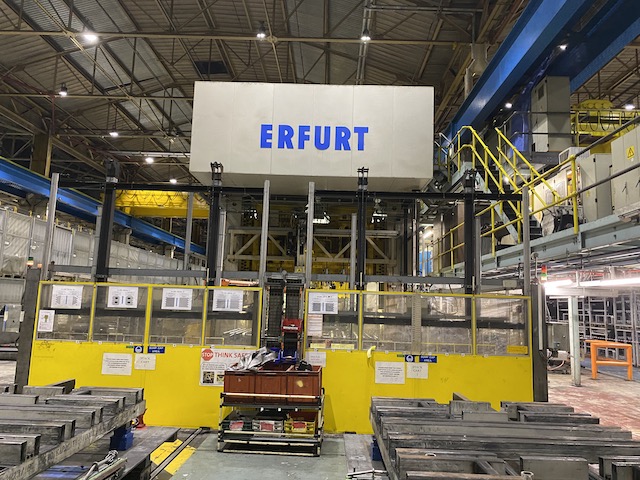

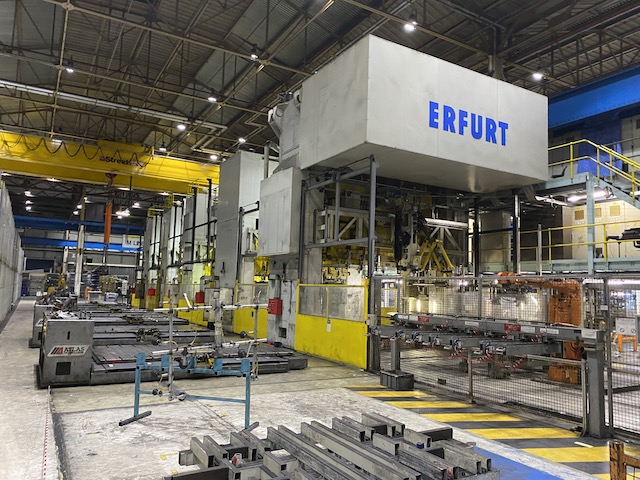

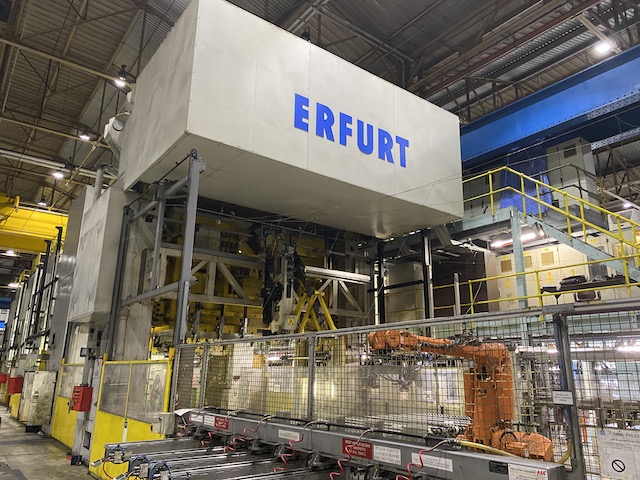

  • Manufacturer:
  • Erfurt
  • Model:
  • ERFURT EMP 2000
  • Condition:
  • Used
  • YOM:
  • 2001
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Pressure total: 2000 ton
  • Ram stroke: 1000 mm
  • Slide adjustment: 150 mm
  • Shut height (stroke down, adjustment up): 1500 mm
  • Free frontal opening L-R: 4600 mm
  • Table surface area : 4500 x 2400 mm
  • Slide area: 4500 x 2400 mm
  • Die cushion capacity in table: 160 - 400 ton
  • Die cushion stroke: 0 - 300 mm
  • Die cushion pad area: 3600 x 1700 mm
  • Number of strokes: 6 - 18 s.p.m.
  • Die weight at the ram max.: 25000 kg
  • Table height over floor: 385 mm
  • Height over floor approx.: 9600 mm
  • Weight of machine approx.: 470 ton
.
