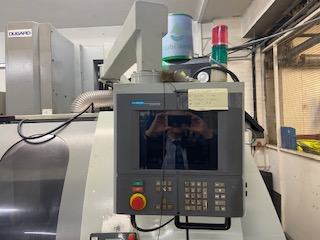

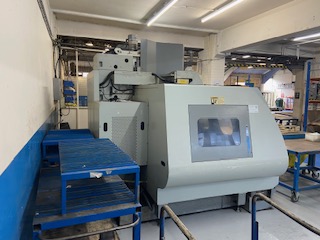

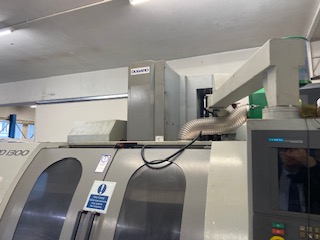

Milling/DUGARD EAGLE DE1300 A1200 3 AXIS MILLING MACHINE WITH SIEMENS CONTROL

REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Cutting

Subcategory:
Milling

Manufacturer:
Dugard

Model:
DUGARD EAGLE DE1300 A1200 3 AXIS MILLING MACHINE WITH SIEMENS CONTROL

Condition:
New

YOM:
NA

Control:
NA

Price:
POA

Seller:
Wessex Lift Co. Ltd.

Country:
N/A

DESCRIPTION

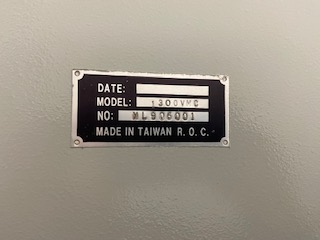

Serial ML906001 circa 2003 Fitted with Lubrimist LV CNC filtration. X Axis Travel -1300mm Y Axis Travel- 635mm Z Axis Travel -635mm Max. Feed Rate- 7.5m/min. X/Y/Z Rapid Traverse -30/30/18m/min Speed Range 80 – 8,000rpm Spindle Power -11kW Spindle Taper- BT40 Bi-Directional Auto Toolchanger -20 Station Machine Weight- 7500Kg

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

Wessex Lift Co. Ltd.

Contact Name
James Pilkington
