MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Correa
  • Model:

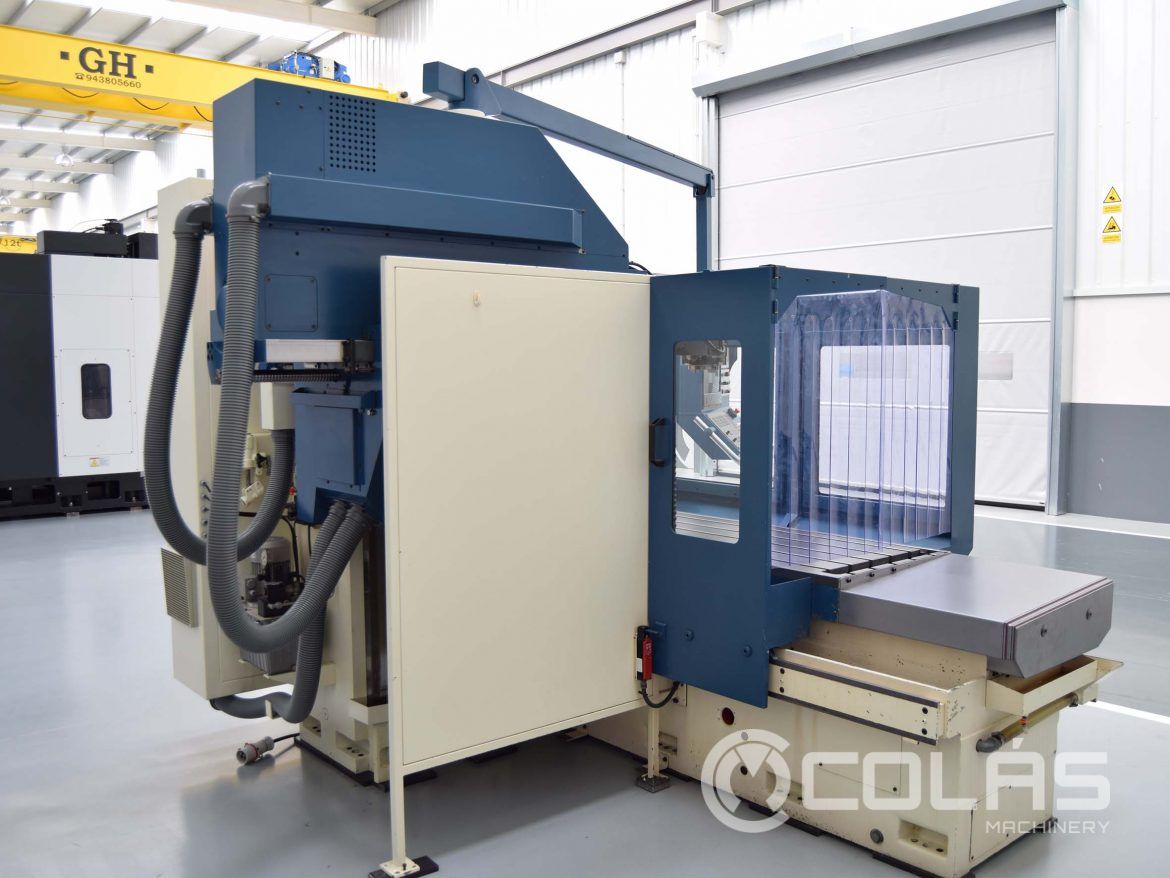

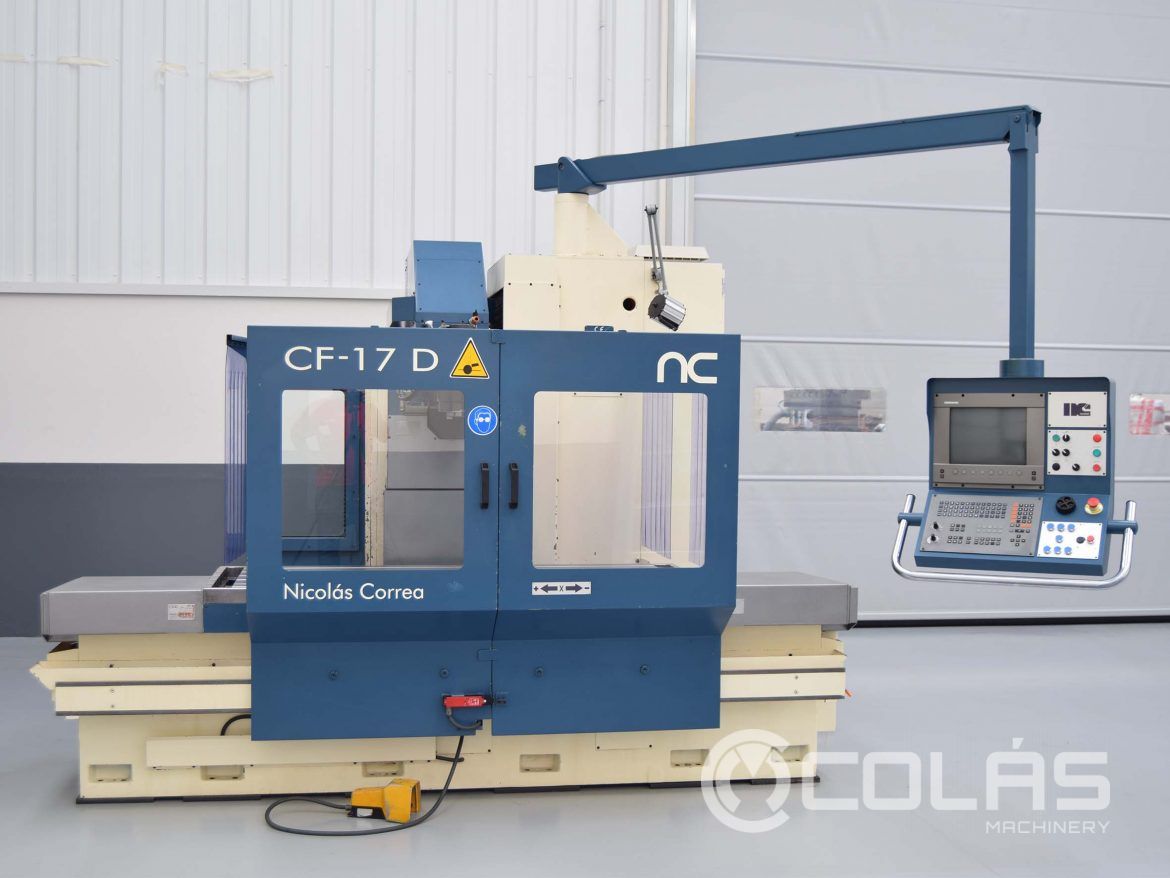

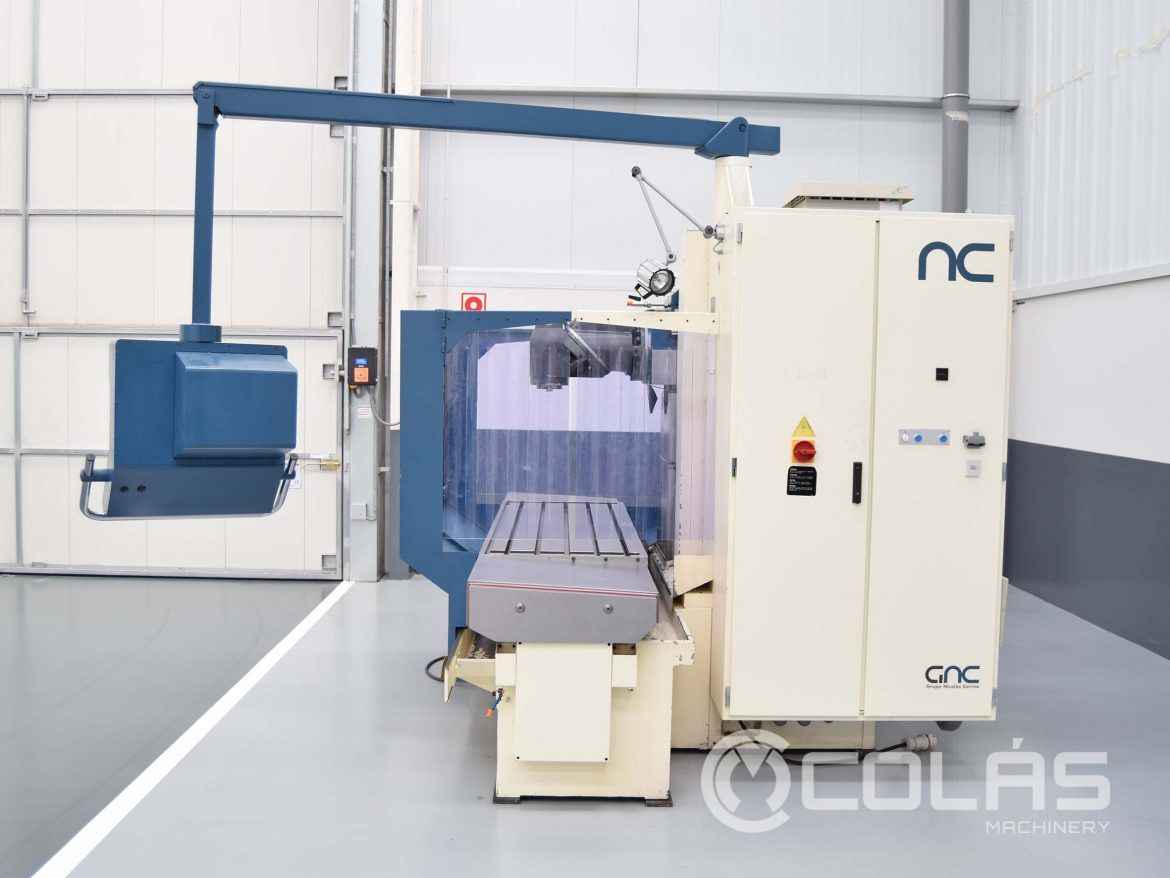

  • CORREA CF 17D BED TYPE MILLING MACHINE
  • Condition:
  • NA
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Table Surface 2000 X 700 mm. Longitudinal Traverse (X Axis) 2000 mm. Transversal Traverse (Y Axis) 800 mm. Vertical Traverse (Z Axis) 800 mm. Rapid Traverse 12.000 mm/min Taper ISO 50 Turning Speeds 20 – 3000 rpm Head Power 17 Kw Carrying Load Table 3.500 kg. Machine Weight 9.000 kg. Hydraulic Clamping Tool INCLUDED Control HEIDENHAIN TNC-426 Machine Condition SEMI – NEW Manufacturing Year 2003
