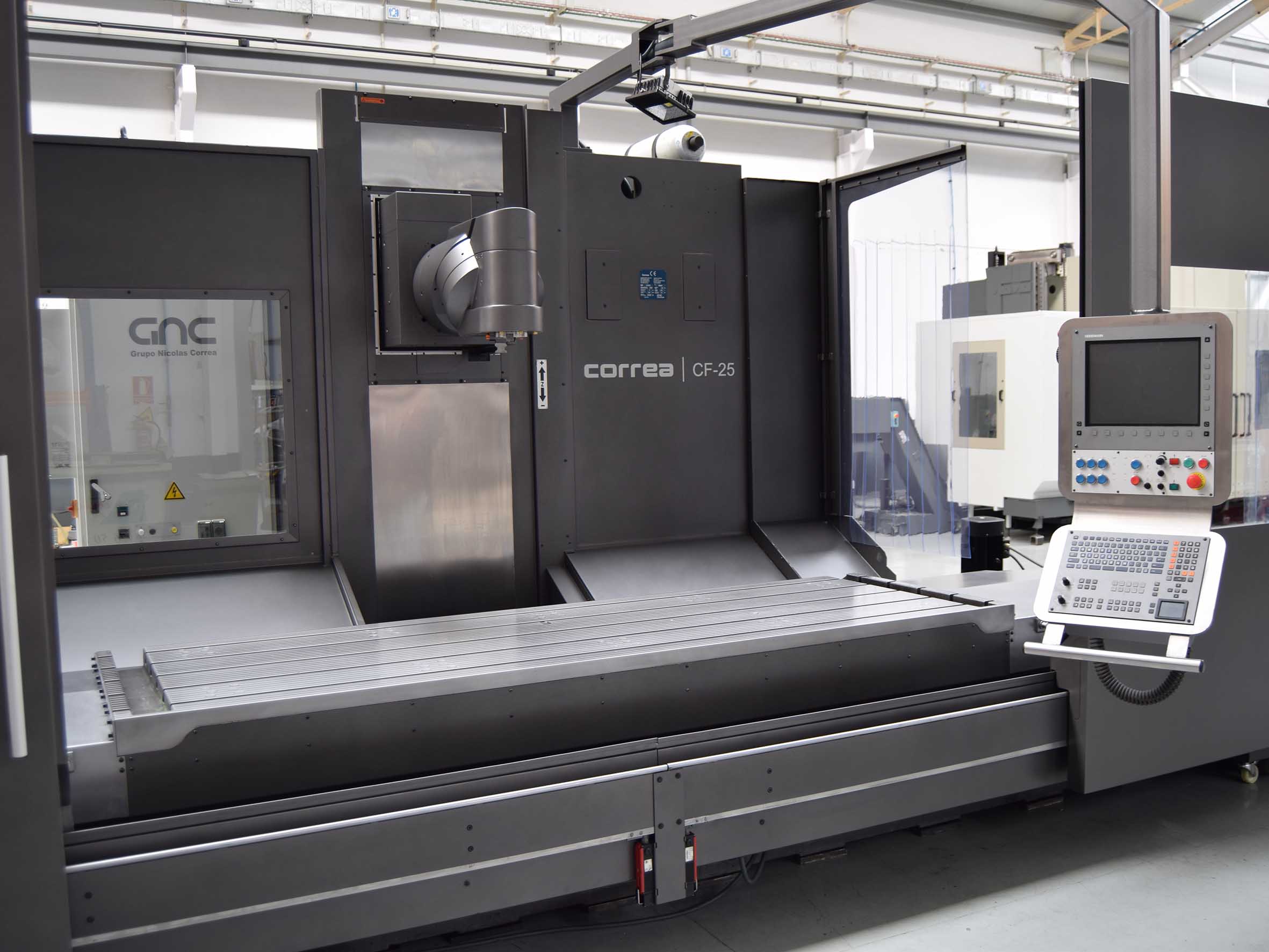

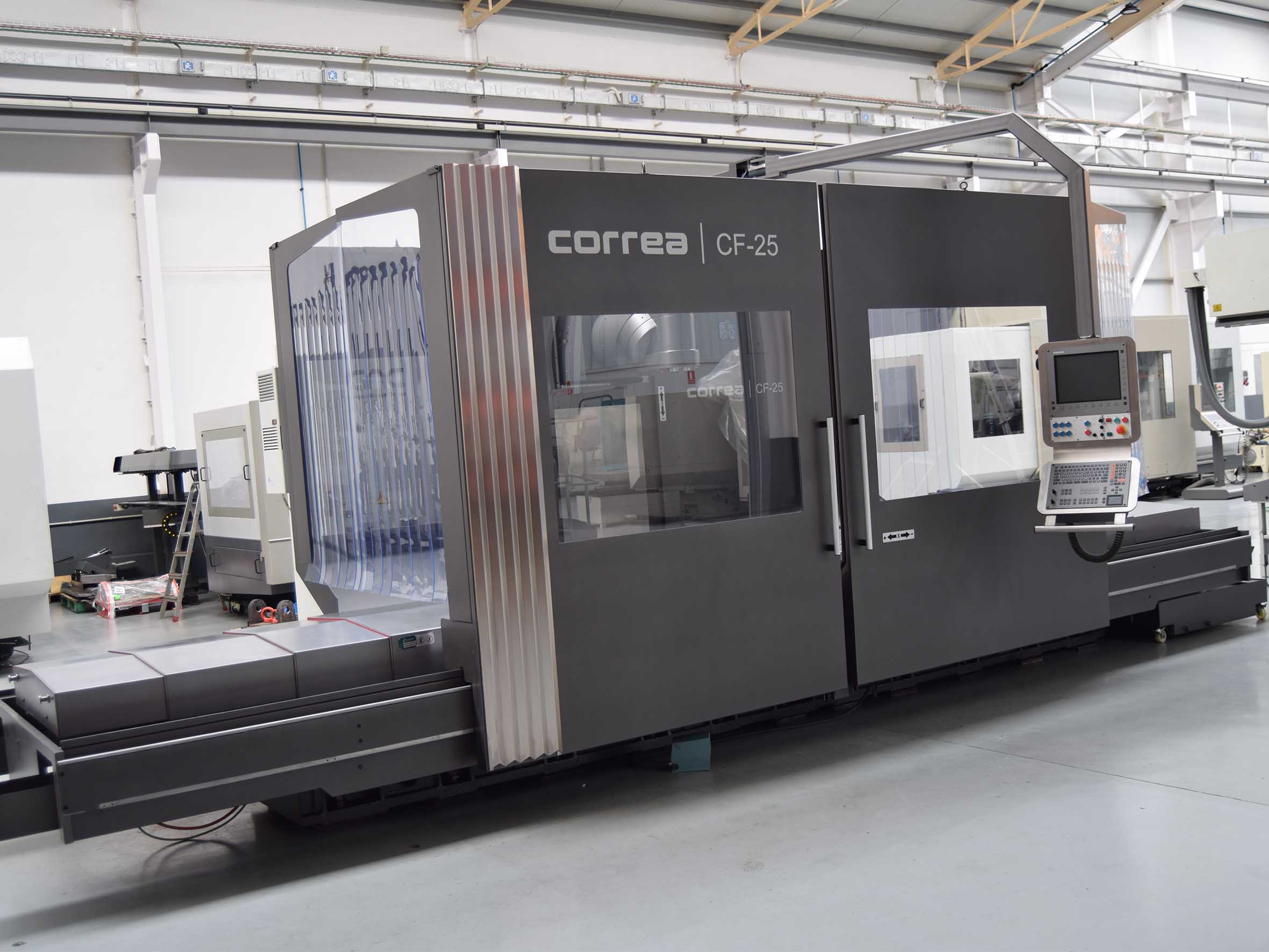

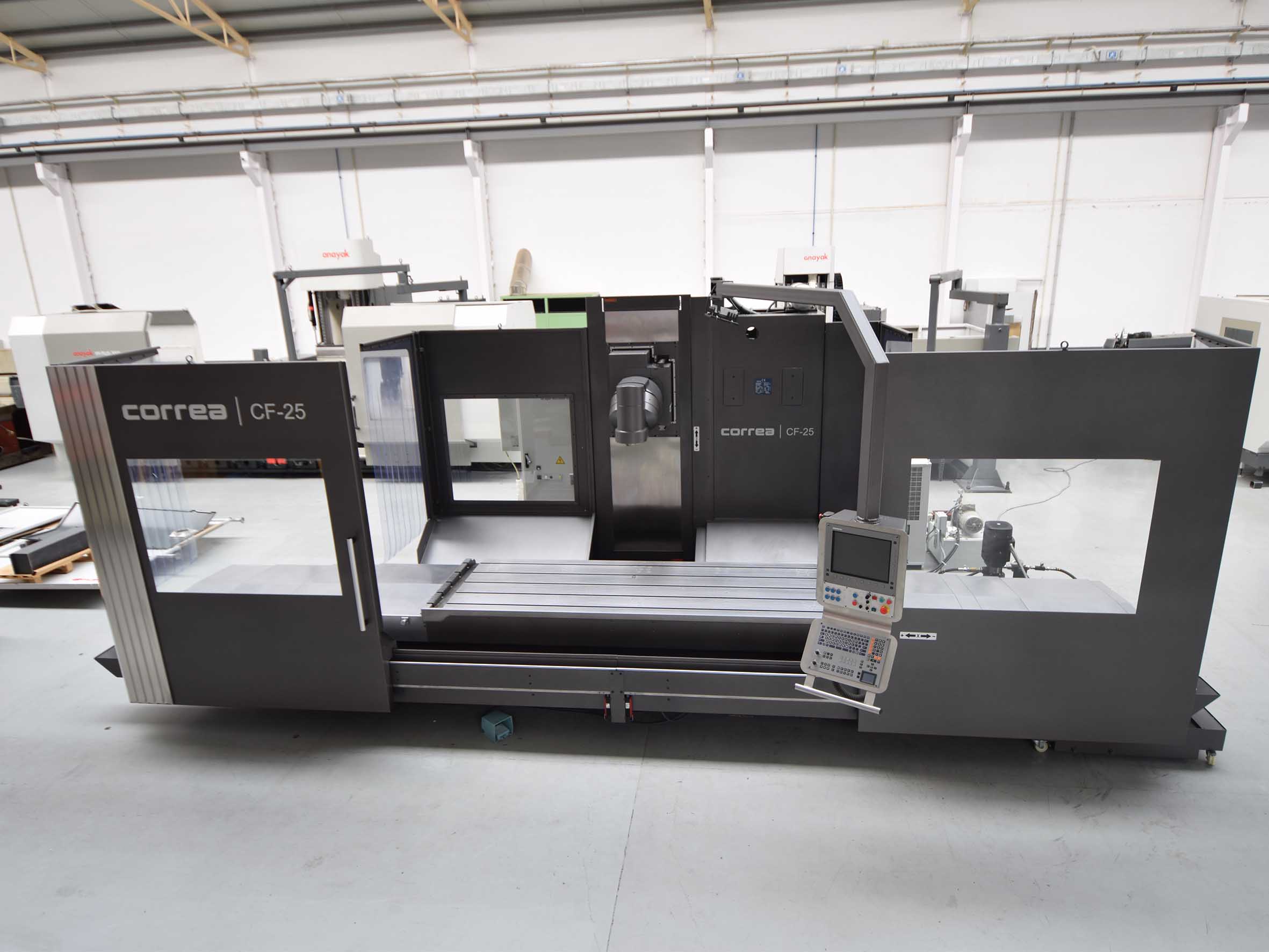

Manufacturer NICOLÁS CORREA
Model CF 25/25
Year 2008
CNC HEIDENHAIN TNC 530 HSCI
Table
Table Surface 3.100 x 1.100 mm
Number /Dimmession of T-Slots 5/200 mm.
Carrying Load Table 6.000 Kg
Travels
Longitudinal Traverse (X Axis) 2.499 mm
Cross Traverse (Y Axis) 1.000 mm
Vertical Traverse (Z Axis) 1.000 mm
Rapid feed 20.000 mm
Working feed 10.000 mm
Head
Head Type UAD
Indexing degrees 0.1º/0.1º
Taper ISO 50
Main Motor Power 22 kW
Spindle Speed 6.000 rpm
Equipment
Coolant through Spindle INCLUDED
Portable Handwheel HEIDENHAIN HR-410
EC Guarding INCLUDED
Weight and dimensions
Machine dimensions ( LxWxH) 7.750×4.400×3.100 mm.
Machine Weight 20.000 kg
Variable Spindle Speed.
Head Swivels, and Tilts Left-to-Right, Enabling Extremely Versatile Operations.
Runs on Single-Phase Power.
Features Hardened and Precision Ground Lead screws, Dovetail Ways.
