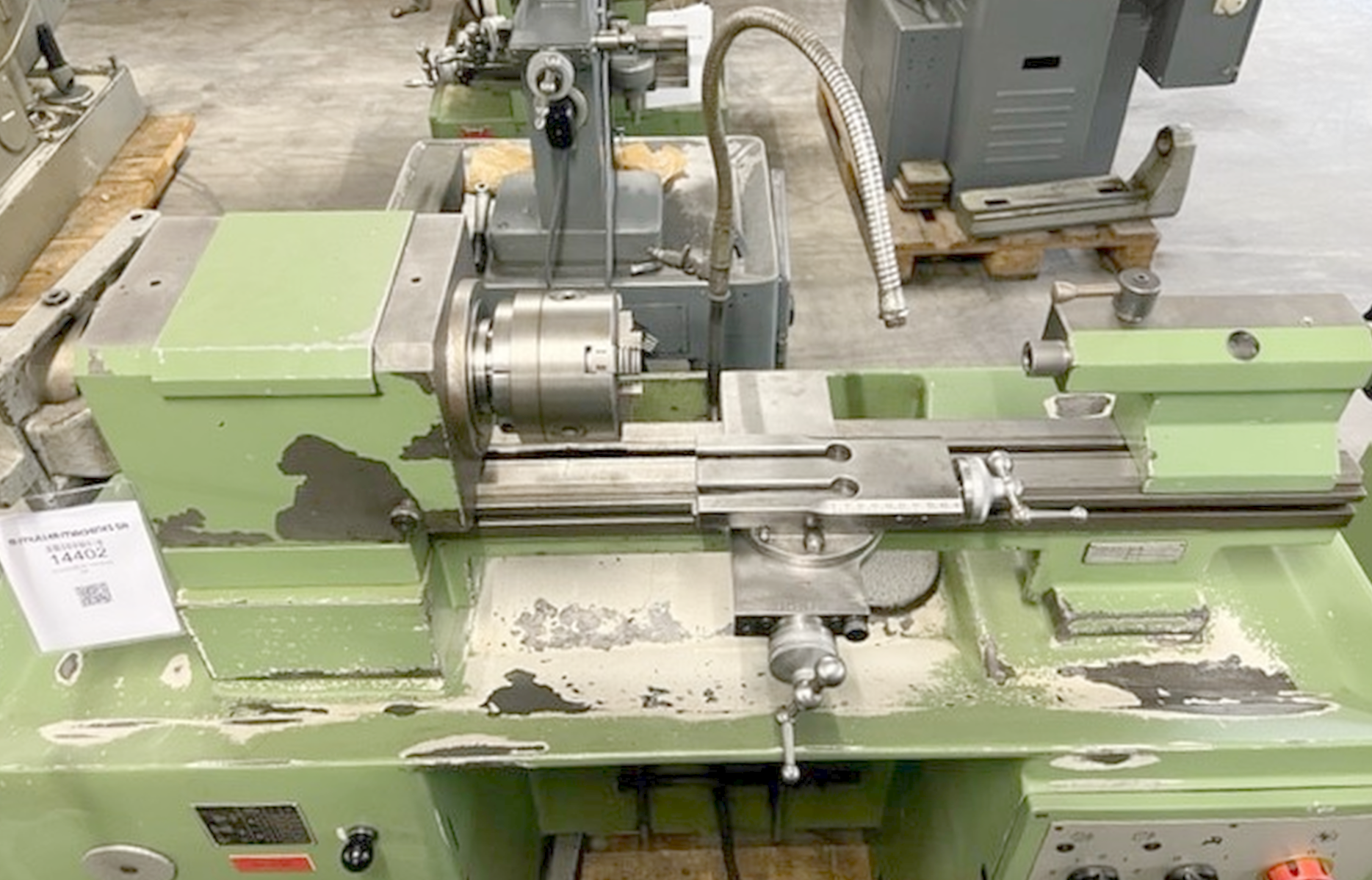

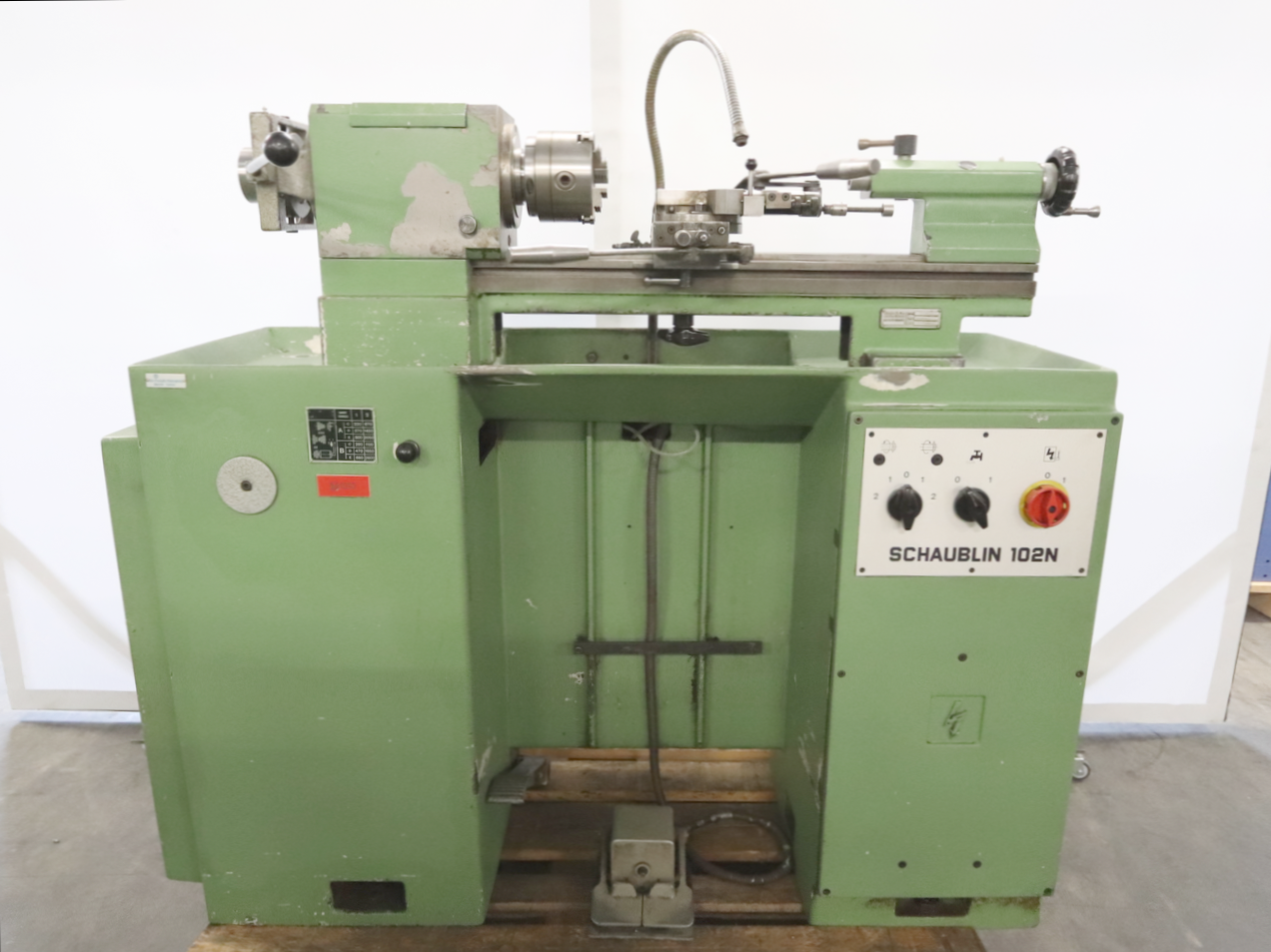

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 014402 - SCHAUBLIN 102 N-80
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 375 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.

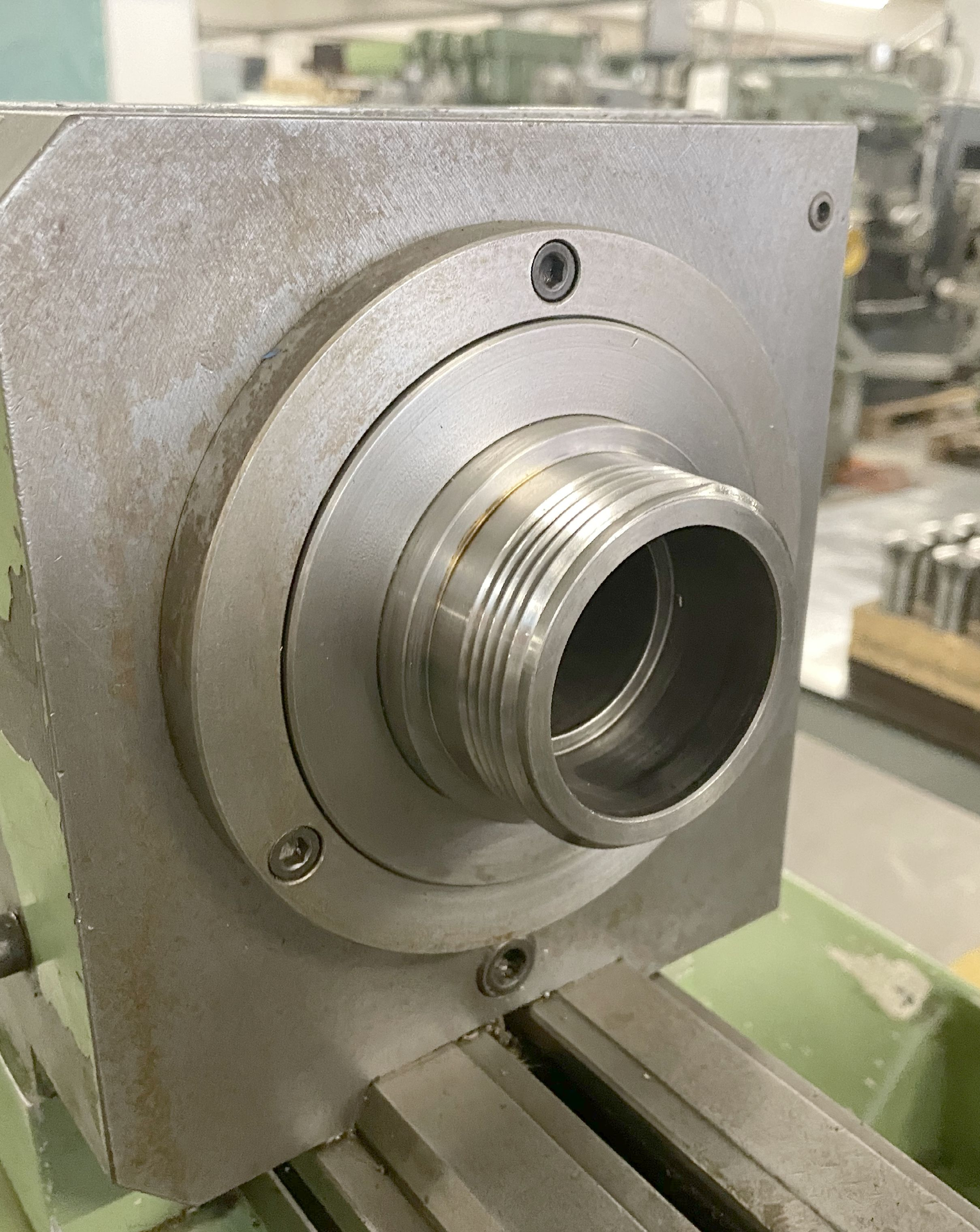

Spindle hole: 45 mm.
Inner taper type: 38 F.
from: 90 t/min.
up to: 2600 t/min.

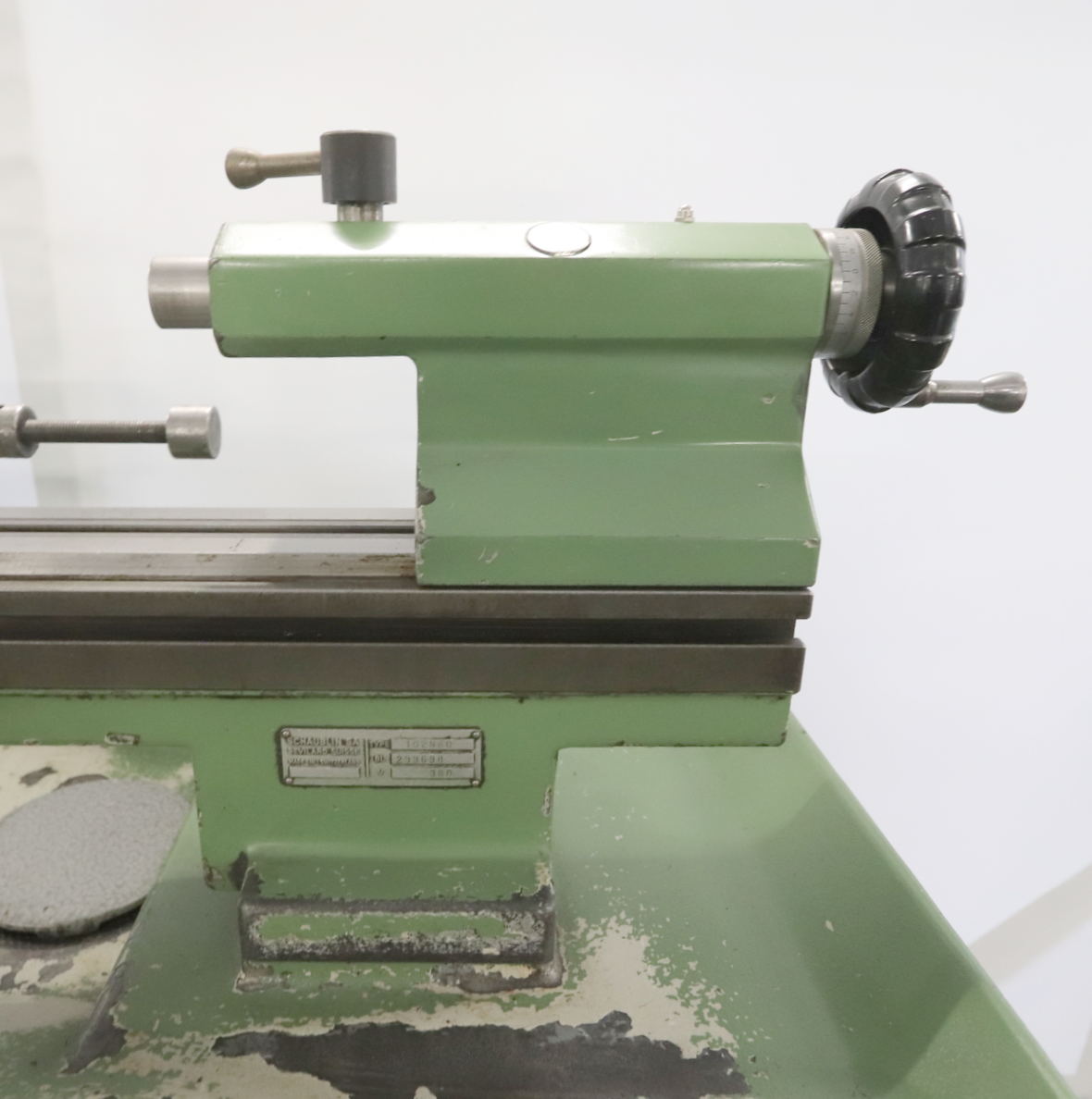

Taper in tailstock:: 2 CM.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.5 CV.
Machine's weight about: 550 kg.
Length: 1200 mm.
Width: 600 mm.
Height: 1400 mm.
3-jaw chuck diameter: 100 mm.
