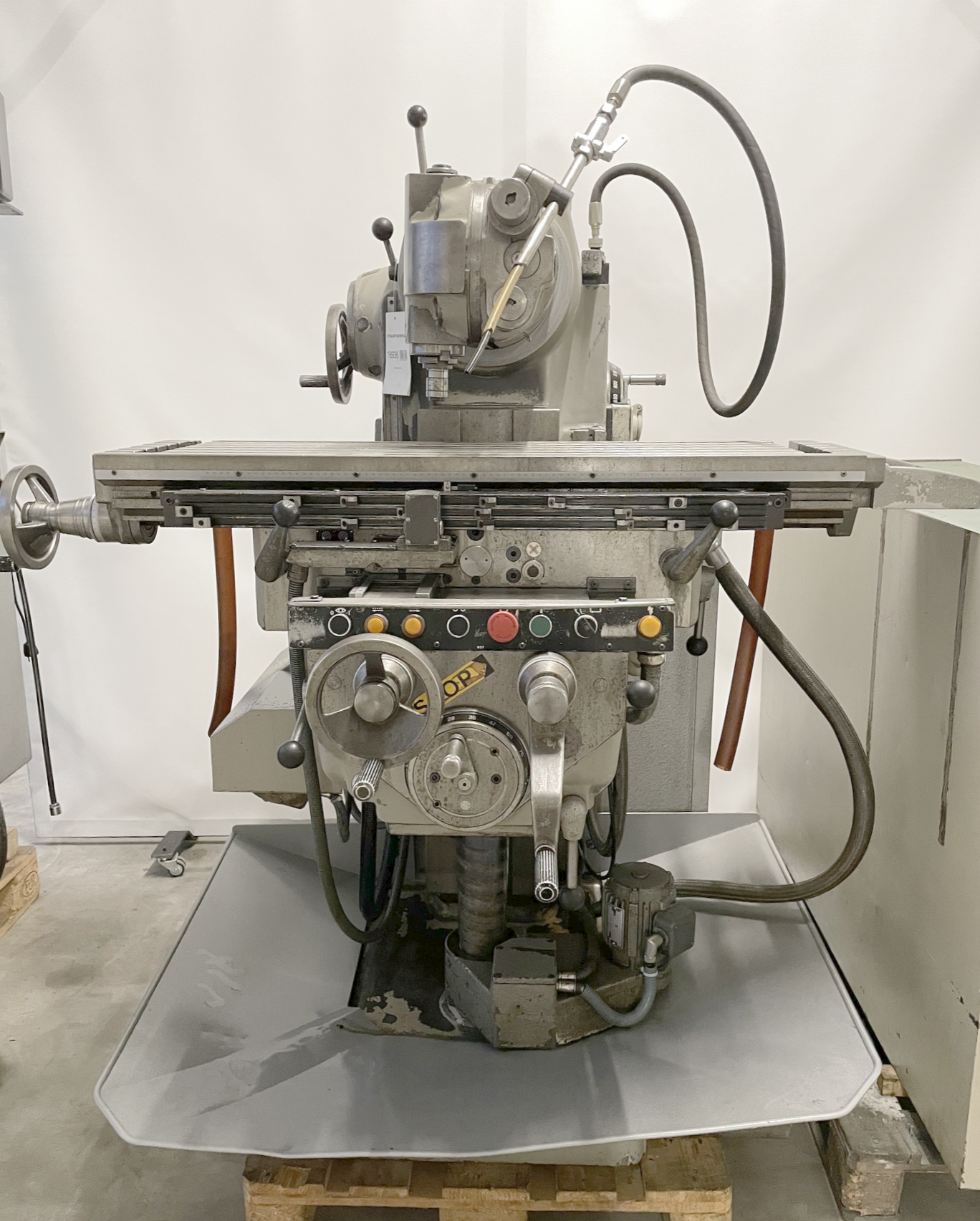

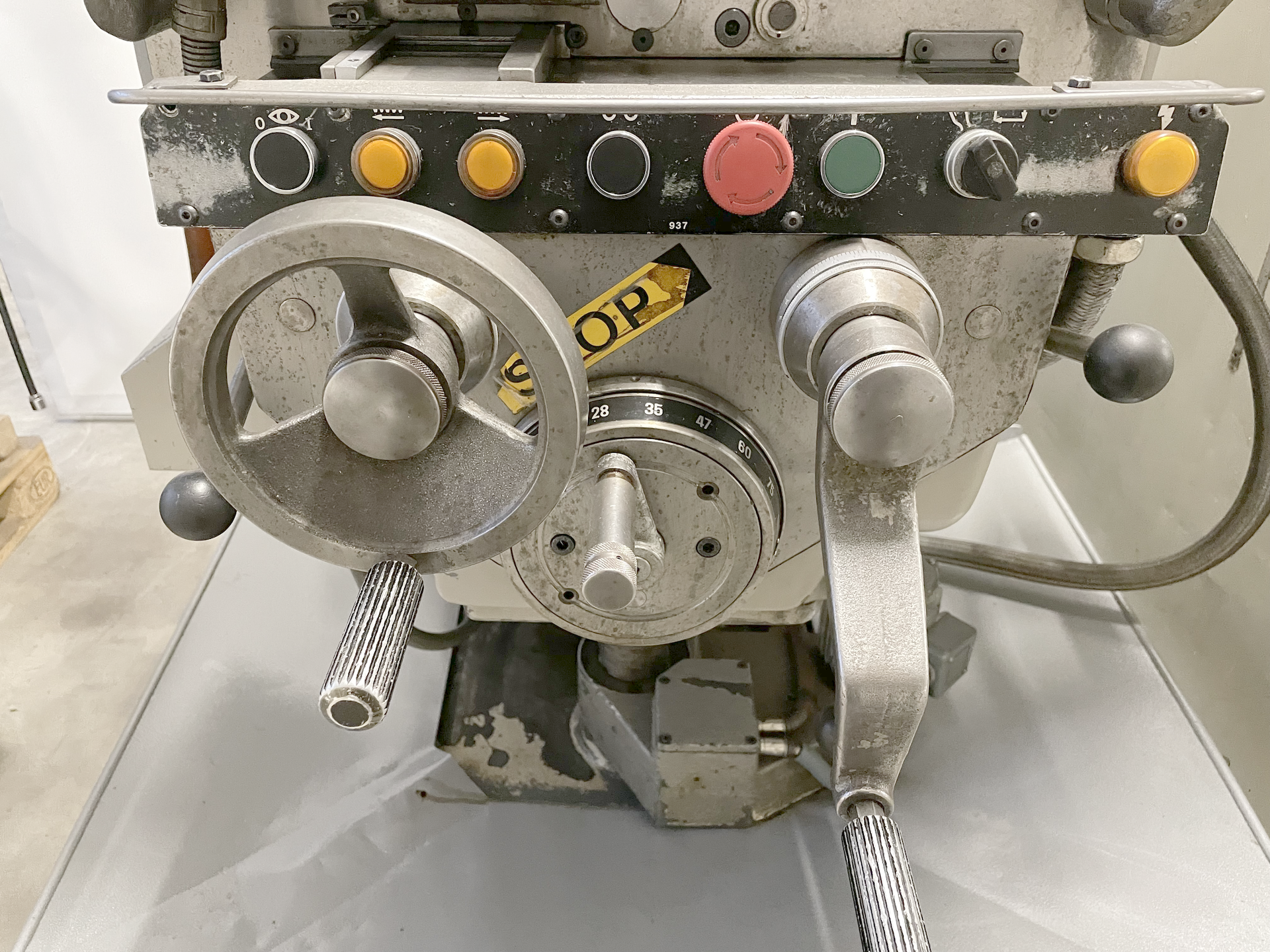

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
SCHAUBLIN

Model:
018936 - SCHAUBLIN 53 N

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Table length: 1100 mm.
Table width: 305 mm.
Longitudinal travel (X-axis): 700 mm.
Transversal travel (y axis): 250 mm.
Vertical travel (z axis): 490 mm.
number (steps): 18.
from: 38 t/min.
up to: 525 mm/min.
Taper in spindle: 40 ISO.
Feeds steps:: 18.
longitudinal from: 12.0 mm/min.
transversal from: 12.0 mm/min.
vertical from: 6.0 mm/min.
longitudinal: 3.5 m/min.
transversal: 3.5 m/min.
vertical: 1.7 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 5.5 CV.
Total power required: 8 CV.
Machine's weight about: 2100 kg.
Length: 1800 mm.
Width: 1600 mm.
Height: 1800 mm.
