MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRIPET
  • Model:

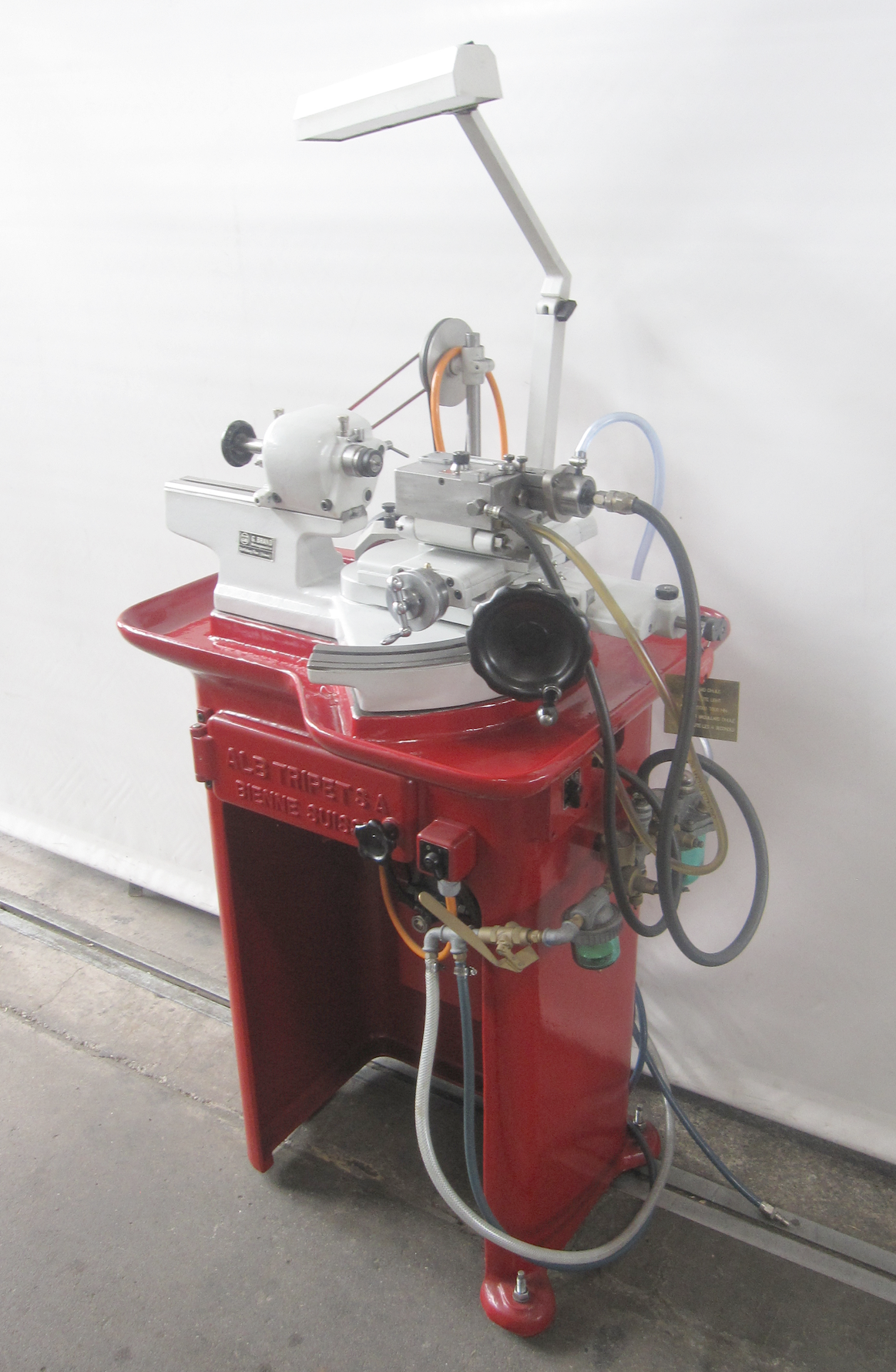

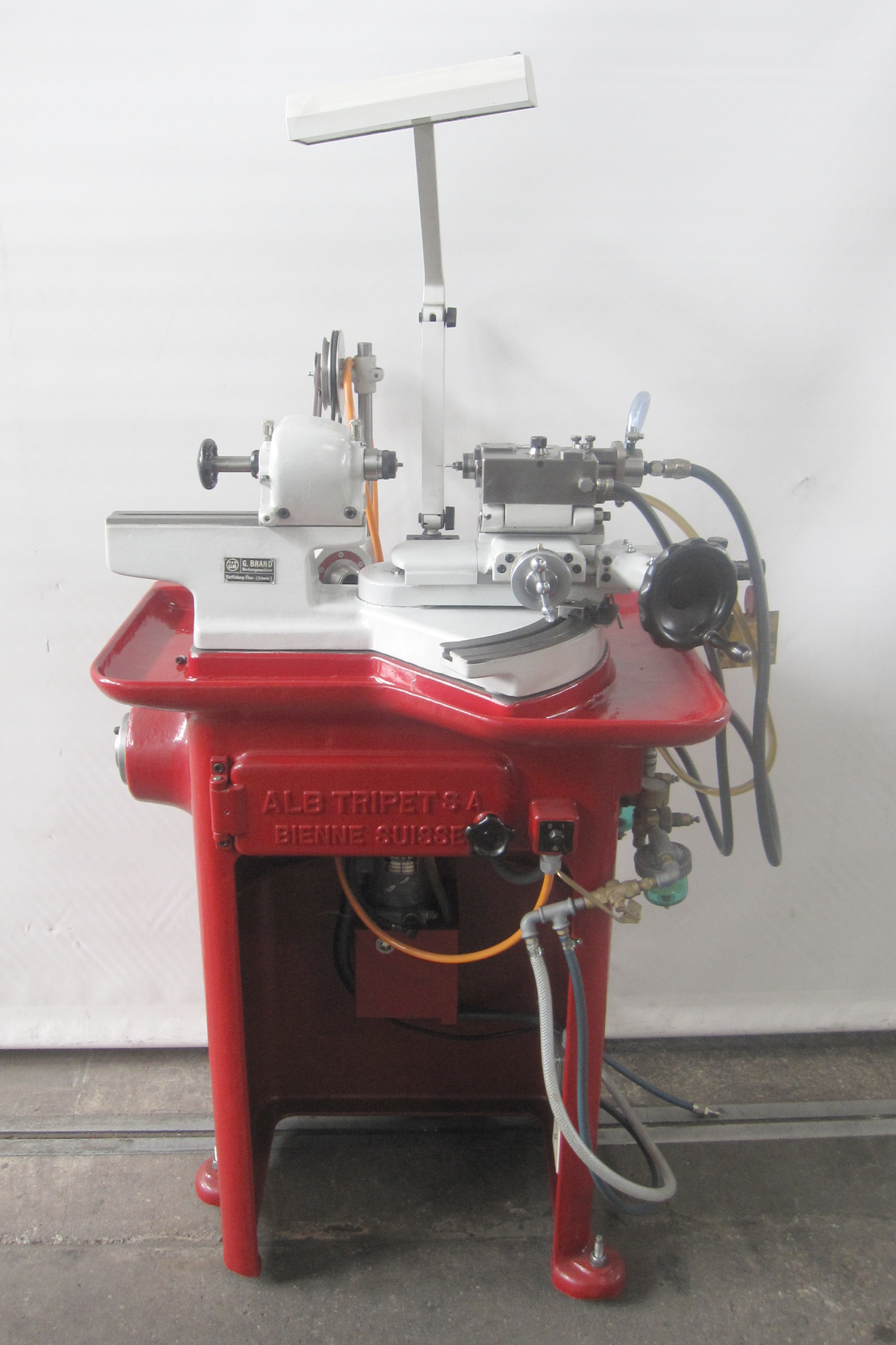

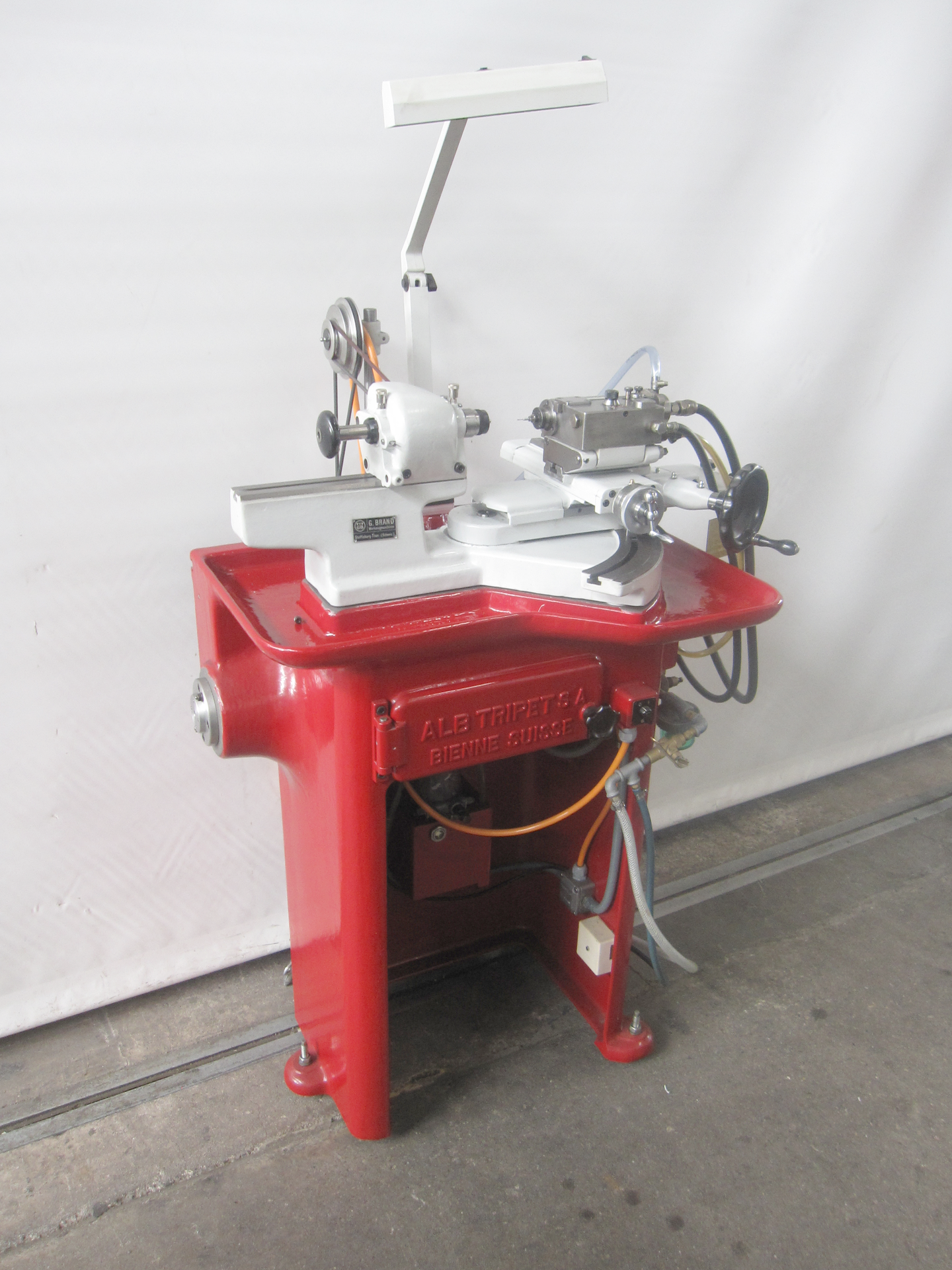

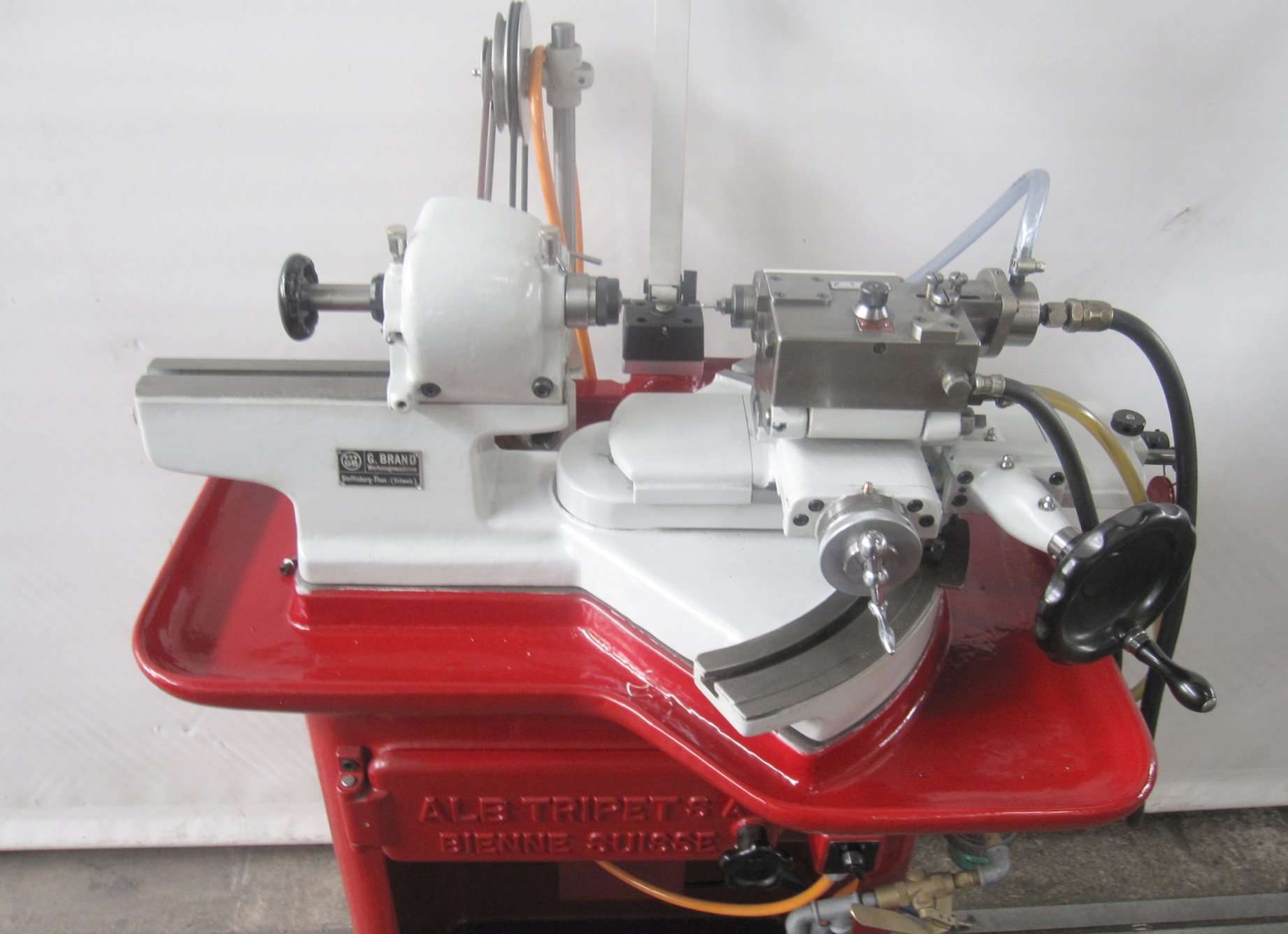

  • 019828 - TRIPET MUS 100
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Min. internal grinding diameter: 1 mm.
Max. internal grinding diameter: 20 mm.
Grinding depth: 100 mm.
Centre height: 60 mm.
Distance between centres: 150 mm.
number (steps): 3.
from: 90000 t/min.
up to: 120000 t/min.
Spindle hole: 12 mm.
Taper in spindle:: 12 W.
Rotatable grinding spindle head (b-axis): + 45 / - 45 °.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 250 kg.
Length: 900 mm.
Width: 750 mm.
Height: 1300 mm.
Automatic internal grinding support: AMI 25.

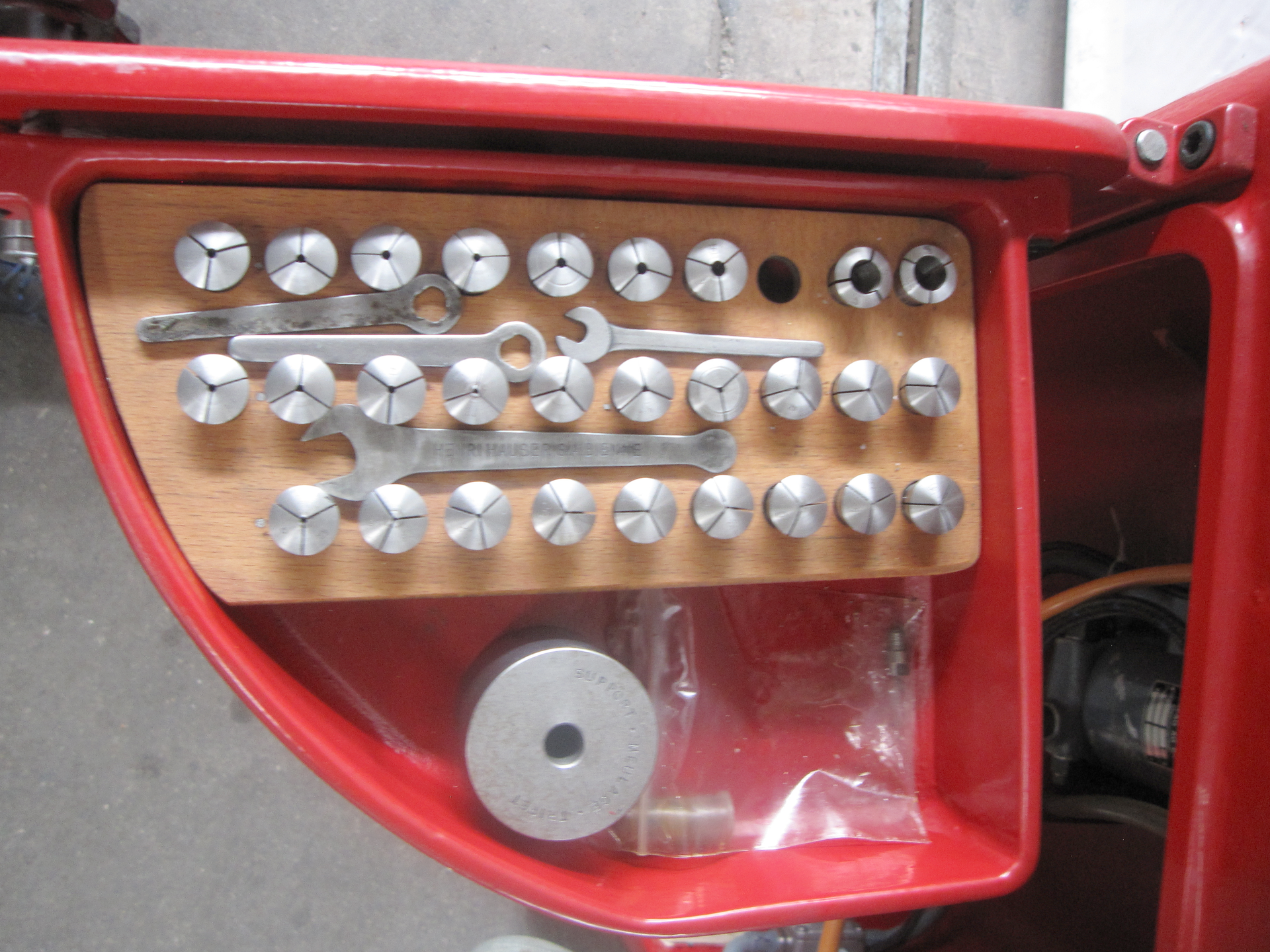

Set of collets: W 12.
