MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:

Model:

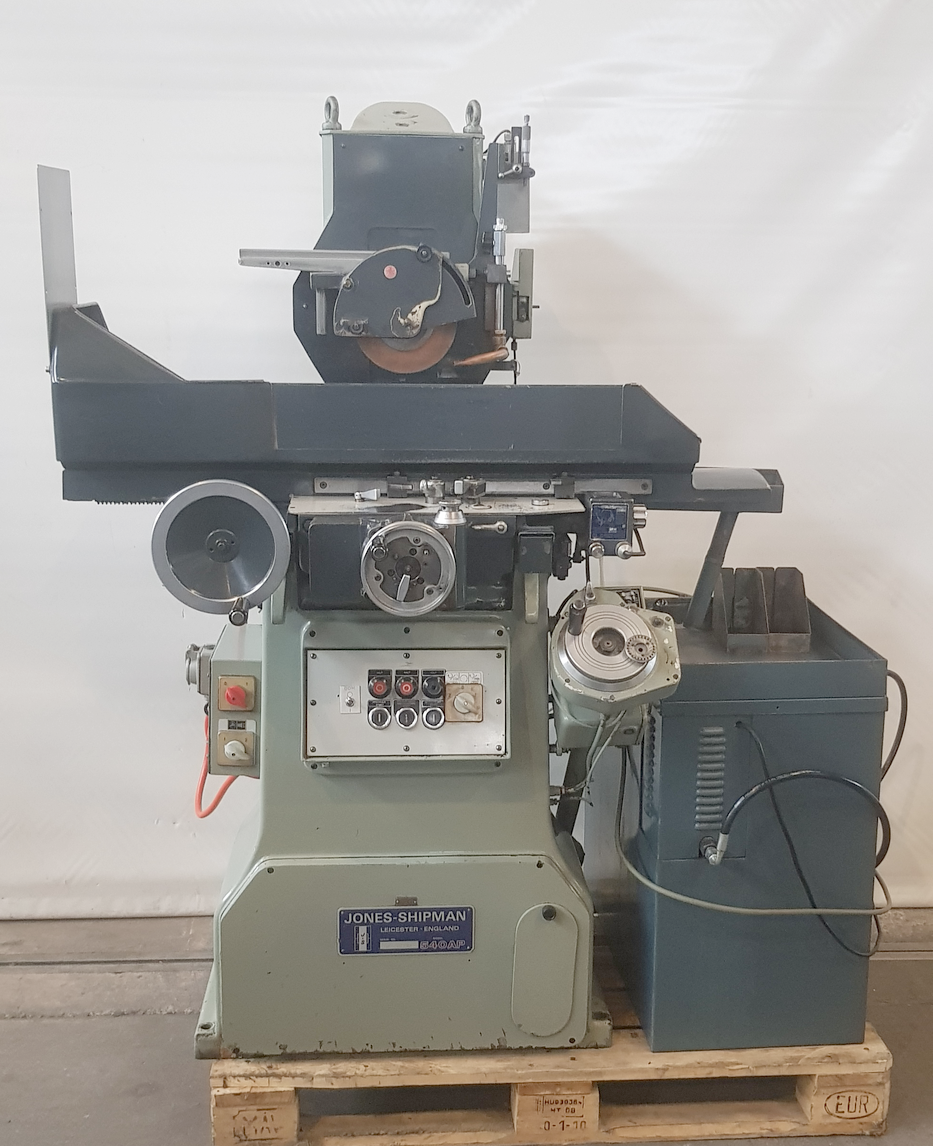

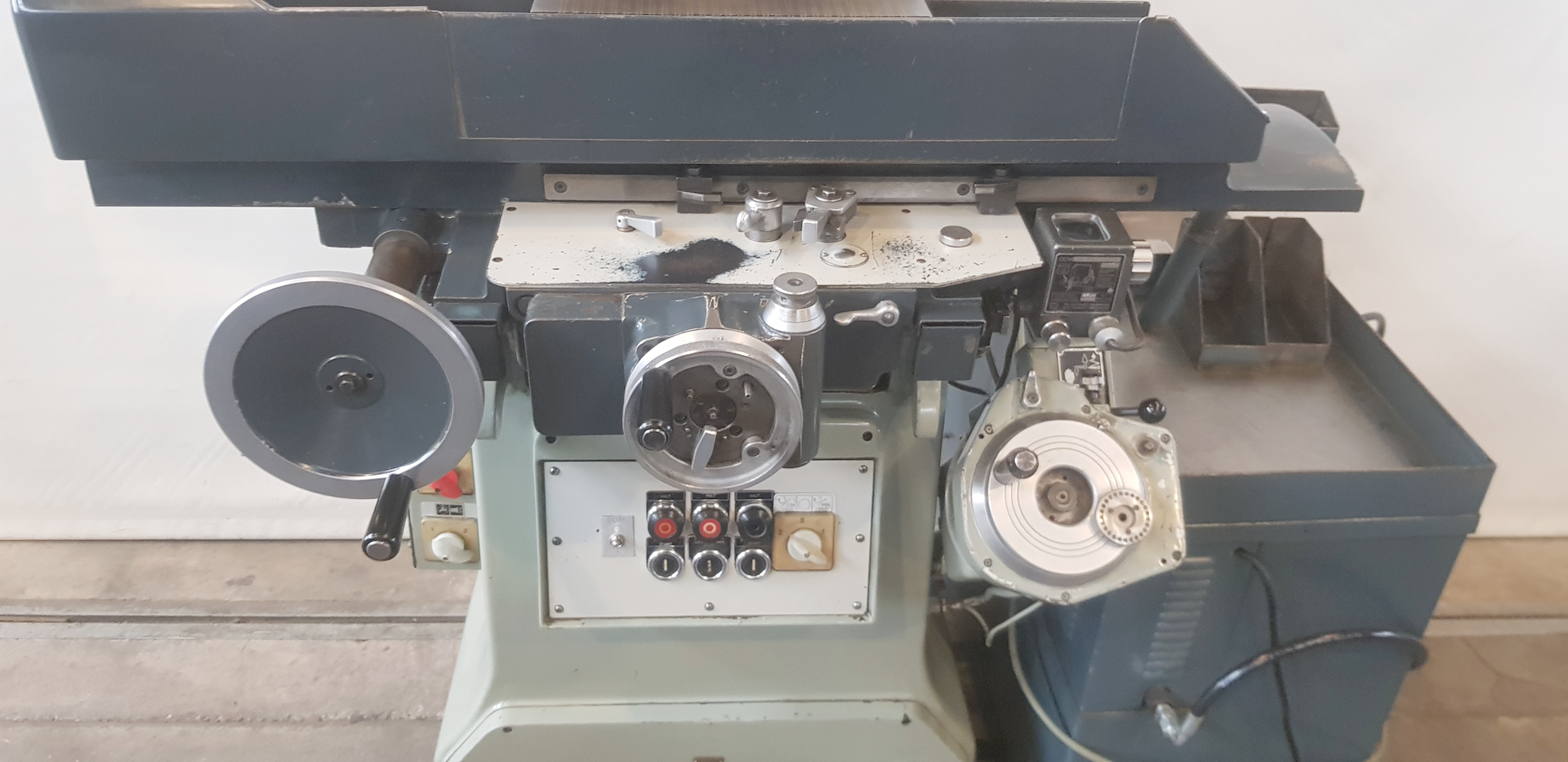

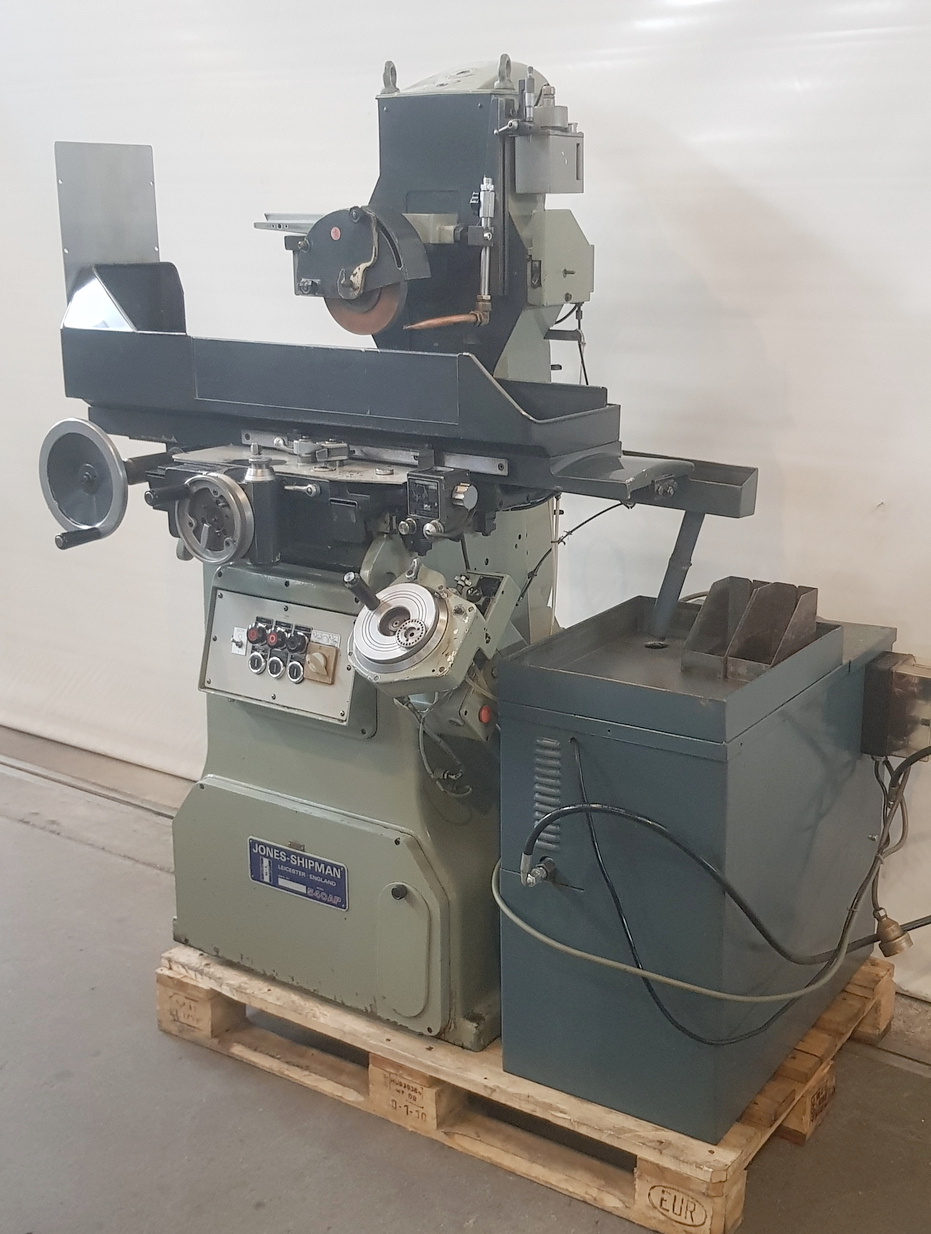

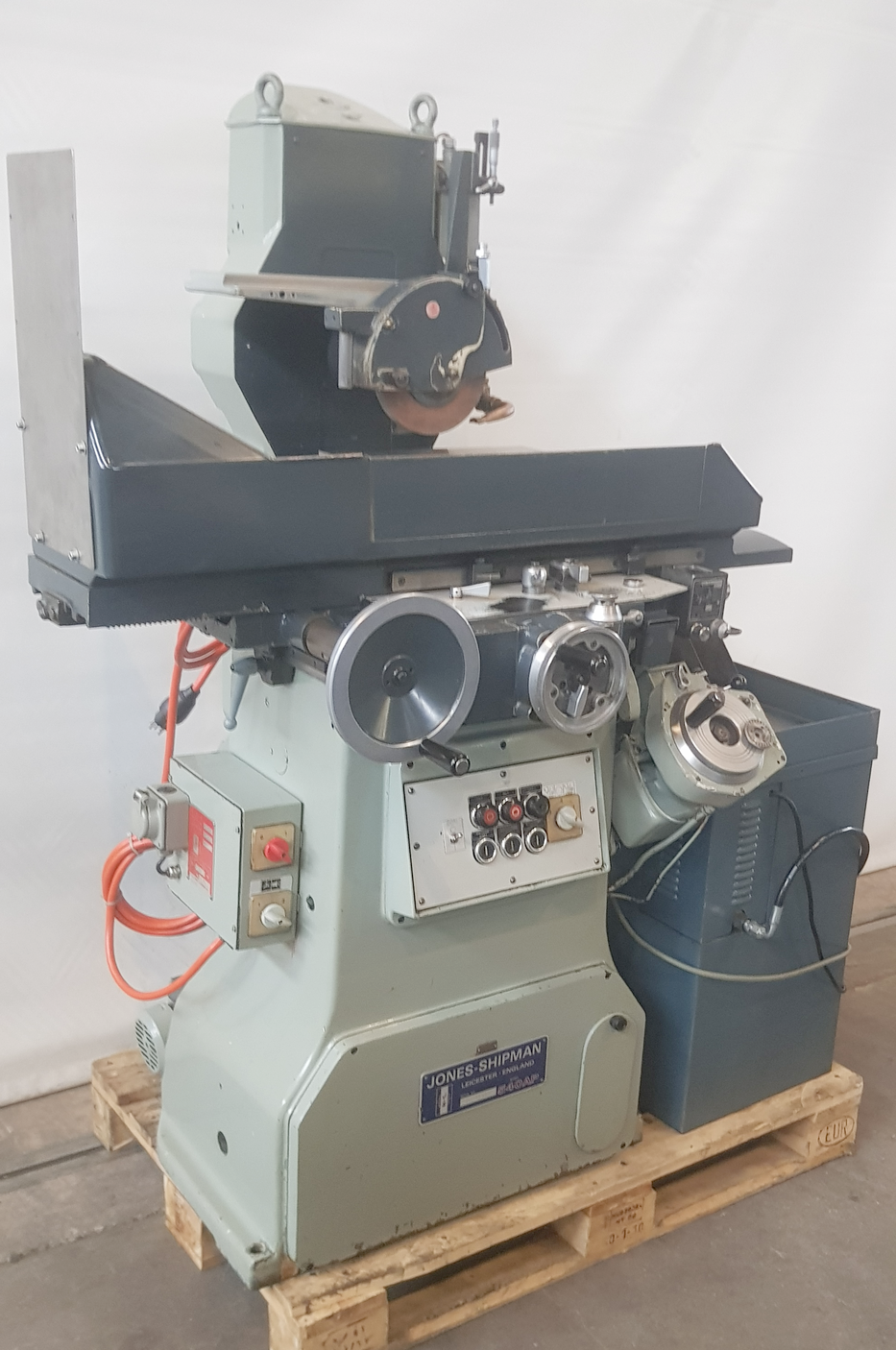

020765 - JONES SHIPMAN 540 AP

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Table length: 650 mm.
Table width: 160 mm.
to spindle-centreline: 330 mm.
Longitudinal travel (X-axis): 483 mm.
Transversal travel (y axis): 171 mm.
from: 2880 t/min.
up to: 18 m/min.
Diameter of grinding wheel: 178 mm.
Width of the grinding wheel: 13 mm.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 2.00 CV.
Machine's weight about: 850 kg.
Length: 350 mm.
Width: 160 mm.
Height: 1700 mm.
