MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

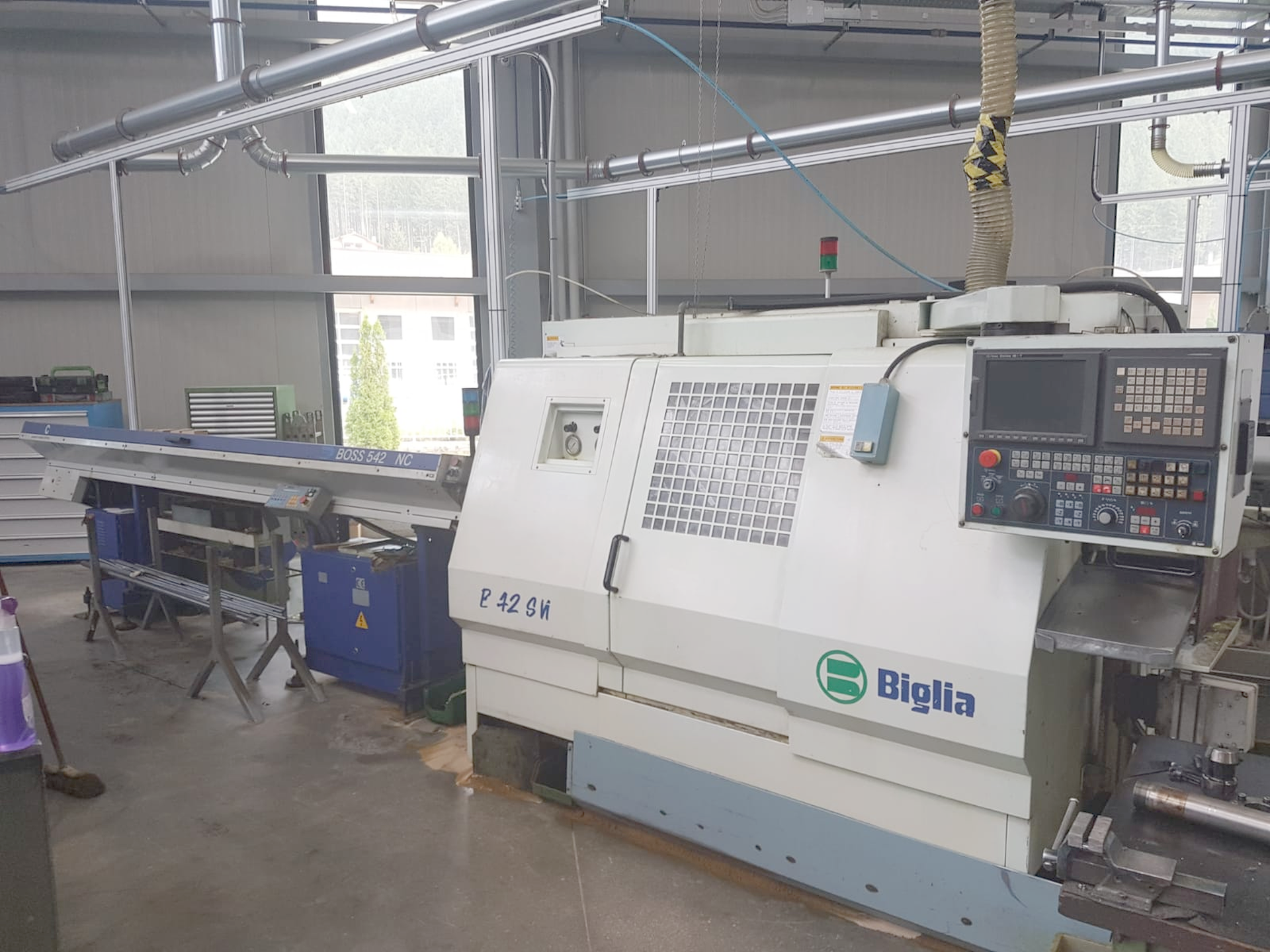

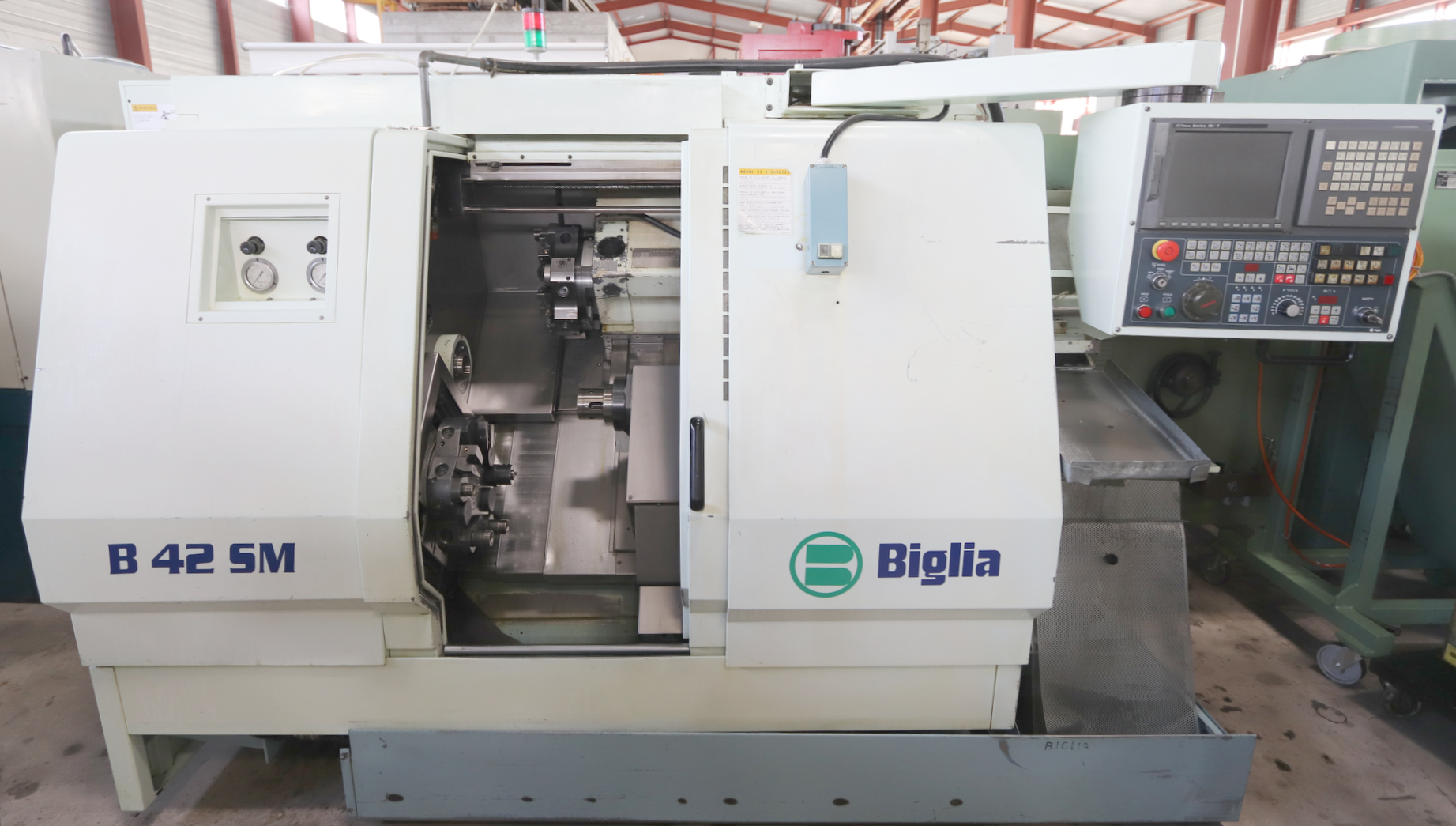

  • 020768 - BIGLIA B 42 SM
  • Condition:
  • 1
  • YOM:
  • NA

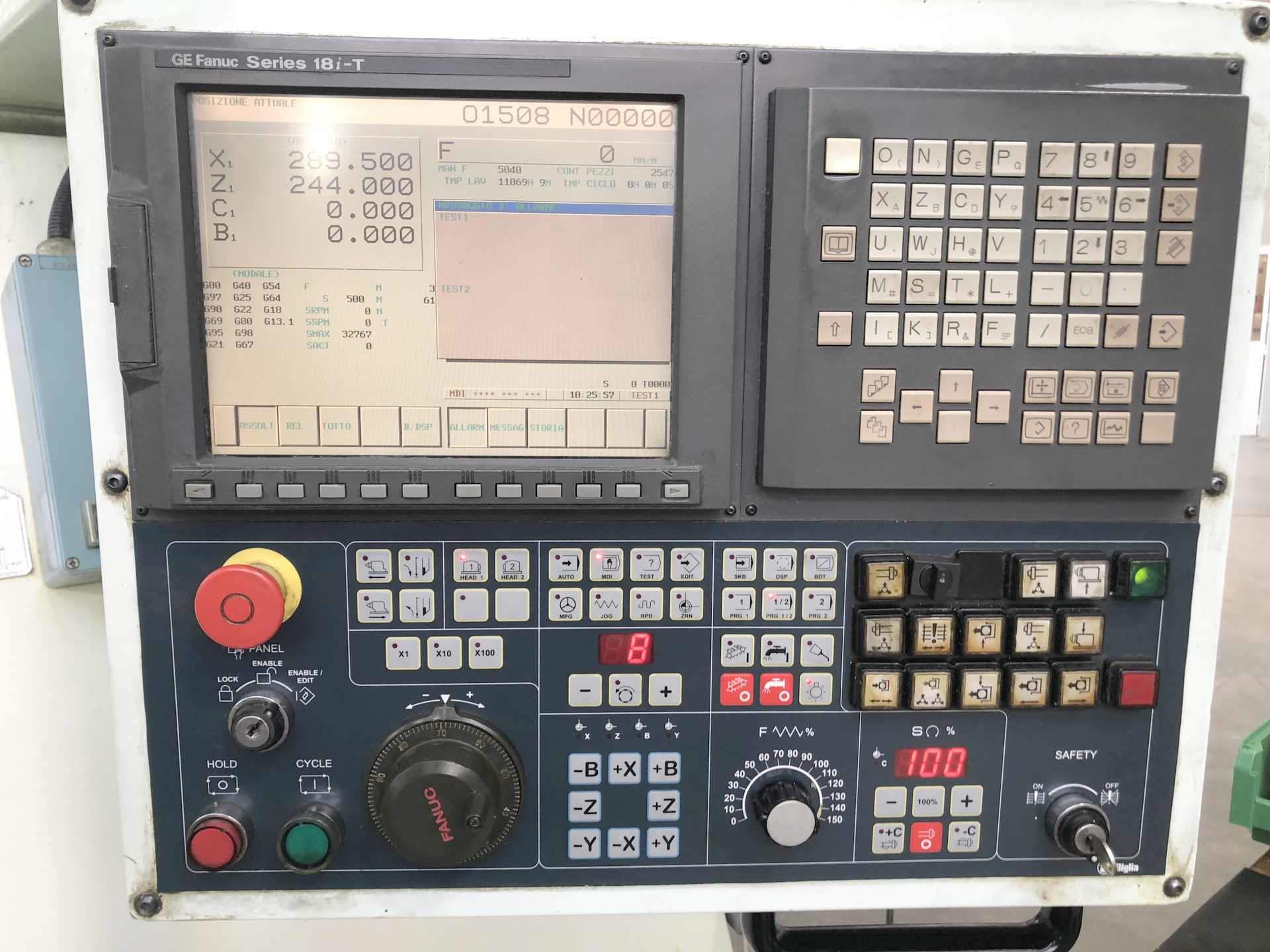

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

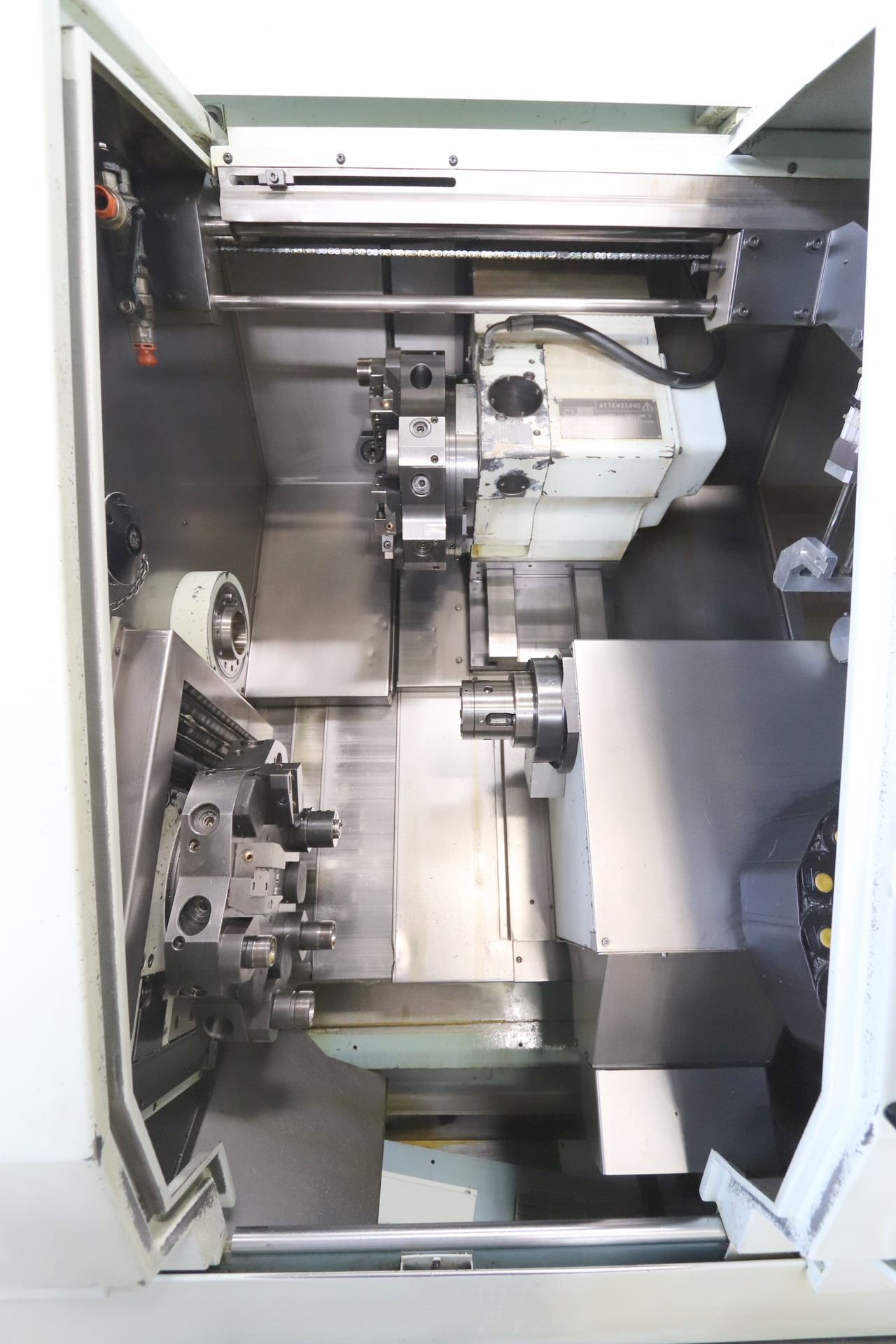

Number of spindles: 2.
Number of revolvers: 2.
Distance spindle nose: 560 mm.

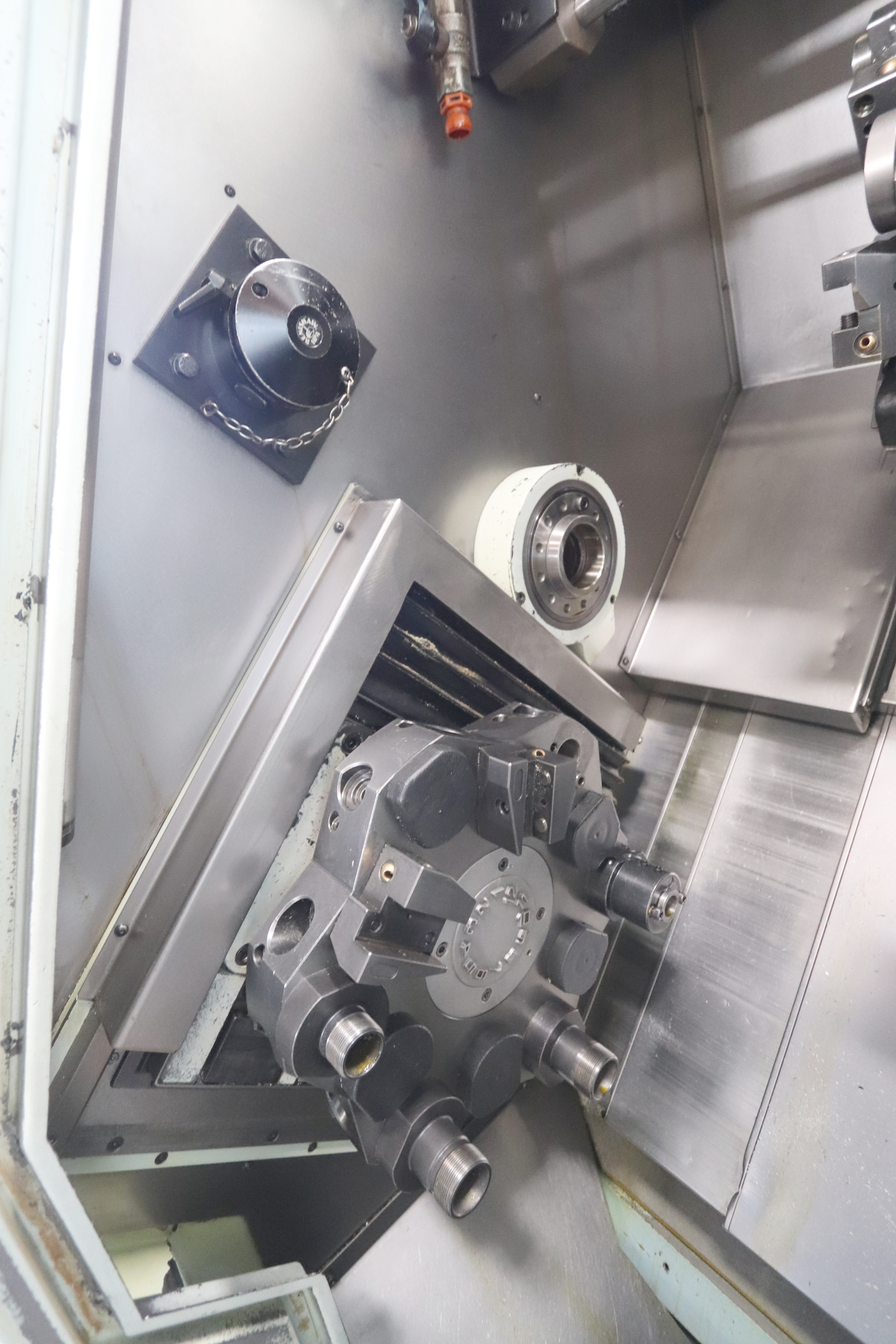

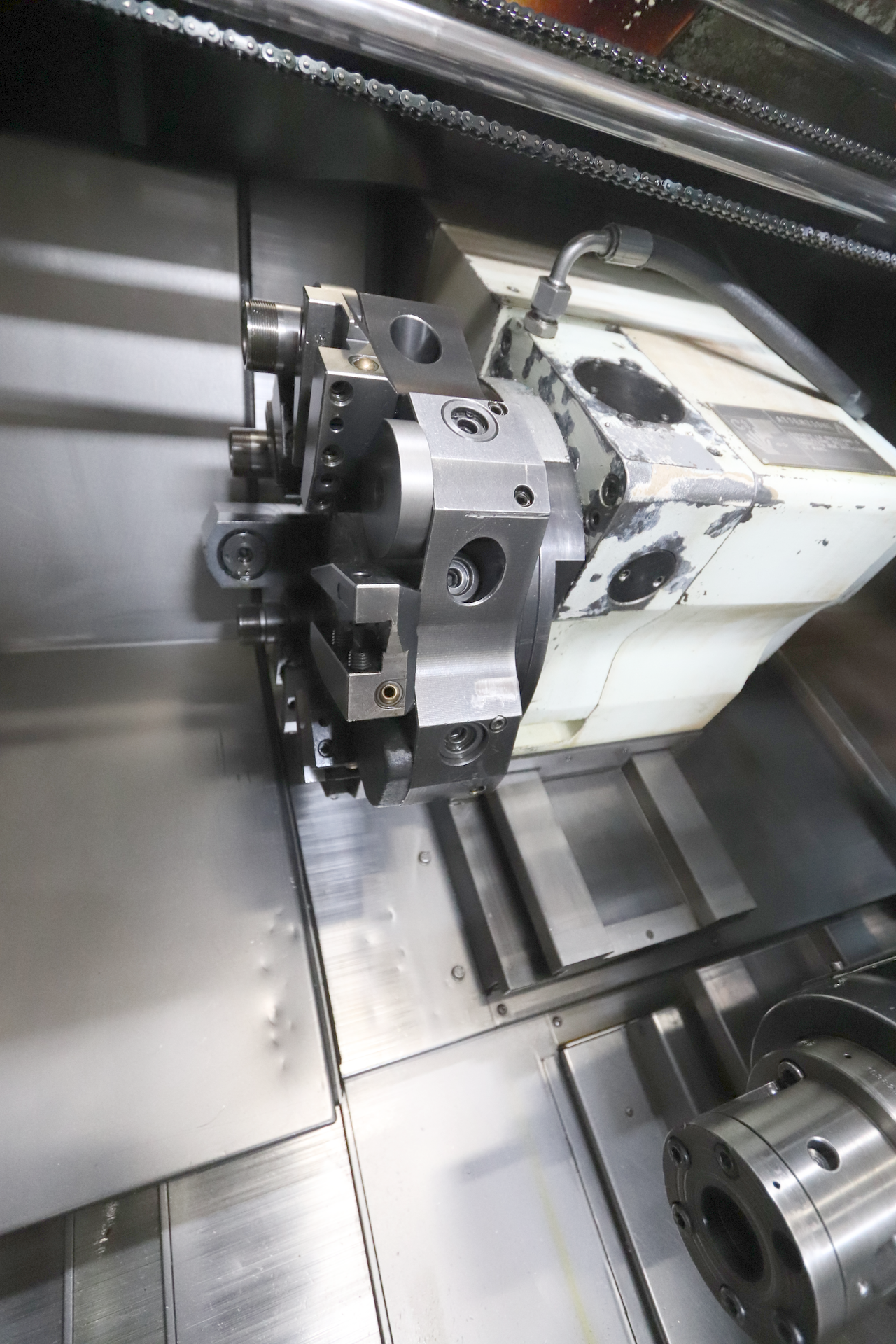

Number of positions turret 1: 12.
Number of positions turret 2: 12.

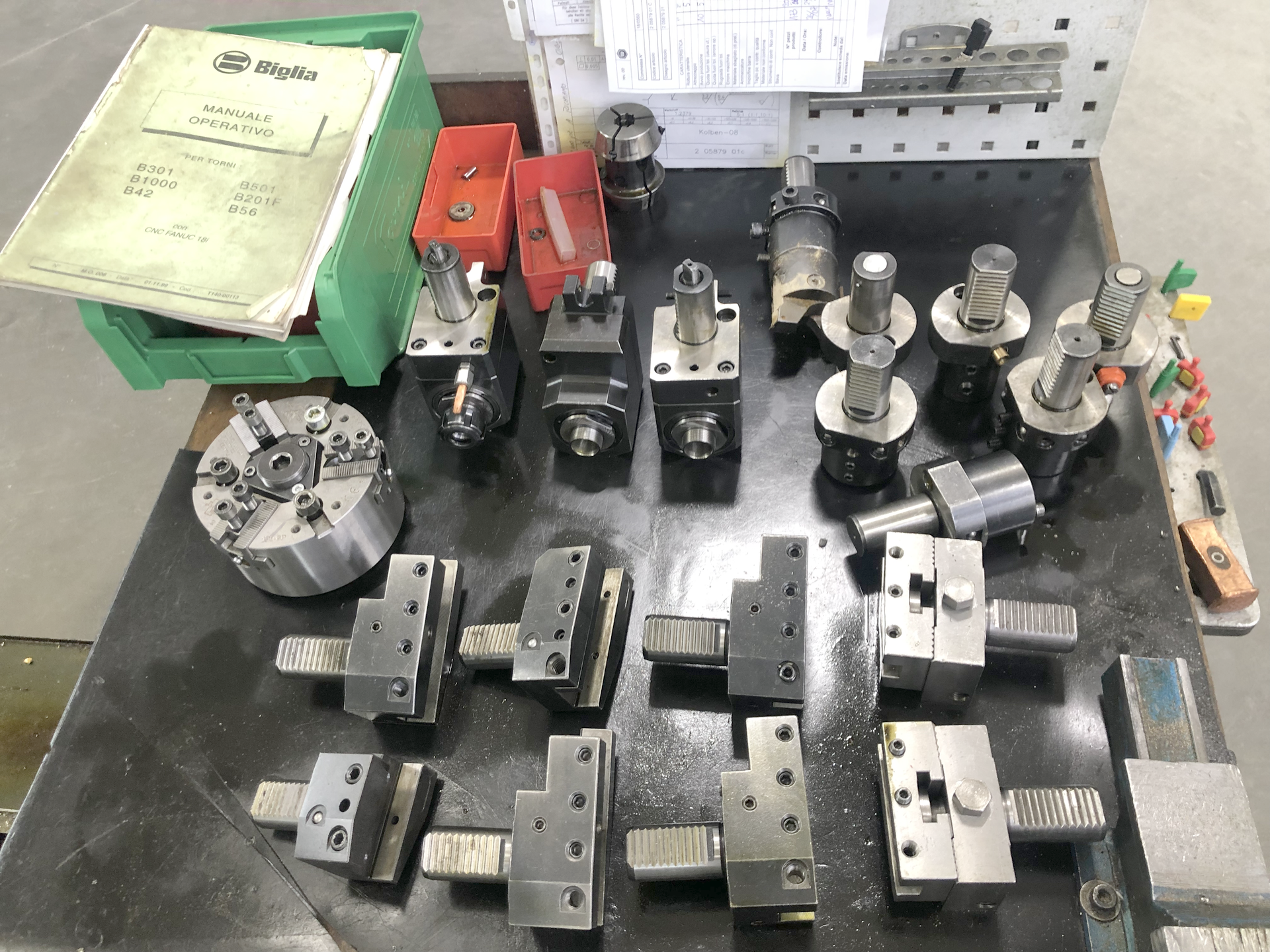

Driven tools turret 1: 6.
Driven tools turret 2: 6.
Spindle speeds: 100 - 3000 t/min.
Tool shank cross section: 20 mm.
Power of driven tools: 1.5 / 3.7 kW.
Max. drill capacity: 25 mm.
Indexing time: 0.4 s.
X axis: 132 mm.
Z axis: 155 mm.
Spindle nose: ASA 4".
Spindle hole: 42 mm.
Inner taper type: DIN 6343.
Max. bar diameter: 41 mm.
Max. turning diameter: 150 mm.
Maximum turning length: 150 mm.
C axis (spindle,resolution): °.
from: 100 t/min.
up to: 5000 t/min.
Spindle power: 3.7 - 5.5 kW.
max. speed: 5000 t/min.
Rapid traverse X: 12 m/min.
Rapid traverse Z: 20 m/min.
Spindle motor: 11 - 15 kW.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 4700 kg.
Length: 2500 mm.
Width: 2000 mm.
Height: 2100 mm.

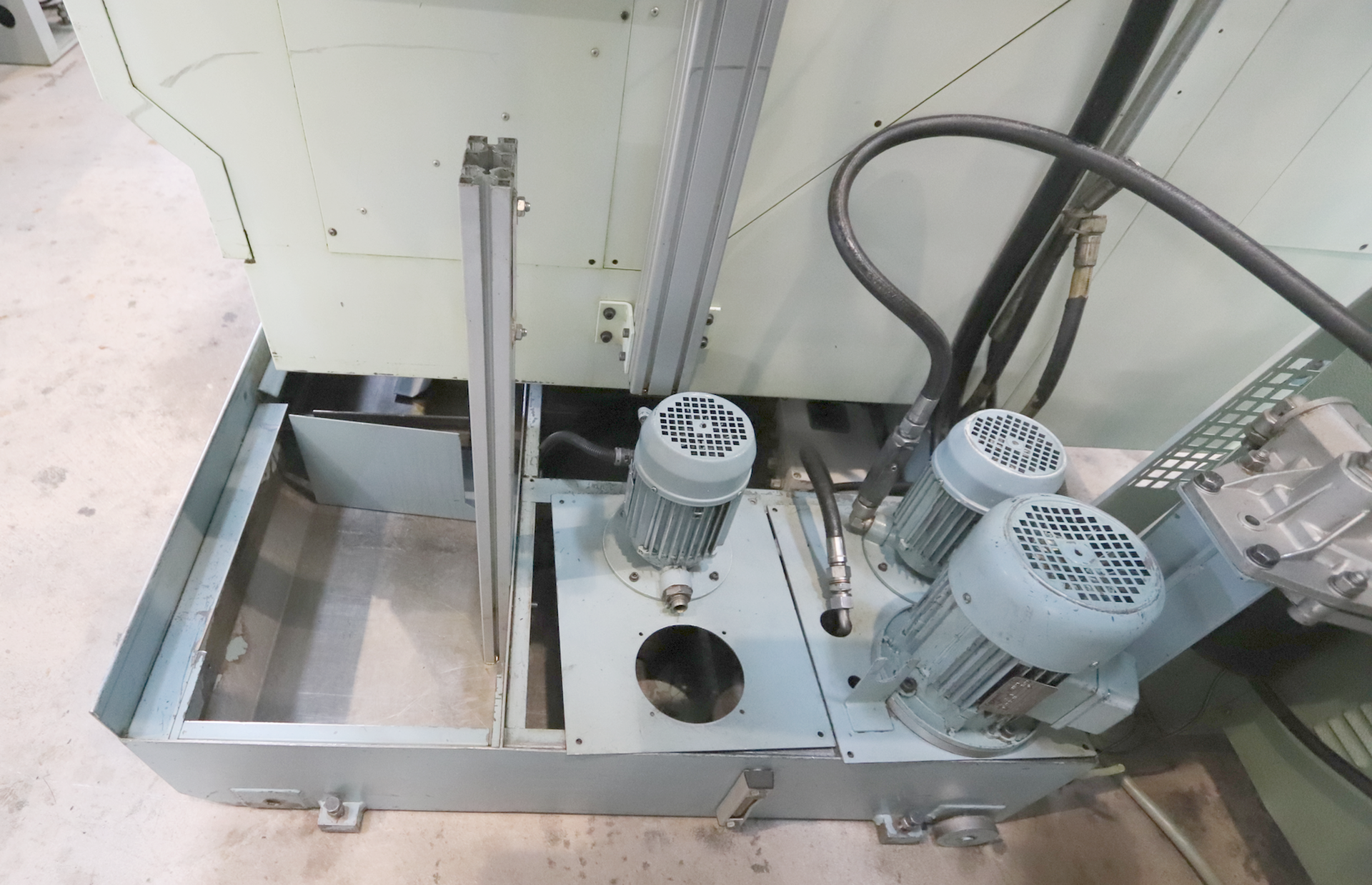

Coolant system: 150 l.

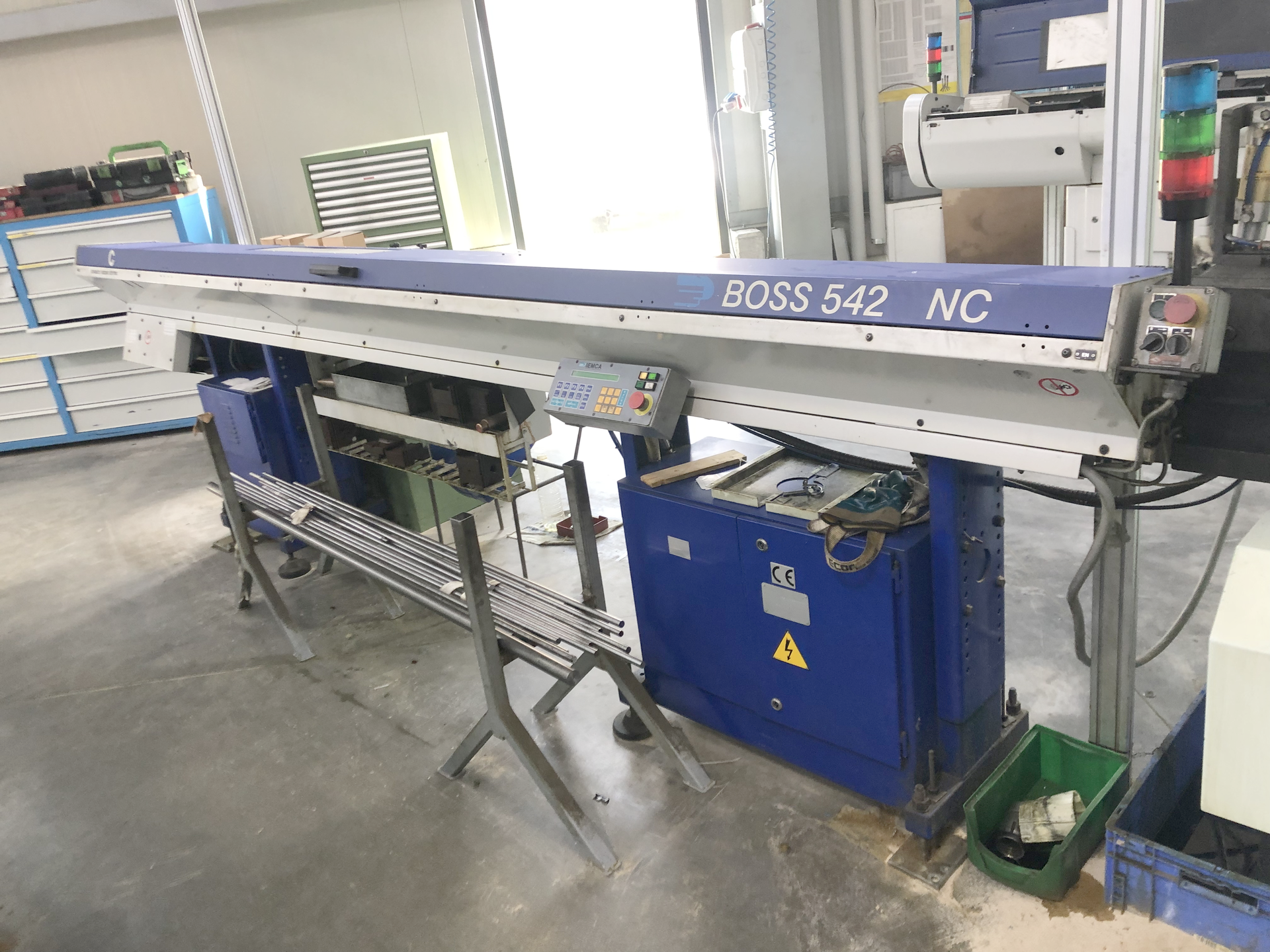

Bar feeder: IEMCA.
Type: BOSS 542.
Length of bars max.: 3200 mm.
Bar diameter: 5 - 42 mm.
