MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

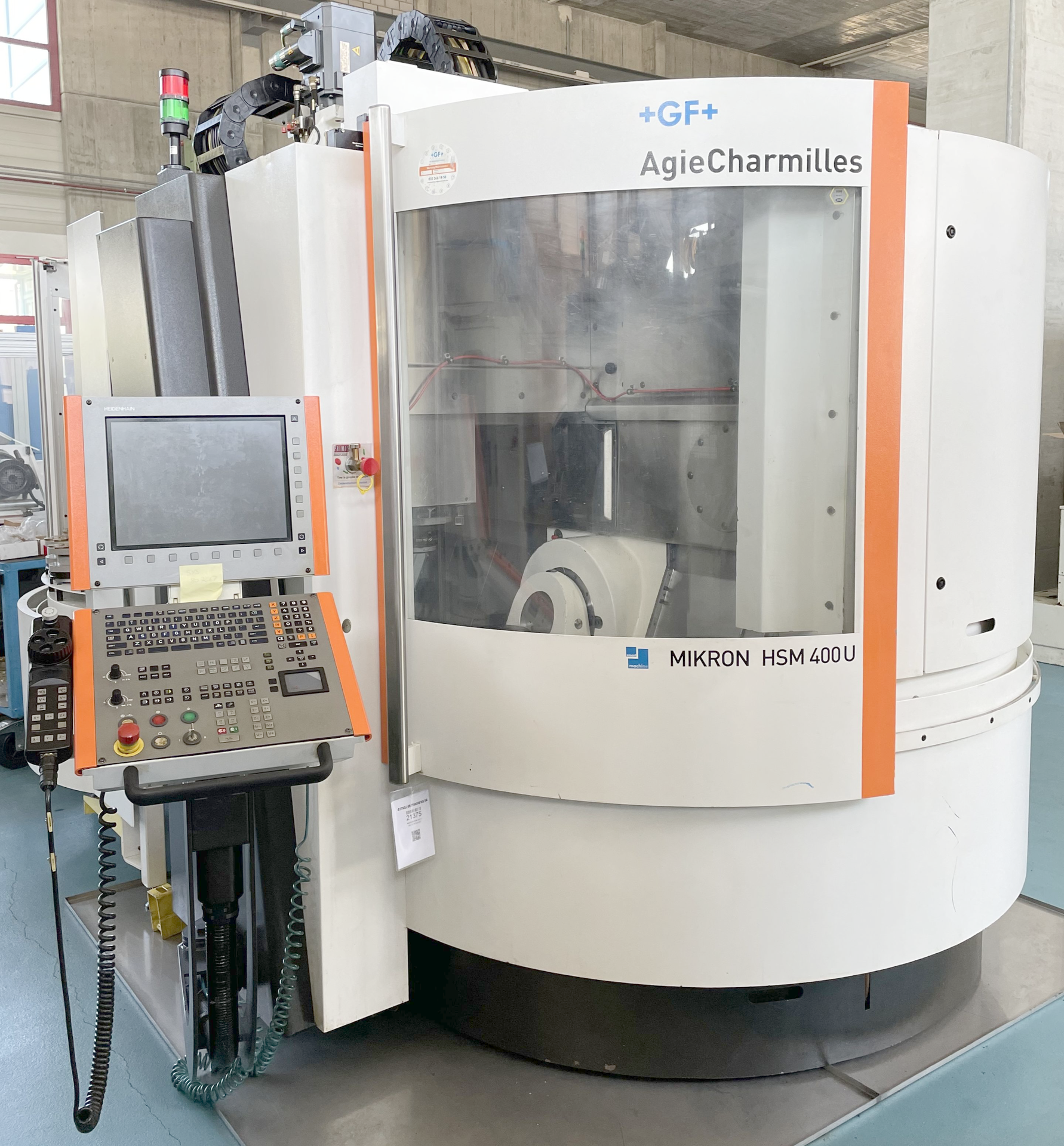

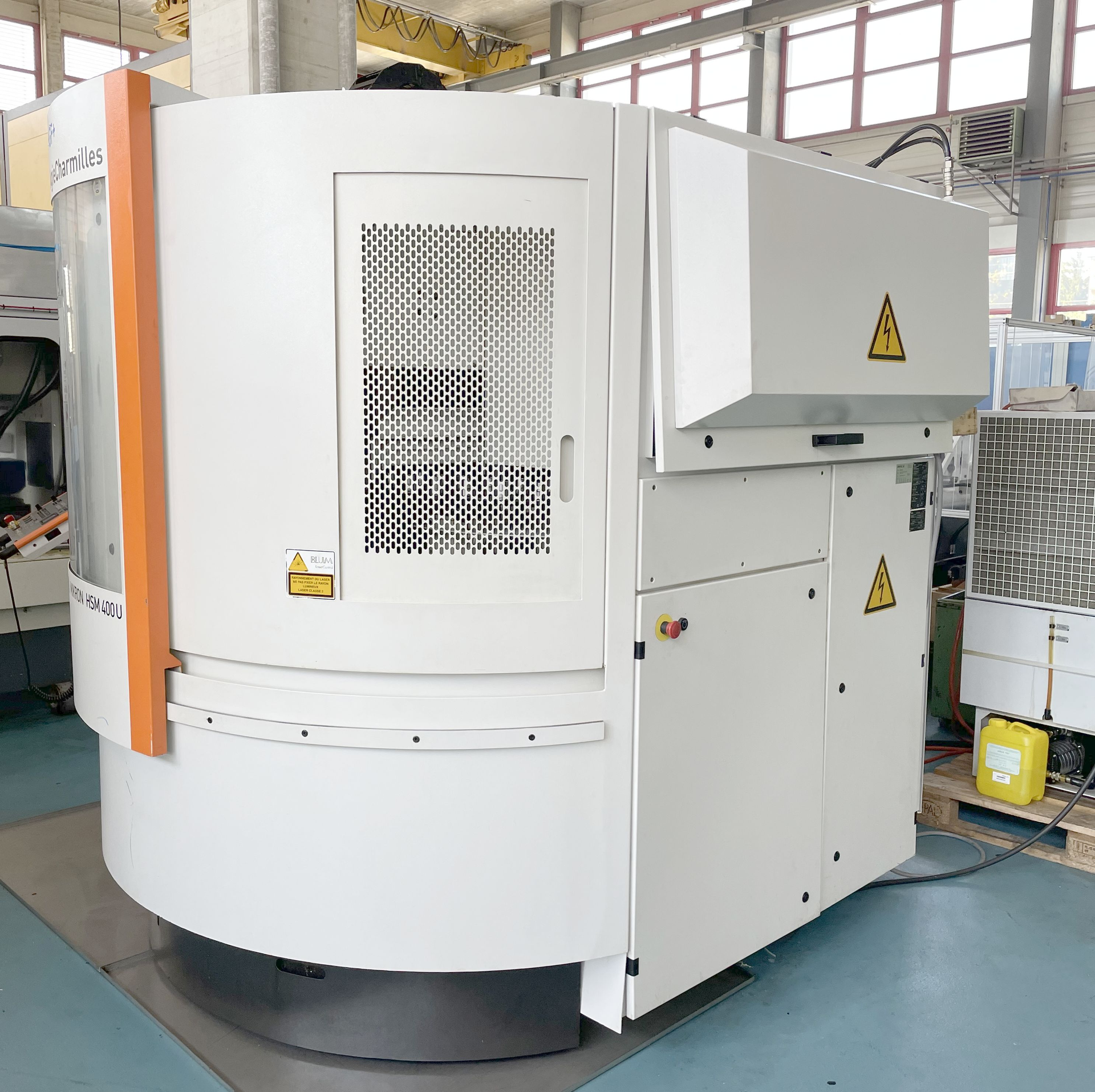

  • 021375 - MIKRON HSM 400 U
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 72311 Heures.
Operating time: 57489 Heures.
Working time: 56279 Heures.
Spindle run time: 24040 Heures.
Number of axis simultaneous: 5.

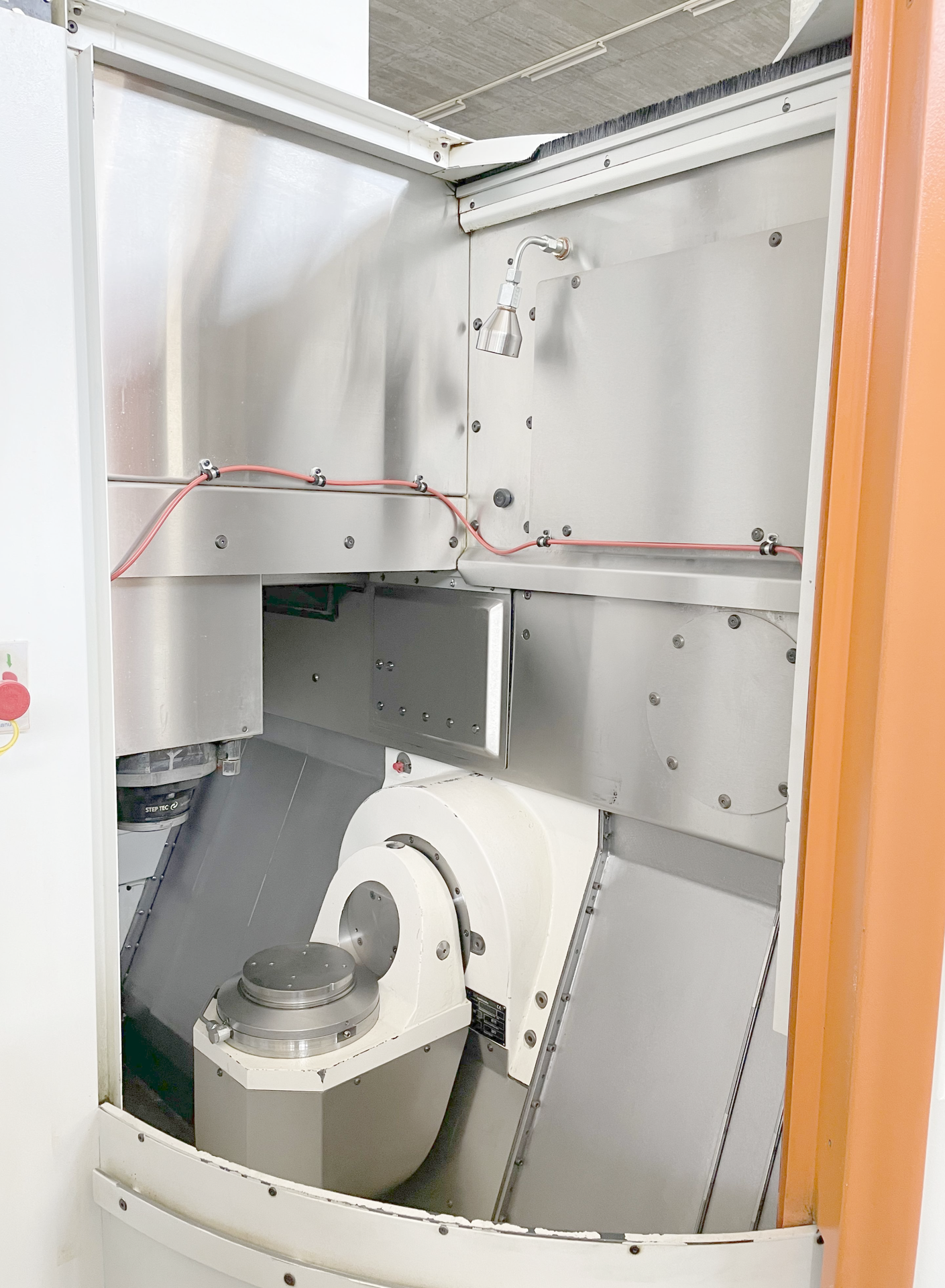

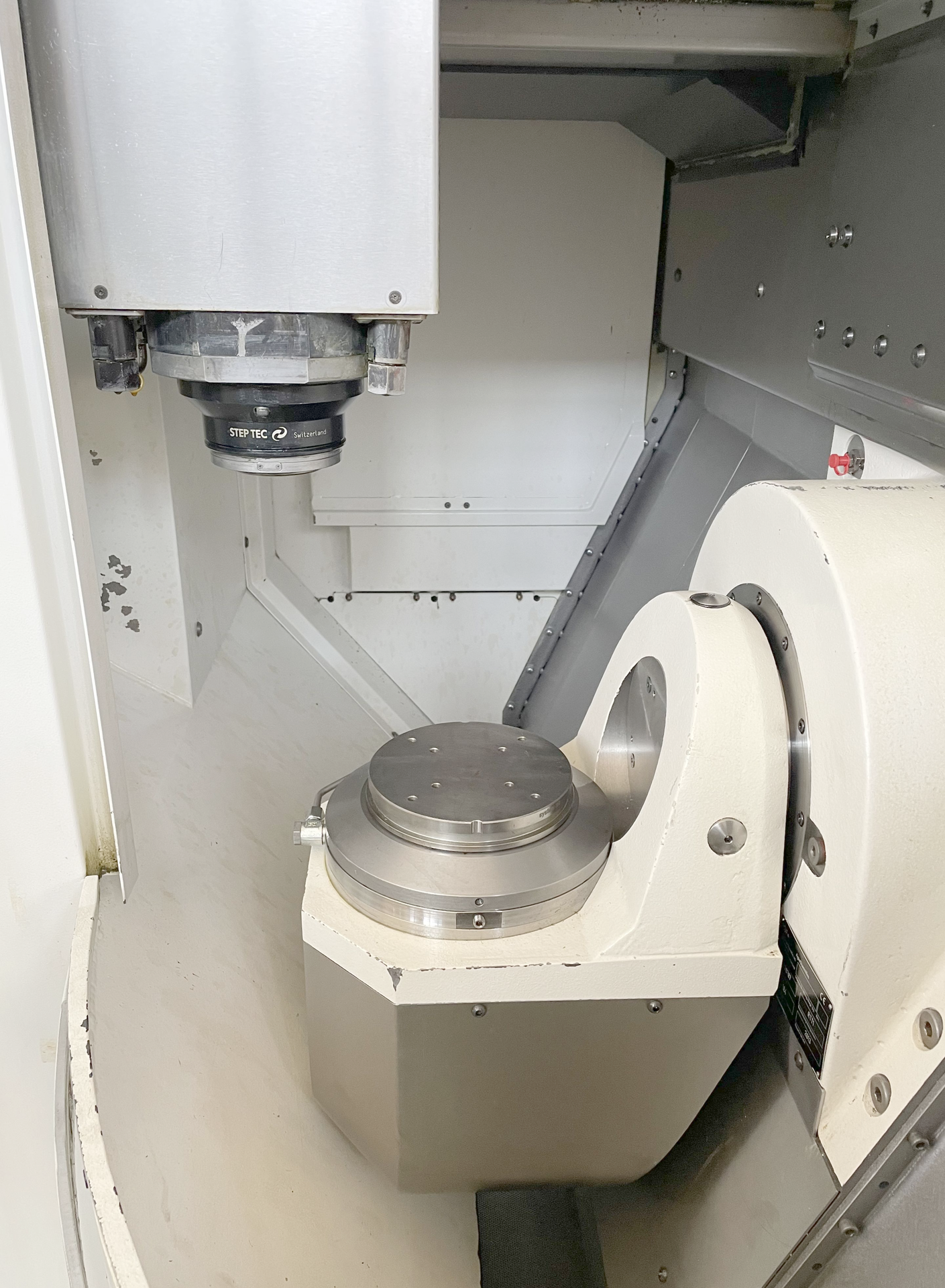

Rotary table:diameter: 250 mm.
Number of spindles: 1.
Table load max.: 25 kg.
Longitudinal travel (X-axis): 400 mm.
Transversal travel (y-axis): 240 mm.
Vertical travel (z axis): 350 mm.
B axis swivelling range: +/-110 °.
C axis: 360 °.
Table speed: 250 t/min.
Clamping torque C-axis: 500 Nm.
Torque max.: 8.8 / 6.5 Nm.

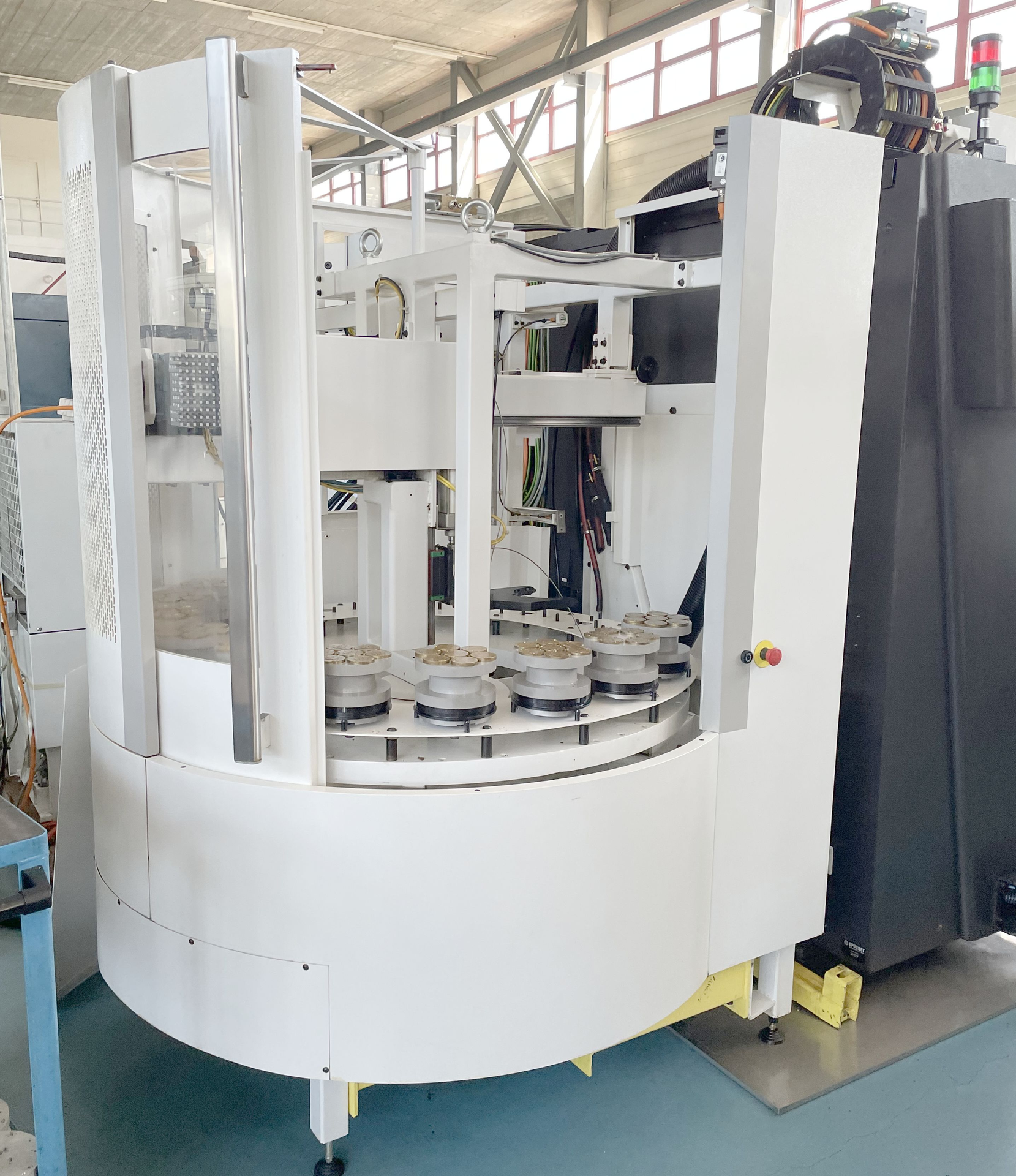

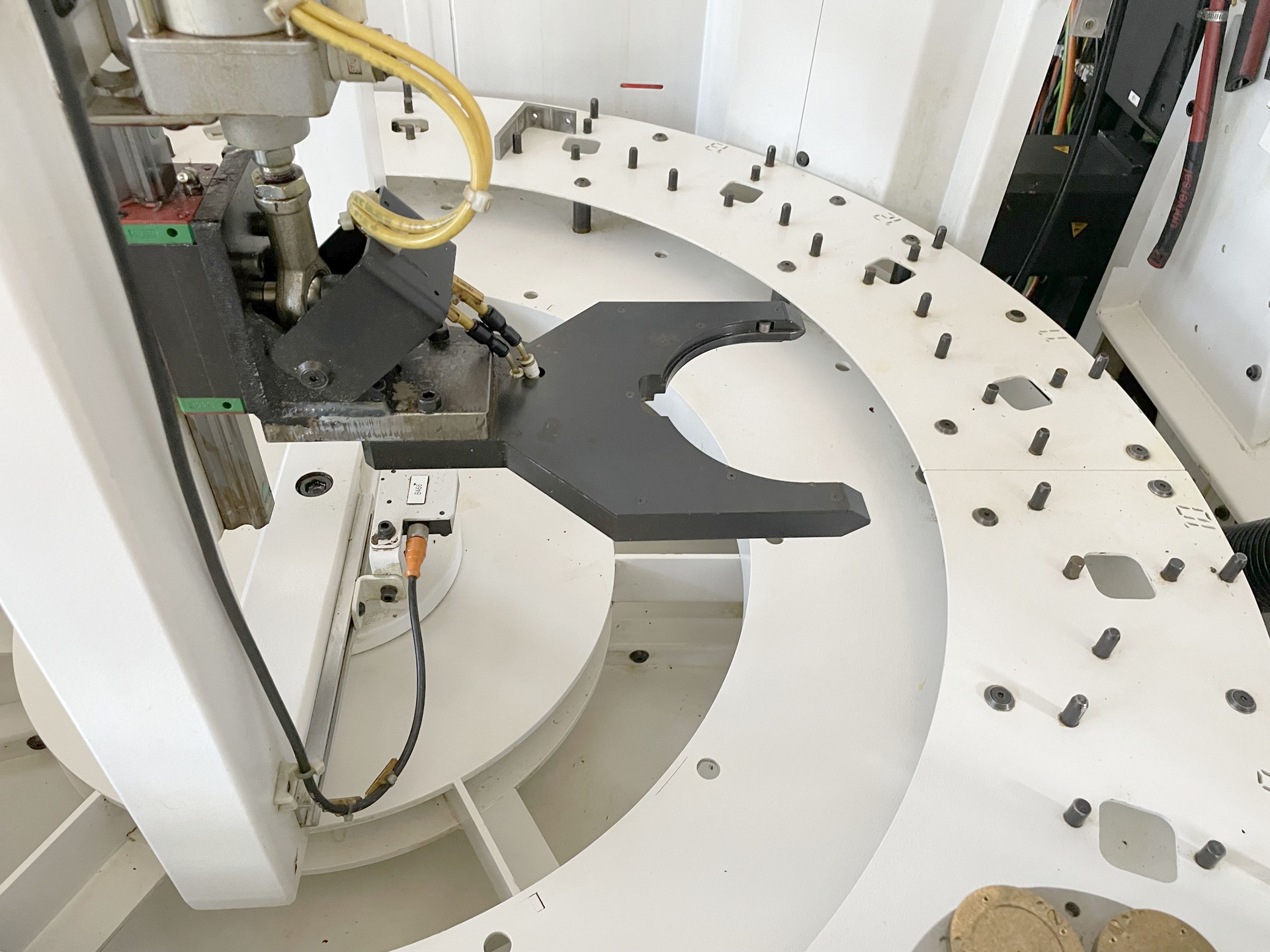

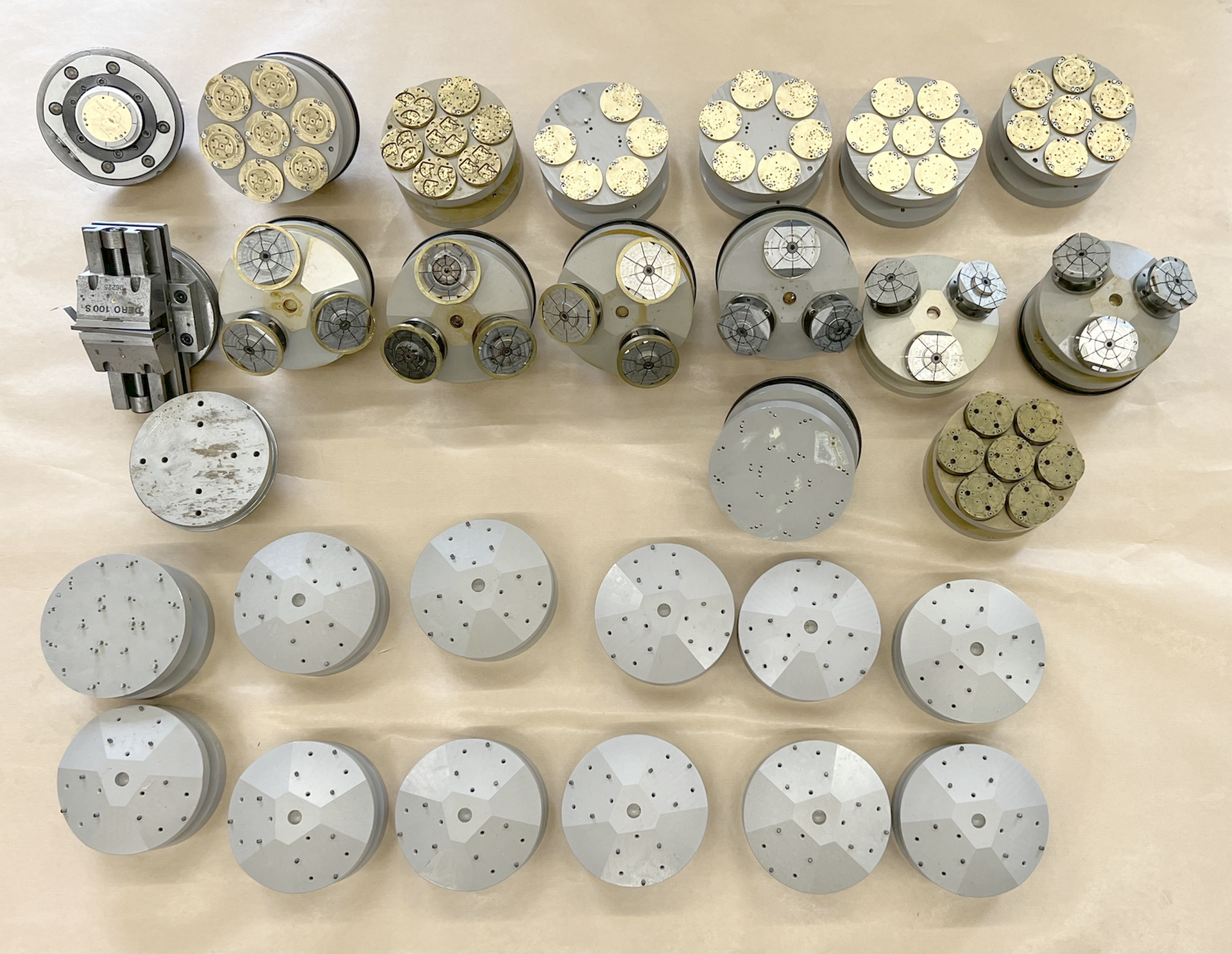

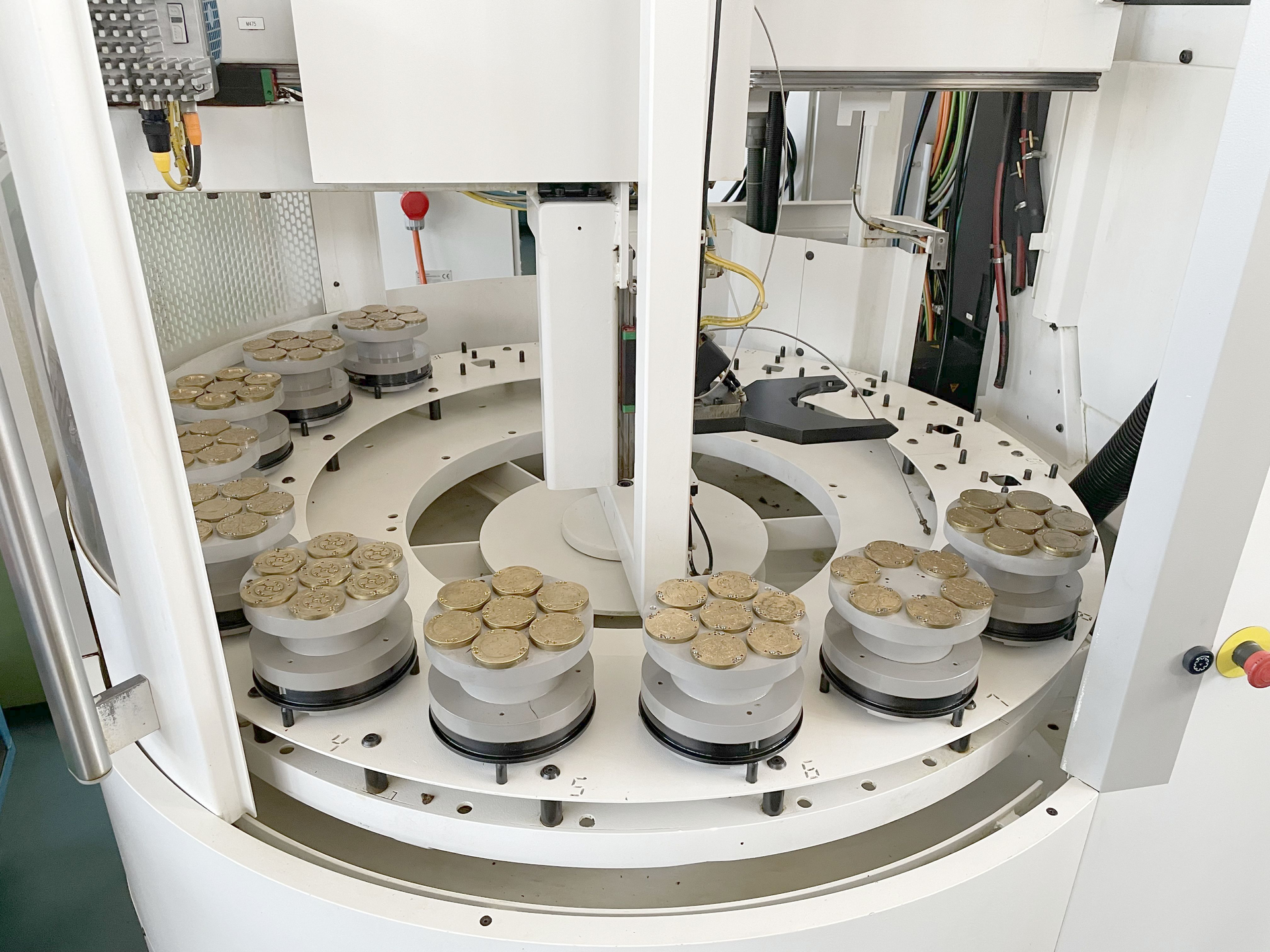

Pallets chanching device:: EROWA ITS 148.
numbers: 20.
Diameter: 160 mm.

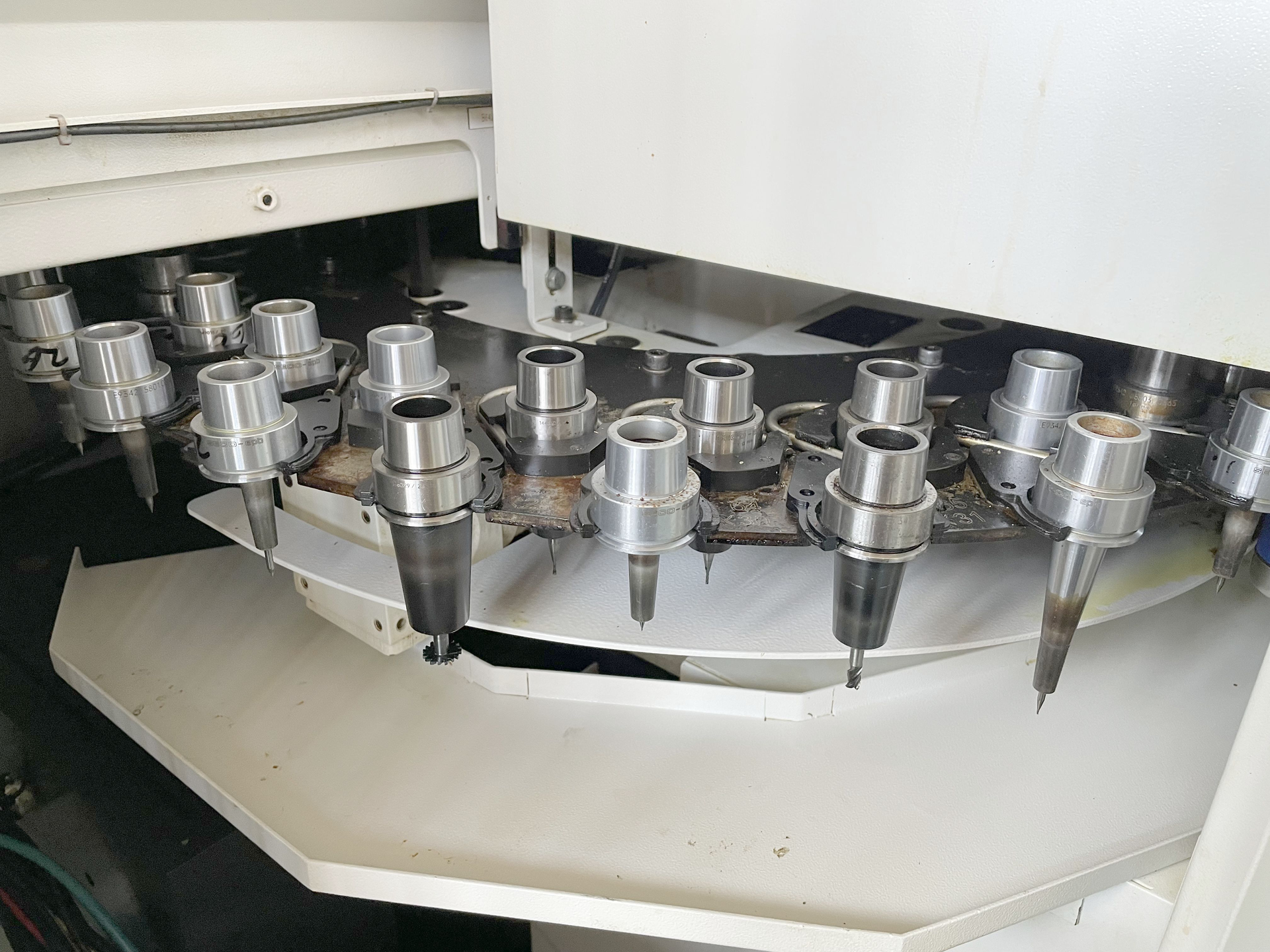

Number of tools: 68.
Tool diameter max.: 65 / 30 mm.
Tool lenght: 155 / 100 mm.

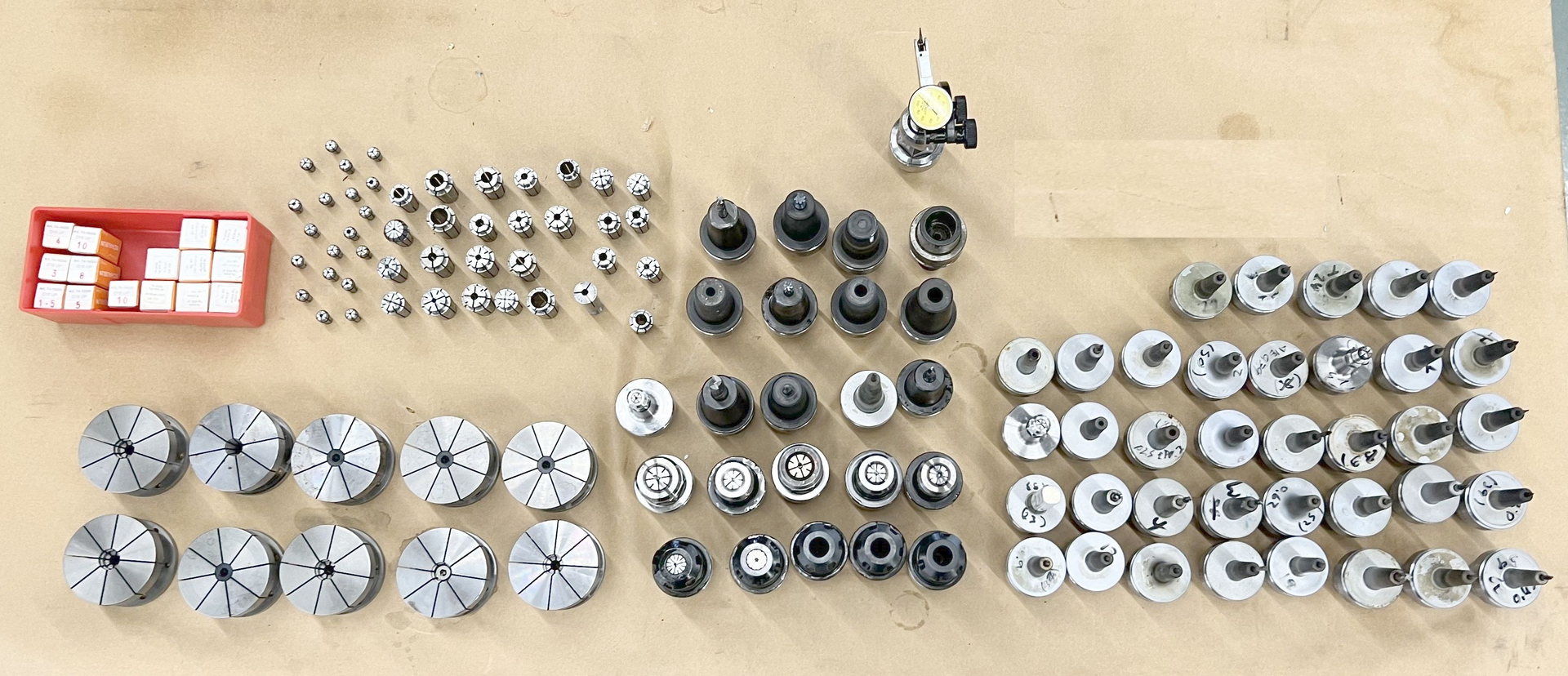

Spindle nose: HSK: E40.
from: 100 t/min.
up to: 42000 t/min.
Work feed rate: 1 - 40 m/min.
Rapid traverse:: 42 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 12 / 10 kW.
Total power required: 15 kW.
Noise level: 75 dB (A).
Machine's weight about: 5500 kg.
Length: 2900 mm.
Width: 2400 mm.
Height: 2700 mm.
Coolant system: 150 l.

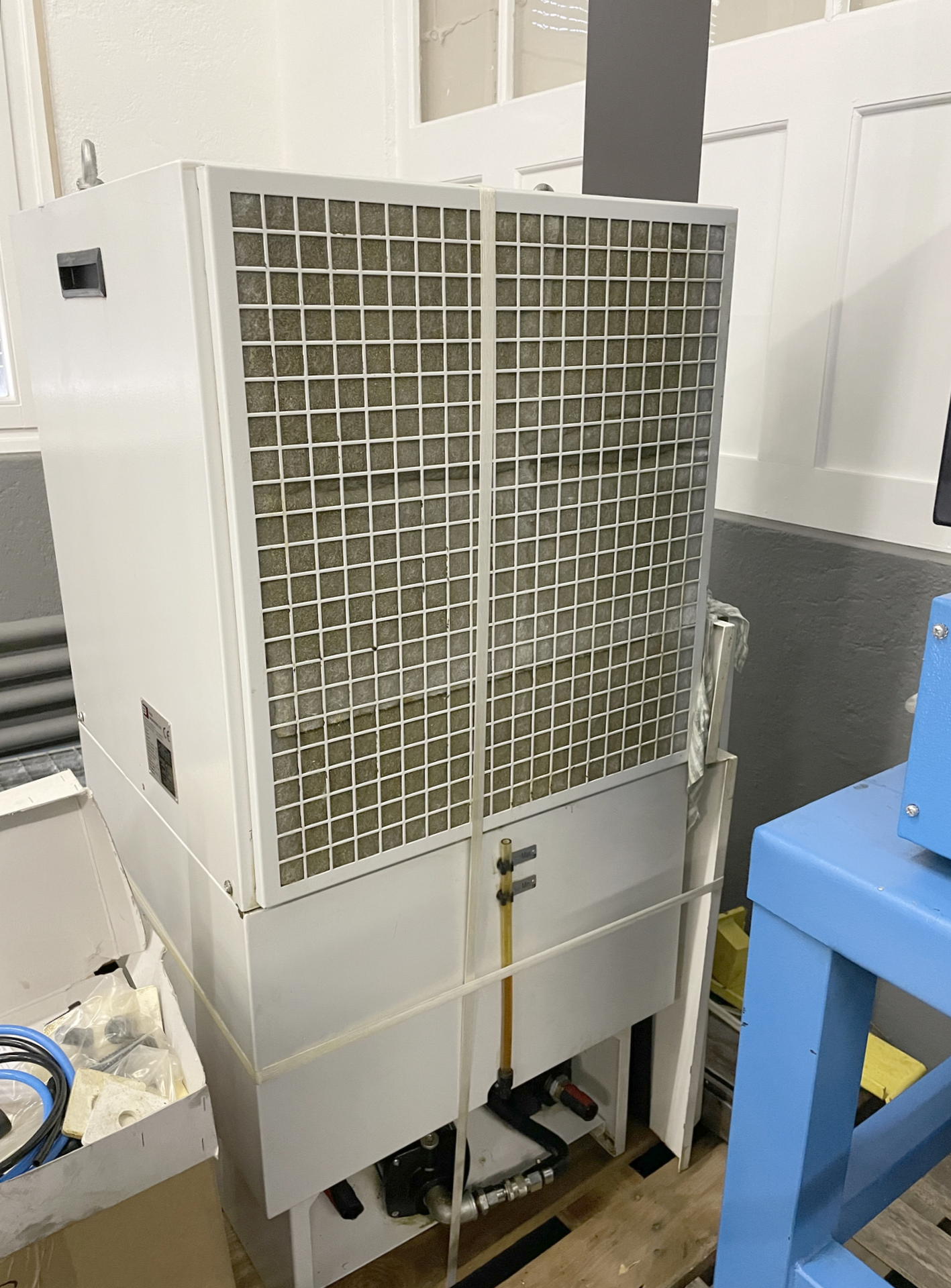

Water cooler: BURN.
Infrared measuring sensor: m&h.
