MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

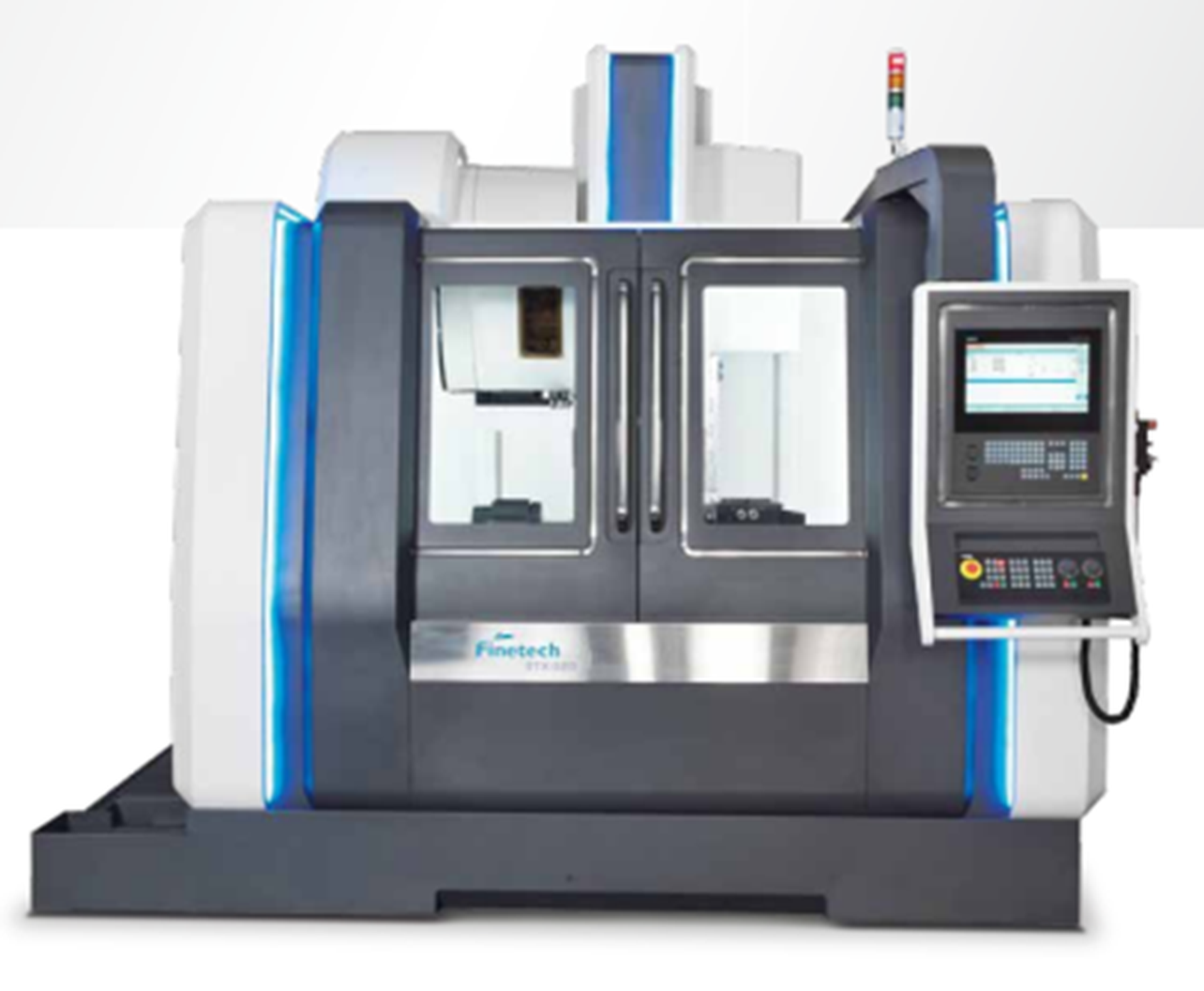

  • 021969 - FINETECH SMV 1370 H3L
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Table length: 1450 mm.
Table width: 700 mm.
Number of T-channels: 5.
Distance of the T-slots: 100 mm.
T-channel width: 18 mm.
Table load max.: 1500 kg.
Longitudinal travel (X-axis): 1300 mm.
Transversal travel (y-axis): 700 mm.
Vertical travel (z axis): 700 mm.
Tool magazine number of tool places: 30.
Spindle nose: BT: 40.
Distance spindle nose to table: 130 - 830 mm.
from: 0 t/min.
up to: 12000 t/min.
Rapid traverse:: 25 m/min.
Spindle motor: 18.5 kW.
Total power required: 45 kVA.
Machine's weight about: 9000 kg.
Length: 4188 mm.
Width: 2414 mm.
Height: 2560 mm.
Coolant system: 510 l.

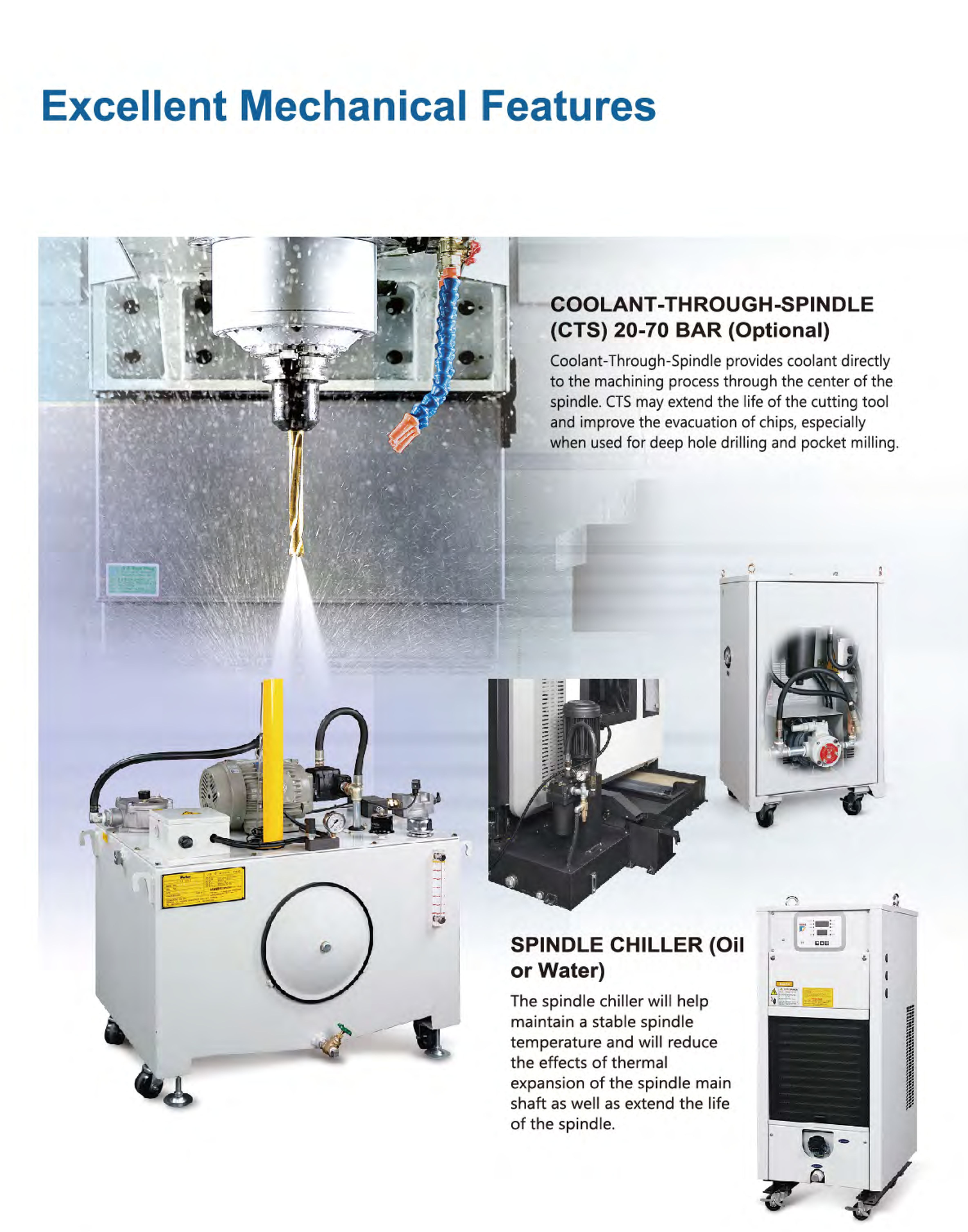

Coolant through spindle (cts): 20 bar.
