MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 022440 - SCHAUBLIN 102-82
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 375 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
Spindle hole: 25 mm.
Inner taper type: 25 W.
from: 280 t/min.
up to: 3000 t/min.

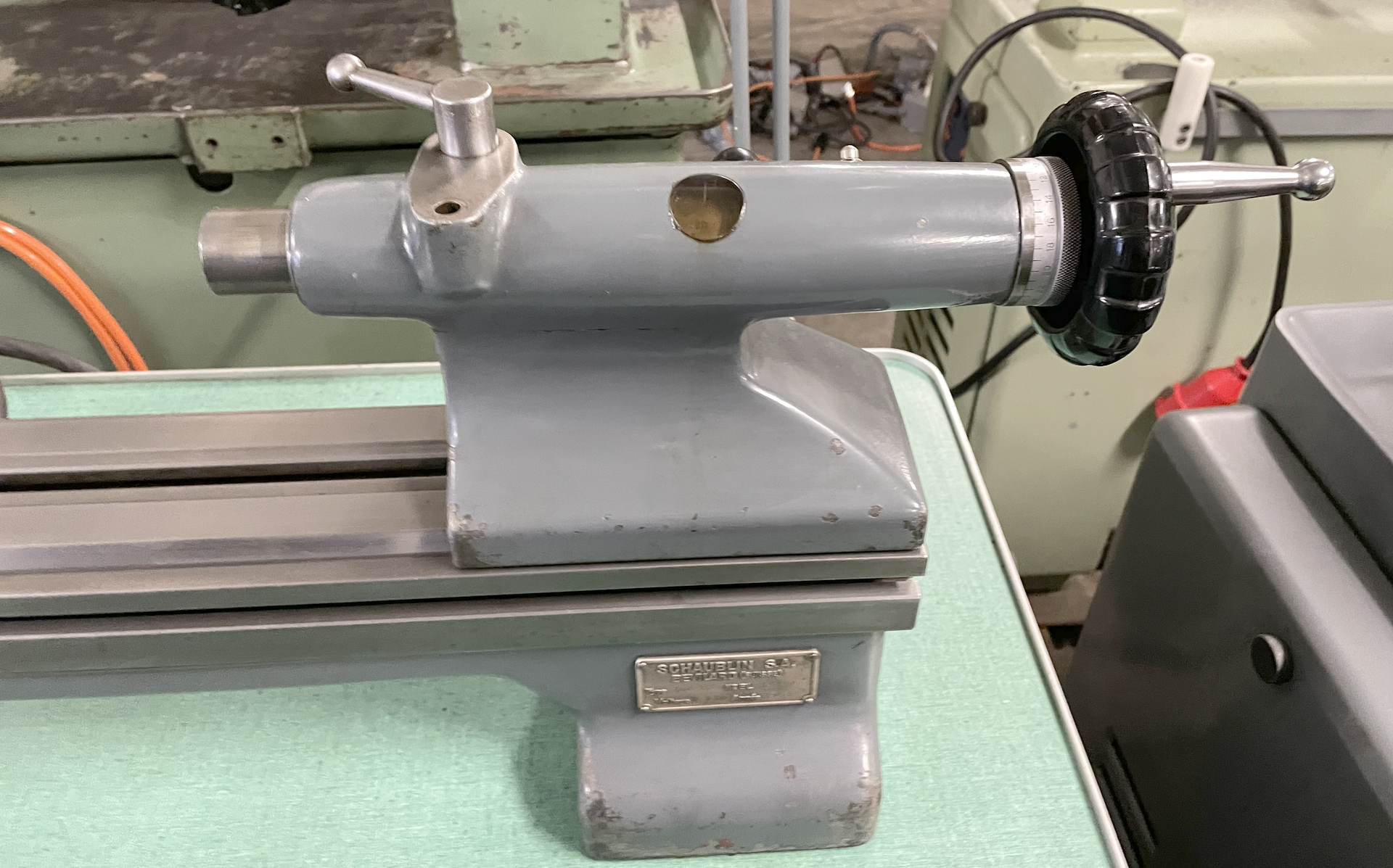

Taper in tailstock:: 2 CM.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.5 CV.
Machine's weight about: 550 kg.
Length: 1200 mm.
Width: 700 mm.
Height: 1400 mm.
Face plate diameter: mm.
