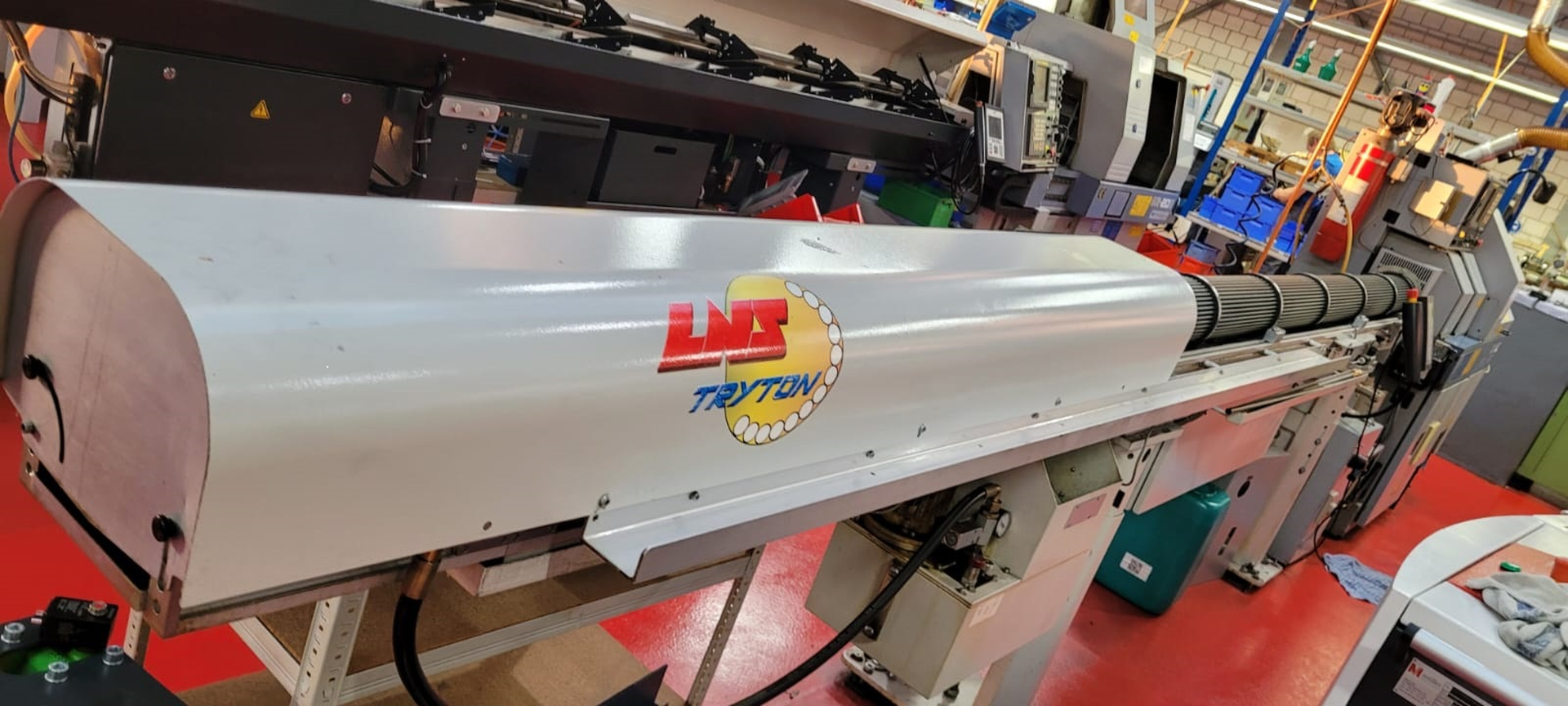

Number of axis total: 5. Number of spindles: 2. Max. turning diameter: 16 mm. Max. drilling diameter: 7 mm. Max. threading diameter: 6 M. from: 500 t/min. up to: 8000 t/min. Spindle power: 2.2 kW. C axis (spindle,resolution): 15 °. Thread drill diameter: 3 M. Turning tools: 6 pce. Drilling tools: 2 pce. Transverse processing tools: 3 pce. Spindle speeds (turning tools): 7500 t/min. number of tools: 4. Rapid traverse:: 18 m/min. Cutting speed: 10000 mm/min. Voltage 50 Hz 3x: 400 Volt. Spindle motor: 2.2 / 3.7 kW. Power of back spindle: 0.5 kW. Air connect: 5 bar. Total power required: 6 kVA. Machine's weight about: 1700 kg. Length: 2090 mm. Width: 770 mm. Height: 1660 mm. Manufacturer: LNS. Type: TRYTON 112. Bar diameter: 1 - 12 mm. Coolant system: 80 l. Fire extinguishing system: SIEMENS.
