MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Star
  • Model:

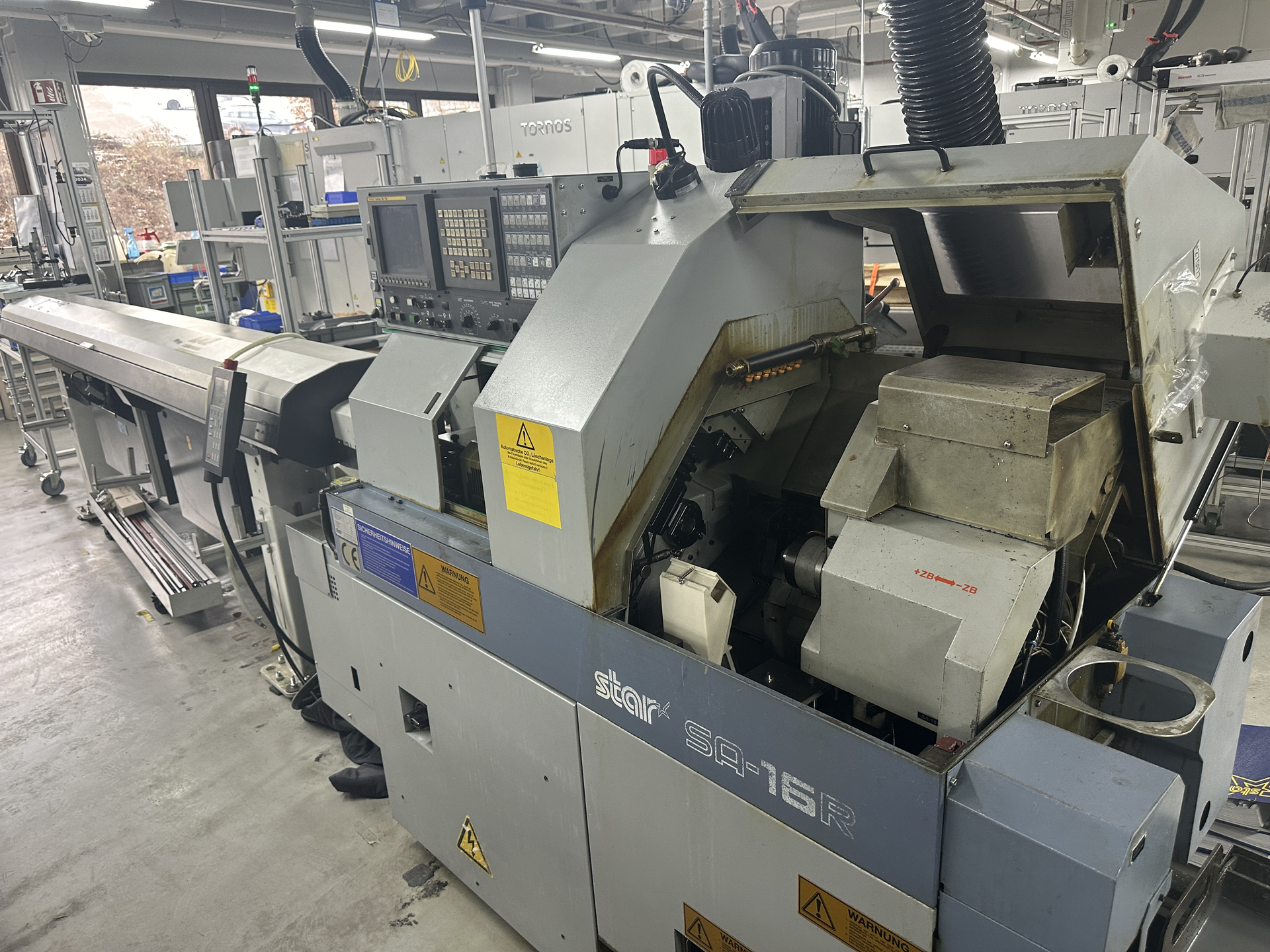

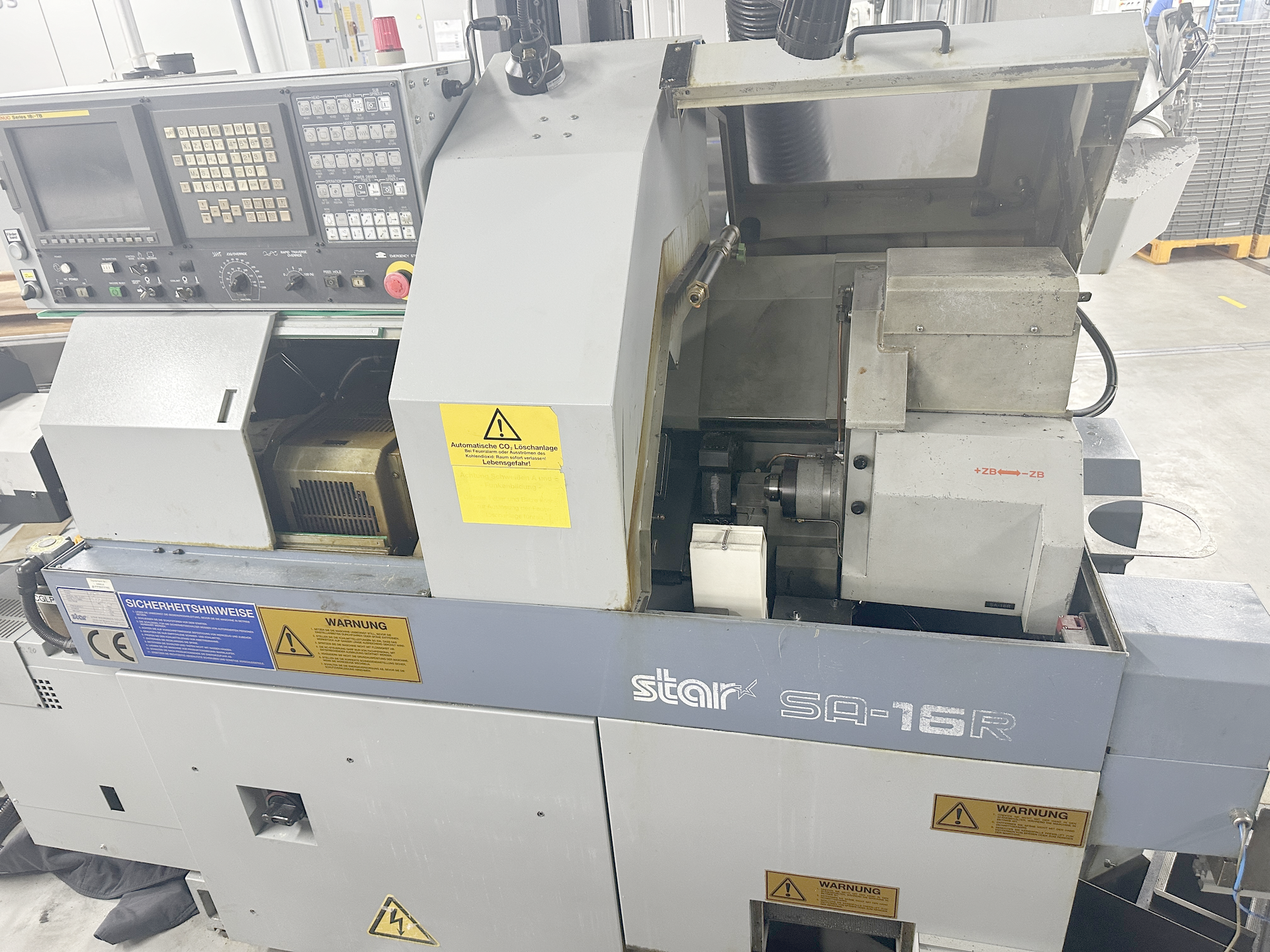

  • 022701 - STAR SA-16 RC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 2.
Max. turning diameter: 16 mm.
Max. drilling diameter: 4 mm.
Max. threading diameter: 6 M.
from: 500 t/min.
up to: 9000 t/min.
Spindle power: 2.2 kW.
Thread drill diameter: 3 M.
Back machining workpiece length max.: 85 mm.

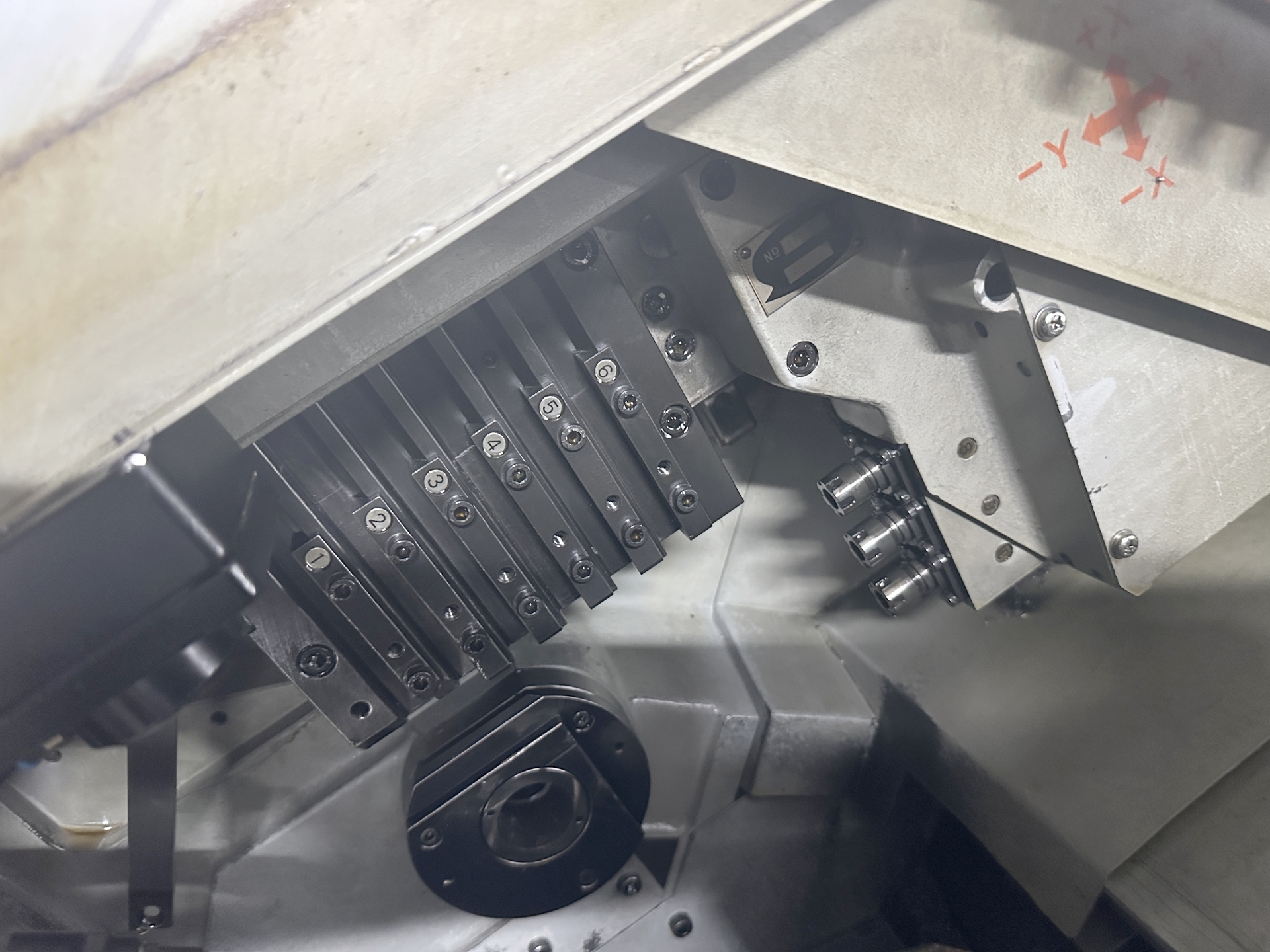

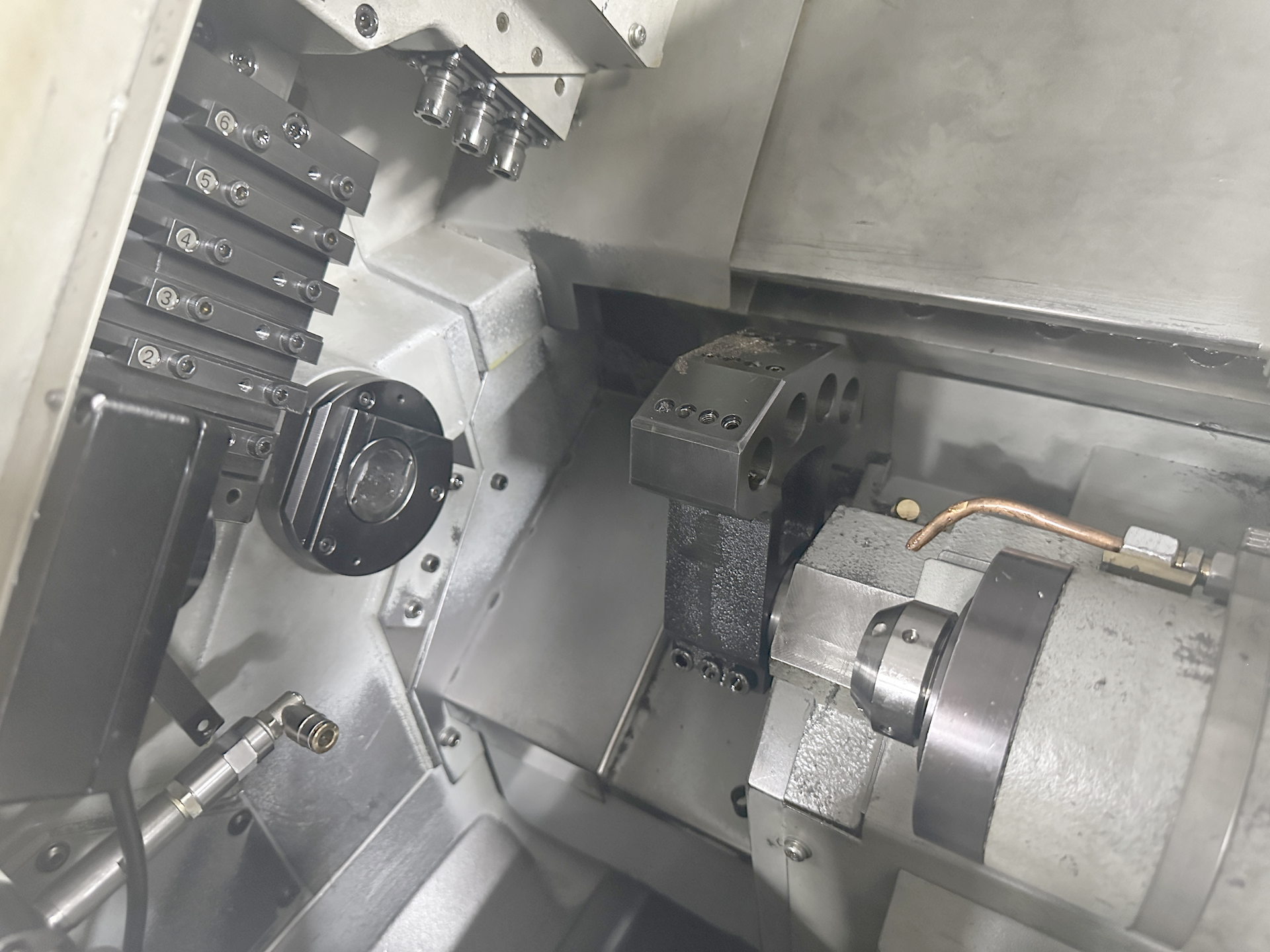

Turning tools: 6 pce.
Drilling tools: 4 pce.
Transverse processing tools: 3 pce.
Spindle speeds (turning tools): 7500 t/min.
Power of driven tools: 0.4 kW.
Tool shank cross section: 10 mm.
Inner taper type: ER 11.
number of tools: 4.
Rapid traverse:: 20 m/min.
Cutting speed: 10000 mm/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 2.2 / 3.7 kW.
Power of back spindle: 1.1 / 0.5 kW.
Air connect: 5 bar.
Total power required: 6 kVA.
Machine's weight about: 1700 kg.
Length: 2090 mm.
Width: 770 mm.
Height: 1660 mm.
Manufacturer: LNS.
Type: EXPRESS 220.
year of manufacture: 2007.
Length of bars max.: 3200 mm.
Bar diameter: 2 - 20 mm.

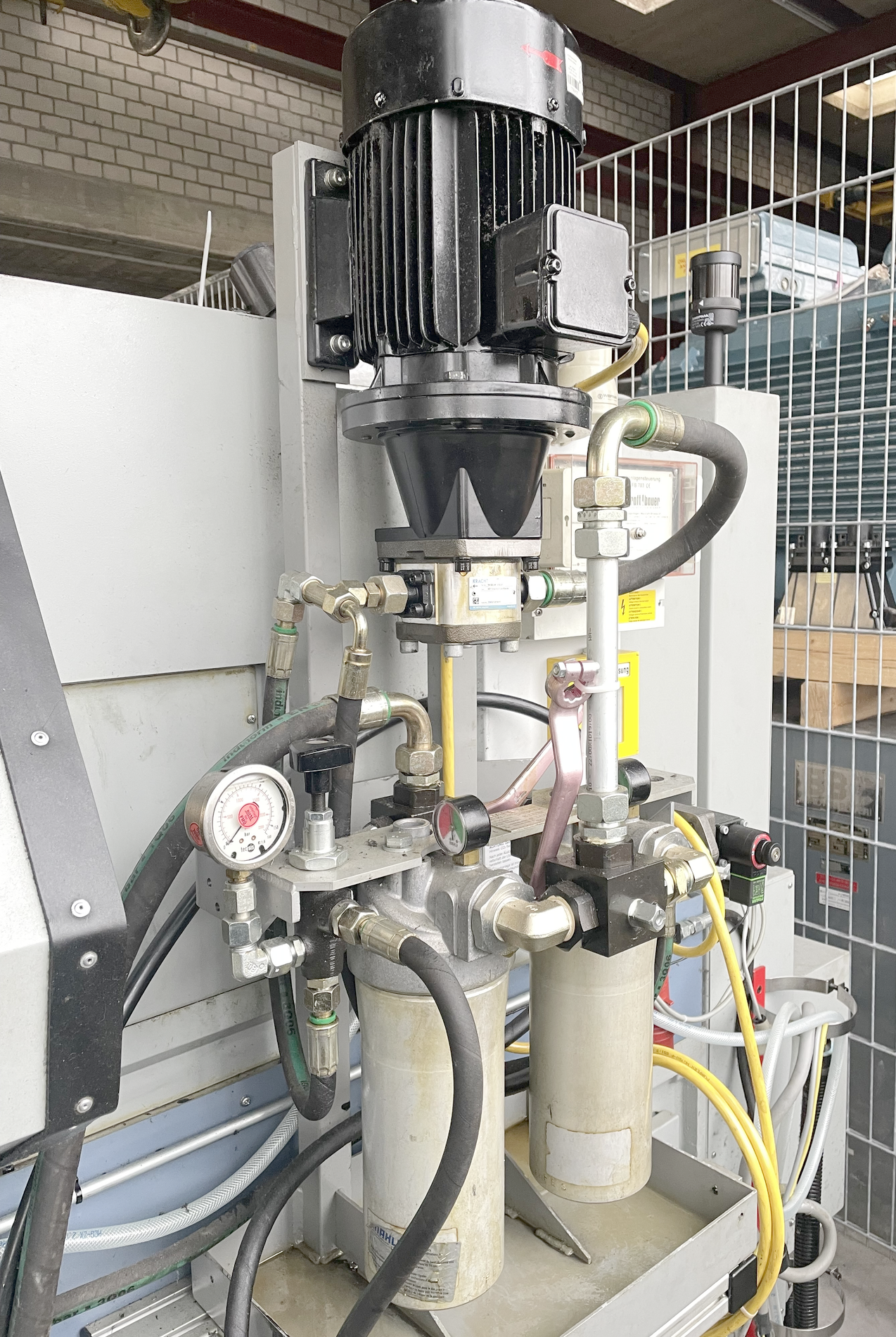

Coolant system: 80 l.
