MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • 022773 - ABA EL 1006
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

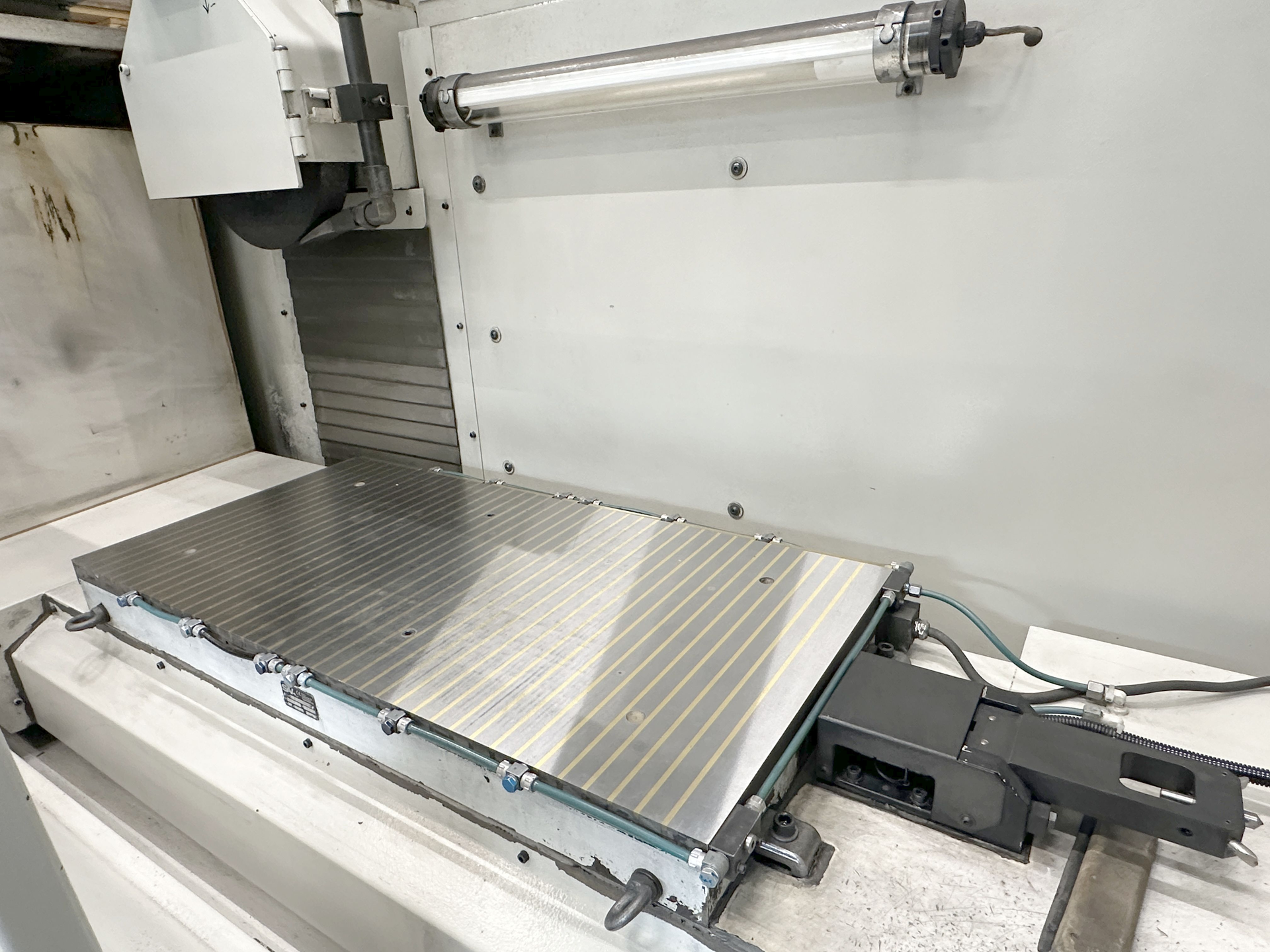

Table length: 1000 mm.
Table width: 500 mm.
Grinding length: 1000 mm.
Grinding width: 600 mm.
Table load max.: 1000 kg.
to spindle-centreline: 700 mm.
Longitudinal travel (X-axis): 1300 mm.
Cross travel (z-axis): 600 mm.
Transversal travel (y axis): 530 mm.
from: 1000 t/min.
up to: 2600 t/min.
Diameter of grinding wheel: 400 mm.
Width of the grinding wheel: 60 mm.
Max. grinding wheel width: 80 mm.
Wheel int. diameter: 127 mm.
Smallest step: 1 µm.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 11 kW.
Machine's weight about: 5600 kg.
Length: 1000 mm.
Width: 500 mm.
Height: 1850 mm.
Coolant system: 250 l.
Oil mist extractor: AIRTECH.
