MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Mori Seiki

Model:
022873 - MORI SEIKI SV-503B/40

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Number of axis total: 4.
Table length: 1320 mm.
Table width: 600 mm.
Table load max.: 1200 kg.
Longitudinal travel (X-axis): 1050 mm.
Transversal travel (y-axis): 510 mm.
Vertical travel (z axis): 510 mm.

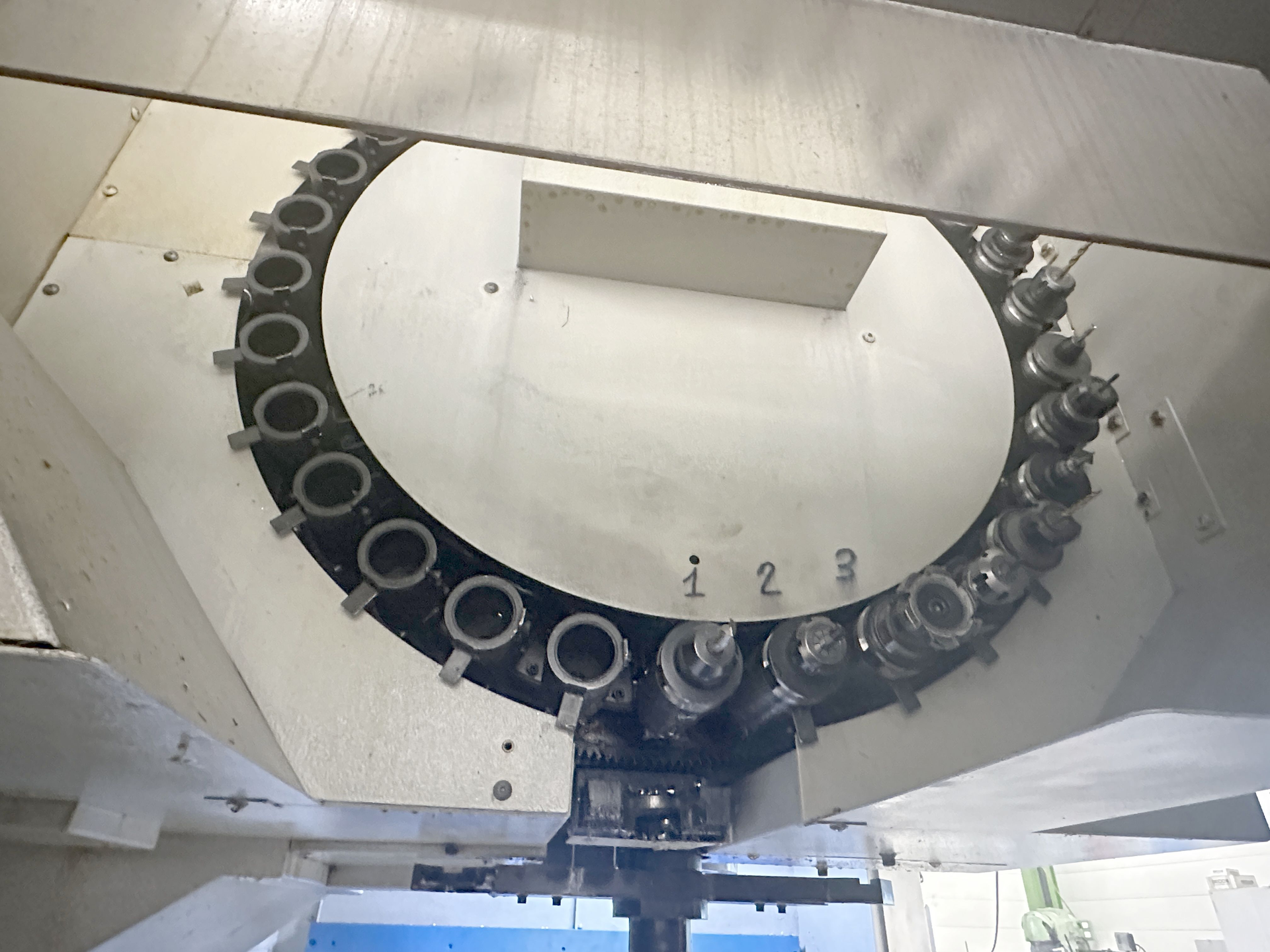

Tool magazine number of tool places: 30.

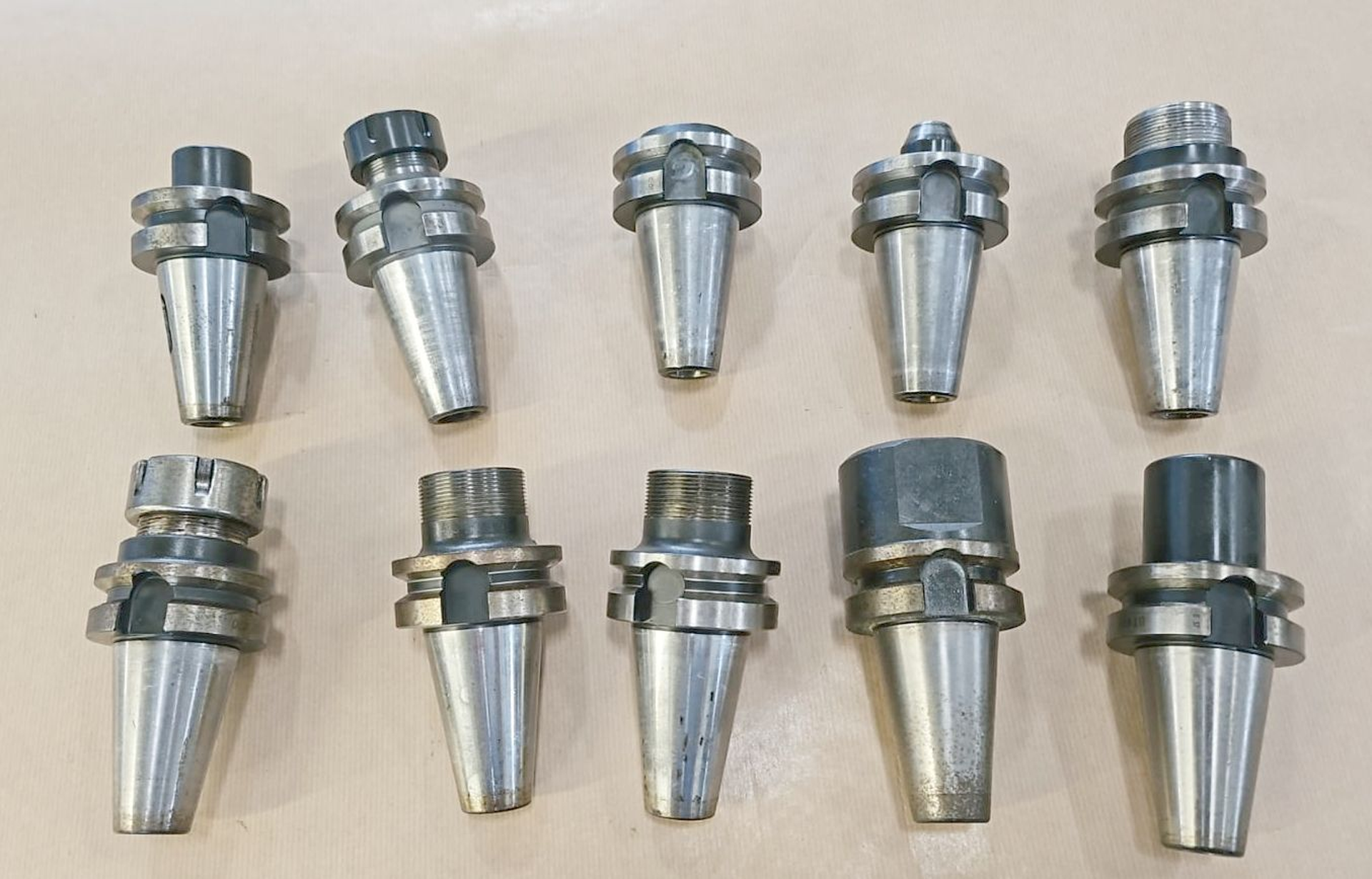

Spindle nose: BT: 40.
from: 0 t/min.
up to: 10000 t/min.
Voltage 50 Hz 3x: 200 Volt.
Spindle power: 22 kW.
Total power required: 58 kVA.
Machine's weight about: 8030 kg.
Length: 2500 mm.
Width: 2350 mm.
Height: 2700 mm.
Coolant through spindle (cts): 30 bar.

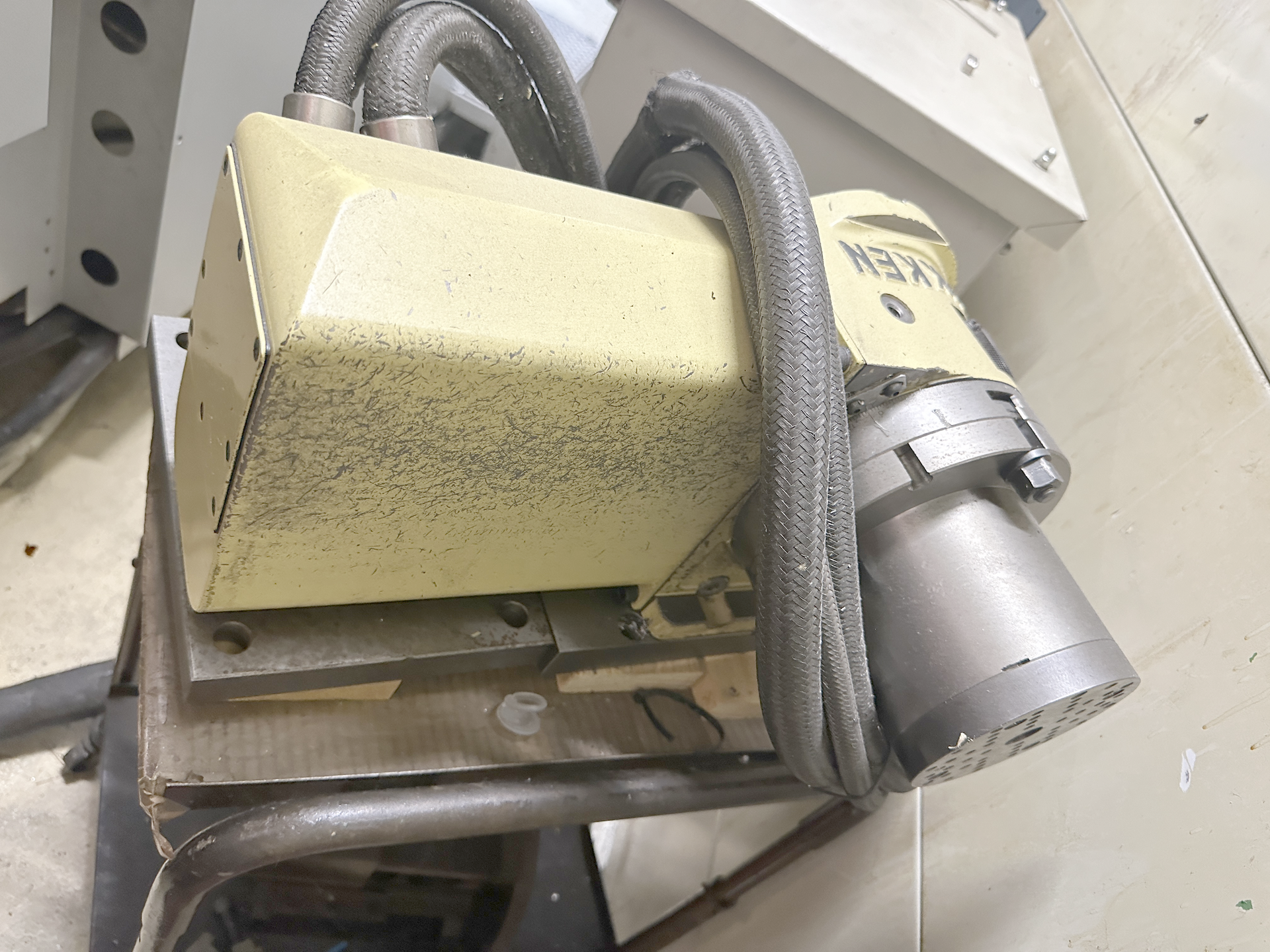

Dividing attachment: NIKKEN.
