MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

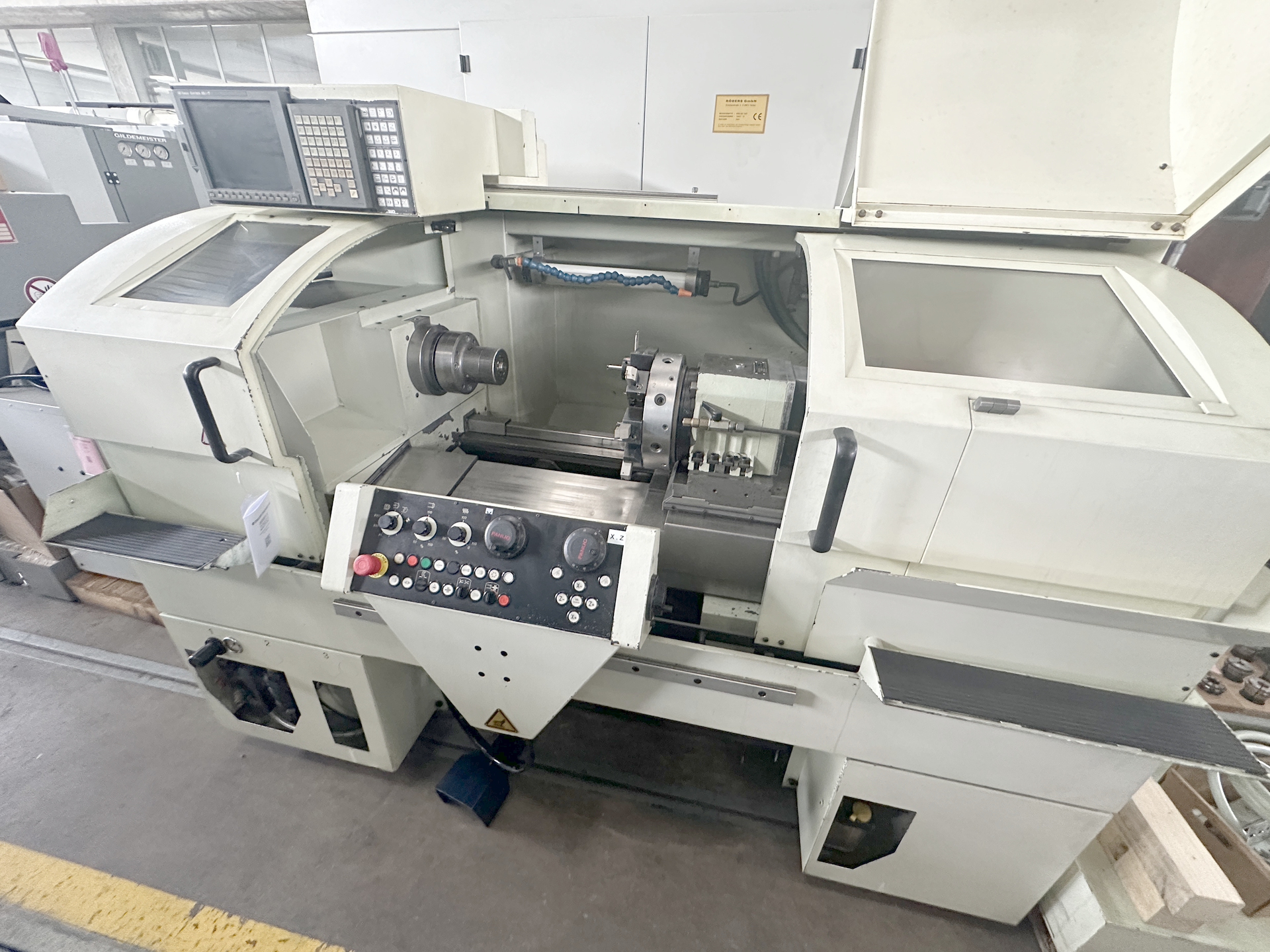

  • 022932 - SCHAUBLIN 180 CCN R-T
  • Condition:
  • 1
  • YOM:
  • NA

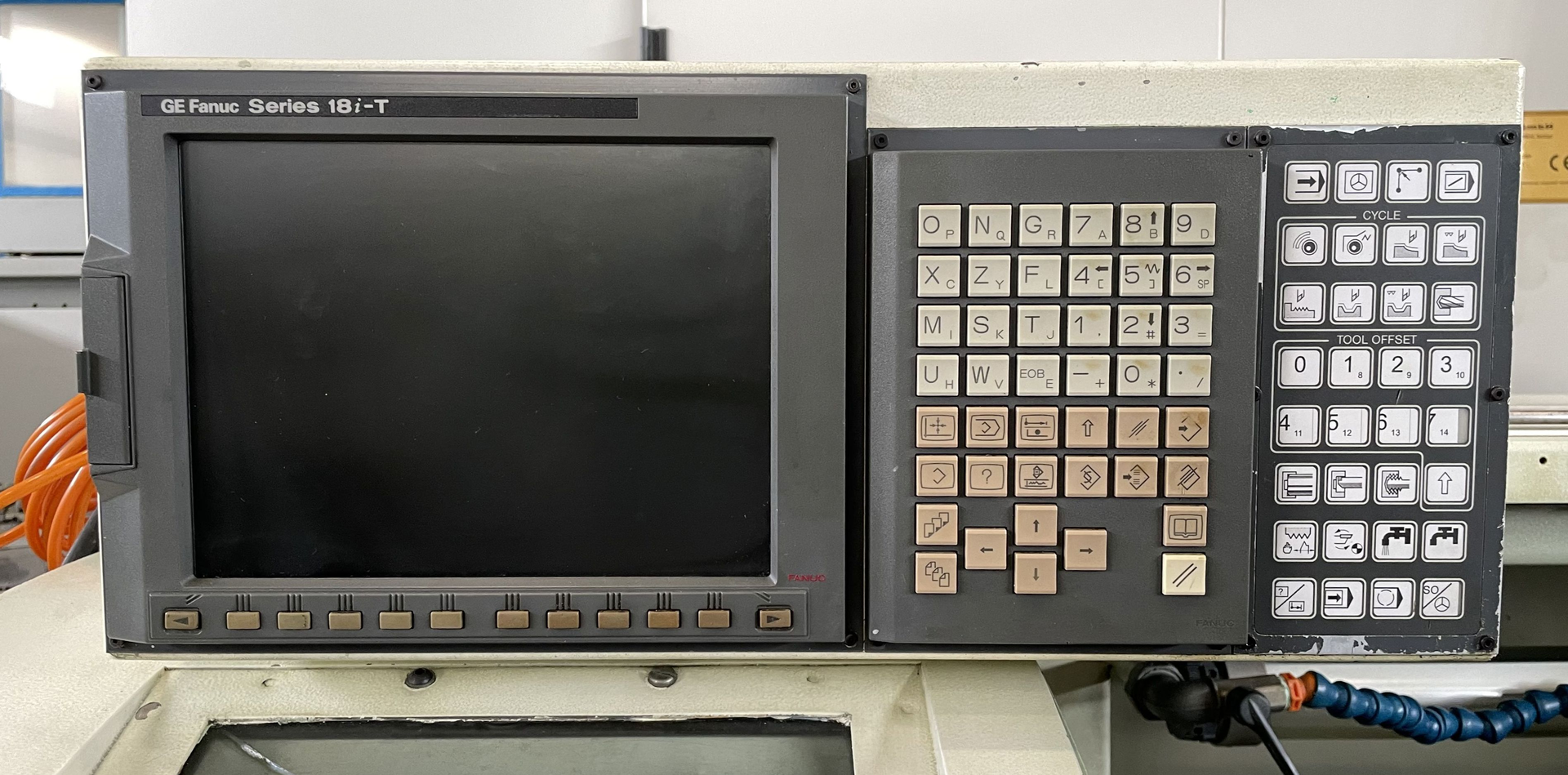

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 275 mm.
Distance between centres: 600 mm.
Swing over cross-slide: 150 mm.
Swing over bed: 600 mm.
Maximum turning length: 630 mm.
Bar passage: 60 mm.
Longitudinal travel (Z-axis): 672 mm.
Transversal strocke (X axis): 230 mm.
Resolution: mm.

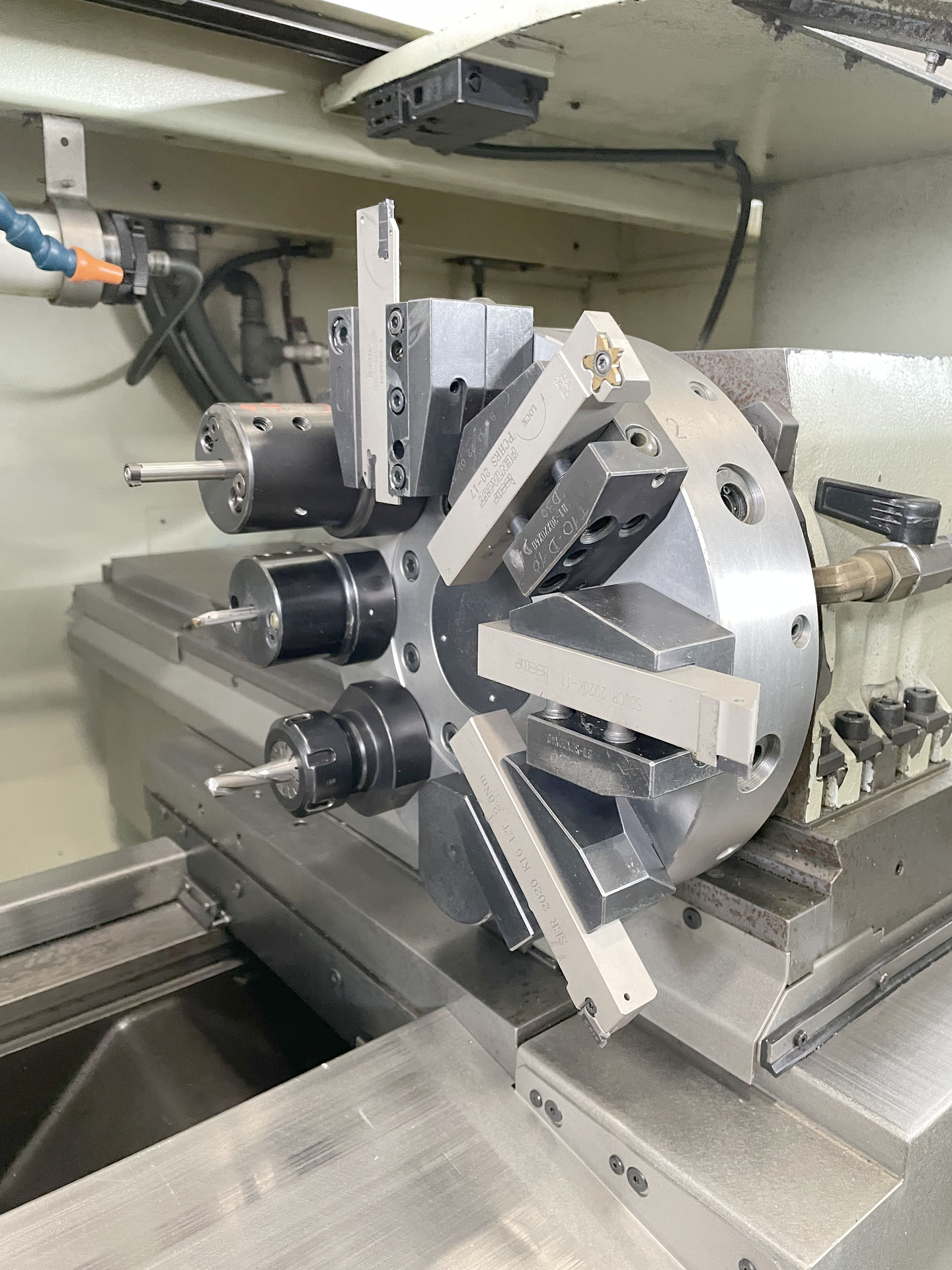

Turret slide:: SAUTER.
Number of positions: 8.
Fixed tools turret: 8.
Inner cone diameter: 20 x 20 mm.
Inner cone DIN: VDI 30.
Camlock: A2-6.
Inner taper type: F48.
from: 30 t/min.
up to: 4000 t/min.

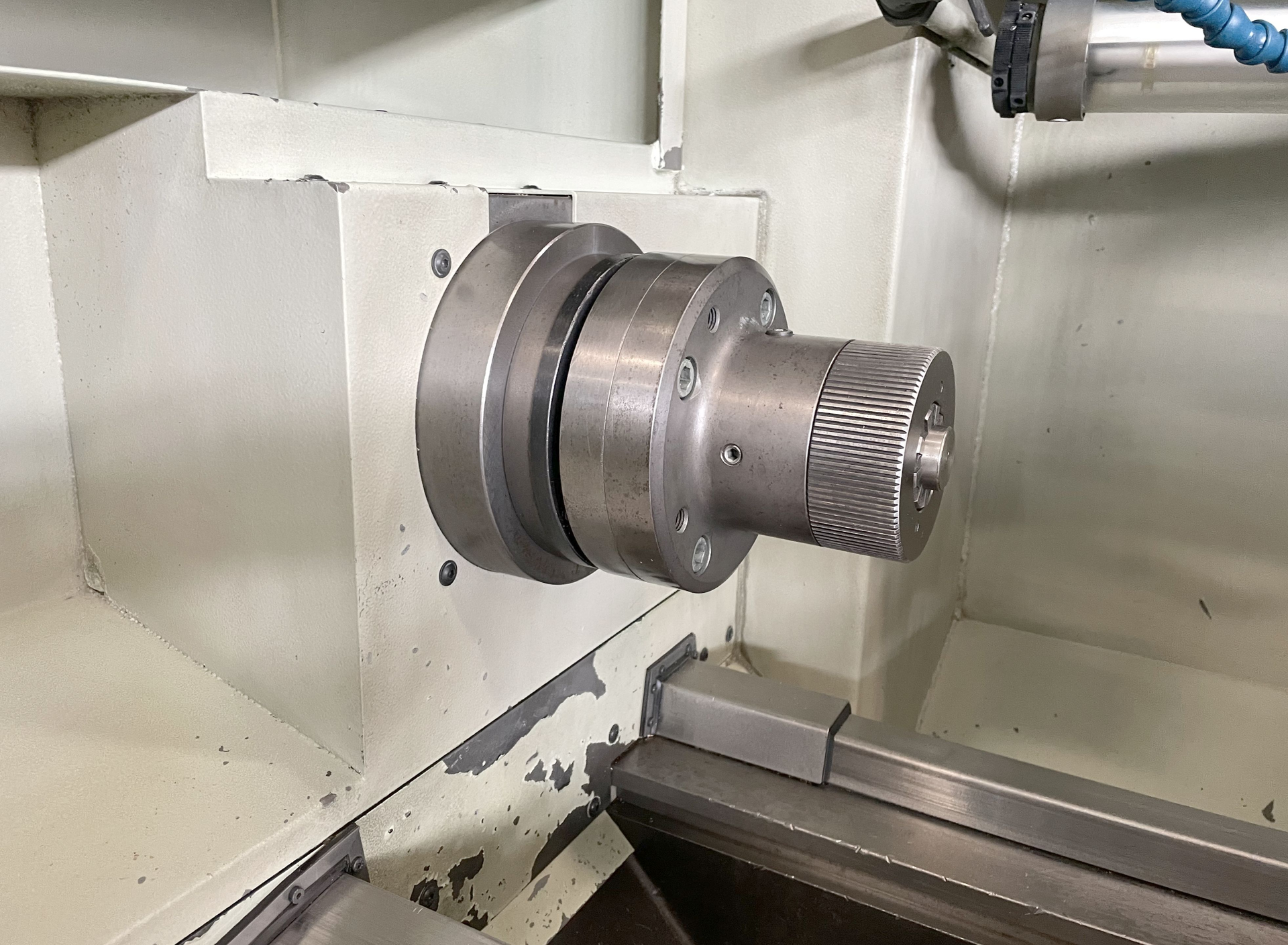

Internal spindle diameter: 60 mm.
Feeds: 0 - 5000 mm/min.
Rapid traverse X: 8 m/min.
Rapid traverse Y: 10 m/min.
Spindle motor: 15 / 18.5 kW.
Air connect: 5 - 7 bar.
Flow rate cooling water pump: 10 l/min.
Voltage 50 Hz 3x: 400 Volt.
Noise level: 75 dB (A).
Total power required: 24 kVA.
Machine's weight about: 2460 kg.
Length: 2301 mm.
Width: 1460 mm.
Height: 1676 mm.

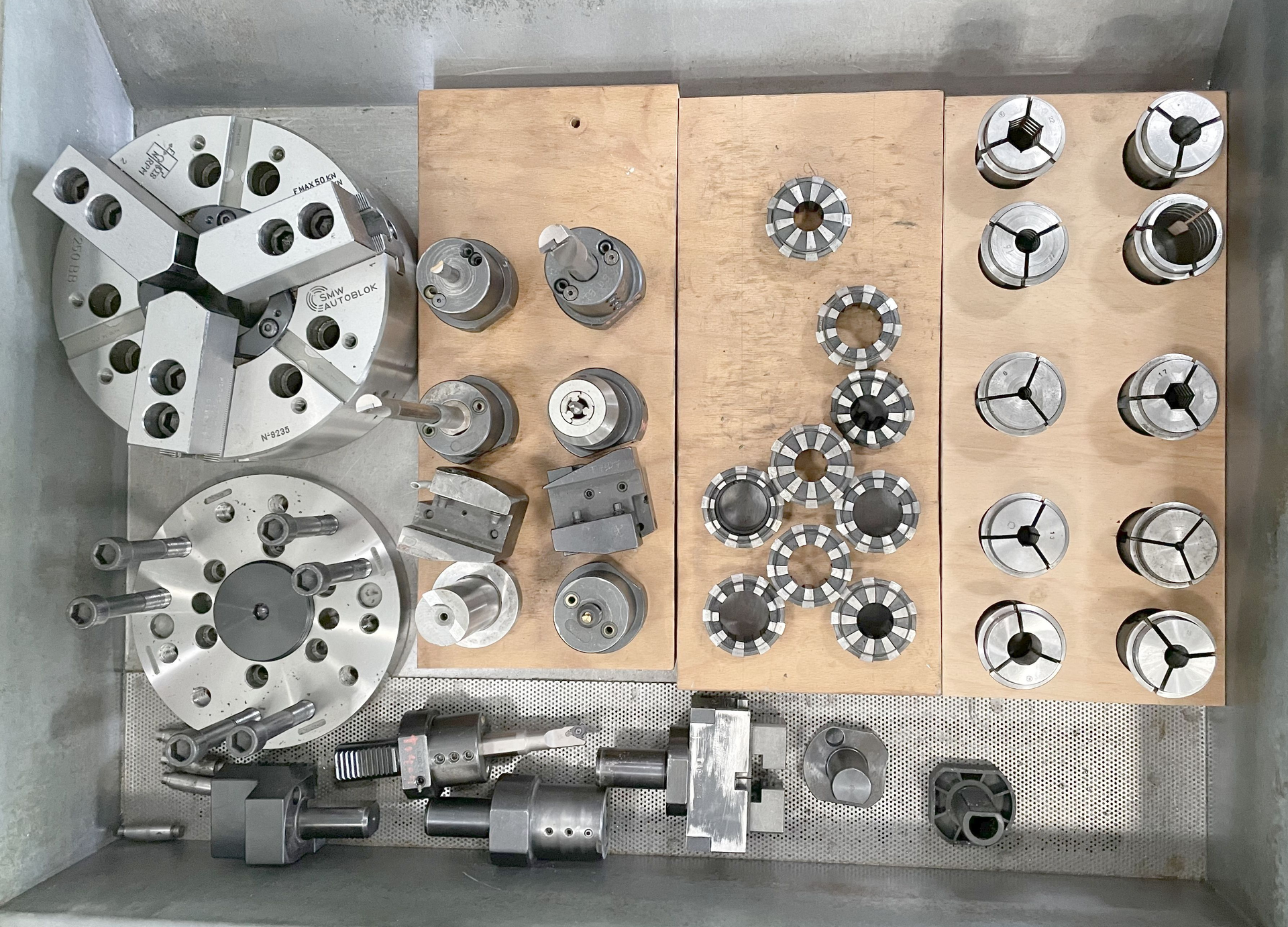

3-jaw chuck diameter: 250 mm.
