MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Technica
  • Model:

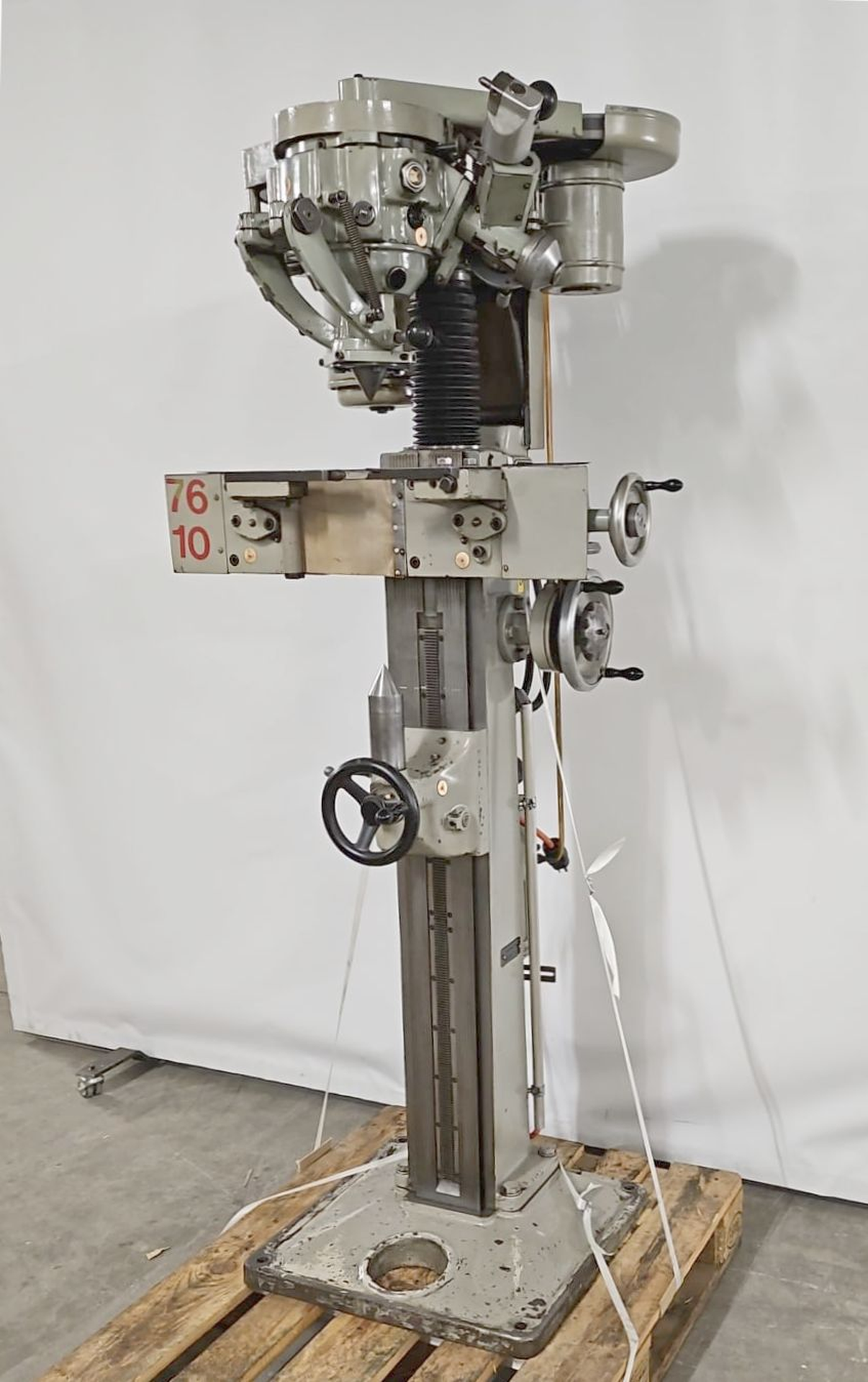

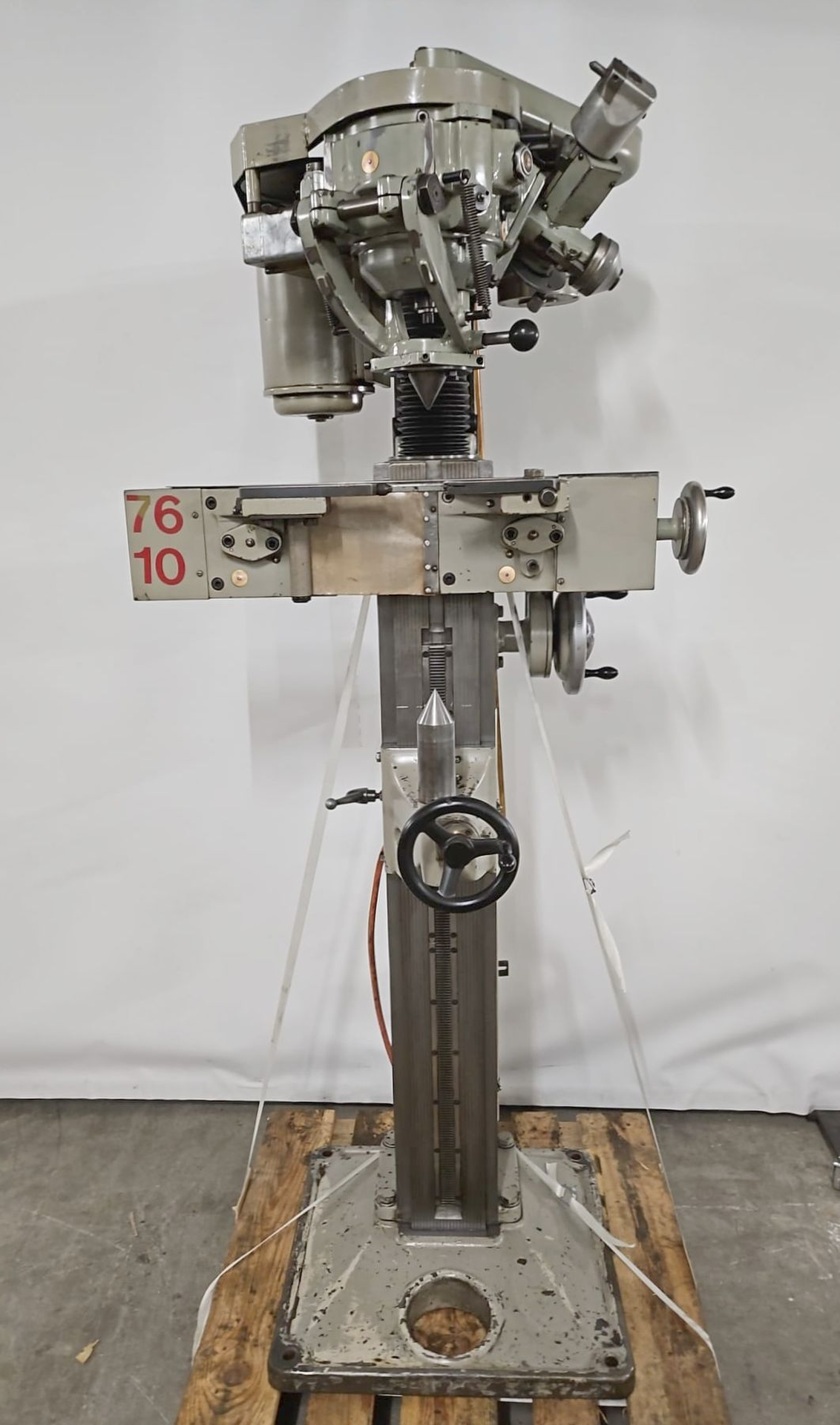

  • 022938 - TECHNICA ZSM 810
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Min. work-piece diameter: 8 mm.
Max. work piece diameter: 125 mm.
Workpiece length min.: 50 mm.
Workpiece length max.: 1100 mm.
Table load max.: 120 kg.

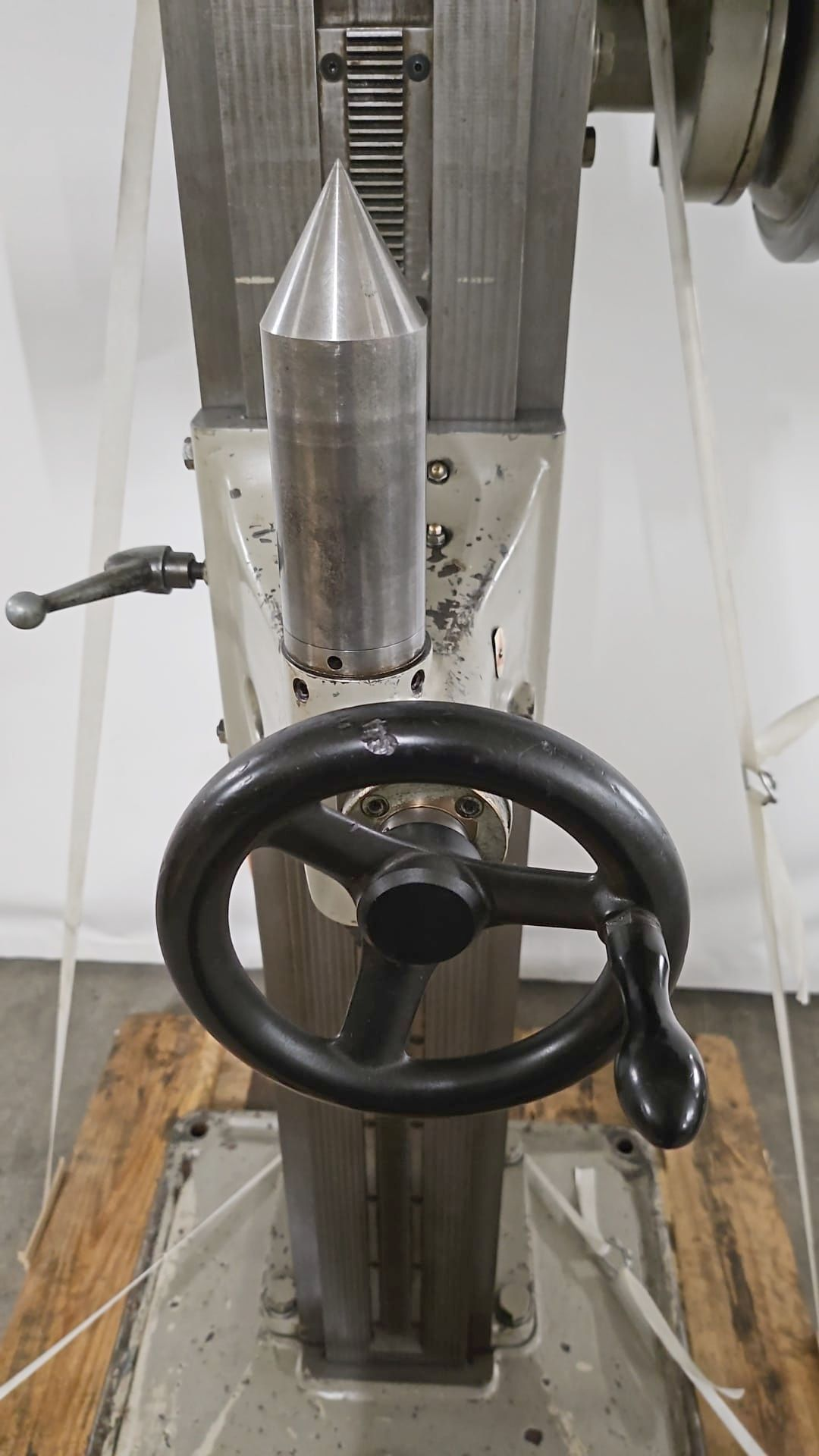

Angle of the centre hole: 60 °.
Taper in centre hole min.: 2 mm.
max: 50 mm.

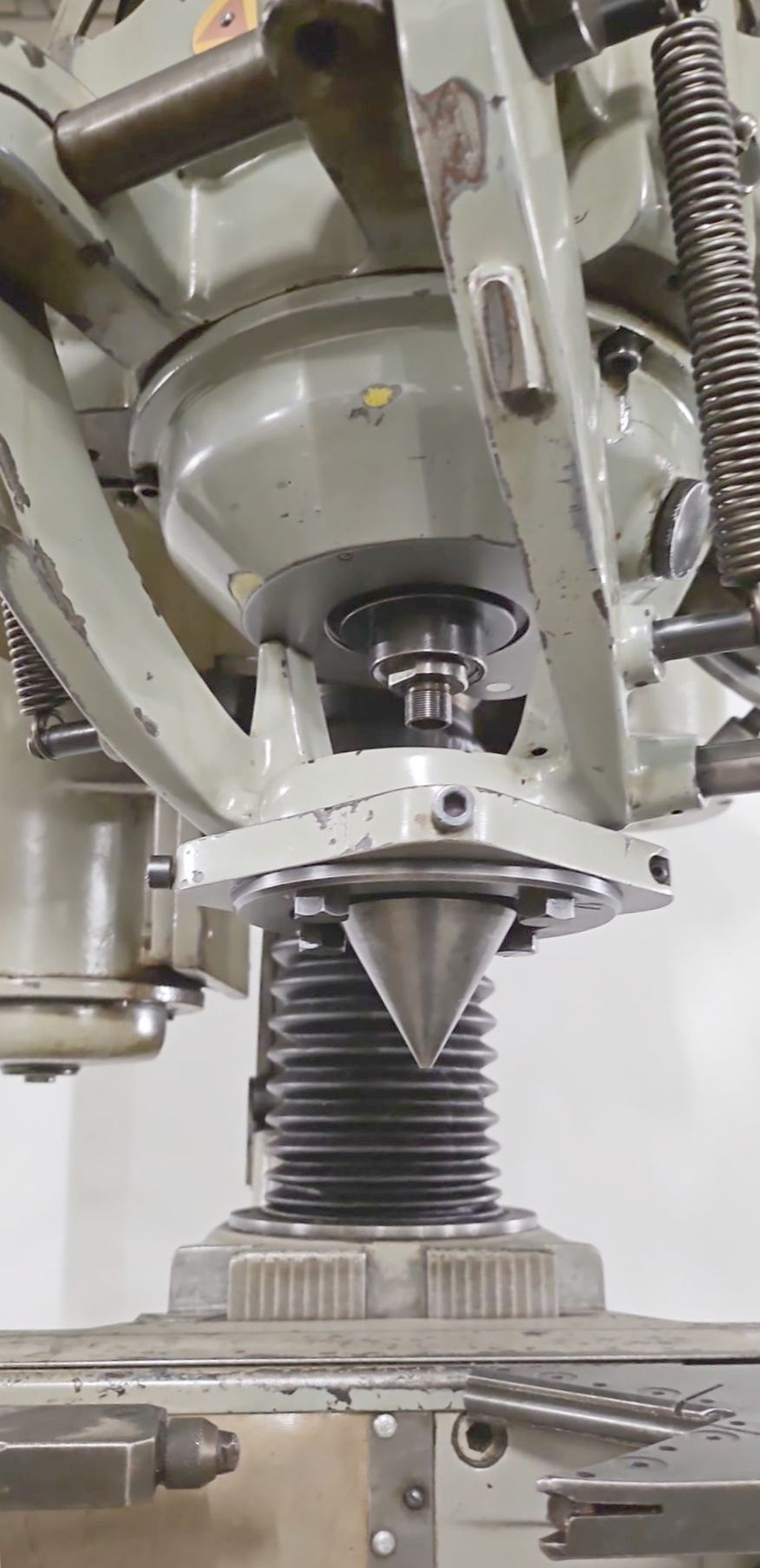

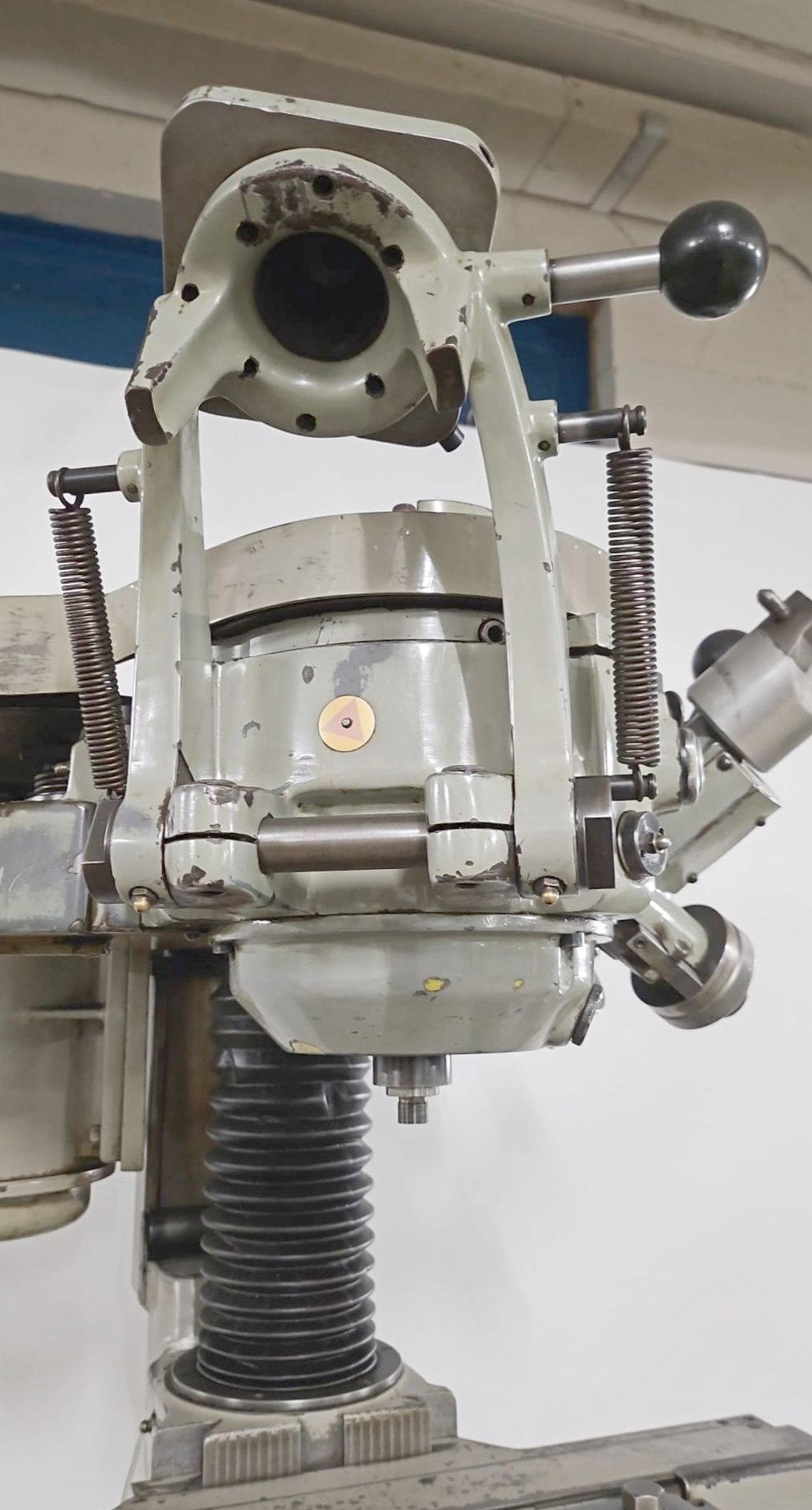

Grinding spindle diameter: 32 mm.

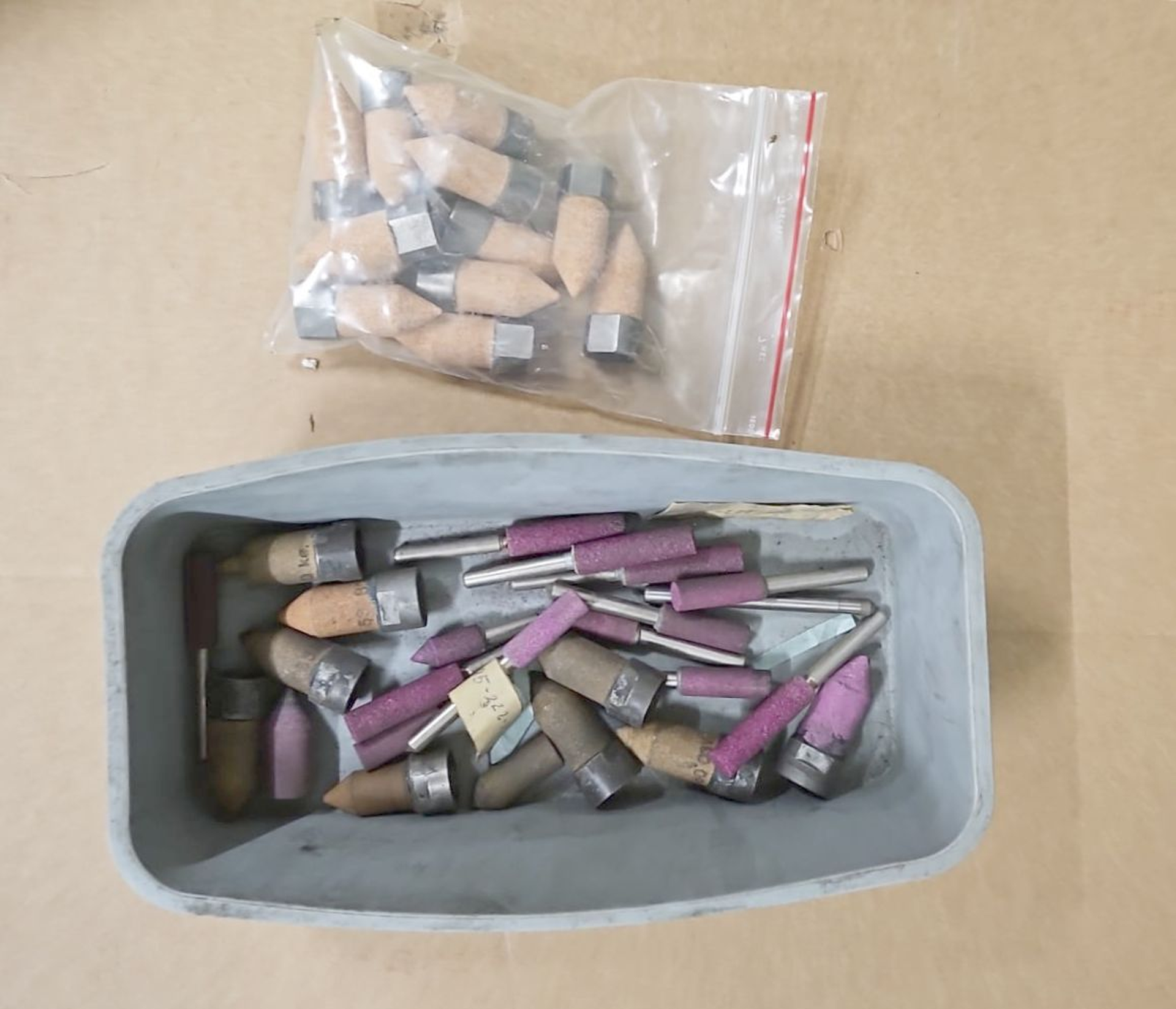

abrasive wheel 15 mm: 45000 t/min.
abrasive wheel 27 mm: 22500 t/min.
abrasive wheel 48 mm: 13000 t/min.
grinding spindle: 0.25 kW.
planetary stroke: kW.
Max. grinding head traverse: 160 mm.
Voltage: 380 Volt.
Length: 1120 mm.
Width: 1070 mm.
Height: 1950 mm.
