MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Star

Model:

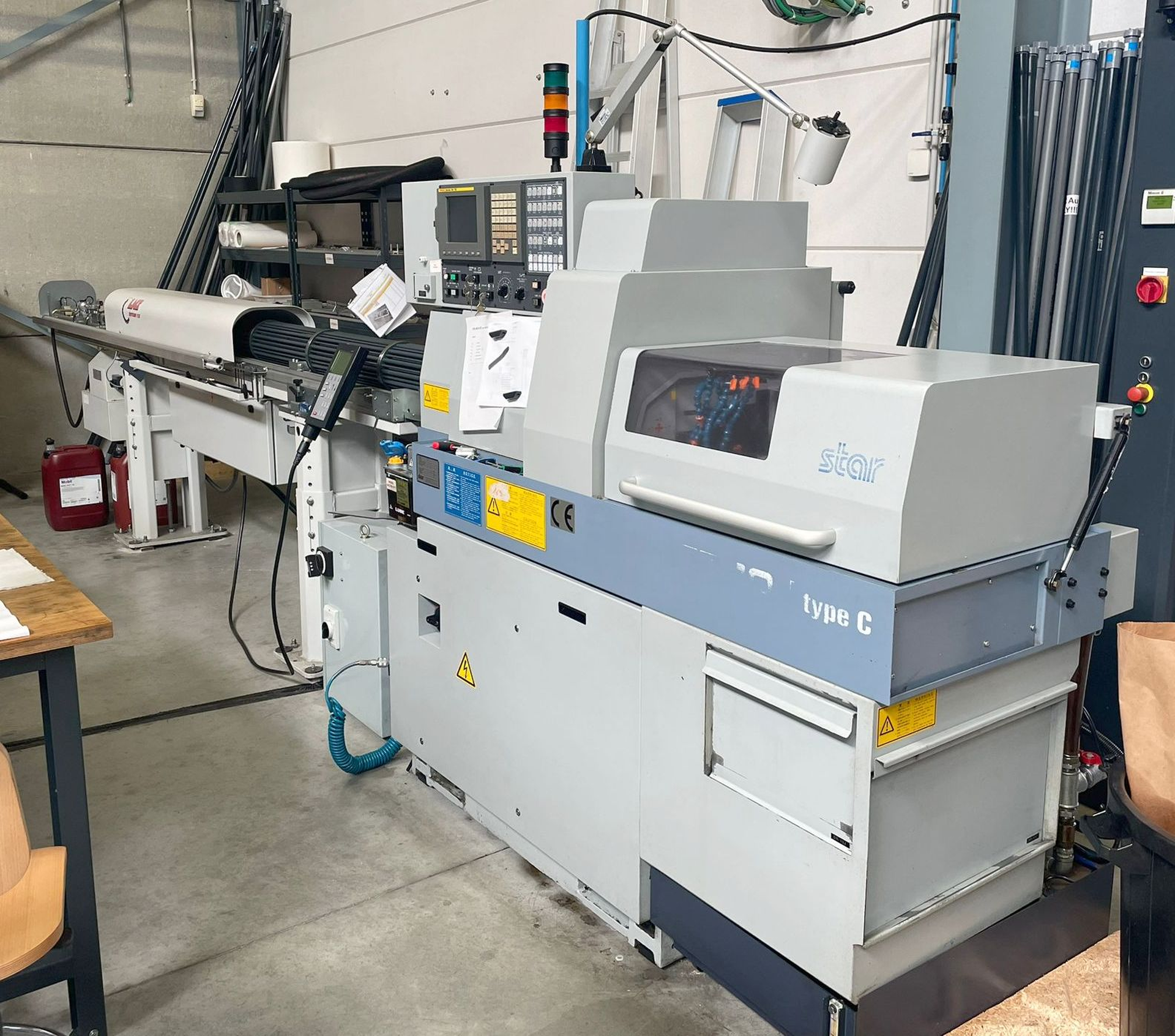

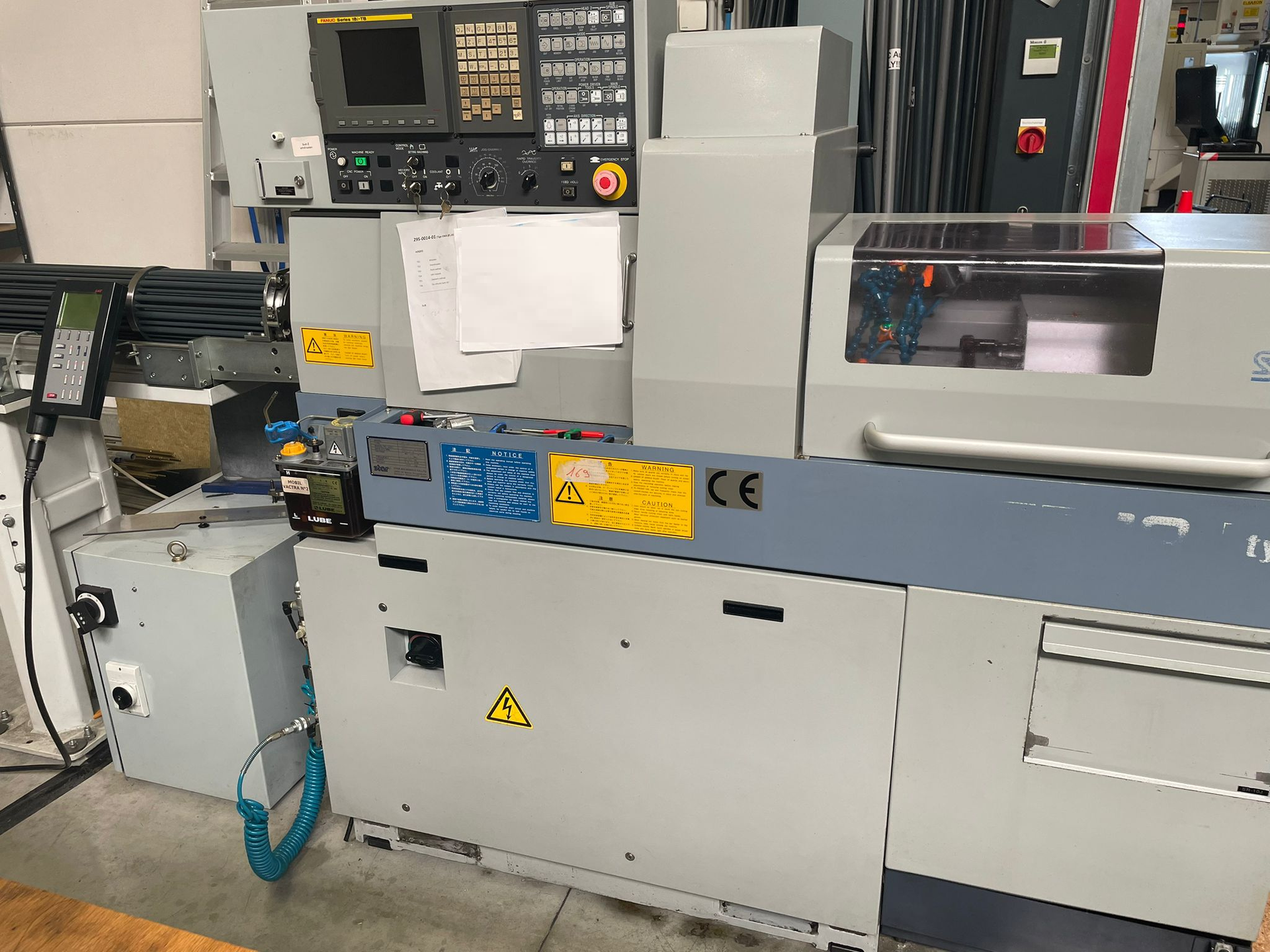

023024 - STAR SR-10 J type C

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Number of axis total: 7.
Number of spindles: 2.
Machining diameter max.: 10 mm.
Maximum turning length: 135 mm.
from: 1 t/min.
up to: 10000 t/min.
Spindle power: 3.7 kW.
C axis (spindle,resolution): °.
number of tools: 13.
Turning tools: 6 pce.
Drilling tools: 8 pce.
Transverse processing tools: 3 pce.
Spindle speeds (turning tools): 250 - 8000 t/min.
Rapid traverse:: 35 m/min.
Voltage 50 Hz 3x: 400 Volt.
Power of back spindle: 1.1 kW.
Total power required: 3 kVA.
Machine's weight about: 1400 kg.
Length: 2000 mm.
Width: 820 mm.
Height: 1800 mm.
Manufacturer: LNS.

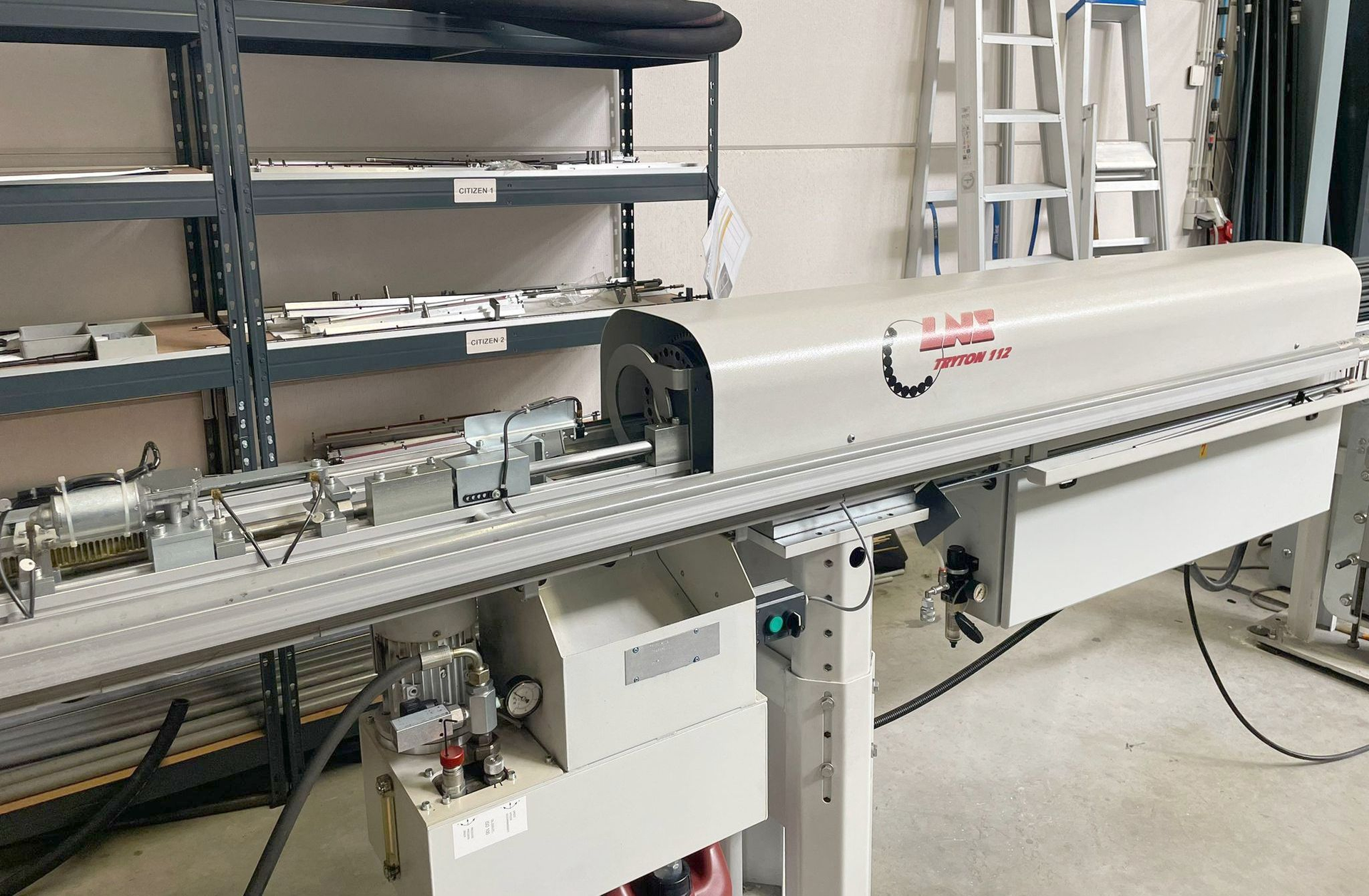

Type: TRYTON 112.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY
