MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Mori Seiki
  • Model:

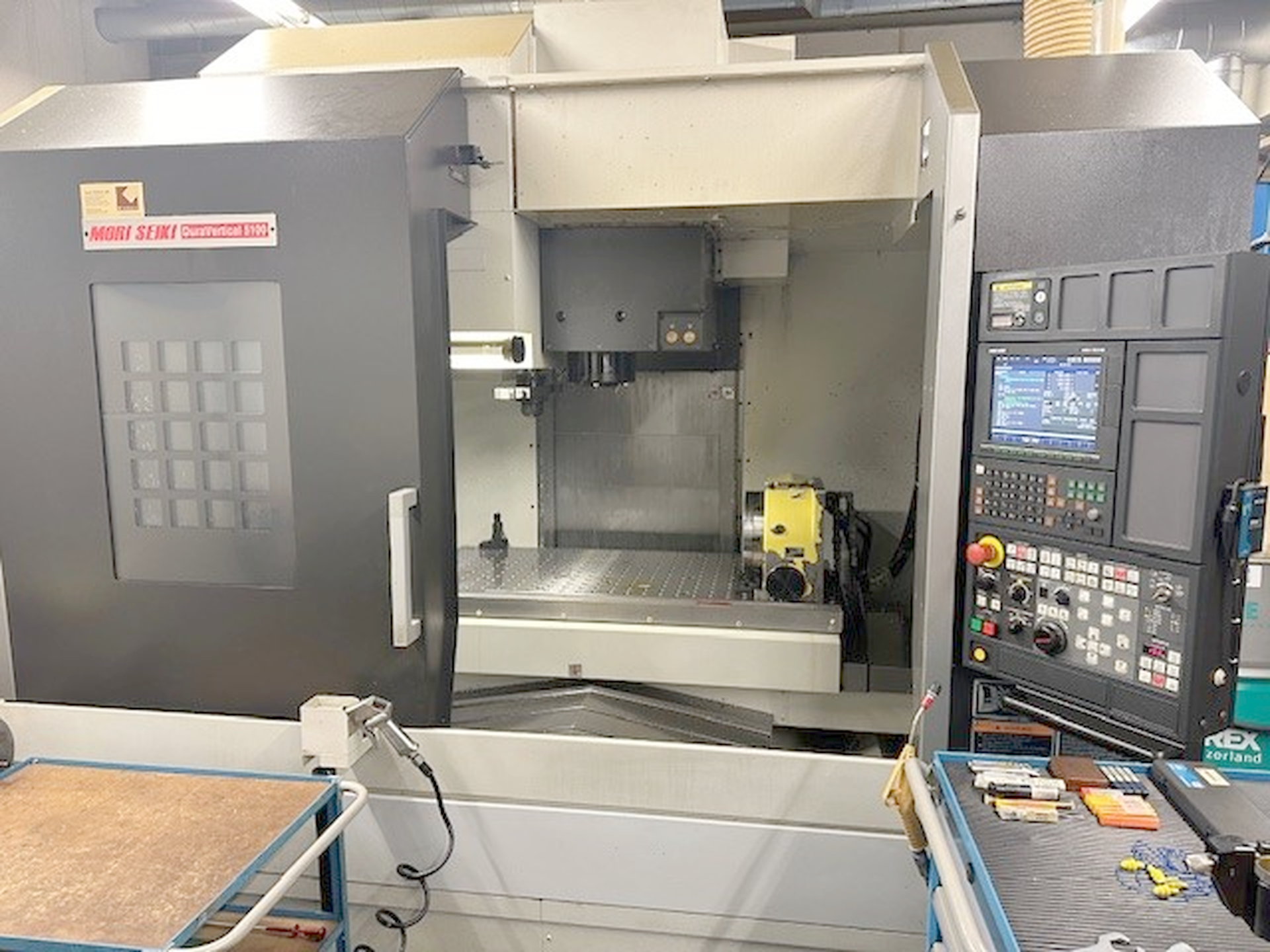

  • 023028 - MORI SEIKI DuraVertical 5100
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.

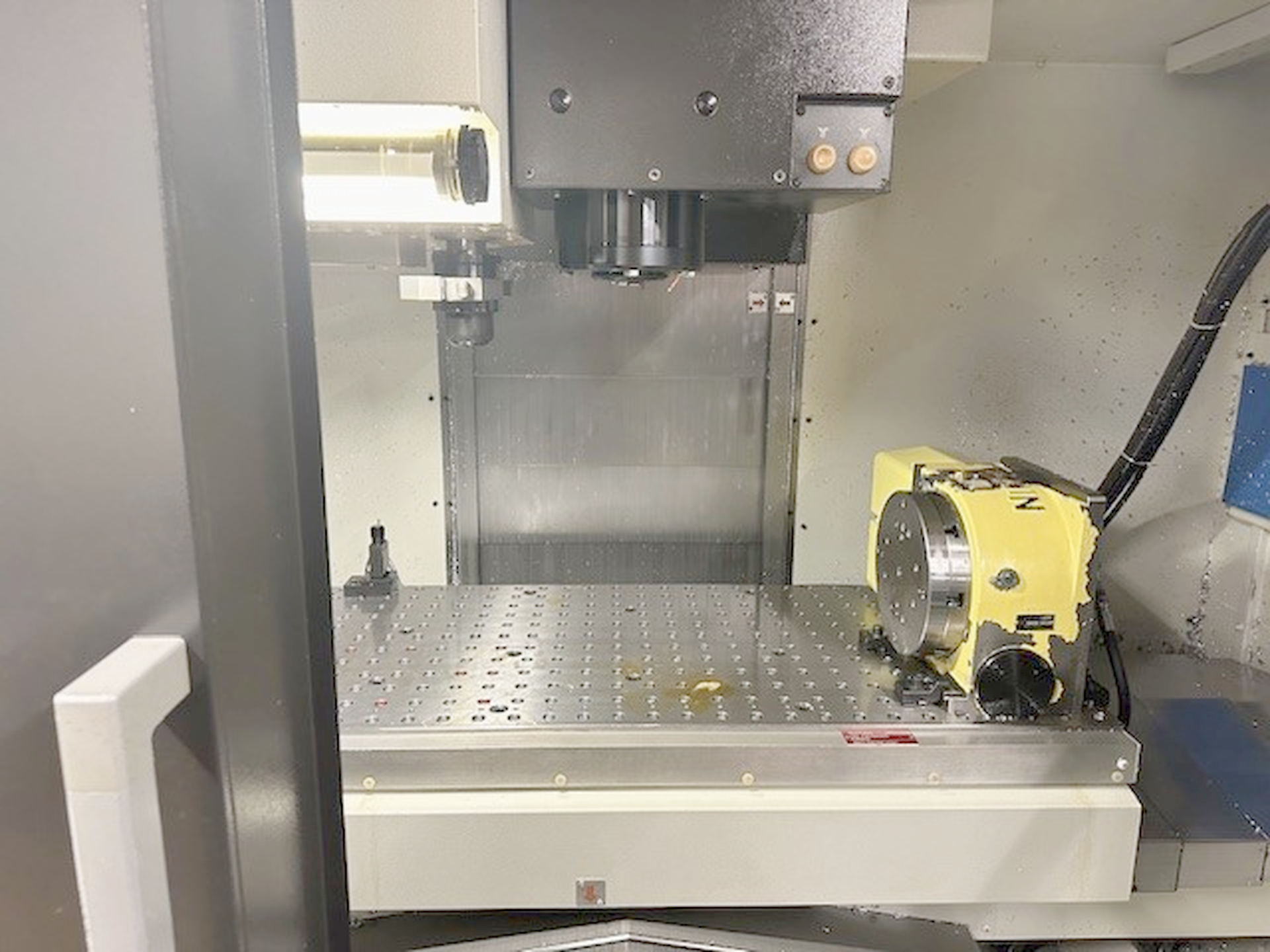

Table length: 1350 mm.
Table width: 600 mm.
Number of T-channels: 6.
T-channel width: 18 mm.
Table load max.: 1000 kg.
Longitudinal travel (X-axis): 1050 mm.
Transversal travel (y-axis): 530 mm.
Vertical travel (z axis): 510 mm.
Tool diameter max.: 125 mm.
Max. tool-weight: 8 kg.
Spindle nose: BT: 40.
Distance spindle nose to table: 150 - 660 mm.
from: 0 t/min.
up to: 10000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 22 kW.
Total power required: 58 kVA.
Machine's weight about: 8030 kg.
Length: 2500 mm.
Width: 2350 mm.
Height: 2700 mm.
Vice: width: 120 mm.

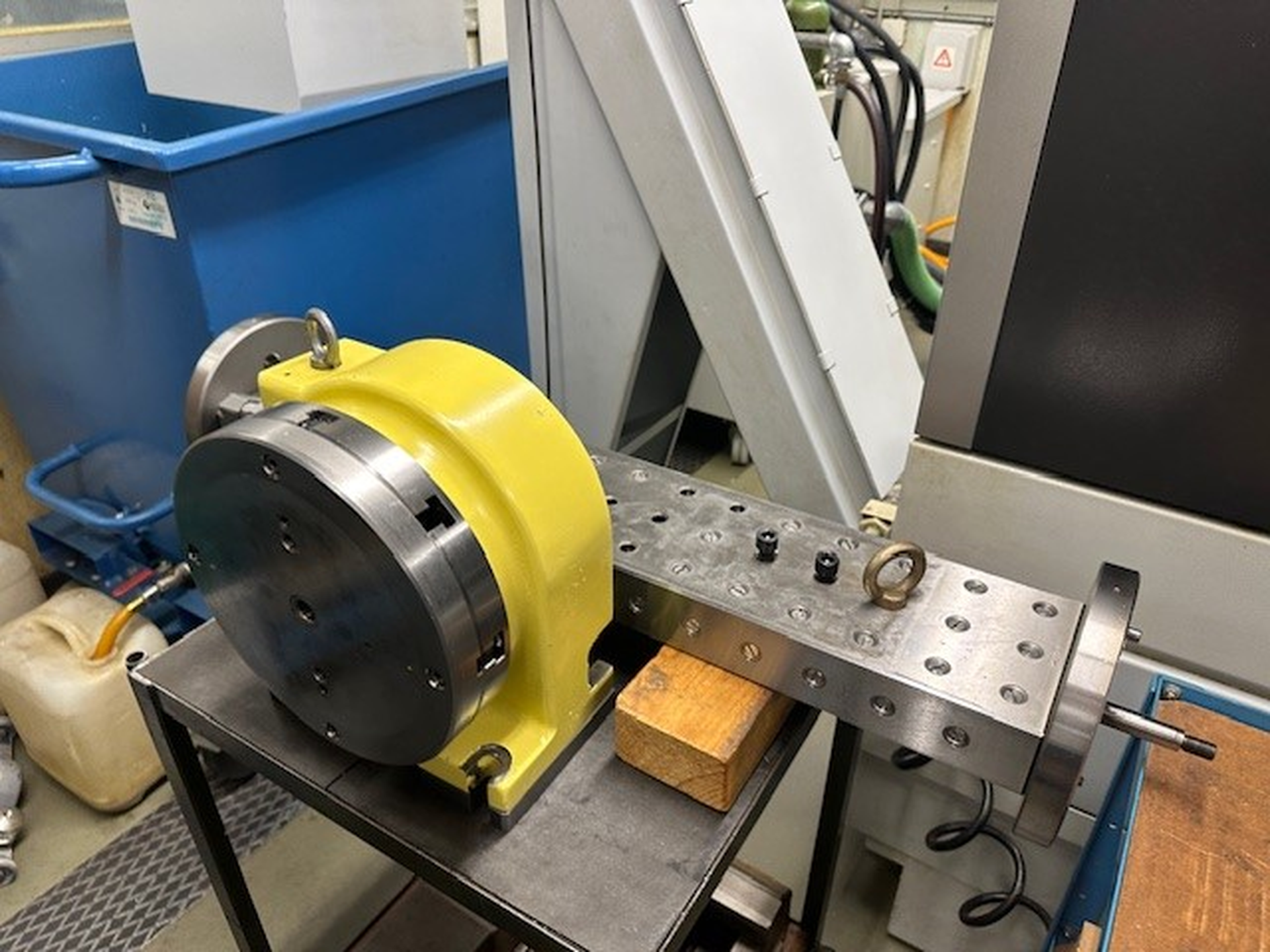

Dividing attachment 4th axis: NIKKEN.
