Home > Miscellaneous Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

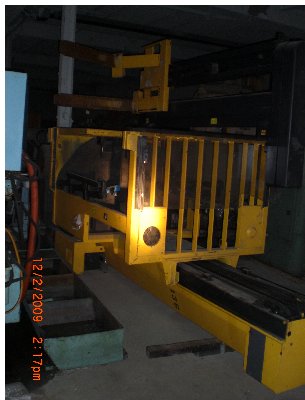

  • 25000 LB ALLIS CHALMERS 210" LIFT 6 FOOT FORKS
  • Condition:
  • NA
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United States of America

DESCRIPTION

EQUIPPED WITH

Battery Forks
Service and Parts Manuals
(2) 36-Volt Battery Chargers

SPECIFICATIONS:

Twin Mast
Lifting Height: 255"
Collapsed Height: 149"
Extended Height: 297"
Traverse/Fork Extend: 66"/180Degree
Load Wheel Overall Width: 57"
Fork Length: 42"
Operator Platform Width (including) Extensions: 56"
Capacity: 3000Lbs To 255" With 24" HLC & 24" VLC
Volt System: 72
Batteries Required: Two 36 Volt
Minimum Weight For Each Battery: 1770 Lbs.
Truck Weight: 11947 Lbs.
