REQUEST PRICE

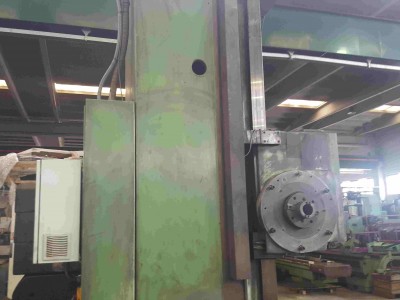

TITAN AFD 105 TABLE TYPE HORIZONTAL BORER

MACHINE INFORMATION AND SPECIFICATION

Subcategory:

Horizontal Borers

Manufacturer:

Horizon

Model:

TITAN AFD 105 TABLE TYPE HORIZONTAL BORER

Condition:

Used

YOM:

Control:

Price:

Seller:

NUOVA LOMBARMET S.P.A.

Country:

Italy

DESCRIPTION

Spindle: 105mm.
Transversal travel: 2.000mm.
Vertical travel: 1.625mm.
Longitudinal travel: 1.500mm.
Spindle travel: 700mm.
Spindle taper: 50ISO
Table: 1.524 x 1.220mm.
Spindle power: 11Kw.
Spindle speeds: N. 18; 12,5 - 1.180Rpm.
Max. weight on table: 5.000kg.
Total weight: 16,5Tons.
Year: 1993
Notes: RETROFITTED IN 2000.COMPLETE WITH:- BIROTATIVE MILLING HEAD- D.R.O.- BALLSCREWS

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

NUOVA LOMBARMET S.P.A.

Contact Name
Piero Reina
