MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Bystronic
  • Model:

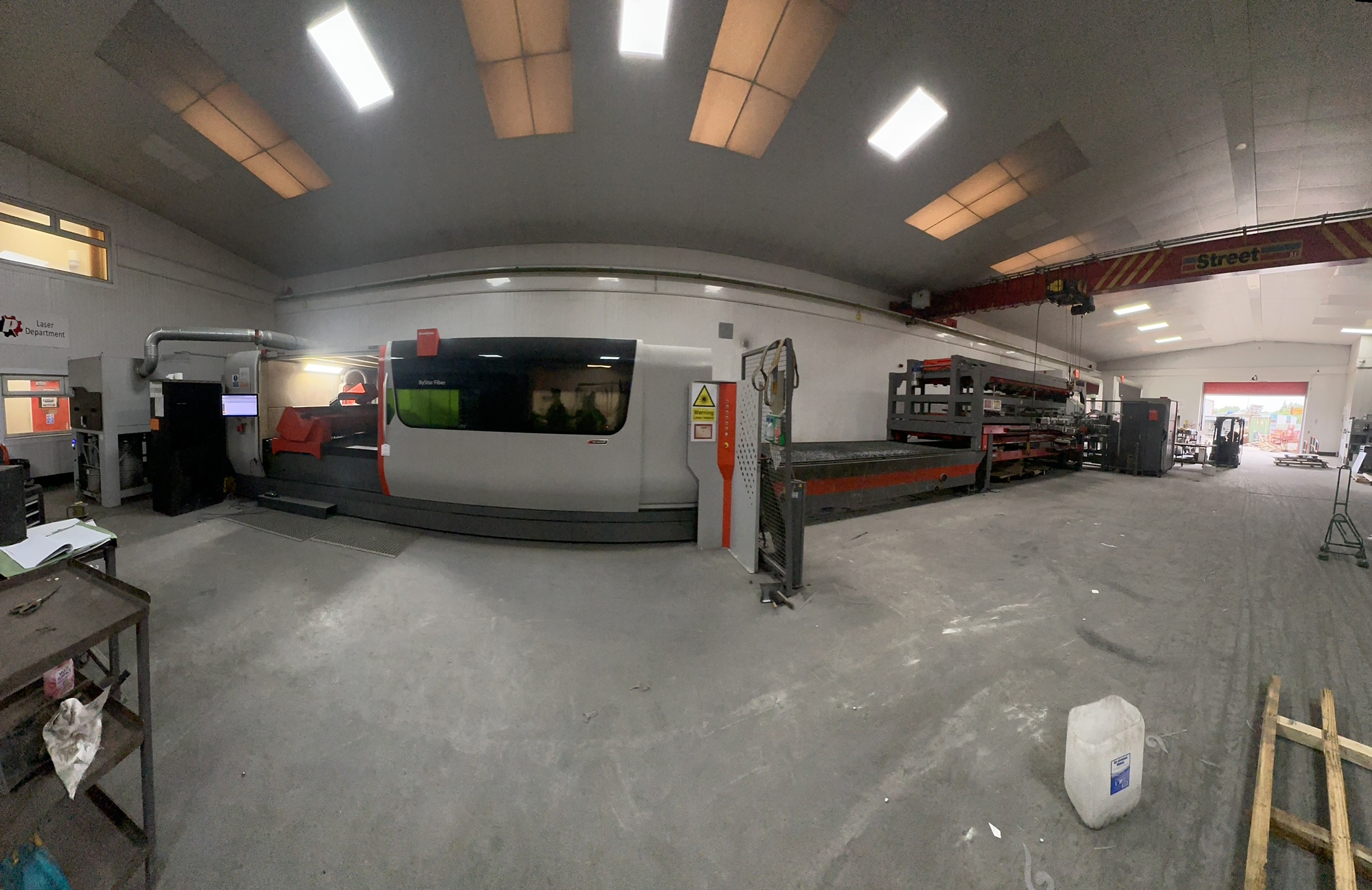

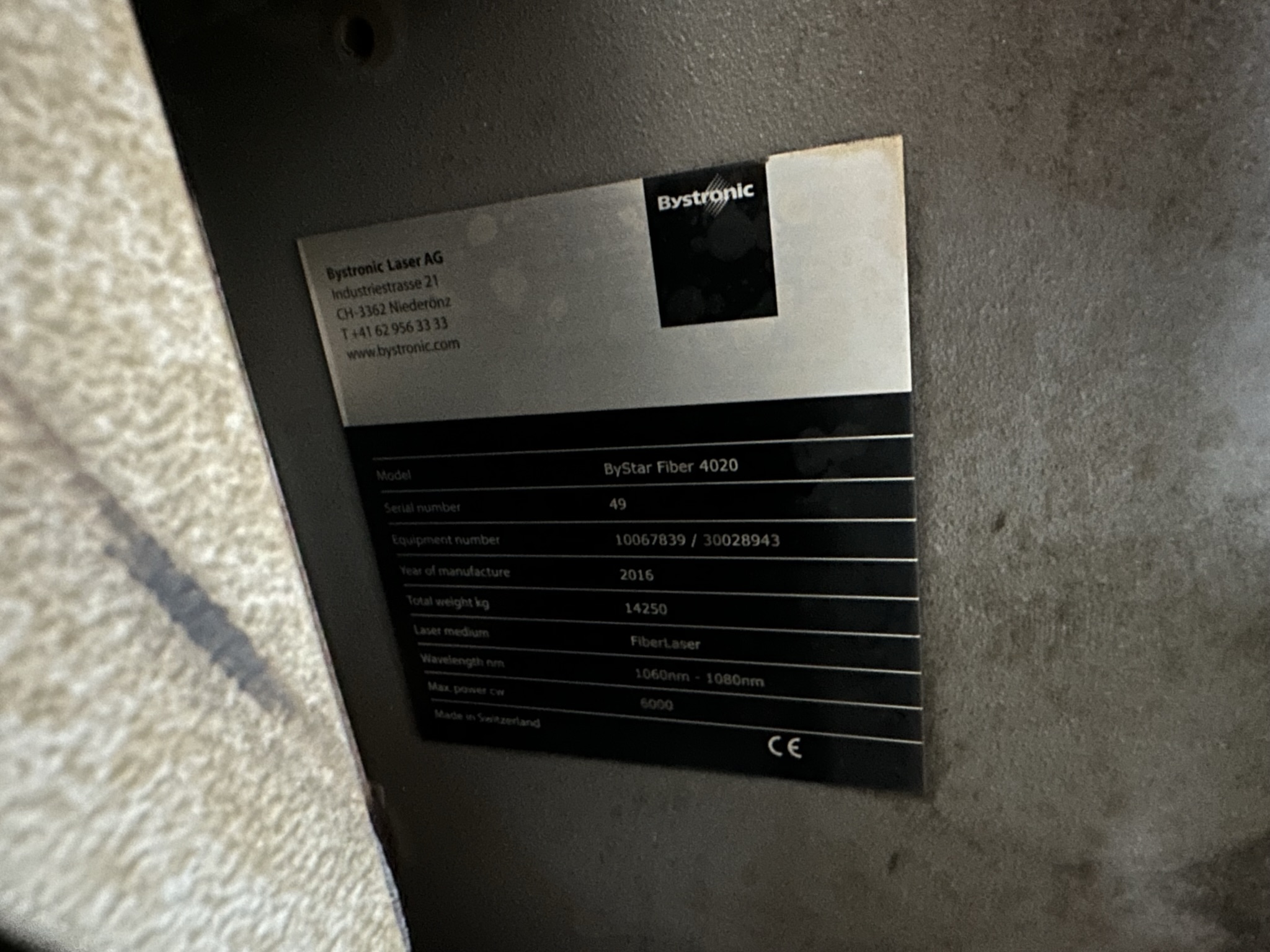

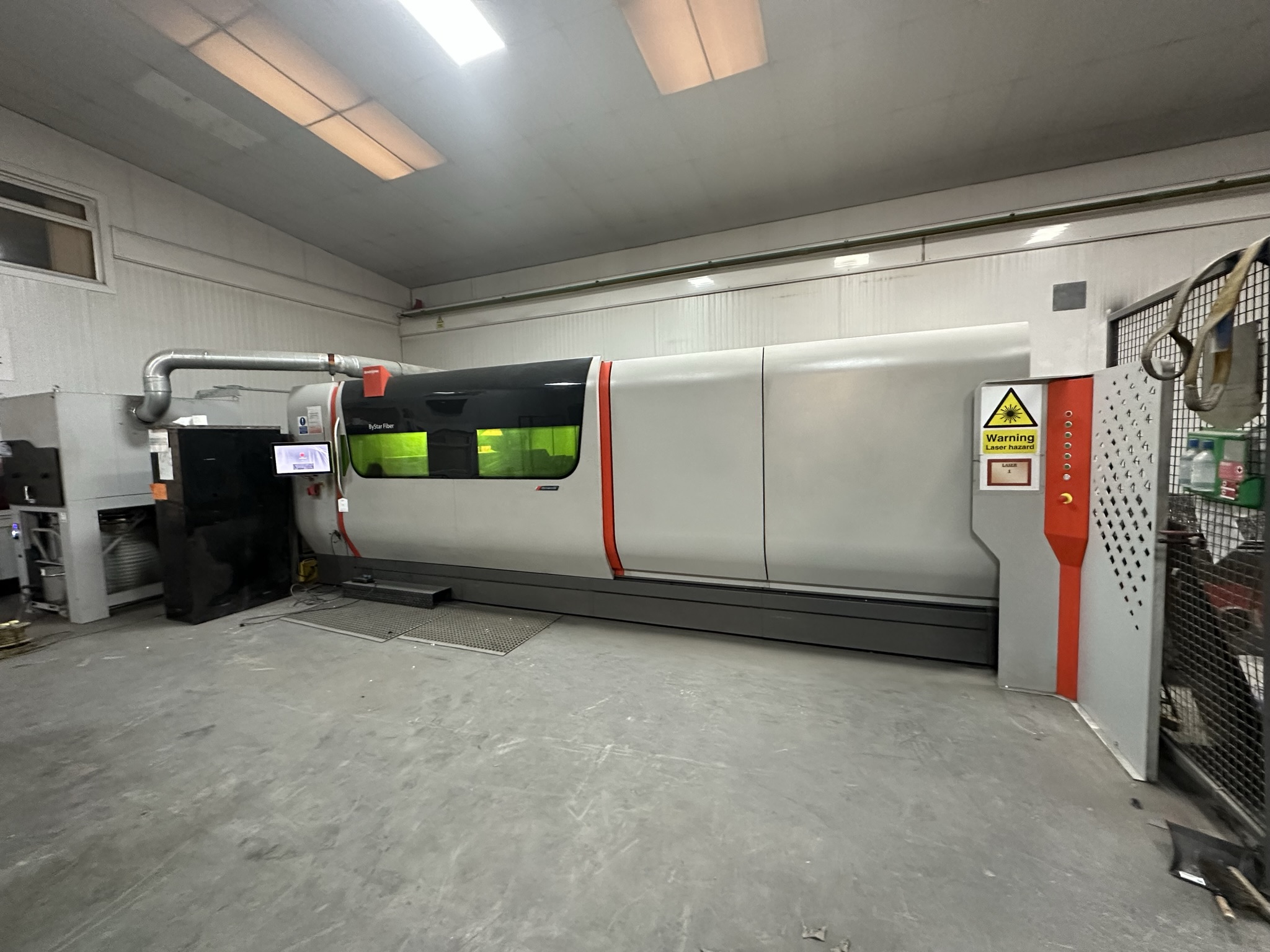

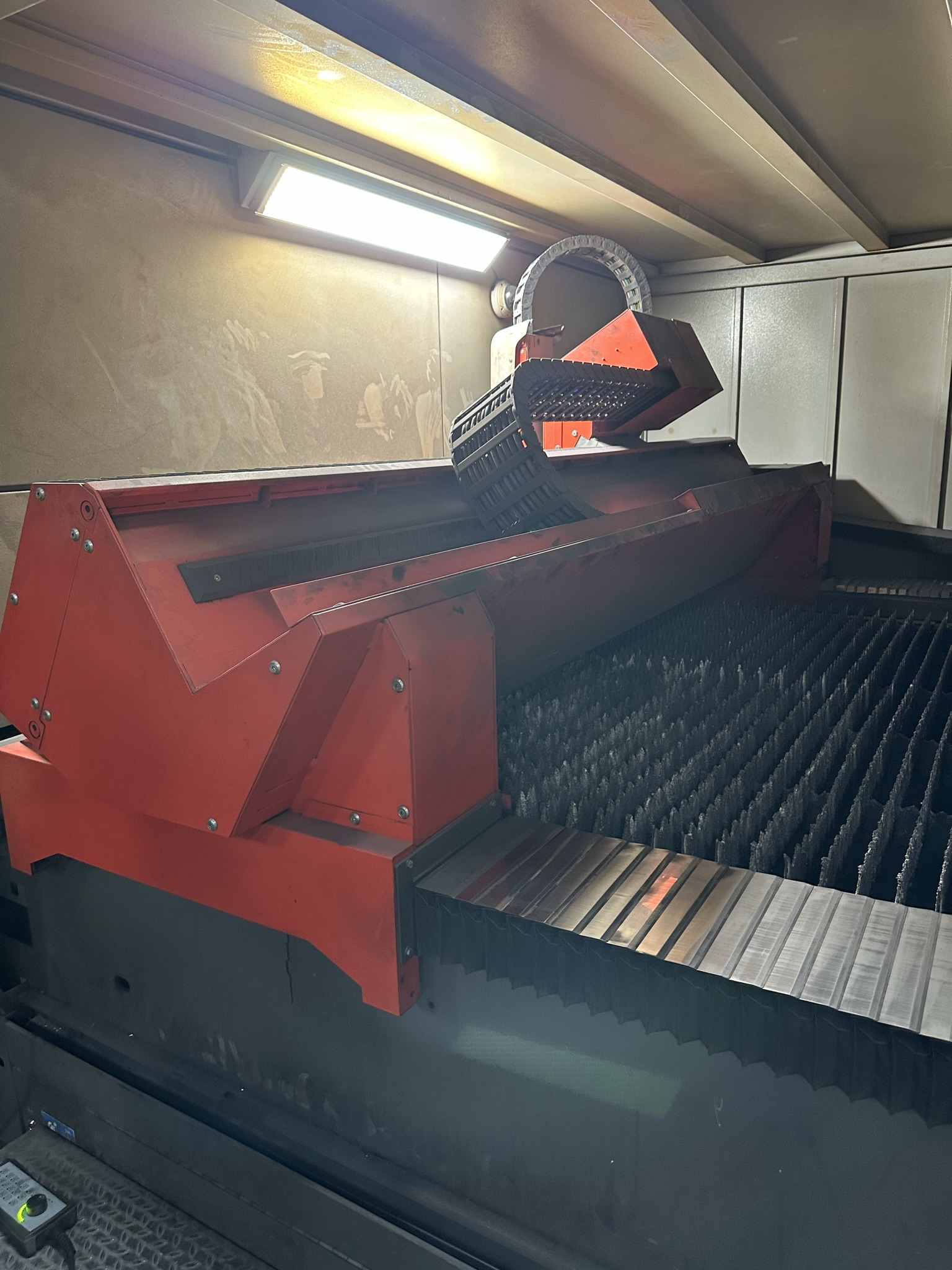

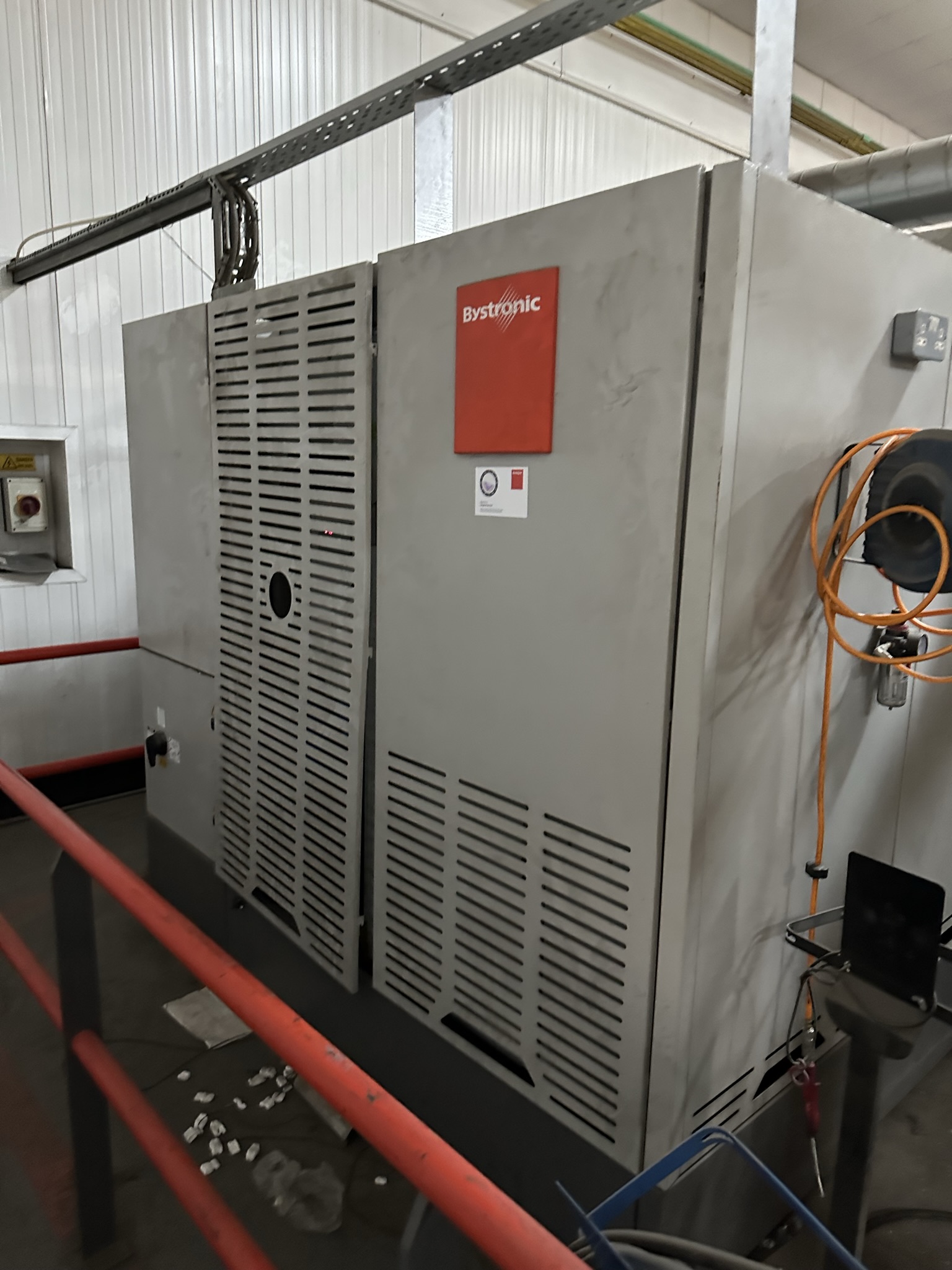

  • ByStar 4020 6kW Fiber Laser with ByTrans 4020 Extended
  • Condition:
  • Used
  • YOM:
  • 2016

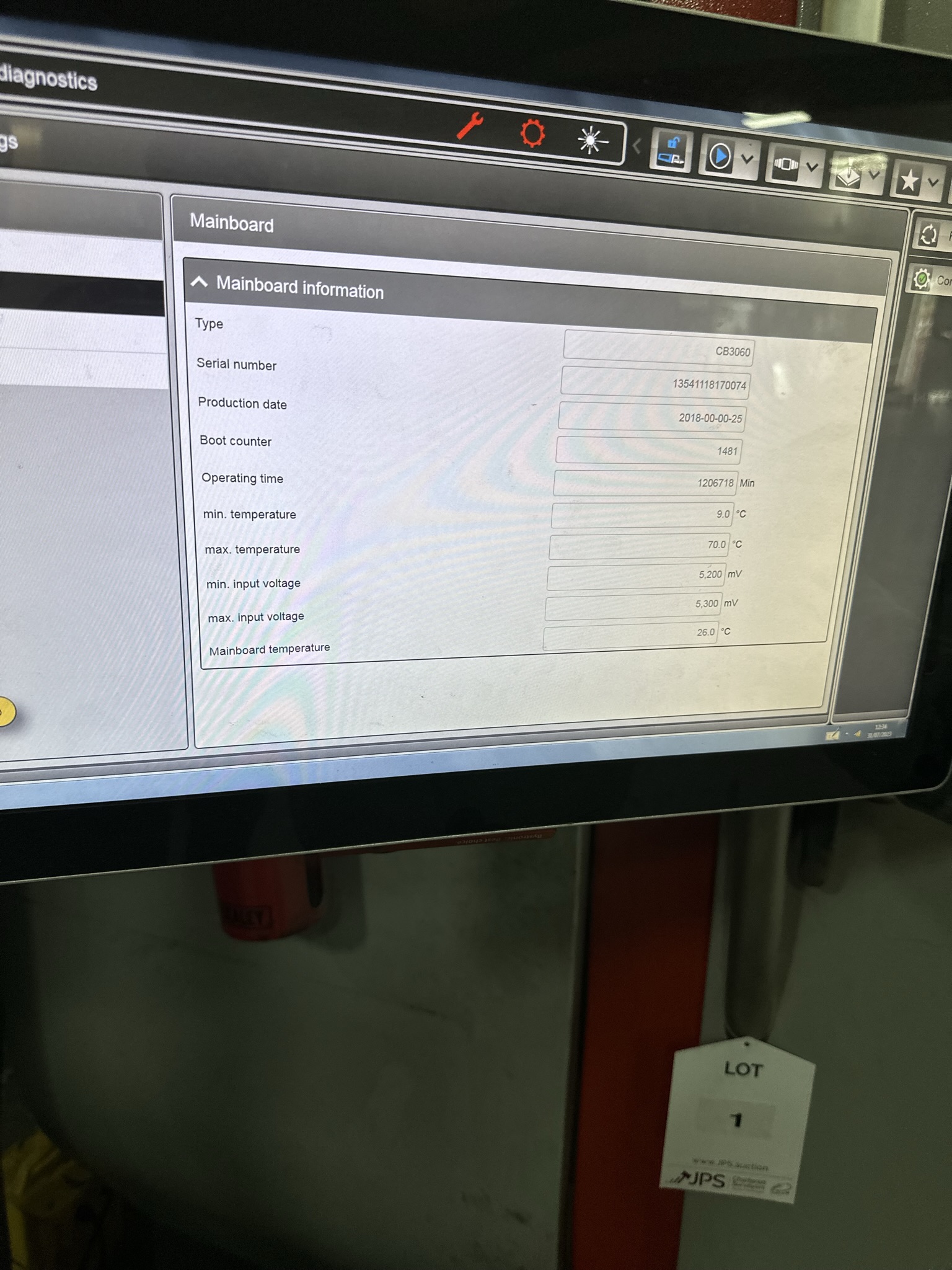

  • Control:
  • Bystronic
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

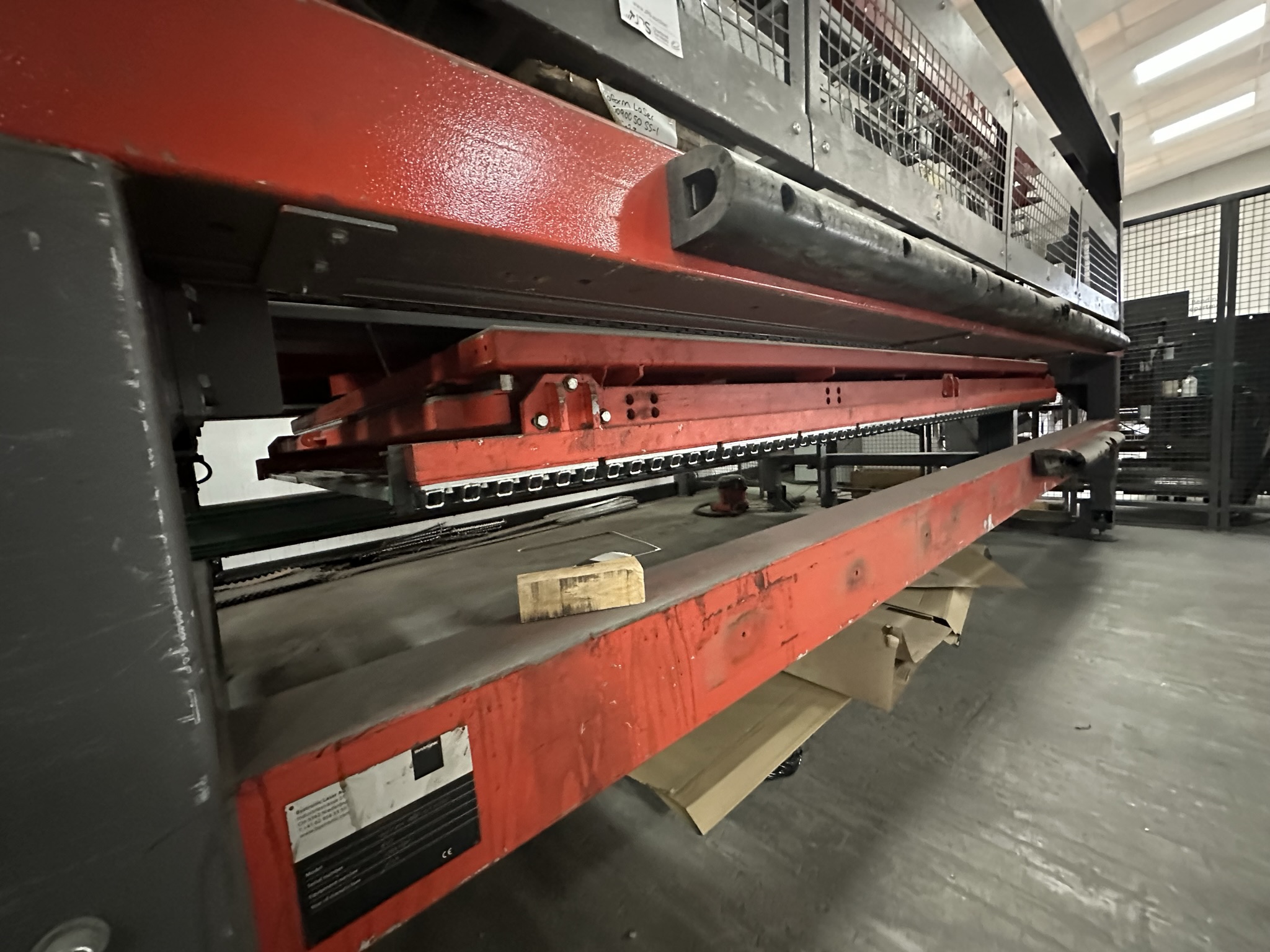

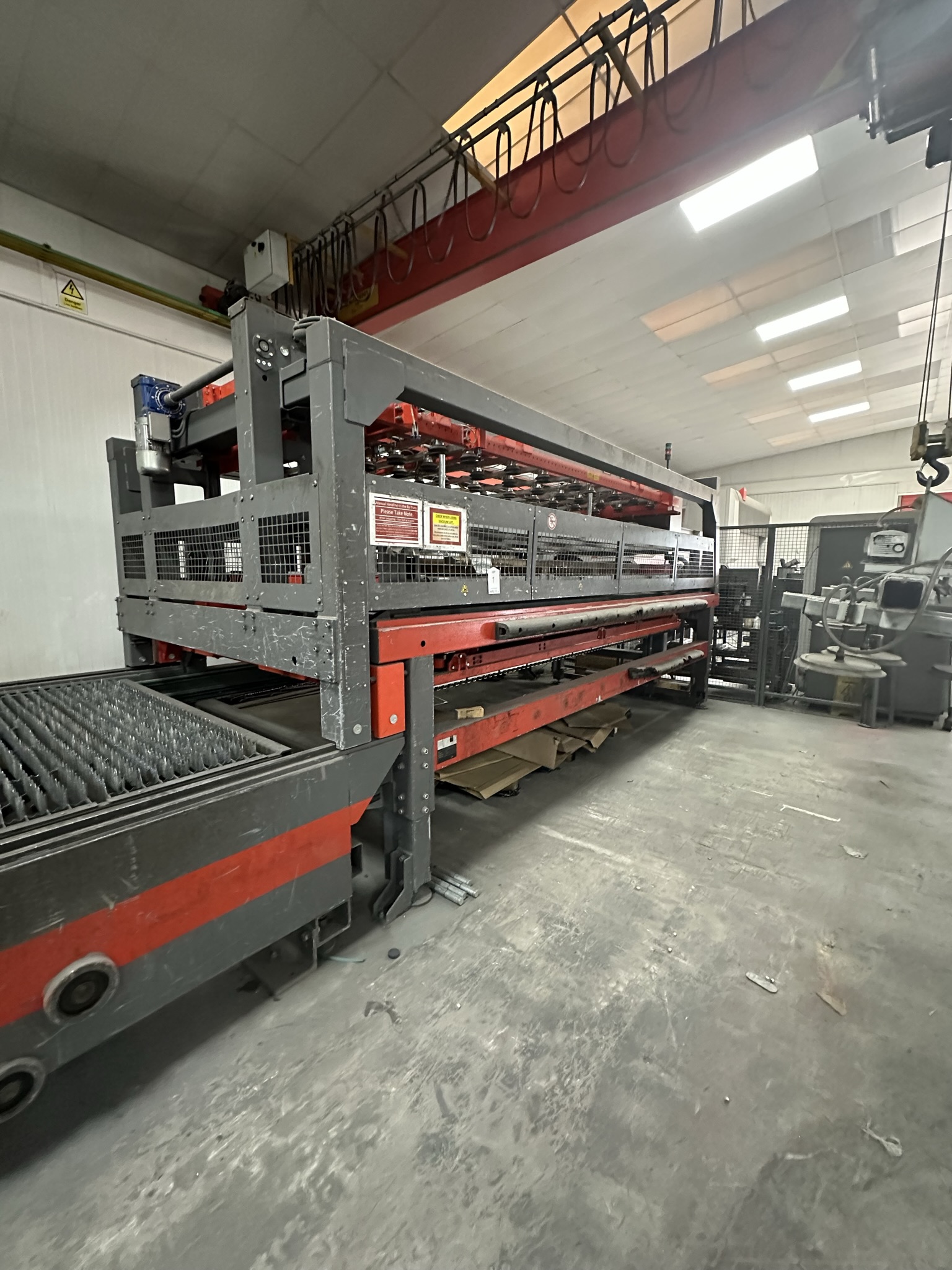

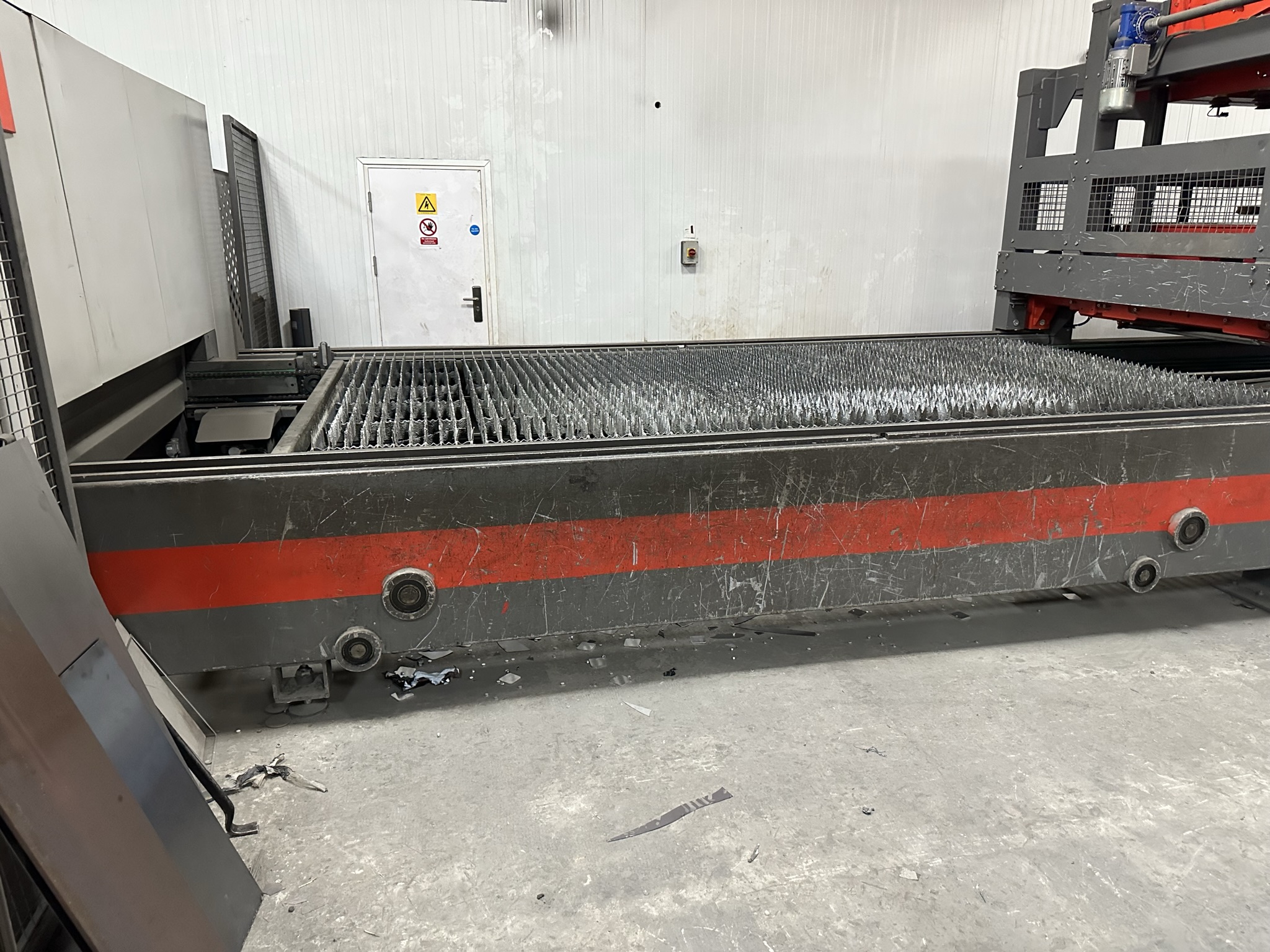

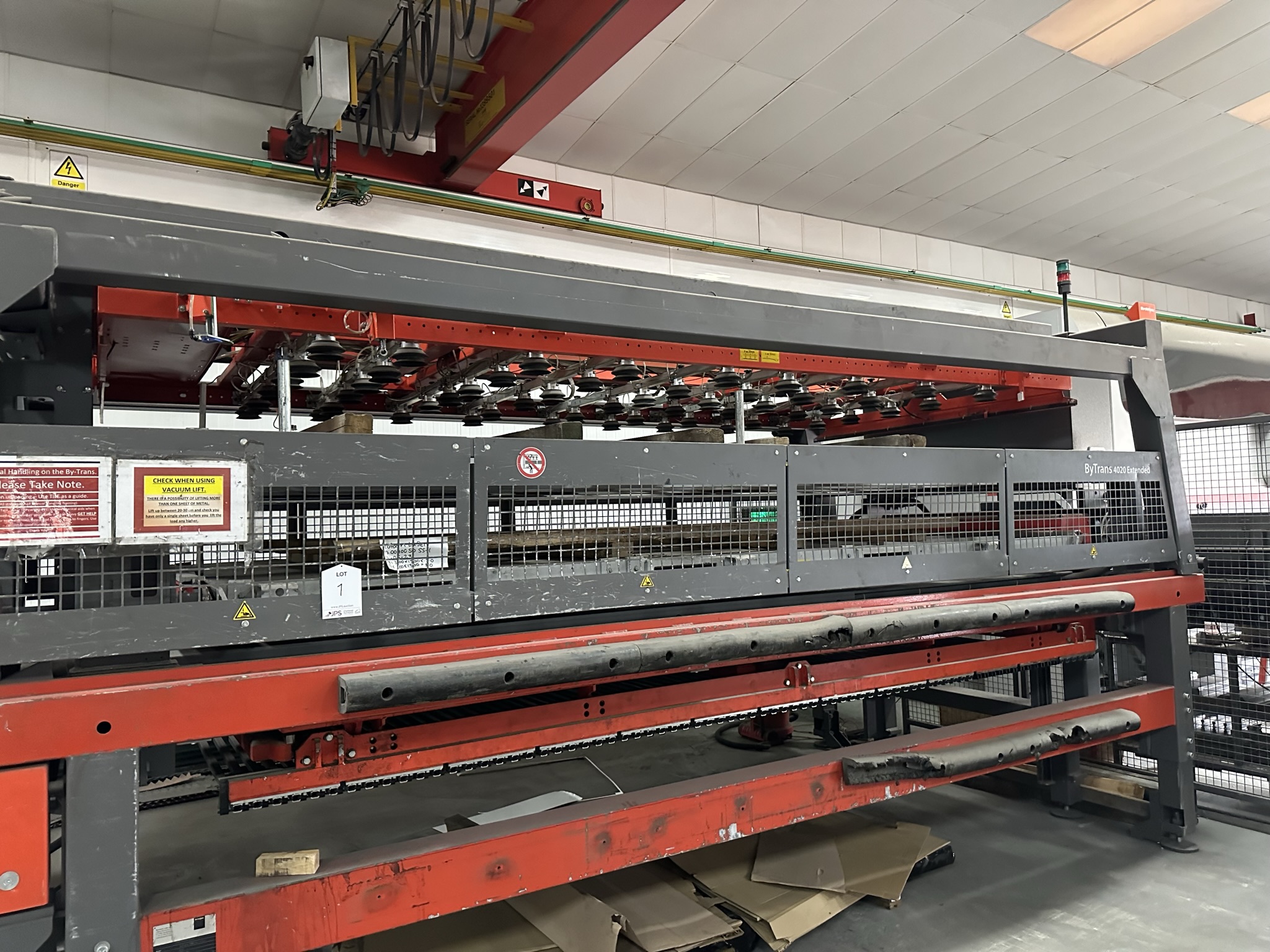

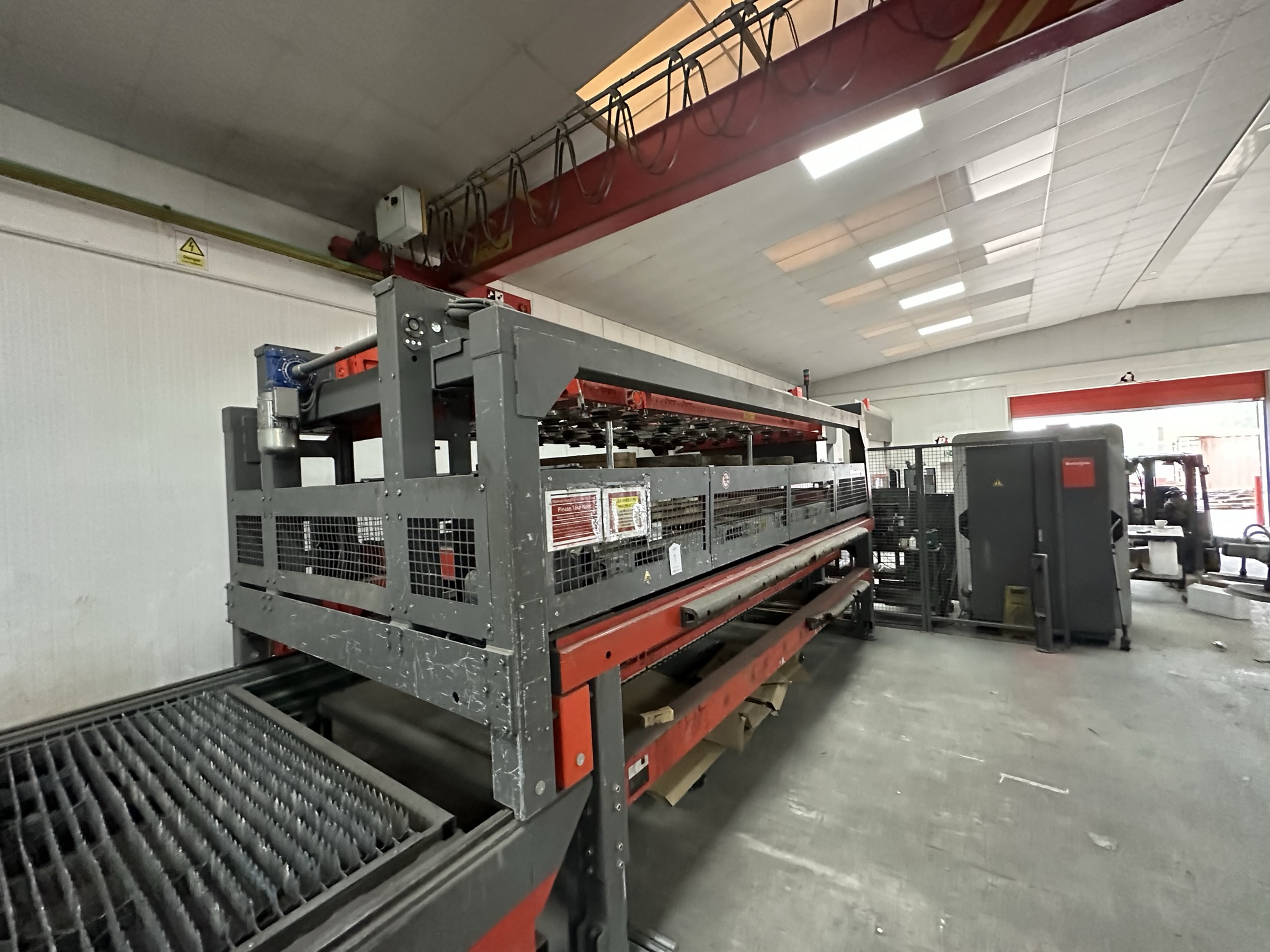

This machine is in excellent condition and is available to purchase immediately. Viewing is by appointment only, please get in touch to arrange a viewing slot. Purchase of this machine includes a 2016 Bystronic Bytrans 4020 material loader and tooling package. Cutting Time: 8600 Hours Laser Power: 6kW Capacity: Max Workpiece Size: 4000 x 2000mm Axis Travel: X Axis: 4105mm Y Axis: 2100mm Z Axis: 100mm Rapid Traverse Rates: X Axis: 120m/min Y Axis: 120m/min Z Axis: 60m/min Repeatability: ±0.025mm Maximum Cutting Speed: 50m/min Maximum Workpiece Weight: 1600kg Table Changeover Time: 28s Approx Dimensions: 14,200 x 6,300 x 3,200m (L x W x H) Machine Weight: 14,500kg
