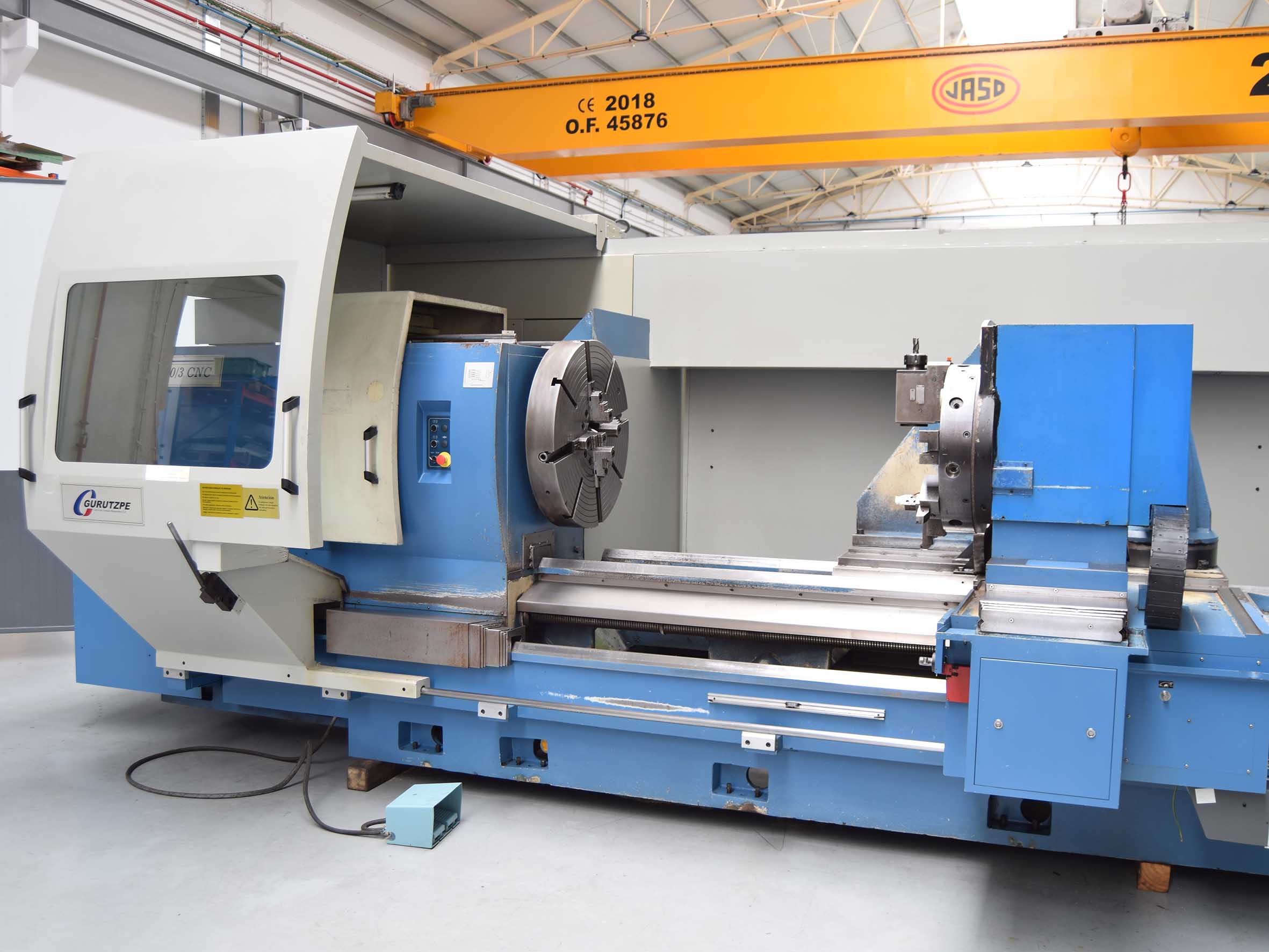

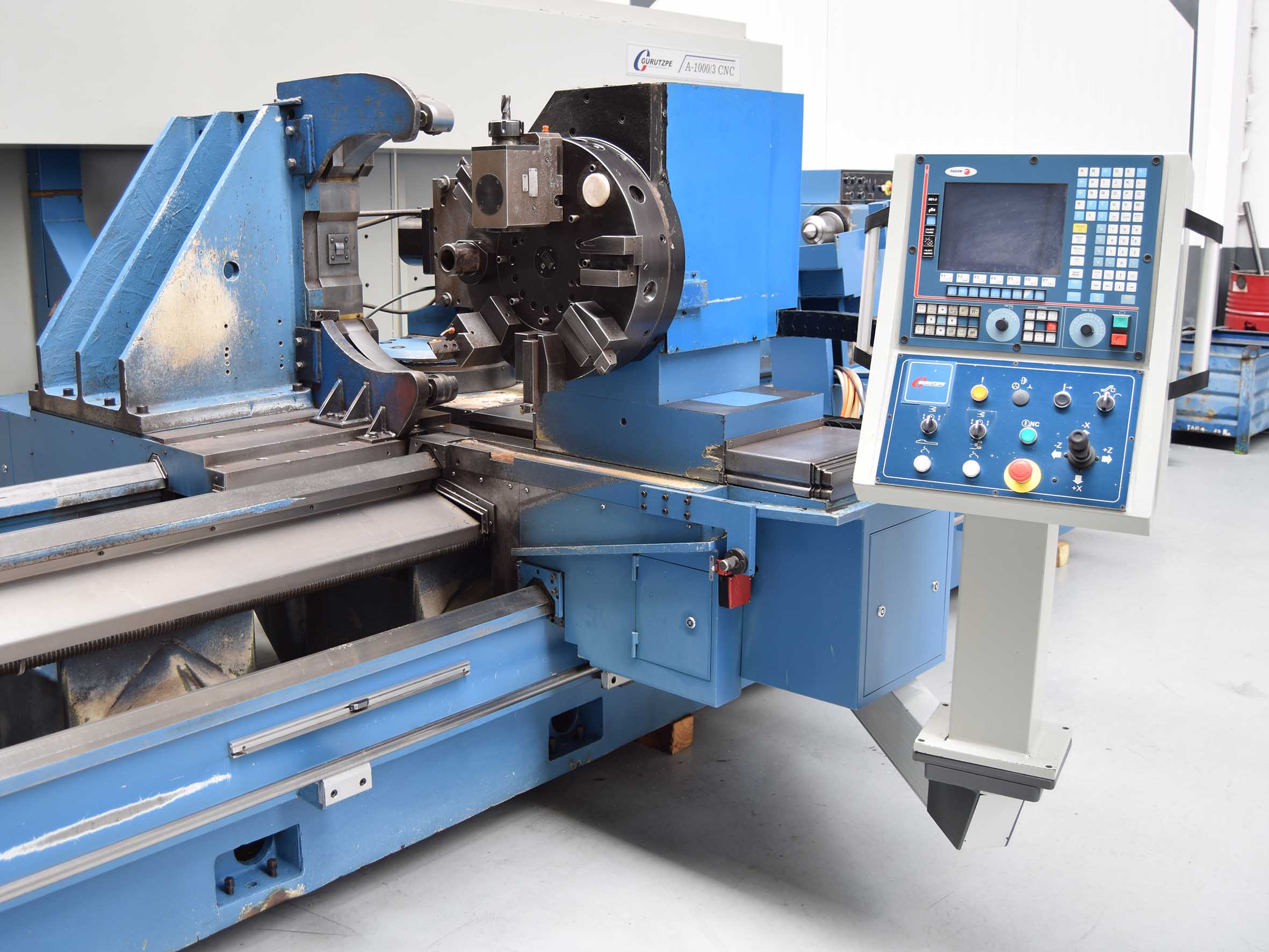

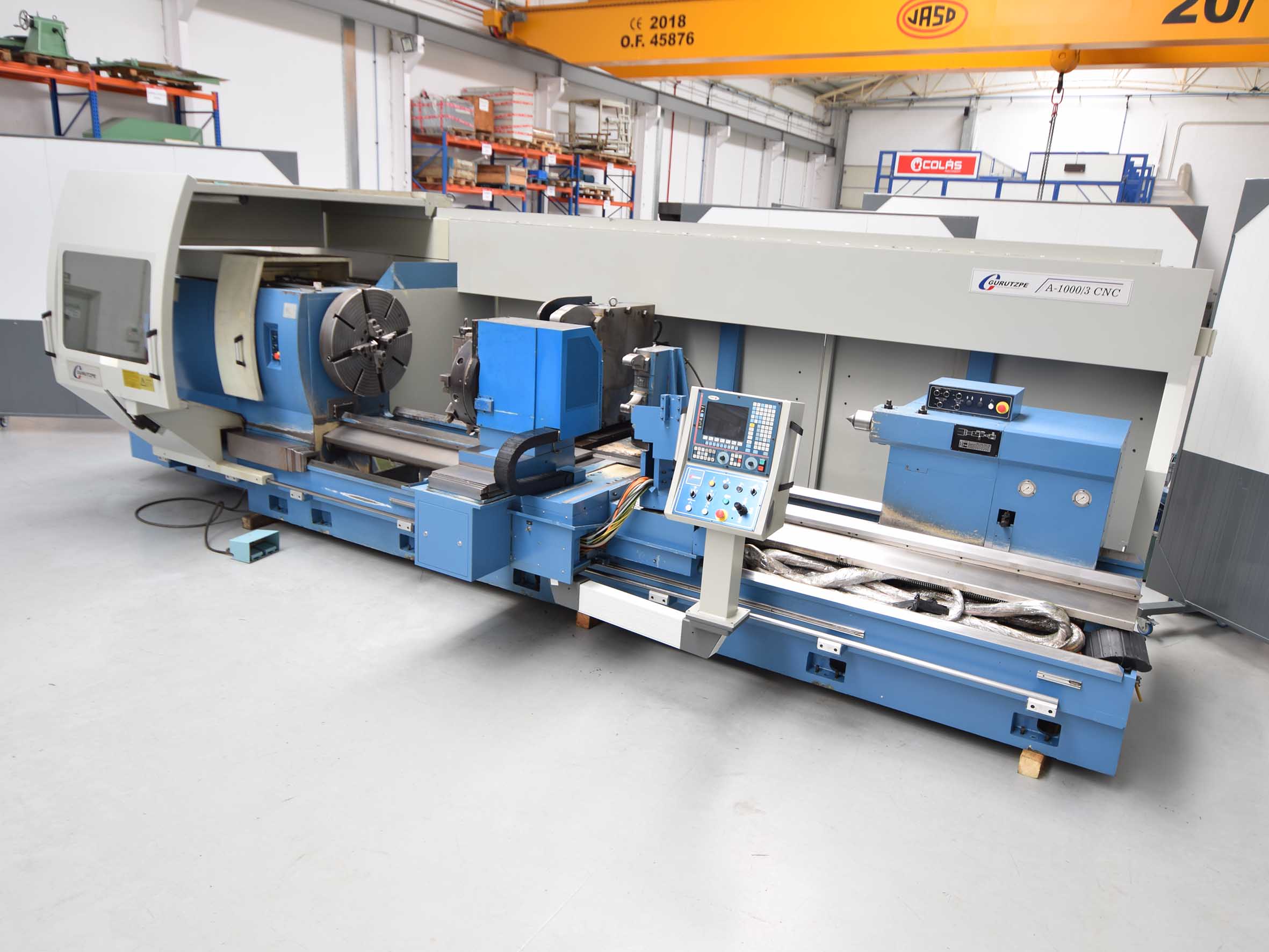

Manufacturer GURUTZPE
Model A1000 / 3 CNC
Year 2004
CNC FAGOR 8055 TC
Distance Between Centres 4.000 mm.
Support Guides Number 4
Max. Ø Swing Over Bed 1.000 mm.
Rapid Traverse X Axis 10 m/min
Rapid Traverse Z Axis 10 m/min
Turning Speeds 20-1.000 rpm
Head Automatic Range Number 2
Main Engine Power 39/48 kW
Quill Spindle 105 mm.
Driven tailstock (CNC Managed) INCLUDED
Chuck Protection INCLUDED
C Axis and Driven Tools INCLUDED
Turret SAUTERVDI 50 8 Positions
1 axial driven tool holder INCLUDED
1 radial driven tool holder INCLUDED
Complete Rear Protection INCLUDED
Steady Rest SHW Autoblock 150/650 INCLUDED
U axis longitudinal CNC movement Z axis for steady rest SHW Autoblock 150/650 INCLUDED
Steady Rest SHW Autoblock 150/650 INCLUDED
V axis longitudinal CNC movement Z axis for steady rest SHW Autoblock 30/295 INCLUDED
Automatic Tur 0-180 for steady rest SHW Autoblock 30/295 INCLUDED
Chuck with 3 Jaws Ø 500 mm INCLUDED
Chuck with 4 Independent Hard Jaws Ø1.00 mm INCLUDED
Chip Conveyor INCLUDED
Portable Handwheel FAGOR INCLUDED
Total power 60 kW
Machine Weight 20.000 kg.
Machine dimensions 9.775 x 3.100 mm
