MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Clearing
  • Model:

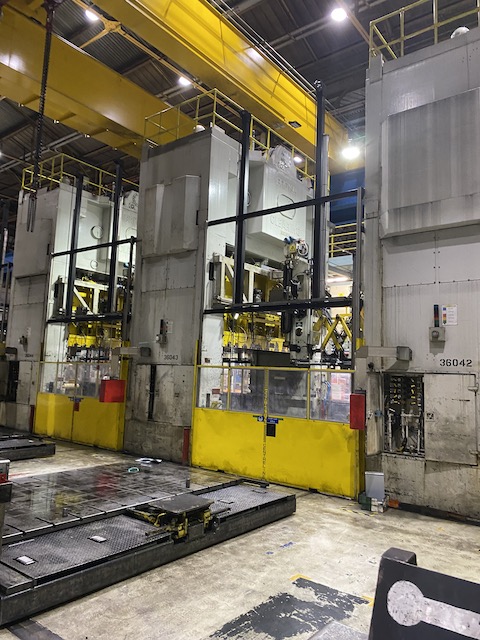

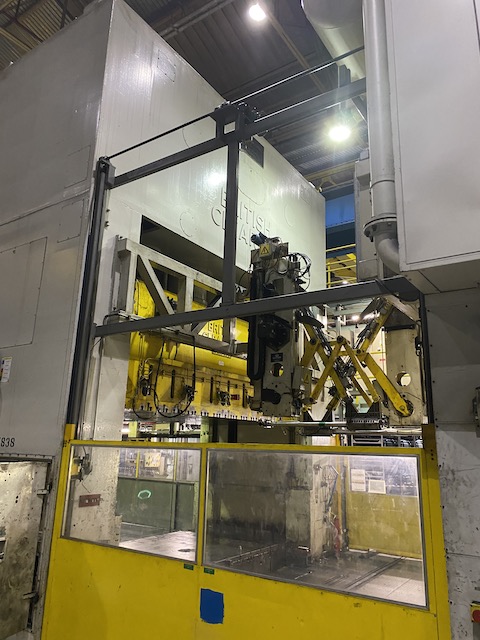

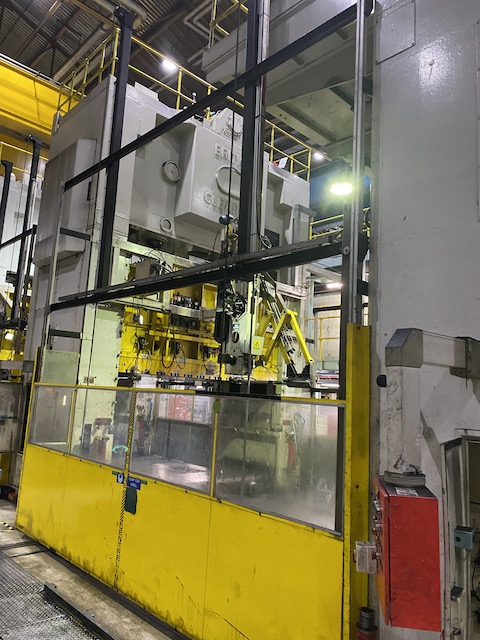

  • CLEARING S4-800-156-84
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Pressure total: 800 ton
  • Ram stroke: 610 mm
  • Slide adjustment: 605 mm
  • Shut height (stroke down, adjustment up): 1625 mm

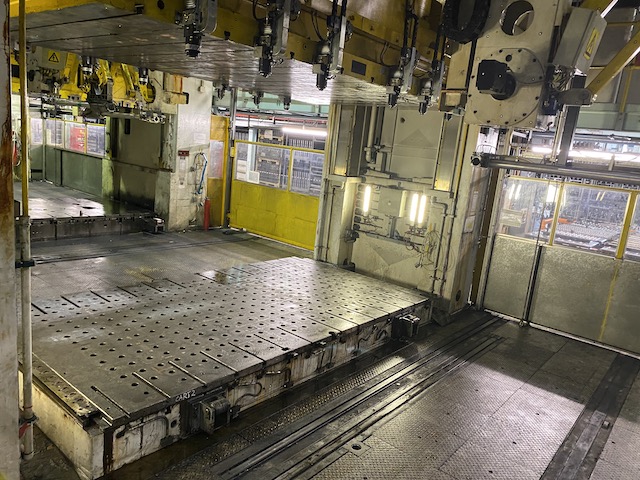

  • Table surface area : 3960 x 2130 mm

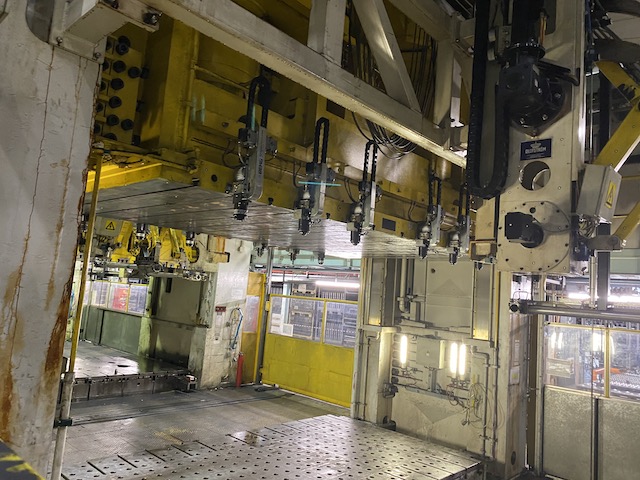

  • Slide area: 3960 x 2130 mm
  • Number of strokes: 10 s.p.m.
  • Table height over floor: 345 mm
  • Weight of machine approx.: 340 ton
.
+ request more information
