Home > Metal Cutting > Milling Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • FP 40/40 UAGA
  • Condition:
  • NA
  • YOM:
  • 2006
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Spain

DESCRIPTION

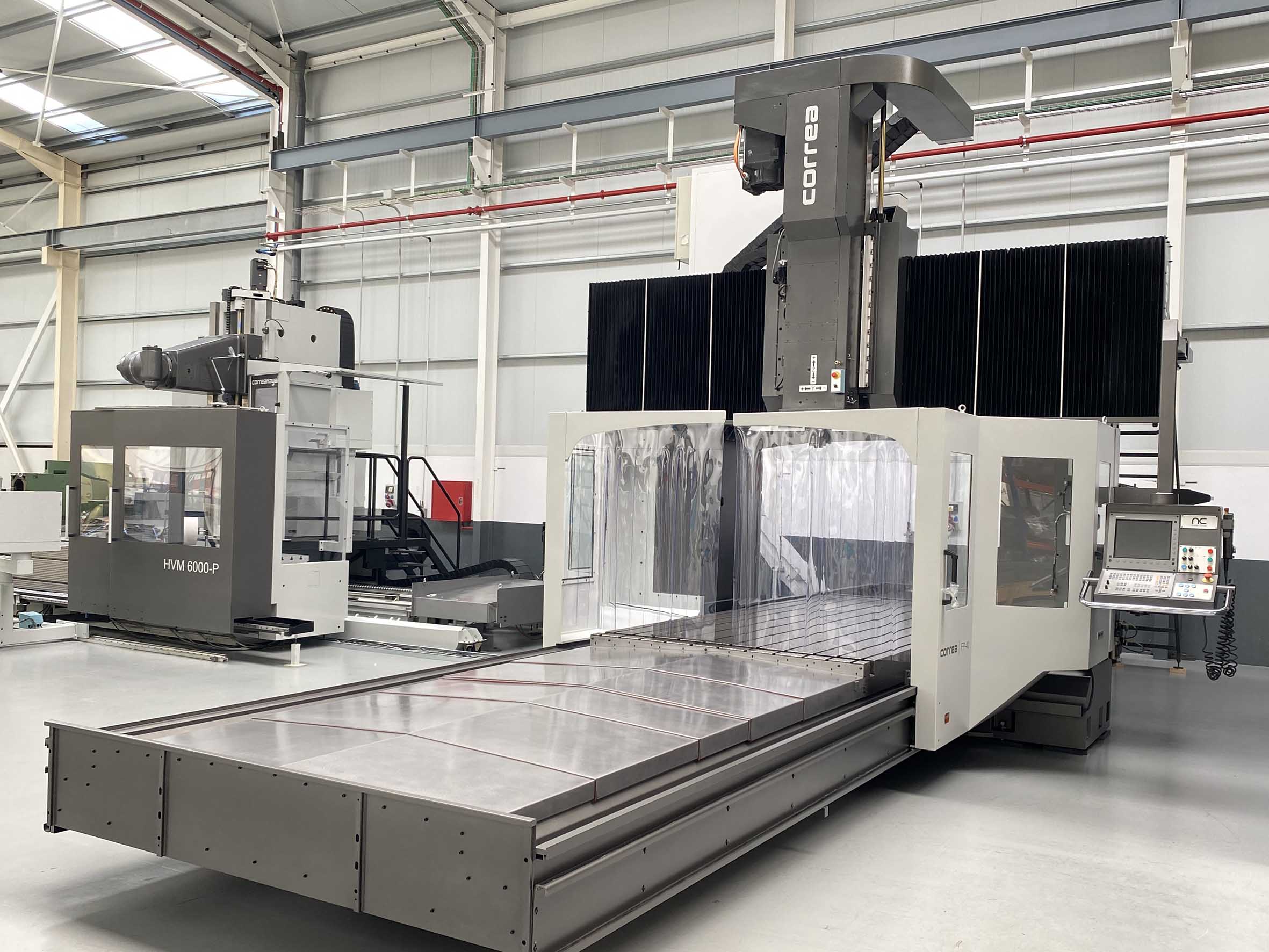

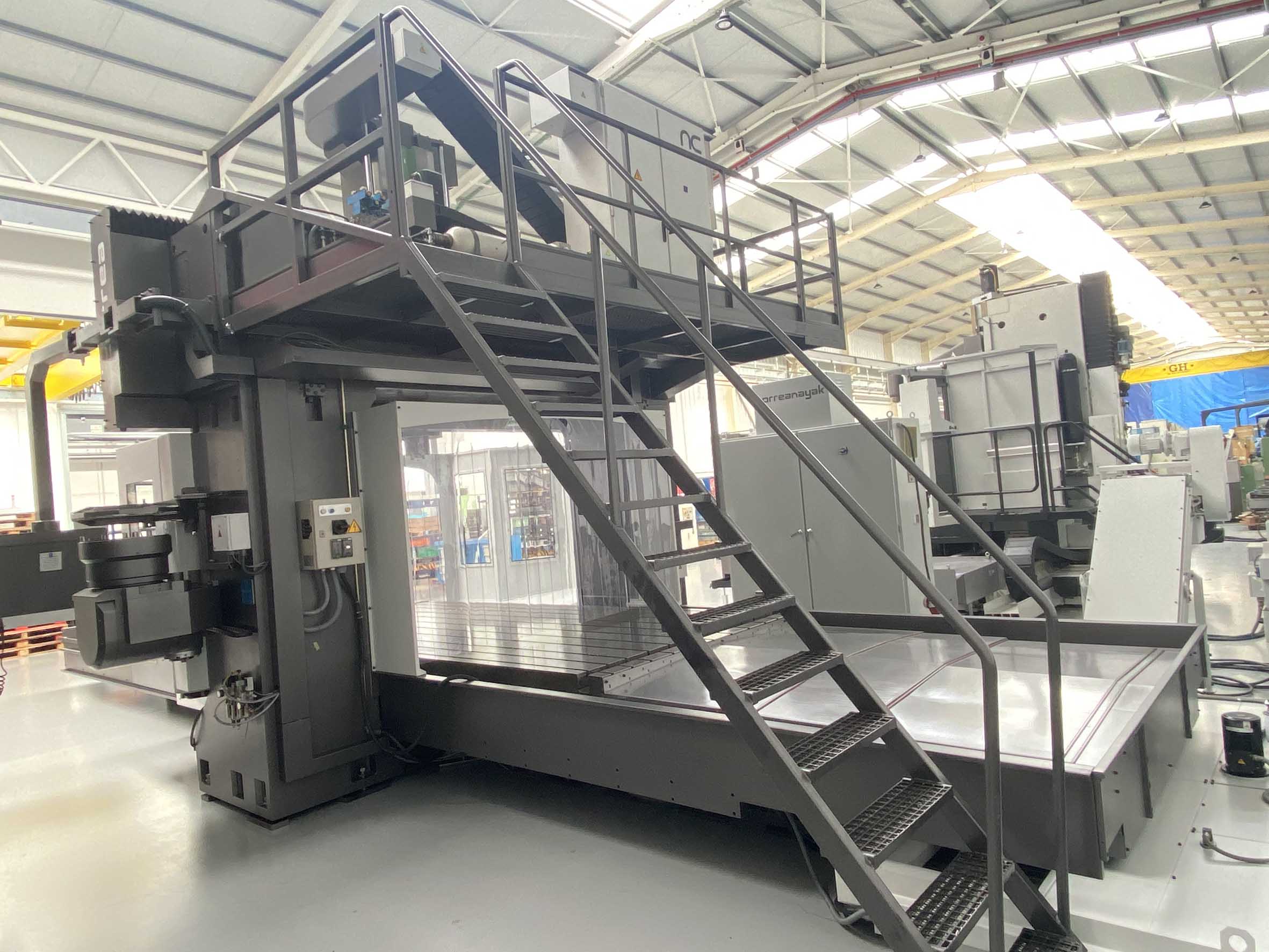

Manufacturer :NICOLAS CORREA Model :FP 40/40 UAGA Year :2006 CNC :HEIDENHAIN iTNC-530 Table Surface :4.500 x 2.000 mm Longitudinal Travel (X Axis) :4.000 mm Cross Travel (Y Axis) :3.000 mm Vertical Travel (Z axis) :2.500 mm Distance Between Columns :2.550 mm Rapid Feed (X Axis) :15.000 mm/min Rapid Feed (Y, Z Axis) :12.000 mm/min Max. Working Feed :5.000 mm/min Taper :ISO-50 Direct Output Head Speed :5.000 r.p.m. Speed Head 45º :3.000 r.p.m. Main Engine Power :22 kW Speed Ranges :2 Max Weight Allowed on table :15.000 kg. Direct Output INCLUDED Universal Head UAGA : INCLUDED Auto Indexing Head :2.5º /2.5º Automatic Support in the right side for Head UAGA INCLUDED Automatic Support in the left site for Direct Output Head. INCLUDED Automatic Head Changer :INCLUDED Chip Conveyor INCLUDED
+ request more information

SEND ENQUIRY

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY
