MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MACH
  • Model:

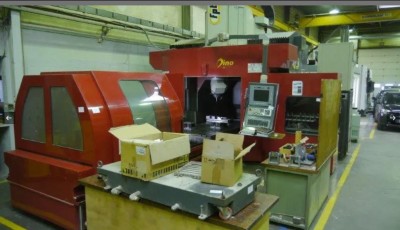

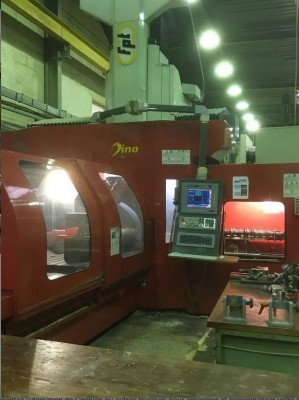

  • FPT DINO CNC GANTRY TYPE MILLING MACHINE
  • Condition:
  • Used
  • YOM:
  • 2003
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

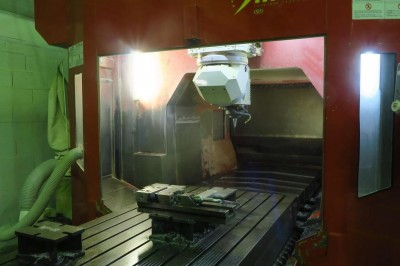

Table: 2.500 x 1.200mm.
Passage between columns: 1.750mm.
Max. working height: 1.200mm.
Portal travel: 2.300mm.
Transversal head travel: 1.600mm.
Vertical head travel: 1.000mm.
Max. weight on table: 6,5Tons.

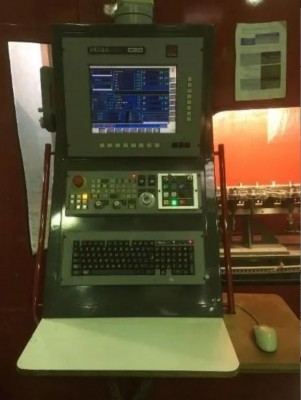

Cnc: CNC FIDIA C 20 - 5 AXIS
Year: 2003

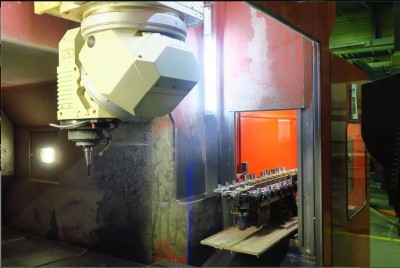

Notes: COMPLETE WITH:- N. 1 CONTINUOS TILTING HEAD: C AXIS + 270° / -9° B AXIS +/- 185° SPINDLE MOTOR POWER 17 KW. SPINDLE SPEEDS 34.000 RPM. SPINDLE TAPER HSK-E 40- N. 1 VERTICAL HEAD: SPINDLE MOTOR POWER 34 KW. SPINDLE SPEEDS 10.000 RPM. SPINDLE TAPER HSK-A 63- 30 SEATS ATC- CHIPCONVEYOR- ASPIRATION PLANT
