MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MACH
  • Model:
  • JOBS LINX COMPACT 30 CNC GANTRY TYPE MILLING MACHINE
  • Condition:
  • Used
  • YOM:
  • 2006
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Italy

DESCRIPTION

Table: 4.000 x 2.500mm.
Passage between columns: 3.915mm.
Max. working height: 1.895mm.
Portal travel: 4.000mm.
Transversal head travel: 2.950mm.
Vertical head travel: 1.500mm.
Spindle power: 20Kw.
Spindle speeds: 27.000Rpm.
Spindle taper: HSK-A 63ISO
Max. weight on table: 5 x MQ.Tons.
Total weight: 40Tons.

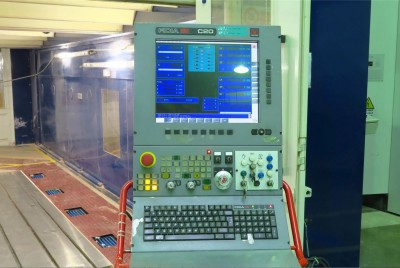

Cnc: CNC FIDIA C 20
Year: 2006

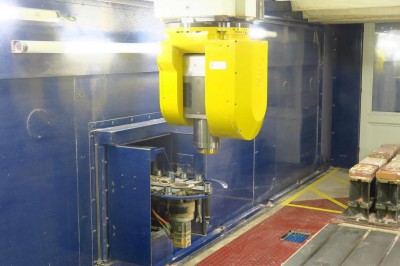

Notes: COMPLETE WITH:- N. 1 INDEXED TILTING HEAD: C AXIS +/- 200°; A AXIS + 120° / - 110°- 40 SEATS ATC- ASPIRATION PLANT
